RX60-DEPNS (1980)

Toyota Chaser

Production Sep 1980 - Aug 1982
Engine 21RU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8009- )

Click highlighted areas on diagram

diagram 86011A 86011A 86011C 86011C 86011C 86120 86120 86170 86221A 86260 86260 86280 8639422010 8639422010 9098004023 9098004036 9098005060 9098005061 9098005073 9322915008 9322915008 9322915008
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04036

GX6#,MX61,RX6#,SX60,TX60

IGNITION COIL

 1
90980-04023

GX6#,LX6#,MX61,RX6#,SX60,TX60

DEFOGGER

 1
86011A - CONDENSER, RADIO SETTING
90980-04036

GX6#,MX61,RX6#,SX60,TX60

IGNITION COIL

 1
90980-04023

GX6#,LX6#,MX61,RX6#,SX60,TX60

DEFOGGER

 1
86011C - FILTER, NOISE
90980-05061

GX6#,LX6#,MX61,RX6#,SX60,TX60..SED

DEFOGGER

 1
86011C - FILTER, NOISE
90980-05061

GX6#,LX6#,MX61,RX6#,SX60,TX60..SED

DEFOGGER

 1
86011C - FILTER, NOISE
90980-05061

GX6#,LX6#,MX61,RX6#,SX60,TX60..SED

DEFOGGER

 1
86120 - RECEIVER ASSY, RADIO
86120-22241

GX6#,LX60,MX61,RX6#,TX60

*18

 1
86120-22270

GX60,LX60,RX60,TX60..SXL,XG,XL

*19

 1
86120-22230

LX60,RX60,TX60..XL

*25

 1
86120 - RECEIVER ASSY, RADIO
86120-22241

GX6#,LX60,MX61,RX6#,TX60

*18

 1
86120-22270

GX60,LX60,RX60,TX60..SXL,XG,XL

*19

 1
86120-22230

LX60,RX60,TX60..XL

*25

 1
86221A - PANEL, RADIO RECEIVER
86221-22010

GX60,LX60,RX60,TX60

*19

 1
86221-22020

GX60,LX60,RX60,TX60

AM,*25

 1
86221-22030

GX60,LX60,RX60,TX60

*19(RADIO=W/LIGHTING SW)

 1
86221-22040

GX60,LX60,RX60,TX60

AM,*25(RADIO=W/LIGHTING SW)

 1
86260 - TAPE PLAYER ASSY
86260-29035

GX60,LX60,RX60,TX60

*19

 1
86260-29055

GX60,LX60,RX60,TX60

AM,*25(RADIO=W/LIGHTING SW)

 1
86260-29015

GX60,LX60,RX60,TX60

AM,*25

 1
86260-29065

GX60,LX60,RX60,TX60

*19(RADIO=W/LIGHTING SW)

 1
86260-29046

GX6#,LX60,MX61,RX6#,TX60

RECORDING,*17,*18

 1
86260-29045

GX6#,LX60,MX61,RX6#,TX60

RECORDING,*17,*18

 1
86260 - TAPE PLAYER ASSY
86260-29035

GX60,LX60,RX60,TX60

*19

 1
86260-29055

GX60,LX60,RX60,TX60

AM,*25(RADIO=W/LIGHTING SW)

 1
86260-29015

GX60,LX60,RX60,TX60

AM,*25

 1
86260-29065

GX60,LX60,RX60,TX60

*19(RADIO=W/LIGHTING SW)

 1
86260-29046

GX6#,LX60,MX61,RX6#,TX60

RECORDING,*17,*18

 1
86260-29045

GX6#,LX60,MX61,RX6#,TX60

RECORDING,*17,*18

 1
Common parts
86394-22010
90980-04023
90980-04036
90980-05060
90980-05061
90980-05073
93229-15008

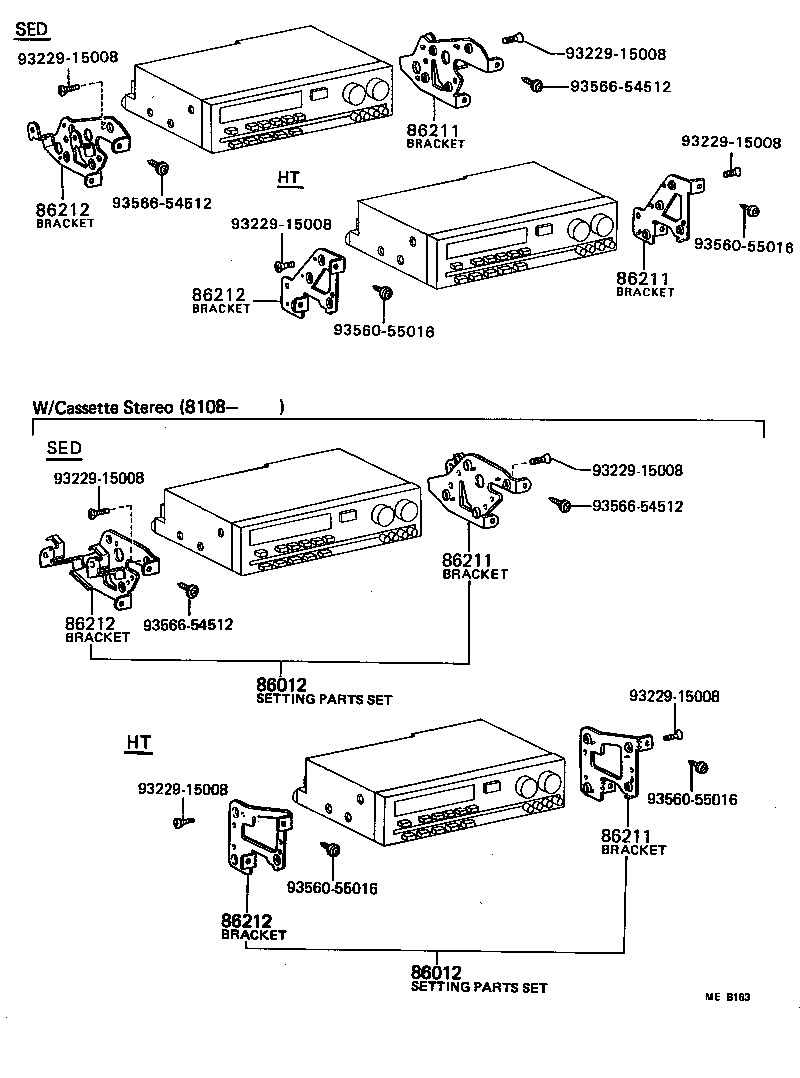

ILLUST NO. 2 OF 2(8009-8208)

Click highlighted areas on diagram

diagram 86012 86012 86211 86211 86211 86211 86212 86212 86212 86212 9322915008 9322915008 9322915008 9322915008 9322915008 9322915008 9322915008 9322915008 9356055016 9356055016 9356055016 9356055016 9356654512 9356654512 9356654512 9356654512
Part # Description Qty Price
86211 - BRACKET, RADIO, NO.1
86211-22060

GX6#,LX60,MX61,RX6#,TX60..SED

 1
86211 - BRACKET, RADIO, NO.1
86211-22060

GX6#,LX60,MX61,RX6#,TX60..SED

 1
86211 - BRACKET, RADIO, NO.1
86211-22060

GX6#,LX60,MX61,RX6#,TX60..SED

 1
86211 - BRACKET, RADIO, NO.1
86211-22060

GX6#,LX60,MX61,RX6#,TX60..SED

 1
86212 - BRACKET, RADIO, NO.2
86212-22040

GX6#,LX60,MX61,RX6#,TX60..SED

 1
86212 - BRACKET, RADIO, NO.2
86212-22040

GX6#,LX60,MX61,RX6#,TX60..SED

 1
86212 - BRACKET, RADIO, NO.2
86212-22040

GX6#,LX60,MX61,RX6#,TX60..SED

 1
86212 - BRACKET, RADIO, NO.2
86212-22040

GX6#,LX60,MX61,RX6#,TX60..SED

 1
Common parts
93229-15008
93560-55016
93566-54512
