RX60-DEPNS (1980)
Toyota Chaser

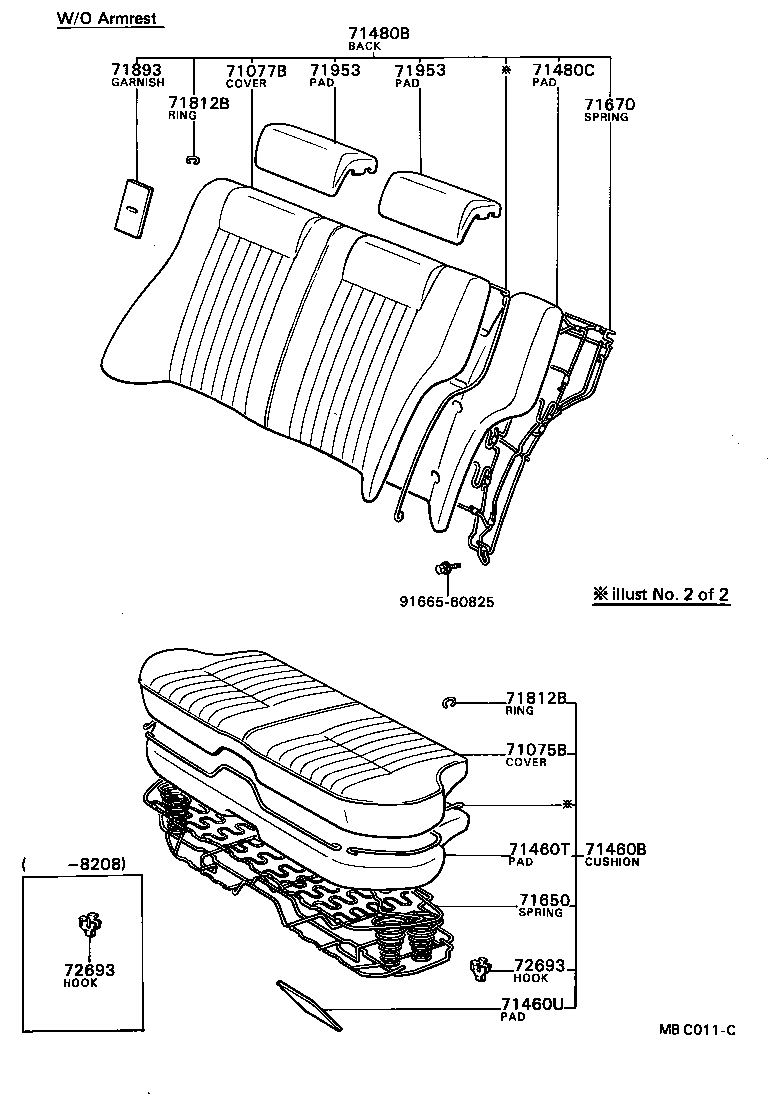

ILLUST NO. 1 OF 2(8009- )DLX,XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-2255005 |
LX60,RX60,TX60..SED..XL FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71075-2255004 |
LX60,RX60,TX60..SED..XL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-2255003 |
LX60,RX60,TX60..SED..XL FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-2256004 |
LX60,RX60,TX60..SED..XL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-2256005 |
LX60,RX60,TX60..SED..XL FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71077-2256003 |
LX60,RX60,TX60..SED..XL FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-2255005 |
LX60,RX60,TX60..SED..XL FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71460-2255004 |
LX60,RX60,TX60..SED..XL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-2255003 |
LX60,RX60,TX60..SED..XL FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71460T - PAD SUB-ASSY, REAR SEAT CUSHION, NO.1 | ||||
| 71611-22100 |
GX6#,LX60,MX61,RX6#,TX60..SED |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-2256003 |
LX60,RX60,TX60..SED..XL FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71480-2256005 |
LX60,RX60,TX60..SED..XL FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71480-2256004 |
LX60,RX60,TX60..SED..XL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71480C - PAD SUB-ASSY, REAR SEAT BACK, NO.1 (FOR BENCH TYPE) | ||||
| 71507-22030 |
LX60,MX61,RX60,SX60,TX60..DLX,SGT,STD,XL |
1 | ||
| 71650 - SPRING ASSY, REAR SEAT CUSHION | ||||
| 71650-22070 |
GX6#,LX60,MX61,RX6#,TX60..SED |
1 | ||
| 71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT) | ||||
| 71670-22130 |
LX60,RX60,TX60..SED..(DLX,XL) |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
1 | ||
| 71893 - GARNISH, REAR SEAT BACK SIDE, LOWER RH | ||||
| 71893-22010 |
GX6#,MX61,RX6#,TX60 |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-22010 |
GX6#,LX60,MX61,RX6#,TX60 |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-22010 |
GX6#,LX60,MX61,RX6#,TX60 |
2 | ||
| Common parts | ||||
| 91665-60825 | ||||
ILLUST NO. 1 OF 2(8009-8208)XG ; (8009-8208)GX60,LX60..SXL,XL ; (8009-8208)GX61,RX63..SED..GT,SGT ;
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-2255005 |
LX60,RX60,TX60..SED..XL FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71075-2255004 |
LX60,RX60,TX60..SED..XL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-2255003 |
LX60,RX60,TX60..SED..XL FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-2256004 |
LX60,RX60,TX60..SED..XL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-2256005 |
LX60,RX60,TX60..SED..XL FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71077-2256003 |
LX60,RX60,TX60..SED..XL FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-2255005 |
LX60,RX60,TX60..SED..XL FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71460-2255004 |
LX60,RX60,TX60..SED..XL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-2255003 |
LX60,RX60,TX60..SED..XL FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71460T - PAD SUB-ASSY, REAR SEAT CUSHION, NO.1 | ||||
| 71611-22100 |
GX6#,LX60,MX61,RX6#,TX60..SED |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-2256003 |
LX60,RX60,TX60..SED..XL FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71480-2256005 |
LX60,RX60,TX60..SED..XL FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71480-2256004 |
LX60,RX60,TX60..SED..XL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71480C - PAD SUB-ASSY, REAR SEAT BACK, NO.1 (FOR BENCH TYPE) | ||||
| 71507-22030 |
LX60,MX61,RX60,SX60,TX60..DLX,SGT,STD,XL |
1 | ||
| 71650 - SPRING ASSY, REAR SEAT CUSHION | ||||
| 71650-22070 |
GX6#,LX60,MX61,RX6#,TX60..SED |
1 | ||
| 71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT) | ||||
| 71670-22130 |
LX60,RX60,TX60..SED..(DLX,XL) |
1 | ||
| 71671 - PAD, REAR SEAT BACK SILENCER, A | ||||
| 71671-22090 |
GX6#,MX61,RX6#..SED |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
1 | ||
| 71893 - GARNISH, REAR SEAT BACK SIDE, LOWER RH | ||||
| 71893-22010 |
GX6#,MX61,RX6#,TX60 |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-22010 |
GX6#,LX60,MX61,RX6#,TX60 |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-22010 |
GX6#,LX60,MX61,RX6#,TX60 |
2 | ||
| Common parts | ||||
| 90468-12070 | ||||
| 91656-40630 | ||||
| 91665-60825 | ||||

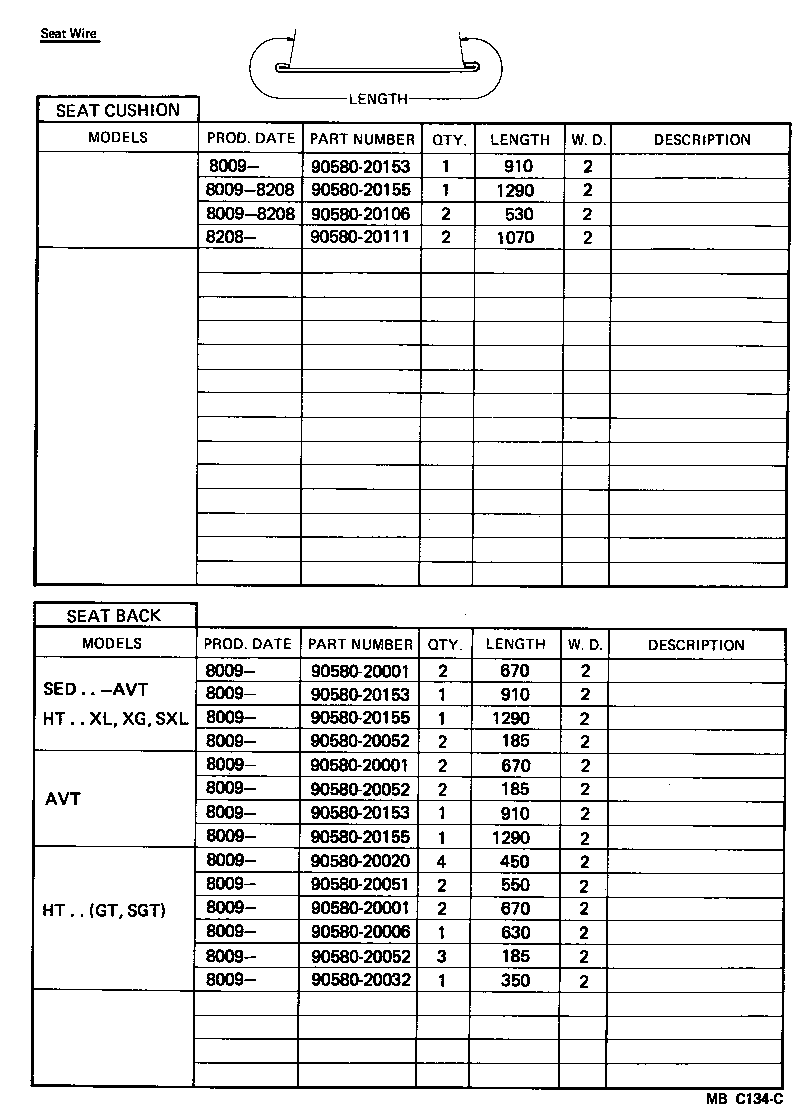

ILLUST NO. 2 OF 2(8009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90580-20001 | ||||
| 90580-20006 | ||||
| 90580-20020 | ||||
| 90580-20032 | ||||
| 90580-20051 | ||||
| 90580-20052 | ||||
| 90580-20106 | ||||
| 90580-20111 | ||||
| 90580-20153 | ||||
| 90580-20155 | ||||
