RX60-DEPNS (1980)
Toyota Chaser
Production
Sep 1980
-
Aug 1982
Engine
21RU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8009-8208)21RU

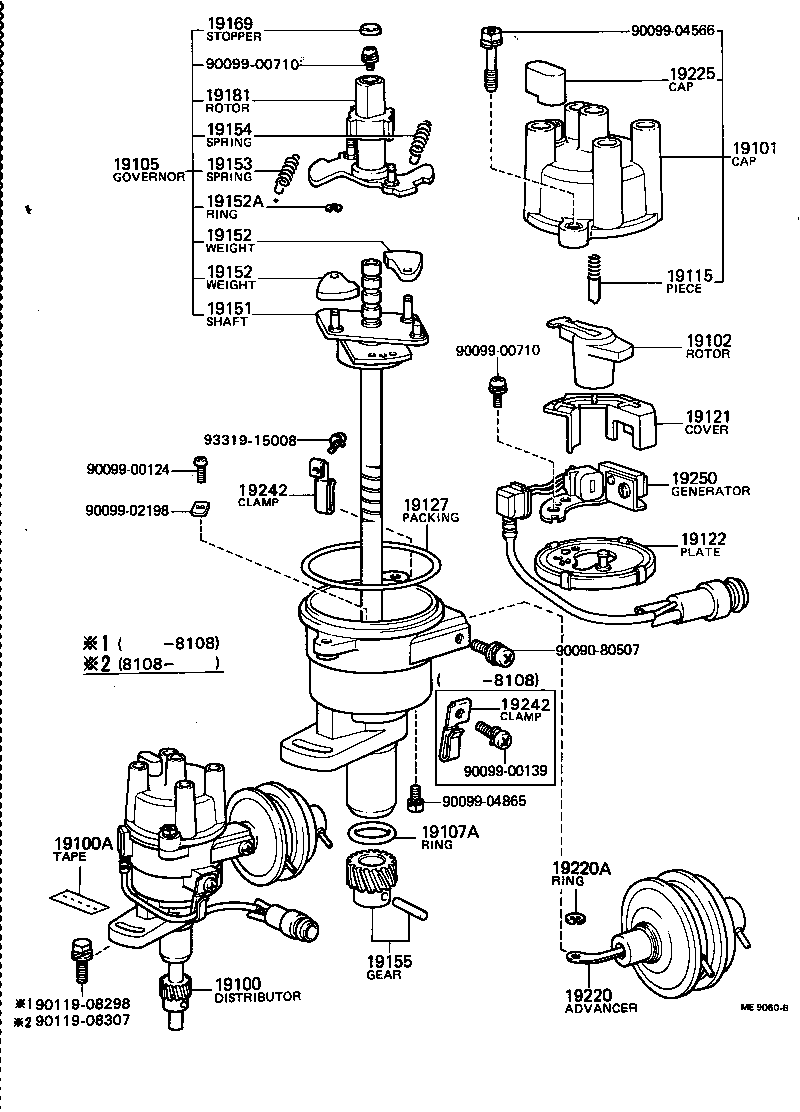

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100 - DISTRIBUTOR ASSY | ||||
| 19100-37060 |
21RU..RX60 |
1 | ||
| 19100-37061 |
21RU..RX60 |
1 | ||
| 19100A - TAPE, SEALING | ||||
| 90919-24004 |
21RU,18RGEU..RX6# |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-38210 |
21RU..RX60 |
1 | ||
| 19102 - ROTOR SUB-ASSY, DISTRIBUTOR | ||||
| 19102-15021 |
21RU..RX60 |
1 | ||
| 19105 - GOVERNOR SUB-ASSY | ||||
| 19105-37060 |
21RU..RX60 |
1 | ||
| 19105-37061 |
21RU..RX60 |
1 | ||
| 19107A - RING, O, DISTRIBUTOR HOUSING | ||||
| 90099-14020 |
21RU,18RGEU..RX6# |
1 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-50010 |
21RU,18RGEU..RX6# |
2 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-38210 |
21RU..RX60 |
1 | ||
| 19122 - PLATE, STATIONARY, DISTRIBUTOR | ||||
| 19122-88262 |
21RU,18RGEU..RX6# |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-15021 |
21RU..RX60 |
1 | ||
| 19151 - SHAFT, GOVERNOR | ||||
| 19151-37080 |
21RU..RX60 |
1 | ||
| 19151-38011 |
21RU..RX60 |
1 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-44170 |
21RU..RX60 |
2 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-44170 |
21RU..RX60 |
2 | ||
| 19152A - RING, SNAP(FOR GOVERNOR WEIGHT) | ||||
| 90099-07109 |
21RU,18RGEU..RX6# |
4 | ||
| 19153 - SPRING, GOVERNOR, A | ||||
| 19153-37060 |
21RU..RX60 |
1 | ||
| 19154 - SPRING, GOVERNOR, B | ||||
| 19154-37060 |
21RU..RX60 |
1 | ||
| 19155 - GEAR, SPIRAL, DISTRIBUTOR | ||||
| 19195-38210 |
21RU..RX60 |
1 | ||
| 19169 - STOPPER, CAM GREASE | ||||
| 19169-32010 |
21RU,18RGEU..RX6# |
1 | ||
| 19181 - ROTOR, DISTRIBUTOR, SIGNAL | ||||
| 19181-27050 |
21RU..RX60 |
1 | ||
| 19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR | ||||
| 19220-35010 |
21RU..RX60 |
1 | ||
| 19220A - RING, SNAP(FOR DISTRIBUTOR VACUUM ADVANCER) | ||||
| 90099-07109 |
21RU,18RGEU..RX6# |
1 | ||
| 19225 - CAP, RUBBER | ||||
| 19225-38011 |
21RU..RX60 |
1 | ||
| 19242 - CLAMP, CORD | ||||
| 19242-26250 |
21RU..RX60 |
1 | ||
| 19242-37080 |
21RU..RX60 |
1 | ||
| 19242 - CLAMP, CORD | ||||
| 19242-26250 |
21RU..RX60 |
1 | ||
| 19242-37080 |
21RU..RX60 |
1 | ||
| 19250 - GENERATOR ASSY, SIGNAL | ||||
| 19250-38210 |
21RU..RX60 |
1 | ||
| 19250-37080 |
21RU..RX60 |
1 | ||
| Common parts | ||||
| 90090-80507 | ||||
| 90099-00124 | ||||
| 90099-00139 | ||||
| 90099-00710 | ||||
| 90099-02198 | ||||
| 90099-04566 | ||||
| 90099-04865 | ||||
| 90119-08298 | ||||
| 90119-08307 | ||||
| 93319-15008 | ||||
