RX60-DEPES (1980)

Toyota Chaser

Production Sep 1980 - Aug 1982
Engine 21RU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8009-8208)XG ; (8009-8208)GX60,LX60..SXL,XL ; (8009-8208)GX61,RX63..SED..GT,SGT ;

Click highlighted areas on diagram

diagram 71075B 71077B 71460B 71460T 71460U 71480B 71480C 71538 71539 71650 71670 71671 71812B 71812B 71893 71953 71953 72693 72693 72830 9046812070 9165640630 9166560825
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-2248003

GX60,RX60..SED..(SXL,XG)

FB,GRAY,GRAY,TRIM2#

 1
71075-2248005

GX60,RX60..SED..(SXL,XG)

FB,GREIGE,BEIGE,TRIM4#

 1
71075-2248004

GX60,RX60..SED..(SXL,XG)

FB,BLUE,BLUE,TRIM8#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-2257003

GX60,RX60..SED..(SXL,XG)

FB,GRAY,GRAY,TRIM2#

 1
71077-2257005

GX60,RX60..SED..(SXL,XG)

FB,GREIGE,BEIGE,TRIM4#

 1
71077-2257004

GX60,RX60..SED..(SXL,XG)

FB,BLUE,BLUE,TRIM8#

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-2248005

GX60,RX60..SED..(SXL,XG)

FB,GREIGE,BEIGE,TRIM4#

 1
71460-2248004

GX60,RX60..SED..(SXL,XG)

FB,BLUE,BLUE,TRIM8#

 1
71460-2248003

GX60,RX60..SED..(SXL,XG)

FB,GRAY,GRAY,TRIM2#

 1
71460T - PAD SUB-ASSY, REAR SEAT CUSHION, NO.1
71611-22100

GX6#,LX60,MX61,RX6#,TX60..SED

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-2257005

GX60,RX60..SED..(SXL,XG)

FB,GREIGE,BEIGE,TRIM4#

 1
71480-2257003

GX60,RX60..SED..(SXL,XG)

FB,GRAY,GRAY,TRIM2#

 1
71480-2257004

GX60,RX60..SED..(SXL,XG)

FB,BLUE,BLUE,TRIM8#

 1
71480C - PAD SUB-ASSY, REAR SEAT BACK, NO.1 (FOR BENCH TYPE)
71507-22080

GX6#,LX65,RX60,SX60..SXL,XG

 1
71650 - SPRING ASSY, REAR SEAT CUSHION
71650-22070

GX6#,LX60,MX61,RX6#,TX60..SED

 1
71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT)
71670-22160

GX60,RX60..SED..(SXL,XG)

 1
71671 - PAD, REAR SEAT BACK SILENCER, A
71671-22090

GX6#,MX61,RX6#..SED

 1
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90468-18071

GX6#,LX6#,MX61,RX6#,SX60,TX60

 1
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90468-18071

GX6#,LX6#,MX61,RX6#,SX60,TX60

 1
71893 - GARNISH, REAR SEAT BACK SIDE, LOWER RH
71893-22010

GX6#,MX61,RX6#,TX60

 2
71953 - PAD, REAR SEAT HEADREST
71953-22100

GX60,RX60..SXL,XG

 2
71953 - PAD, REAR SEAT HEADREST
71953-22100

GX60,RX60..SXL,XG

 2
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-22010

GX6#,LX60,MX61,RX6#,TX60

 2
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-22010

GX6#,LX60,MX61,RX6#,TX60

 2
72830 - ARMREST ASSY, REAR SEAT, CENTER
72830-2207003

GX60,RX60..SXL,XG

GRAY,GRAY,TRIM2#

 1
72830-2207004

GX60,RX60..SXL,XG

BLUE,BLUE,TRIM8#

 1
72830-2207005

GX60,RX60..SXL,XG

GREIGE,BEIGE,TRIM4#

 1
Common parts
90468-12070
91656-40630
91665-60825

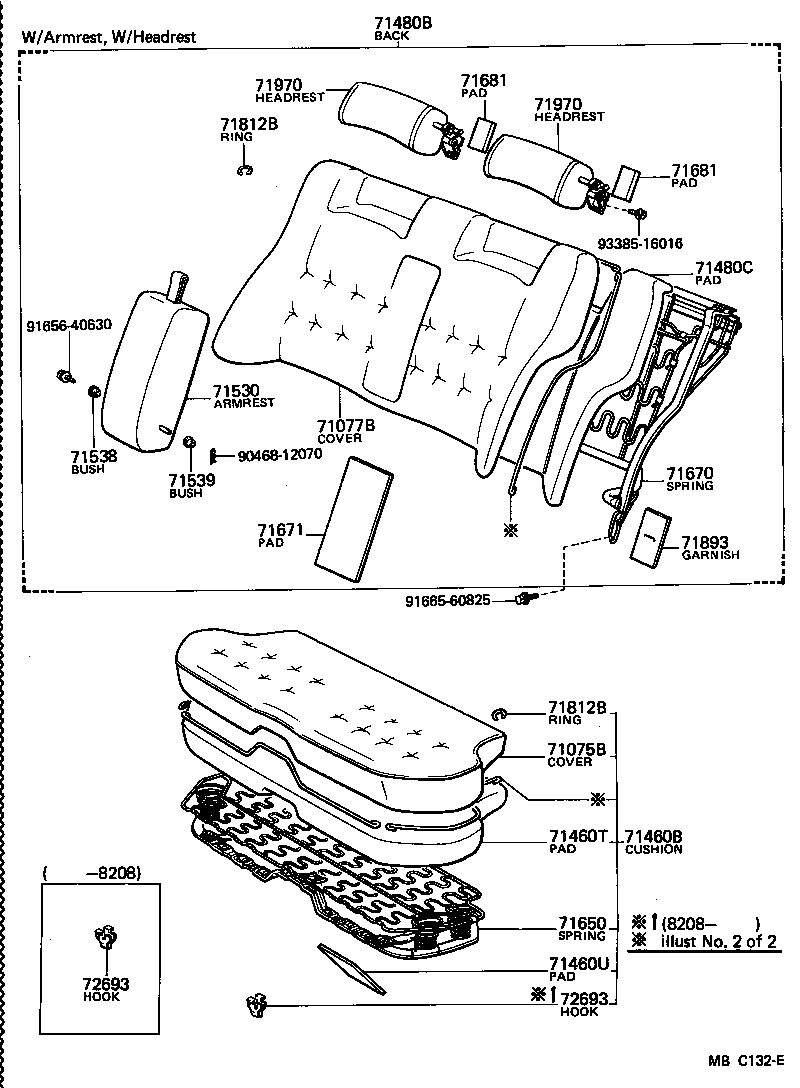

ILLUST NO. 1 OF 2(8009- )AVT ; (8208- )XG

Click highlighted areas on diagram

diagram 71075B 71077B 71460B 71460T 71460U 71480B 71480C 71530 71538 71539 71650 71670 71671 71681 71681 71812B 71812B 71893 71970 71970 72693 72693 9046812070 9165640630 9166560825 9338516016
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-2248003

GX60,RX60..SED..(SXL,XG)

FB,GRAY,GRAY,TRIM2#

 1
71075-2248005

GX60,RX60..SED..(SXL,XG)

FB,GREIGE,BEIGE,TRIM4#

 1
71075-2248004

GX60,RX60..SED..(SXL,XG)

FB,BLUE,BLUE,TRIM8#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-2257003

GX60,RX60..SED..(SXL,XG)

FB,GRAY,GRAY,TRIM2#

 1
71077-2257005

GX60,RX60..SED..(SXL,XG)

FB,GREIGE,BEIGE,TRIM4#

 1
71077-2257004

GX60,RX60..SED..(SXL,XG)

FB,BLUE,BLUE,TRIM8#

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-2248005

GX60,RX60..SED..(SXL,XG)

FB,GREIGE,BEIGE,TRIM4#

 1
71460-2248004

GX60,RX60..SED..(SXL,XG)

FB,BLUE,BLUE,TRIM8#

 1
71460-2248003

GX60,RX60..SED..(SXL,XG)

FB,GRAY,GRAY,TRIM2#

 1
71460T - PAD SUB-ASSY, REAR SEAT CUSHION, NO.1
71611-22100

GX6#,LX60,MX61,RX6#,TX60..SED

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-2257005

GX60,RX60..SED..(SXL,XG)

FB,GREIGE,BEIGE,TRIM4#

 1
71480-2257003

GX60,RX60..SED..(SXL,XG)

FB,GRAY,GRAY,TRIM2#

 1
71480-2257004

GX60,RX60..SED..(SXL,XG)

FB,BLUE,BLUE,TRIM8#

 1
71480C - PAD SUB-ASSY, REAR SEAT BACK, NO.1 (FOR BENCH TYPE)
71507-22080

GX6#,LX65,RX60,SX60..SXL,XG

 1
71650 - SPRING ASSY, REAR SEAT CUSHION
71650-22070

GX6#,LX60,MX61,RX6#,TX60..SED

 1
71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT)
71670-22160

GX60,RX60..SED..(SXL,XG)

 1
71671 - PAD, REAR SEAT BACK SILENCER, A
71671-22090

GX6#,MX61,RX6#..SED

 1
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90468-18071

GX6#,LX6#,MX61,RX6#,SX60,TX60

 1
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90468-18071

GX6#,LX6#,MX61,RX6#,SX60,TX60

 1
71893 - GARNISH, REAR SEAT BACK SIDE, LOWER RH
71893-22010

GX6#,MX61,RX6#,TX60

 2
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-22010

GX6#,LX60,MX61,RX6#,TX60

 2
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-22010

GX6#,LX60,MX61,RX6#,TX60

 2
Common parts
90468-12070
91656-40630
91665-60825
93385-16016

ILLUST NO. 2 OF 2(8009- )

Click highlighted areas on diagram

diagram 9058020001 9058020001 9058020001 9058020006 9058020020 9058020032 9058020051 9058020052 9058020052 9058020052 9058020106 9058020111 9058020153 9058020153 9058020153 9058020155 9058020155 9058020155
Part # Description Qty Price
Common parts
90580-20001
90580-20006
90580-20020
90580-20032
90580-20051
90580-20052
90580-20106
90580-20111
90580-20153
90580-20155
