RX60-DEPES (1980)
Toyota Chaser
Production
Sep 1980
-
Aug 1982
Engine
21RU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8009-8208)RX60

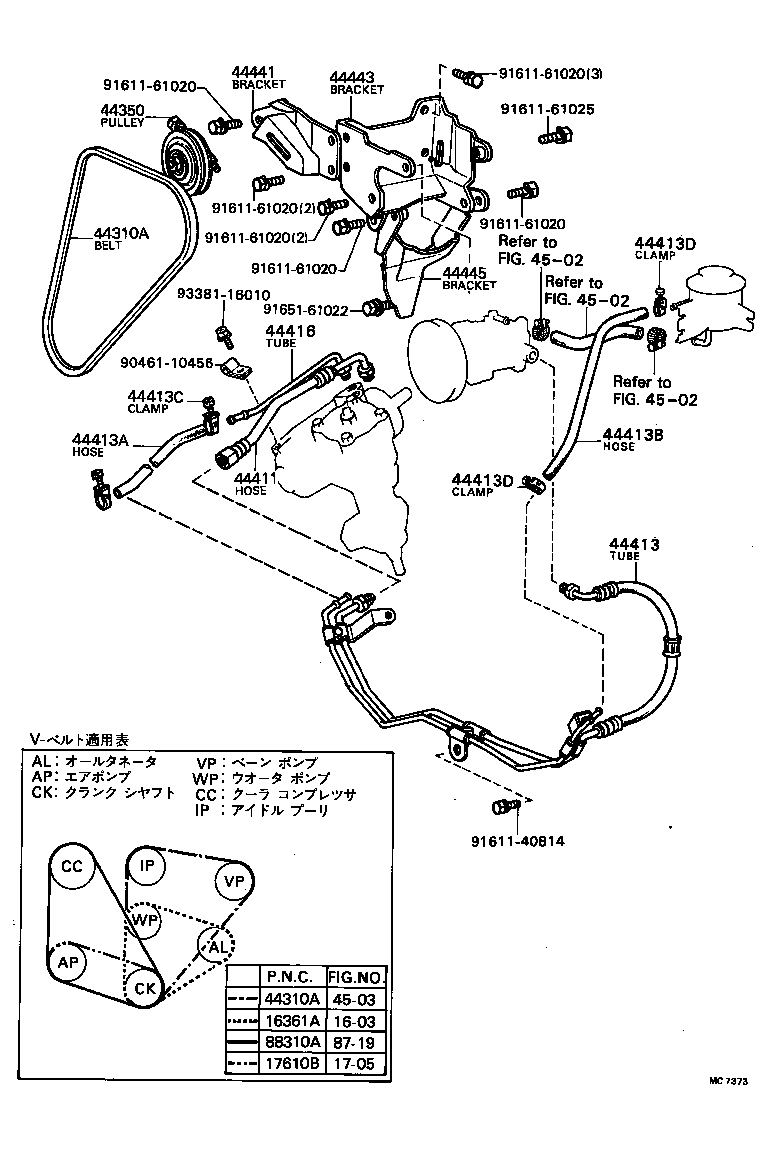

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99331-00880 |
21RU..RX60 L=880 |
1 | ||
| 44310A - BELT, V(FOR VANE PUMP) | ||||
| 99332-51135 |
RX60 |
1 | ||
| 44310A - BELT, V(FOR VANE PUMP) | ||||
| 99332-51135 |
RX60 |
1 | ||
| 44350 - PULLEY ASSY, POWER STEERING IDLE | ||||
| 44350-20020 |
RX60 |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-22090 |
LX60,RX60..XG,XL |
1 | ||
| 44413 - TUBE, PRESSURE FEED, NO.1 | ||||
| 44410-22040 |
RX60 |
1 | ||
| 44413A - HOSE(FOR RETURN TUBE OUTLET) | ||||
| 90445-18079 |
RX60 |
1 | ||
| 44413B - HOSE(FOR RESERVOIR TANK INLET) | ||||
| 44412-22050 |
RX60 |
1 | ||
| 44413C - CLAMP(FOR RETURN TUBE OUTLET HOSE) | ||||
| 90460-01001 |
LX60,RX60,TX60..XG,XL |
2 | ||
| 44413D - CLAMP(FOR RESERVOIR TANK INLET HOSE) | ||||
| 90460-01001 |
LX60,RX60,TX60..XG,XL |
2 | ||
| 44413D - CLAMP(FOR RESERVOIR TANK INLET HOSE) | ||||
| 90460-01001 |
LX60,RX60,TX60..XG,XL |
2 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-20020 |
LX60,RX60,TX60..XG,XL |
1 | ||
| 44441 - BRACKET, PUMP, FRONT | ||||
| 44441-20010 |
RX60 |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-20030 |
RX60 |
1 | ||
| 44443-20031 |
RX60 |
1 | ||
| 44445 - BRACKET, PUMP, LOWER | ||||
| 44445-20010 |
RX60 |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99322-00890 |
RX60 |
1 | ||
| 99322-00890 |
RX60 |
1 | ||
| Common parts | ||||
| 90461-10456 | ||||
| 91611-40814 | ||||
| 91611-61020 | ||||
| 91611-61025 | ||||
| 91651-61022 | ||||
| 93381-16010 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 1705 | ||||
| 4502 | ||||
| 4503 | ||||
| 8719 | ||||
