RX60-DEPES (1980)

Toyota Chaser

Production Sep 1980 - Aug 1982
Engine 21RU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )4FC

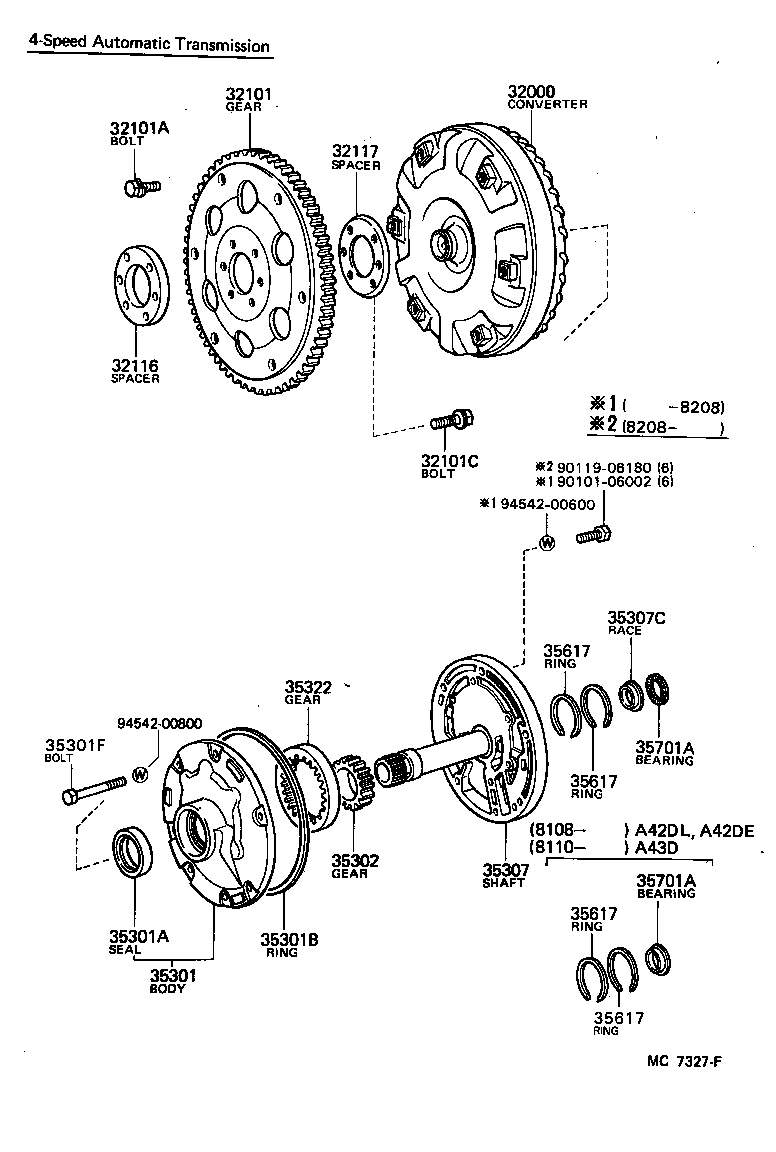

Click highlighted areas on diagram

diagram 32000 32101 32101A 32101C 32116 32117 35301 35301A 35301B 35301F 35302 35307 35307C 35322 35617 35617 35617 35617 35701A 35701A 9010106002 9011906180 9454200600 9454200800
Part # Description Qty Price
32000 - CONVERTER ASSY, TORQUE
32000-30090

LX60,RX60..4FC

 1
32101 - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-20050

RX60..4FC

 1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
91611-60812

GX6#,LX60,RX60,TX60..ATM

*8−1.25PX12−7

 6
90119-08223

GX6#,LX60,MX61,RX60,TX60..ATM

*8−1.25PX10.5−6.5

 6
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90913-01011

RX60..4FC

*17−1.25PX26−18

 6
32116 - SPACER, DRIVE PLATE, FRONT
32116-20011

RX60..4FC

 1
32117 - SPACER, DRIVE PLATE, REAR
32117-20021

RX60..4FC

 1
35301 - BODY SUB-ASSY, FRONT OIL PUMP
35301-30030

GX6#,LX60,RX60..4FC

 1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90311-38129

GX6#,LX6#,MX61,RX60,SX60,TX60..ATM

 1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90301-99010

GX6#,LX6#,MX61,RX60,SX60,TX60..ATM

 1
35301F - BOLT (FOR FRONT OIL PUMP SETTING)
90101-08431

GX6#,RX60..4FC

A40D

 7
35302 - GEAR SUB-ASSY, FRONT OIL PUMP DRIVE
35321-22010

GX6#,LX6#,MX61,RX60,SX60,TX60..ATM

A40,A40D,A42D,A43D

 1
35307 - SHAFT SUB-ASSY, STATOR
35370-30010

GX6#,LX60,RX60..4FC

A40D,A42D

 1
35370-22030

GX6#,LX60,RX60..4FC

A40D,A42D

 1
35307C - RACE, THRUST BEARING (FOR STATOR SHAFT)
35789-22010

GX6#,LX60,RX60,TX60..ATM

厚さ=4.3

 1
35789-22010

GX6#,LX60,RX60,TX60..ATM

厚さ=4.3,A40,A40D,A42D

 1
35322 - GEAR, FRONT OIL PUMP DRIVEN
35322-22010

GX6#,LX6#,MX61,RX60,SX60,TX60..ATM

厚さ=15.286−15.235,A40,A40D,A42D,A43D

 1
35617 - RING, CLUTCH DRUM OIL SEAL
35617-22020

GX6#,LX60,RX60..4FC

 2
35617 - RING, CLUTCH DRUM OIL SEAL
35617-22020

GX6#,LX60,RX60..4FC

 2
35617 - RING, CLUTCH DRUM OIL SEAL
35617-22020

GX6#,LX60,RX60..4FC

 2
35617 - RING, CLUTCH DRUM OIL SEAL
35617-22020

GX6#,LX60,RX60..4FC

 2
35701A - BEARING, THRUST (FOR INPUT SHAFT FRONT)
90374-23012

LX60,RX60,TX60..ATM

A40,A40D,A42D

 1
90374-23012

LX60,RX60,TX60..ATM

 1
35701A - BEARING, THRUST (FOR INPUT SHAFT FRONT)
90374-23012

LX60,RX60,TX60..ATM

A40,A40D,A42D

 1
90374-23012

LX60,RX60,TX60..ATM

 1
Common parts
90101-06002
90119-06180
94542-00600
94542-00800
