RX60-DEPES (1980)

Toyota Chaser

Production Sep 1980 - Aug 1982
Engine 21RU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009-8208)21RU,18RGEU

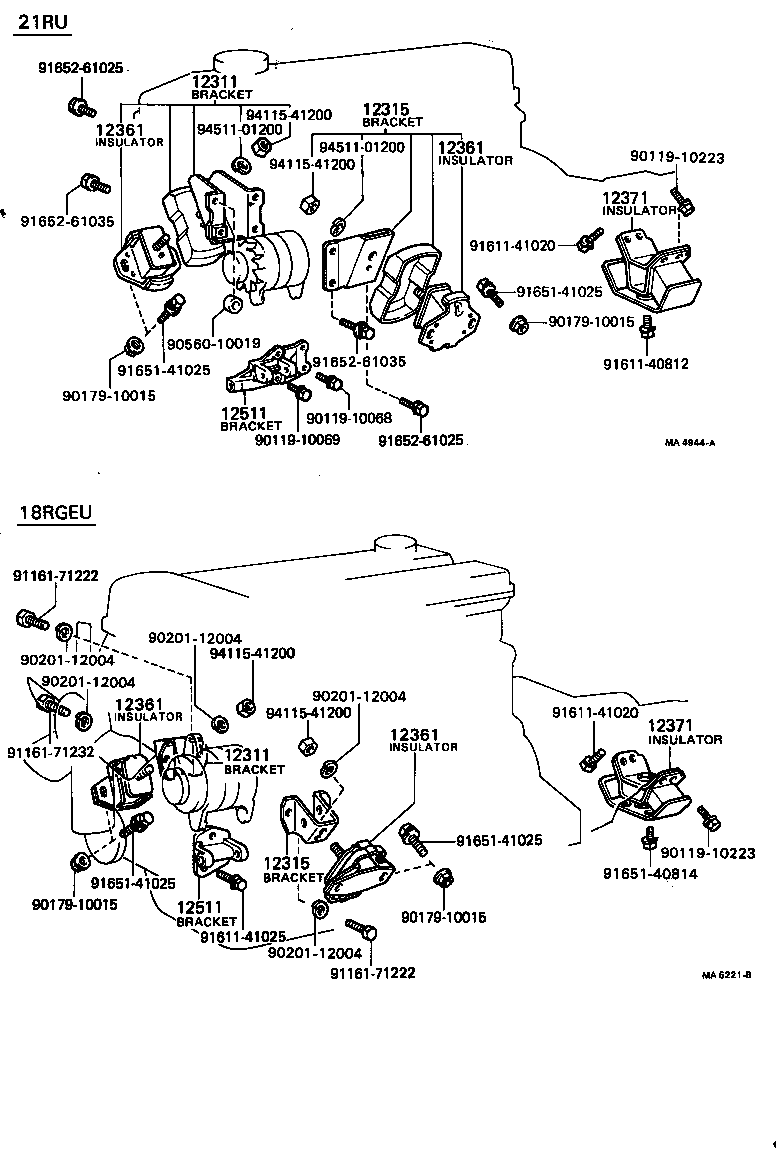

Click highlighted areas on diagram

MA4944A,MA5221B

diagram 12311 12311 12315 12315 12361 12361 12361 12361 12371 12371 12511 12511 9011910068 9011910069 9011910223 9011910223 9017910015 9017910015 9017910015 9017910015 9020112004 9020112004 9020112004 9020112004 9020112004 9056010019 9116171222 9116171222 9116171232 9161140812 9161141020 9161141020 9161141025 9165140814 9165141025 9165141025 9165141025 9165141025 9165261025 9165261025 9165261035 9165261035 9411541200 9411541200 9411541200 9411541200 9451101200 9451101200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12301-35020

21RU..RX60

 1
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12301-35020

21RU..RX60

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12302-38140

21RU..RX60

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12302-38140

21RU..RX60

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-38130

21RU..RX60

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-38130

21RU..RX60

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-38130

21RU..RX60

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-38130

21RU..RX60

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-54040

21RU..RX60..4FC

 1
12371-34030

21RU..RX60..4FC

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-54040

21RU..RX60..4FC

 1
12371-34030

21RU..RX60..4FC

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-38030

21RU..RX60

 1
12511-35010

21RU..RX60

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-38030

21RU..RX60

 1
12511-35010

21RU..RX60

 1
Common parts
90119-10068
90119-10069
90119-10223
90179-10015
90201-12004
90560-10019
91161-71222
91161-71232
91611-40812
91611-41020
91611-41025
91651-40814
91651-41025
91652-61025
91652-61035
94115-41200
94511-01200
