RX60-DEMNS (1980)
Toyota Chaser
ILLUST NO. 1 OF 2(8009-8208)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2263003 |
LX60,RX60,TX60..XL FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71071-2263004 |
LX60,RX60,TX60..XL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-2263005 |
LX60,RX60,TX60..XL FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2233003 |
LX60,RX60,TX60..XL FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71072-2233005 |
LX60,RX60,TX60..XL FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71072-2233004 |
LX60,RX60,TX60..XL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2A02003 |
LX60,RX60,TX60..XL FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71073-2A02004 |
LX60,RX60,TX60..XL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-2A02005 |
LX60,RX60,TX60..XL FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-2A02004 |
LX60,RX60,TX60..XL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-2A02003 |
LX60,RX60,TX60..XL FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71073-2A02005 |
LX60,RX60,TX60..XL FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-2273005 |
LX60,RX60,TX60..XL FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71410-2273004 |
LX60,RX60,TX60..XL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-2273003 |
LX60,RX60,TX60..XL FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-2239003 |
LX60,RX60,TX60..XL FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71420-2239004 |
LX60,RX60,TX60..XL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-2239005 |
LX60,RX60,TX60..XL FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-2A19003 |
LX60,RX60,TX60..XL FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71430-2A19004 |
LX60,RX60,TX60..XL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-2A19005 |
LX60,RX60,TX60..XL FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-2277004 |
LX60,RX60,TX60..XL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-2277005 |
LX60,RX60,TX60..XL FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71440-2277003 |
LX60,RX60,TX60..XL FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-22150 |
GX6#,LX6#,RX60,SX60,TX60..DLX,STD,SXL,XG,XL |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-22150 |
GX6#,LX6#,RX60,SX60,TX60..DLX,STD,SXL,XG,XL |
1 | ||
| 71513B - PAD, FRONT SEAT CUSHION, B | ||||
| 71522-22090 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 100X400 |
2 | ||
| 71522-22100 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 100X750 |
2 | ||
| 71513B - PAD, FRONT SEAT CUSHION, B | ||||
| 71522-22090 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 100X400 |
2 | ||
| 71522-22100 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 100X750 |
2 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-22150 |
GX6#,LX6#,RX60,SX60,TX60..DLX,STD,SXL,XG,XL |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-22150 |
GX6#,LX6#,RX60,SX60,TX60..DLX,STD,SXL,XG,XL |
1 | ||
| 71564 - PAD, FRONT SEAT BACK, SIDE | ||||
| 71584-22060 |
LX60,RX60,SX60,TX60..DLX,STD,XL LH |
2 | ||
| 71583-22070 |
LX60,RX60,SX60,TX60..DLX,STD,XL RH |
2 | ||
| 71564 - PAD, FRONT SEAT BACK, SIDE | ||||
| 71584-22060 |
LX60,RX60,SX60,TX60..DLX,STD,XL LH |
2 | ||
| 71583-22070 |
LX60,RX60,SX60,TX60..DLX,STD,XL RH |
2 | ||
| 71581 - PAD, FRONT SEAT BACK SILENCER | ||||
| 71571-22150 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
2 | ||
| 71581 - PAD, FRONT SEAT BACK SILENCER | ||||
| 71571-22150 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
2 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-20240 |
GX6#,LX60,MX61,RX6#,TX60..AVT,GT,SGT,SXL,XG,XL |
1 | ||
| 71610-22150 |
GX6#,LX60,RX6#,TX60..AVT,GT,SGT,SXL,XG,XL |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-22070 |
GX6#,LX60,RX6#,TX60 |
1 | ||
| 71620-20120 |
GX6#,LX60,MX61,RX6#,TX60 |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-22180 |
LX60,RX60,SX60,TX60..XL |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-22140 |
LX60,RX60,SX60,TX60..DLX,STD,XL |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
1 | ||
| 71838A - PROTECTOR, FRONT SEAT CUSHION EDGE | ||||
| 71838-22011 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
2 | ||
| 71838A - PROTECTOR, FRONT SEAT CUSHION EDGE | ||||
| 71838-22011 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
2 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2231001 |
GX60,LX60,RX60,TX60 BLACK,BLACK,TRIM2# |
2 | ||
| 71910-2231024 |
GX60,LX60,RX60,TX60 BLUE,BLUE,TRIM8# |
2 | ||
| 71910-2231006 |
GX60,LX60,RX60,TX60 DARK BROWN,BROWN,TRIM4# |
2 | ||
| 71910-2231001 |
LX60,RX60,TX60..DLX,XL BLACK,BLACK,TRIM2# |
2 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2231001 |
GX60,LX60,RX60,TX60 BLACK,BLACK,TRIM2# |
2 | ||
| 71910-2231024 |
GX60,LX60,RX60,TX60 BLUE,BLUE,TRIM8# |
2 | ||
| 71910-2231006 |
GX60,LX60,RX60,TX60 DARK BROWN,BROWN,TRIM4# |
2 | ||
| 71910-2231001 |
LX60,RX60,TX60..DLX,XL BLACK,BLACK,TRIM2# |
2 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2231001 |
GX60,LX60,RX60,TX60 BLACK,BLACK,TRIM2# |
2 | ||
| 71910-2231024 |
GX60,LX60,RX60,TX60 BLUE,BLUE,TRIM8# |
2 | ||
| 71910-2231006 |
GX60,LX60,RX60,TX60 DARK BROWN,BROWN,TRIM4# |
2 | ||
| 71910-2231001 |
LX60,RX60,TX60..DLX,XL BLACK,BLACK,TRIM2# |
2 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2231001 |
GX60,LX60,RX60,TX60 BLACK,BLACK,TRIM2# |
2 | ||
| 71910-2231024 |
GX60,LX60,RX60,TX60 BLUE,BLUE,TRIM8# |
2 | ||
| 71910-2231006 |
GX60,LX60,RX60,TX60 DARK BROWN,BROWN,TRIM4# |
2 | ||
| 71910-2231001 |
LX60,RX60,TX60..DLX,XL BLACK,BLACK,TRIM2# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006001 |
GX6#,LX60,MX61,RX6#,TX60 ﾛｯｸ付,W/LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1001001 |
GX6#,LX60,MX61,RX6#,TX60 ﾛｯｸ無,BLACK,BLACK,TRIM2# |
2 | ||
| 71930-1006016 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..AVT,DLX,GT,SGT,SXL,XG,XL ﾛｯｸ付,W/LOCK,DARK BROWN,SABLE,TRIM4# |
2 | ||
| 71931-1001016 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..AVT,DLX,GT,SGT,SXL,XG,XL ﾛｯｸ無,DARK BROWN,SABLE,TRIM4# |
2 | ||
| 71931-1001004 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 ﾛｯｸ無,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006004 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006001 |
GX6#,LX60,MX61,RX6#,TX60 ﾛｯｸ付,W/LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1001001 |
GX6#,LX60,MX61,RX6#,TX60 ﾛｯｸ無,BLACK,BLACK,TRIM2# |
2 | ||
| 71930-1006016 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..AVT,DLX,GT,SGT,SXL,XG,XL ﾛｯｸ付,W/LOCK,DARK BROWN,SABLE,TRIM4# |
2 | ||
| 71931-1001016 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..AVT,DLX,GT,SGT,SXL,XG,XL ﾛｯｸ無,DARK BROWN,SABLE,TRIM4# |
2 | ||
| 71931-1001004 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 ﾛｯｸ無,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006004 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006001 |
GX6#,LX60,MX61,RX6#,TX60 ﾛｯｸ付,W/LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1001001 |
GX6#,LX60,MX61,RX6#,TX60 ﾛｯｸ無,BLACK,BLACK,TRIM2# |
2 | ||
| 71930-1006016 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..AVT,DLX,GT,SGT,SXL,XG,XL ﾛｯｸ付,W/LOCK,DARK BROWN,SABLE,TRIM4# |
2 | ||
| 71931-1001016 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..AVT,DLX,GT,SGT,SXL,XG,XL ﾛｯｸ無,DARK BROWN,SABLE,TRIM4# |
2 | ||
| 71931-1001004 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 ﾛｯｸ無,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006004 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006001 |
GX6#,LX60,MX61,RX6#,TX60 ﾛｯｸ付,W/LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1001001 |
GX6#,LX60,MX61,RX6#,TX60 ﾛｯｸ無,BLACK,BLACK,TRIM2# |
2 | ||
| 71930-1006016 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..AVT,DLX,GT,SGT,SXL,XG,XL ﾛｯｸ付,W/LOCK,DARK BROWN,SABLE,TRIM4# |
2 | ||
| 71931-1001016 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..AVT,DLX,GT,SGT,SXL,XG,XL ﾛｯｸ無,DARK BROWN,SABLE,TRIM4# |
2 | ||
| 71931-1001004 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 ﾛｯｸ無,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006004 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-22080 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-22080 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72526-2004001 |
GX6#,LX60,MX61,RX6#,TX60 LH,BLACK,BLACK,TRIM2# |
1 | ||
| 72525-2005001 |
GX6#,LX60,MX61,RX6#,TX60 RH,BLACK,BLACK,TRIM2# |
1 | ||
| 72525-2005006 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..AVT,DLX,GT,SGT,SXL,XG,XL RH,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 72526-2004006 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..AVT,DLX,GT,SGT,SXL,XG,XL LH,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 72525-2005004 |
GX6#,LX60,MX61,RX6#,TX60 RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-2004004 |
GX6#,LX60,MX61,RX6#,TX60 LH,BLUE,BLUE,TRIM8# |
1 | ||
| 73158 - BRACKET, SEAT BELT GUIDE SET | ||||
| 73158-20010 |
GX6#,LX60,MX61,RX6#,TX60 |
2 | ||
| 73182 - GUIDE, FRONT SEAT LAP BELT, OUTER | ||||
| 73182-2001006 |
GX6#,LX60,MX61,RX6#,TX60 LH,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 73182-2001004 |
GX6#,LX60,MX61,RX6#,TX60 LH,BLUE,BLUE,TRIM8# |
1 | ||
| 73181-2002004 |
GX6#,LX60,MX61,RX6#,TX60 RH,BLUE,BLUE,TRIM8# |
1 | ||
| 73181-2002006 |
GX6#,LX60,MX61,RX6#,TX60 RH,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 73182-2001001 |
GX6#,LX60,MX61,RX6#,TX60 LH,BLACK,BLACK,TRIM2# |
1 | ||
| 73181-2002001 |
GX6#,LX60,MX61,RX6#,TX60 RH,BLACK,BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90119-10116 | ||||
| 90154-80004 | ||||
| 90386-12018 | ||||
| 90468-05085 | ||||
| 90523-08001 | ||||
| 93249-54005 | ||||
| 93315-16010 | ||||
| 93530-54020 | ||||
| 93540-54012 | ||||
| 93560-14012 | ||||
| 93560-55014 | ||||
| 96160-01000 | ||||
| Linked diagrams | ||||
| 8403 | ||||

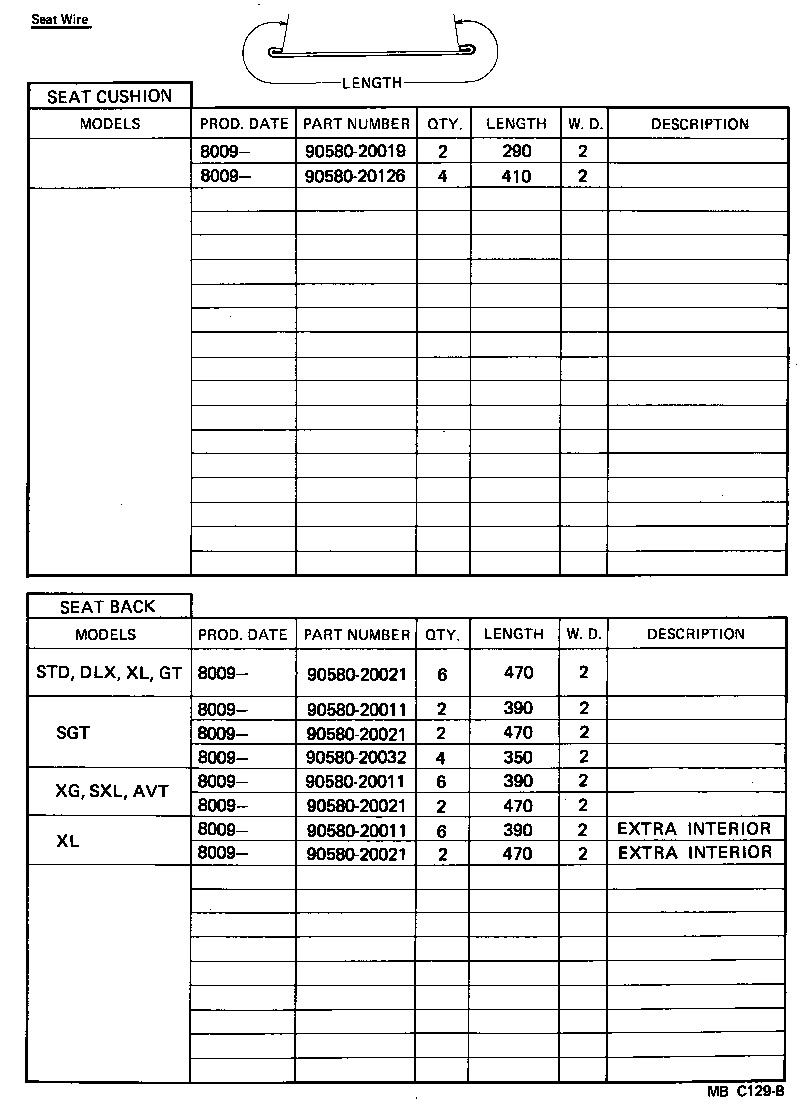

ILLUST NO. 2 OF 2(8009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90580-20011 | ||||
| 90580-20019 | ||||
| 90580-20021 | ||||
| 90580-20032 | ||||
| 90580-20126 | ||||
