RX60-DEKNS (1980)

Toyota Chaser

Production Sep 1980 - Aug 1982
Engine 21RU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009-8208)TX60..XL ; (8009-8208)GX6#,LX60,MX61,RX6#

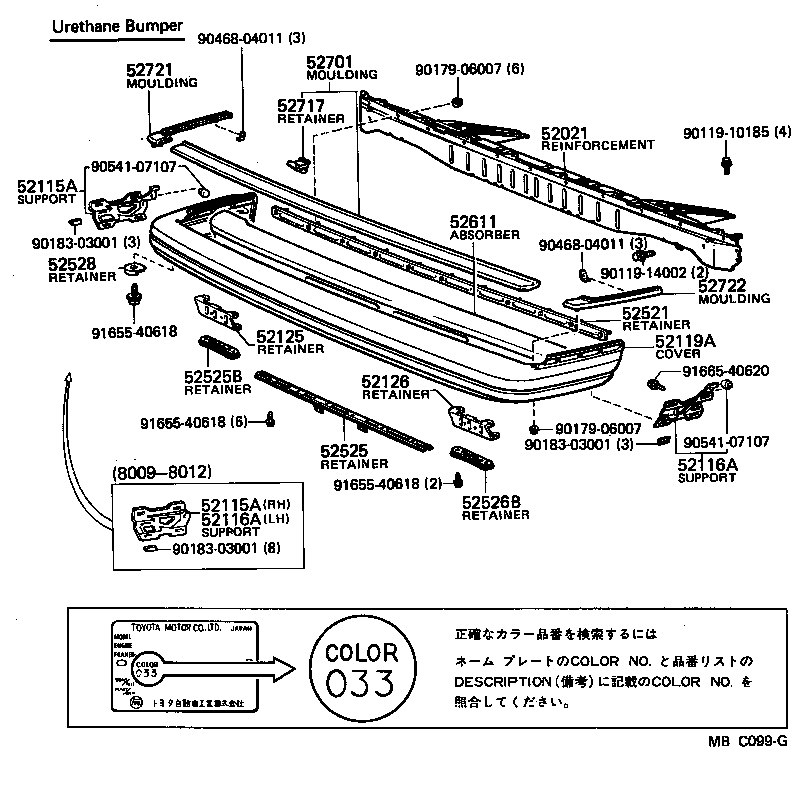

Click highlighted areas on diagram

diagram 52021 52115A 52115A 52116A 52116A 52119A 52125 52126 52521 52525 52525B 52526B 52528 52611 52701 52717 52721 52722 9011910185 9011914002 9017906007 9017906007 9018303001 9018303001 9018303001 9046804011 9046804011 9054107107 9054107107 9165540618 9165540618 9165540618 9166540620
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-22050

TX60..XL;GX6#,LX60,MX61,RX6#

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52061-22010

TX60..XL;GX6#,LX60,MX61,RX6#

 1
52115-22061

TX60..XL;GX6#,LX60,RX6#

 1
52115-22060

TX60..XL;GX6#,LX60,RX6#

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52061-22010

TX60..XL;GX6#,LX60,MX61,RX6#

 1
52115-22061

TX60..XL;GX6#,LX60,RX6#

 1
52115-22060

TX60..XL;GX6#,LX60,RX6#

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-22031

TX60..XL;GX6#,LX60,RX6#

 1
52062-22010

TX60..XL;GX6#,LX60,MX61,RX6#

 1
52116-22030

TX60..XL;GX6#,LX60,RX6#

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-22031

TX60..XL;GX6#,LX60,RX6#

 1
52062-22010

TX60..XL;GX6#,LX60,MX61,RX6#

 1
52116-22030

TX60..XL;GX6#,LX60,RX6#

 1
52119A - COVER, FRONT BUMPER
52119-22020

TX60..XL;GX6#,LX60,RX6#

BLACK

 1
52119-22021

TX60..XL;GX6#,LX60,MX61,RX6#

BLACK

 1
52125 - RETAINER, FRONT BUMPER, RH
52125-22020

TX60..XL;GX6#,LX60,MX61,RX6#

 1
52126 - RETAINER, FRONT BUMPER, LH
52125-22020

TX60..XL;GX6#,LX60,MX61,RX6#

 1
52521 - RETAINER, FRONT BUMPER, UPPER CENTER
52521-22040

TX60..XL;GX6#,LX60,MX61,RX6#

 1
52525 - RETAINER, FRONT BUMPER, LOWER CENTER
52506-22010

TX60..XL;GX6#,LX60,MX61,RX6#

 1
52525B - RETAINER, FRONT BUMPER, LOWER SIDE RH
52526-22011

TX60..XL;GX6#,LX60,MX61,RX6#

 1
52526B - RETAINER, FRONT BUMPER, LOWER SIDE LH
52526-22011

TX60..XL;GX6#,LX60,MX61,RX6#

 1
52528 - RETAINER, FRONT BUMPER, LOWER CORNER
52528-22020

TX60..XL;GX6#,LX60,MX61,RX6#

 2
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-22010

TX60..XL;GX6#,LX60,MX61,RX6#

 1
52701 - MOULDING SUB-ASSY, FRONT BUMPER
52701-22010

TX60..XL;GX6#,LX60,MX61,RX6#

 1
52717 - RETAINER, FRONT BUMPER MOULDING
52717-22010

TX60..XL;GX6#,LX60,MX61,RX6#

 8
52721 - MOULDING, FRONT BUMPER EXTENSION, RH
52721-22010

TX60..XL;GX6#,LX60,MX61,RX6#

 1
52722 - MOULDING, FRONT BUMPER EXTENSION, LH
52722-22010

TX60..XL;GX6#,LX60,MX61,RX6#

 1
Common parts
90119-10185
90119-14002
90179-06007
90183-03001
90468-04011
90541-07107
91655-40618
91665-40620
