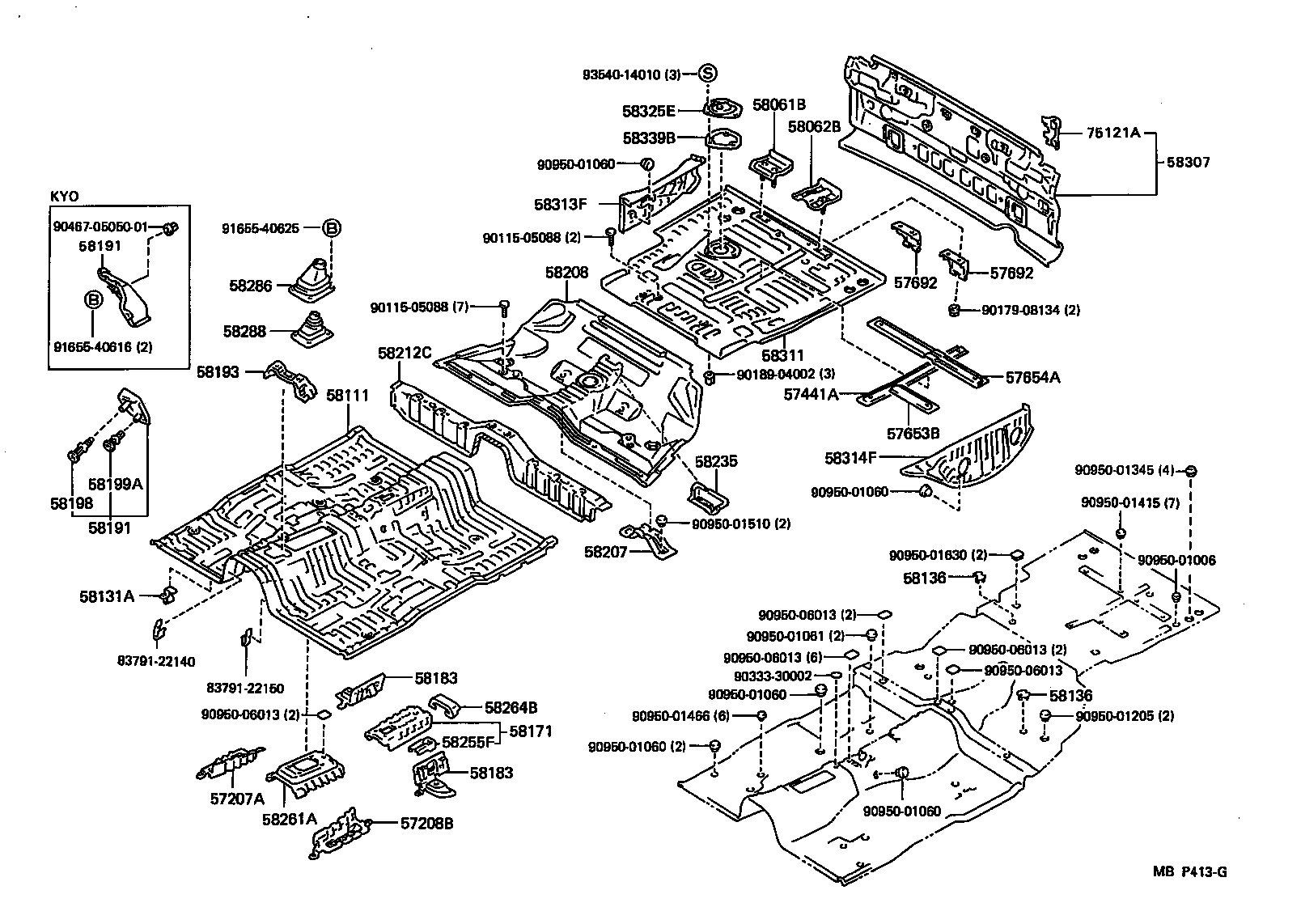

MX83-BTPZF (1989)
Toyota Chaser
(8808-9210)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57207A - BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, RH | ||||
| 57207-22030 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 57208B - BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, LH | ||||
| 57208-22040 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 57441A - MEMBER, REAR FLOOR CENTER, NO.1 | ||||
| 57441-22020 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 57653B - MEMBER, REAR FLOOR CROSS, FRONT LH | ||||
| 57653-22080 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 57654A - MEMBER, REAR FLOOR CROSS, NO.3 | ||||
| 57654-22040 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 57692 - BRACKET, FUEL TANK MOUNTING, REAR CENTER | ||||
| 57692-22020 |
GX81,JZX81,LX80,MX83,SX80 |
2 | ||
| 57692 - BRACKET, FUEL TANK MOUNTING, REAR CENTER | ||||
| 57692-22020 |
GX81,JZX81,LX80,MX83,SX80 |
2 | ||
| 58061B - BRACKET SUB-ASSY, FUEL TANK MOUNTING, RH | ||||
| 58061-22010 |
GX81,JZX81,LX80,MX83,SX80 |
1 | ||
| 58062B - BRACKET SUB-ASSY, FUEL TANK MOUNTING, LH | ||||
| 58062-22020 |
GX81,JZX81,LX80,MX83,SX80 |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-22160 |
GX81,JZX81,LX80,MX83,SX80..4FC..(AVT,AVTG,GT,SXL,XG,XL) |
1 | ||
| 58131A - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1 | ||||
| 58131-22040 |
SX80..4FC..KYO;GX81,JZX81,LX80,MX83,YX80 |
1 | ||
| 58136 - COVER, FRONT FLOOR HOLE | ||||
| 58136-24010 |
GX81,JZX81,LX80,MX83,SX80,YX80 ｾﾝﾀ ﾌﾛｱﾊﾟﾝ ﾖｳ |
2 | ||
| 58136 - COVER, FRONT FLOOR HOLE | ||||
| 58136-24010 |
GX81,JZX81,LX80,MX83,SX80,YX80 ｾﾝﾀ ﾌﾛｱﾊﾟﾝ ﾖｳ |
2 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58029-22050 |
GX81,JZX81,LX80,MX83,SX80..4FC..(AVT,AVTG,GT,SXL,XG,XL) |
1 | ||
| 58183 - BRACKET, FRONT SEAT MOUNTING, INNER | ||||
| 58184-22030 |
GX81,JZX81,LX80,MX83,SX80,YX80 左側 |
1 | ||
| 58183-22030 |
GX81,JZX81,LX80,MX83,SX80,YX80 右側 |
1 | ||
| 58183 - BRACKET, FRONT SEAT MOUNTING, INNER | ||||
| 58184-22030 |
GX81,JZX81,LX80,MX83,SX80,YX80 左側 |
1 | ||
| 58183-22030 |
GX81,JZX81,LX80,MX83,SX80,YX80 右側 |
1 | ||
| 58191 - FOOTREST, FRONT FLOOR | ||||
| 58191-22040 |
GX81,JZX81,LX80,MX83,SX80..4FC..(AVT,AVTG,GT,SXL,XG,XL) |
1 | ||
| 58191 - FOOTREST, FRONT FLOOR | ||||
| 58191-22040 |
GX81,JZX81,LX80,MX83,SX80..4FC..(AVT,AVTG,GT,SXL,XG,XL) |
1 | ||
| 58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING | ||||
| 58193-22050 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 58198 - CLIP, FOOTREST | ||||
| 58198-22020 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL |
1 | ||
| 58199A - CLIP, FOOTREST, NO.2 | ||||
| 58199-22020 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL |
1 | ||
| 58207 - BRACKET SUB-ASSY, PARKING BRAKE CABLE, NO.1 | ||||
| 58207-22050 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-22050 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 58212C - PAN, CENTER FLOOR, FRONT | ||||
| 58212-22060 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 58255F - CLAMP, PARKING BRAKE WIRE TUBE, NO.1 RH | ||||
| 58255-22030 |
GX81,JZX81,LX80,MX83,SX80..4FC..(AVT,AVTG,GT,SXL,XG,XL) |
1 | ||
| 58261A - COVER, TRANSMISSION | ||||
| 58261-22220 |
GX81,JZX81,LX80,MX83,SX80,YX80..ATM |
1 | ||
| 58264B - BRACKET, PARKING BRAKE CABLE GUIDE | ||||
| 58264-22040 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-23070 |
JZX81,MX83 |
1 | ||
| 58307-91616 |
GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-22121 |
GX81,JZX81,LX80,MX83,SX80 |
1 | ||
| 58311-22120 |
GX81,LX80,MX83,SX80 |
1 | ||
| 58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH | ||||
| 58305-22040 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH | ||||
| 58314-22100 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-22040 |
GX81,JZX81,LX80,MX83,SX80 |
1 | ||
| 58339B - PACKING, REAR FLOOR SERVICE HOLE | ||||
| 58339-22030 |
GX81,JZX81,LX80,MX83,SX80 |
1 | ||
| 75121A - BRACKET, REAR LICENSE PLATE | ||||
| 75121-91601 |
GX81,LX80,MX83,SX80,YX80 右側 |
1 | ||
| 75122-91601 |
GX81,LX80,MX83,SX80,YX80 左側 |
1 | ||
| 75121-23020 |
JZX81,MX83 右側 |
1 | ||
| 75122-23010 |
JZX81,MX83 左側 |
1 | ||
| Common parts | ||||
| 83791-22140 | ||||
| 83791-22150 | ||||
| 90115-05088 | ||||
| 90179-08134 | ||||
| 90189-04002 | ||||
| 90333-30002 | ||||
| 90467-0505001 | ||||
| 90950-01006 | ||||
| 90950-01060 | ||||
| 90950-01061 | ||||
| 90950-01205 | ||||
| 90950-01345 | ||||
| 90950-01415 | ||||
| 90950-01466 | ||||
| 90950-01510 | ||||
| 90950-01630 | ||||
| 90950-06013 | ||||
| 91655-40616 | ||||
| 91655-40625 | ||||
| 93540-14010 | ||||
