MX83-BTPZF (1989)

Toyota Chaser

Production Aug 1989 - Oct 1992
Engine 7MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )MX83

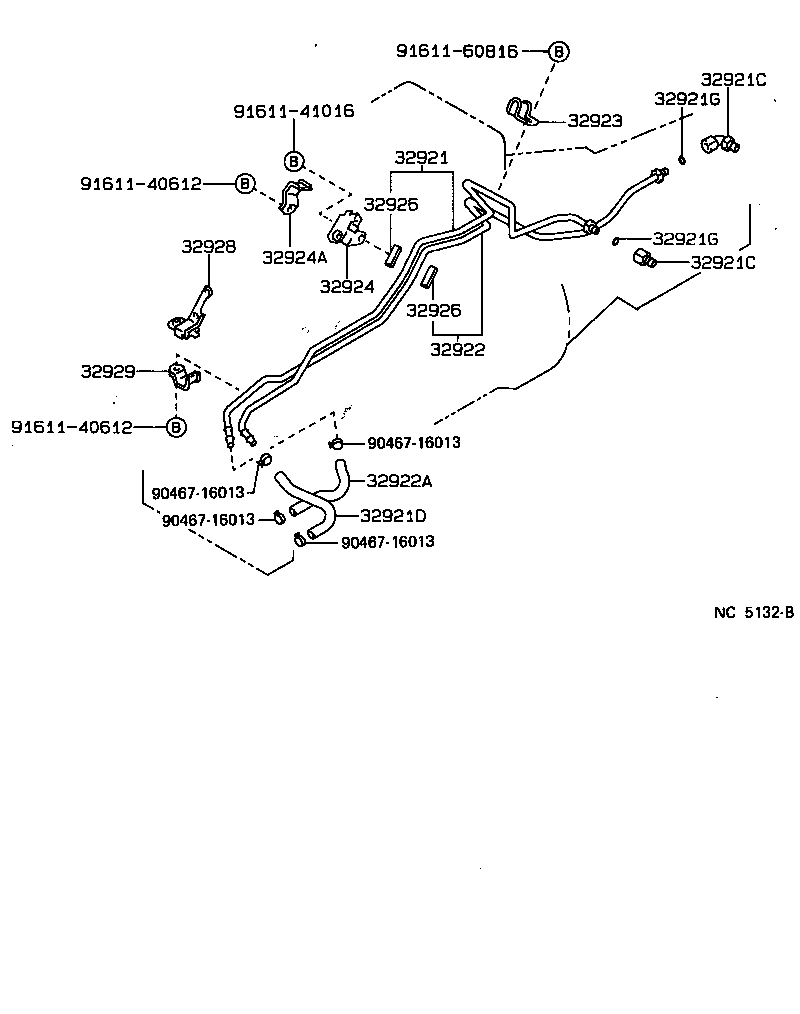

Click highlighted areas on diagram

diagram 32921 32921C 32921C 32921D 32921G 32921G 32922 32922A 32923 32924 32924A 32926 32926 32928 32929 9046716013 9046716013 9046716013 9046716013 9161140612 9161140612 9161141016 9161160816
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-22401

MX83

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-16020

GX81,MX83..4FC..(SPC,TWC,TWT)

ﾌﾛﾝﾄ

 1
90407-16009

GX81,MX83..4FC..(SPC,TWC,TWT)

ﾘﾔ

 1
90404-16029

GX81,JZX81,MX83..4FC..(TWC,TWT)

ﾌﾛﾝﾄ

 1
90407-16009

GX81,JZX81,MX83..4FC..(TWC,TWT)

ﾘﾔ

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-16020

GX81,MX83..4FC..(SPC,TWC,TWT)

ﾌﾛﾝﾄ

 1
90407-16009

GX81,MX83..4FC..(SPC,TWC,TWT)

ﾘﾔ

 1
90404-16029

GX81,JZX81,MX83..4FC..(TWC,TWT)

ﾌﾛﾝﾄ

 1
90407-16009

GX81,JZX81,MX83..4FC..(TWC,TWT)

ﾘﾔ

 1
32921D - HOSE(FOR OIL COOLER INLET)
32941-22201

MX83

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

GX81,JZX81,MX83..4FC..(SPC,TWC,TWT)

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

GX81,JZX81,MX83..4FC..(SPC,TWC,TWT)

 2
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-22421

MX83

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
32941-22181

MX83

東海ｺﾞﾑ

 1
32941-22181

MX83

 1
32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32923-30110

MX83

 1
32924 - CLAMP, OIL COOLER TUBE, NO.2
32924-30160

MX83

 1
32924A - CLAMP(FOR OIL COOLER TUBE, NO.2)
32929-22050

MX83

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

GX81,MX83,YX80..ATM..(LPG,SPC,TWC)

長さ=35,内径=10

 2
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

GX81,MX83,YX80..ATM..(LPG,SPC,TWC)

長さ=35,内径=10

 2
32928 - CLAMP, FLEXIBLE HOSE, NO.1
32928-30090

MX83

 1
32929 - CLAMP, FLEXIBLE HOSE, NO.2
32929-24040

MX83

 1
Common parts
90467-16013
91611-40612
91611-41016
91611-60816
