MX61-DTPGT (1981)
Toyota Chaser
Production
Oct 1981
-
Jul 1984
Engine
MTEU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

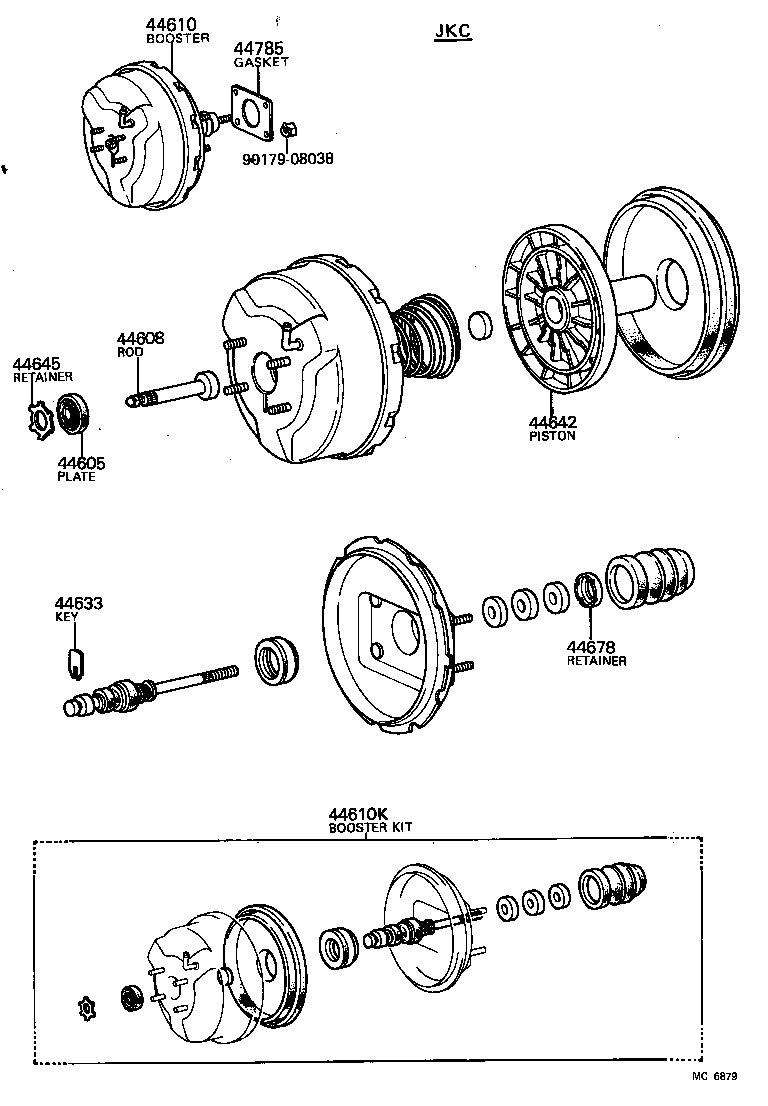

ILLUST NO. 1 OF 2(8009-8208)GX61,MX61,RX63 ; (8208- )AVT,SGT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44605 - PLATE & SEAL SUB-ASSY, BOOSTER | ||||
| 44605-22021 |
GX61,MX61..AVT,SGT |
1 | ||
| 44605-22021 |
GX61,MX61,RX63 |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44608-22090 |
GX61,MX61,RX63 |
1 | ||
| 44608-22090 |
GX61,MX61..AVT,SGT |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-22410 |
MX61 |
1 | ||
| 44610K - BOOSTER KIT, BRAKE | ||||
| 04443-22320 |
MX61 |
1 | ||
| 44633 - KEY, BOOSTER VALVE PLUNGER | ||||
| 44633-22020 |
GX61,MX61,RX63 |
1 | ||
| 44633-22020 |
GX61,MX61..AVT,SGT |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-25080 |
GX61,MX61,RX63 |
1 | ||
| 44642-25080 |
GX61,MX61..AVT,SGT |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44645-22020 |
GX61,MX61,RX63 |
1 | ||
| 44645-22020 |
GX61,MX61..AVT,SGT |
1 | ||
| 44678 - RETAINER, BOOSTER AIR CLEANER | ||||
| 44678-22020 |
GX61,MX61,RX63 |
1 | ||
| 44678-22020 |
GX61,MX61..AVT,SGT |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-30020 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||

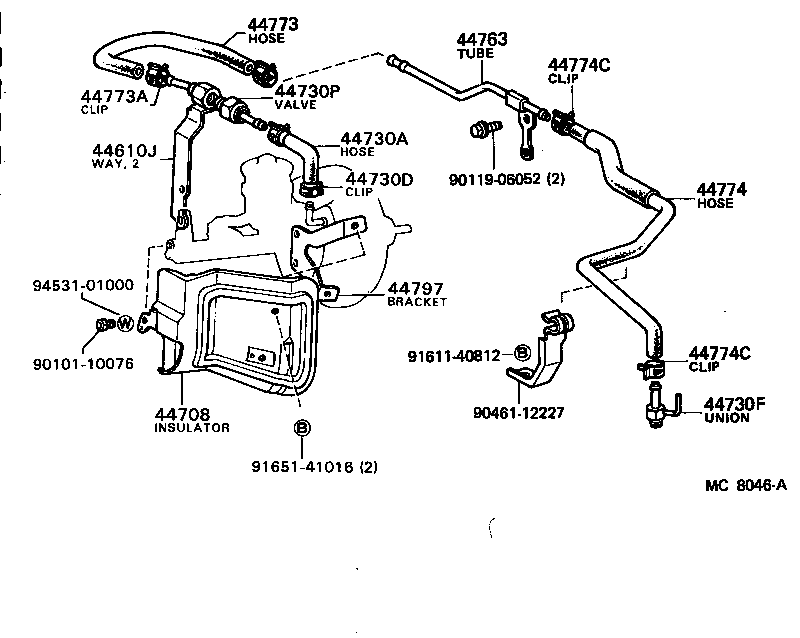

ILLUST NO. 2 OF 2(8110- )MX61
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610J - WAY, 2(FOR BRAKE BOOSTER) | ||||
| 90412-52002 |
MX61 |
1 | ||
| 44708 - INSULATOR SUB-ASSY, BRAKE BOOSTER HEAT | ||||
| 44708-22010 |
MX61 |
1 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 44772-24030 |
MX61 |
1 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16002 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
2 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51320 |
GX61,MX61 *AAC |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44580-22030 |
MX61 |
1 | ||
| 44763 - TUBE, BOOSTER VACUUM | ||||
| 44763-22020 |
MX61 |
1 | ||
| 44773 - HOSE, VACUUM, NO.2 | ||||
| 44778-22010 |
MX61 |
1 | ||
| 44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2) | ||||
| 90467-16002 |
GX6#,LX6#,MX61,RX63,SX60,TX60 |
2 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44773-22290 |
MX61 |
1 | ||
| 44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 90467-16002 |
GX61,MX61..TBO,TWC |
2 | ||
| 44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 90467-16002 |
GX61,MX61..TBO,TWC |
2 | ||
| 44797 - BRACKET, HEAT INSULATOR, NO.2 | ||||
| 44798-22010 |
MX61 |
1 | ||
| Common parts | ||||
| 90101-10076 | ||||
| 90119-06052 | ||||
| 90461-12227 | ||||
| 91611-40812 | ||||
| 91651-41016 | ||||
| 94531-01000 | ||||
