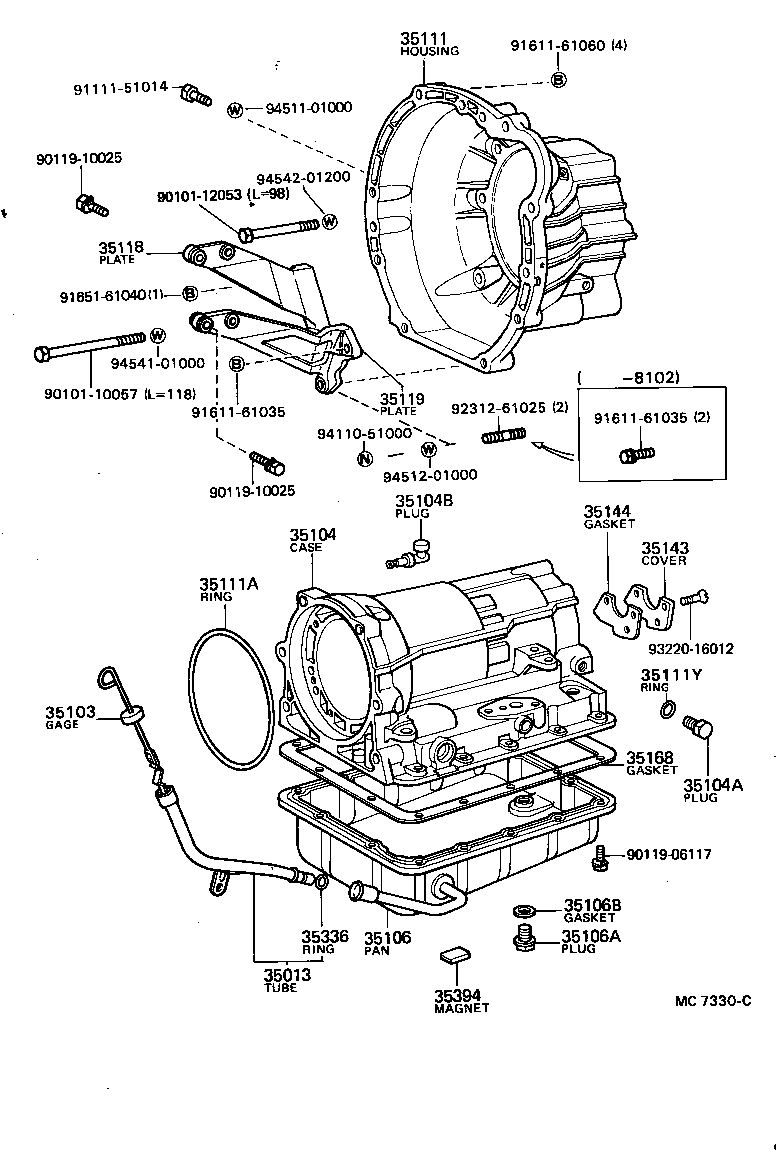

Toyota Chaser MX61 TRANSMISSION CASE & OIL PAN (ATM)

Part #	Description	Period	Qty
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-22150	MX61	10/1981 - 07/1984	1
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-30131	GX61,MX61..4FC..(EFI,TBO)	08/1983 - 07/1984	1
35103-30130	GX61,MX61..4FC..(EFI,TBO)	08/1982 - 08/1983	1
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03069	GX6#,LX6#,MX61,RX60,SX60,TX60..ATM	09/1980 - 07/1984	1
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-10003	GX6#,LX6#,MX61,RX60,SX60,TX60..ATM	09/1980 - 07/1983	1
90341-10006	GX61,LX6#,MX61,SX60..4FC	07/1983 - 07/1984	1
35106B - GASKET, DRAIN PLUG (ATM)
35178-30010	GX6#,LX6#,MX61,RX60,SX60,TX60..ATM	09/1980 - 07/1984	1
35111 - HOUSING, AUTOMATIC TRANSMISSION
35111-14070	MX61	10/1981 - 07/1984	1
35111A - RING, O (FOR AUTOMATIC TRANSMISSION HOUSING)
90301-99006	GX6#,LX6#,MX61,RX60,SX60..4FC	09/1980 - 07/1984	1
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196	GX6#,LX6#,MX61,RX60,SX60,TX60..ATM	09/1980 - 07/1984	2
35118 - PLATE, STIFENER, RH (ATM)
33118-22040	MX61	10/1981 - 07/1984	1
35119 - PLATE, STIFENER, LH (ATM)
33119-22030	MX61	10/1981 - 07/1984	1
35143 - COVER, TRANSMISSION CASE, REAR
35143-22010	GX6#,LX6#,MX61,RX60,SX60,TX60..ATM	09/1980 - 07/1984	1
35144 - GASKET, TRANSMISSION CASE REAR COVER
35144-22010	GX6#,LX6#,MX61,RX60,SX60,TX60..ATM	09/1980 - 07/1984	1
35168 - GASKET, AUTOMATIC TRANSMISSION OIL PAN
35168-22011	GX6#,LX6#,MX61,RX60,SX60,TX60..ATM	09/1980 - 07/1984	1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173	GX6#,LX6#,MX61,RX60,SX60,TX60..ATM	09/1980 - 07/1984	1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011	LX6#,MX61,SX60..4FC	08/1982 - 07/1984	1
Common parts
90101-10057
90101-12053
90119-06117
90119-10025
91111-51014
91611-61035
91611-61060
91651-61040
92312-61025
93220-16012
94110-51000
94511-01000
94512-01000
94541-01000
94542-01200

MX61-DTPGT (1981)

(8110- )MX61
