MX61-DTPGT (1981)
Toyota Chaser

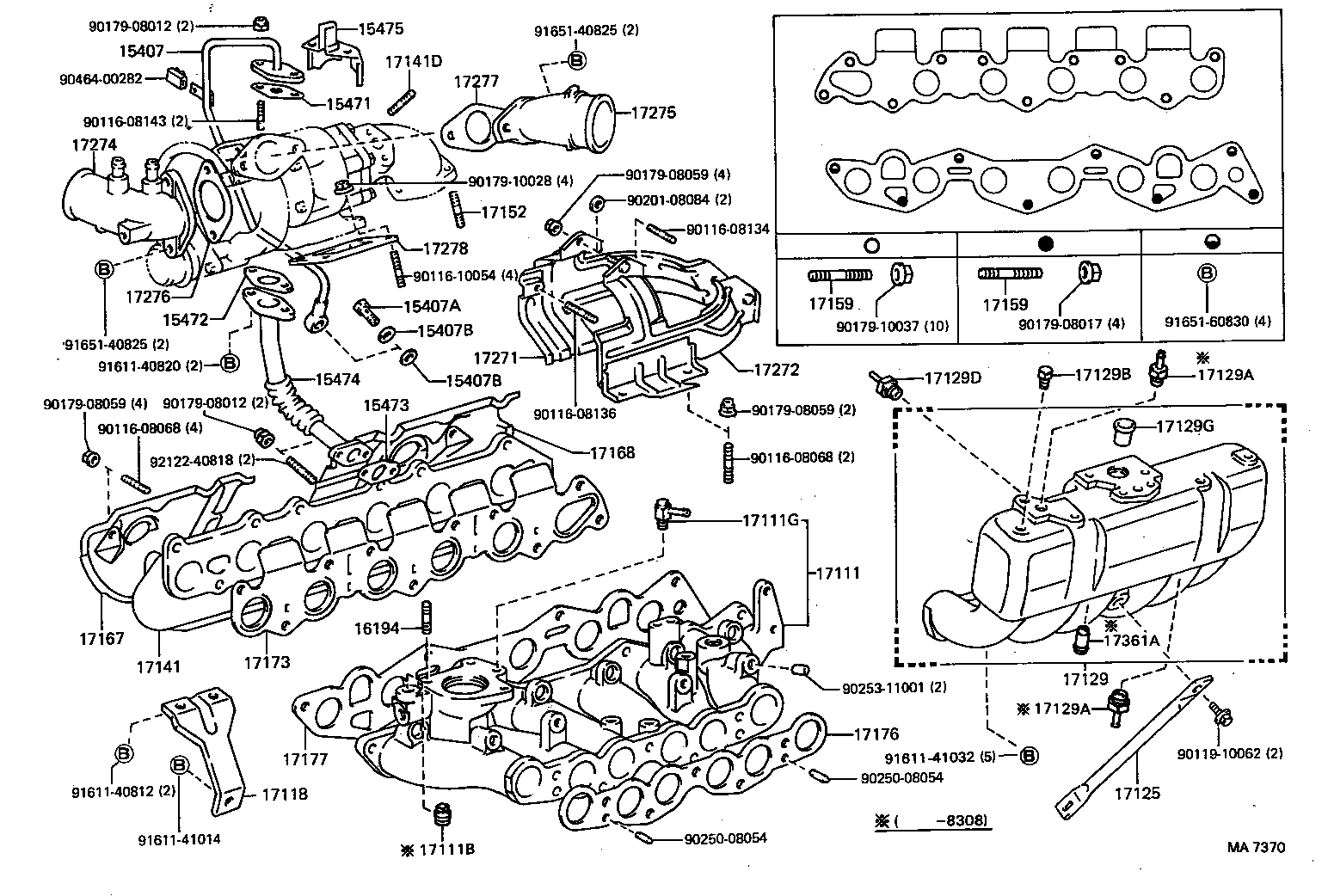

ILLUST NO. 1 OF 2(8110- )MTEU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15407 - PIPE SUB-ASSY, TURBO OIL INLET | ||||
| 15407-41010 |
MTEU..MX61 |
1 | ||
| 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) | ||||
| 90401-12097 |
MTEU..MX61 |
1 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90430-12005 |
MTEU..MX61 |
2 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90430-12005 |
MTEU..MX61 |
2 | ||
| 15471 - GASKET, TURBO OIL INLET | ||||
| 15471-41010 |
MTEU..MX61 |
1 | ||
| 15472 - GASKET, TURBO OIL OUTLET, NO.1 | ||||
| 15472-41010 |
MTEU..MX61 |
1 | ||
| 15473 - GASKET, TURBO OIL OUTLET, NO.2 | ||||
| 15473-41010 |
MTEU..MX61 |
1 | ||
| 15474 - PIPE, TURBO OIL OUTLET | ||||
| 15474-41010 |
MTEU..MX61 |
1 | ||
| 15475 - DEFLECTOR, OIL | ||||
| 15475-41010 |
MTEU..MX61 |
1 | ||
| 15475-41020 |
MTEU..MX61 |
1 | ||
| 16194 - BOLT, STUD(FOR WATER OUTLET SETTING) | ||||
| 90116-08025 |
MTEU..MX61 L=34,S=16&11 |
2 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-45080 |
MTEU..MX61 |
1 | ||
| 17111-41180 |
MTEU..MX61 |
1 | ||
| 17111B - PLUG, NO.2 | ||||
| 90345-53030 |
MTEU..MX61 |
1 | ||
| 17111G - UNION(FOR INTAKE MANIFOLD WATER) | ||||
| 90407-52005 |
MTEU..MX61 |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-41020 |
MTEU..MX61 |
1 | ||
| 17118-41030 |
MTEU..MX61 |
1 | ||
| 17125 - STAY, SURGE TANK, NO.1 | ||||
| 17125-41021 |
MTEU..MX61 |
1 | ||
| 17125-41020 |
MTEU..MX61 |
1 | ||
| 17129 - TANK, INTAKE AIR SURGE | ||||
| 17109-41050 |
MTEU..MX61 |
1 | ||
| 17109-41070 |
MTEU..MX61 |
1 | ||
| 17129A - UNION, NO.1 | ||||
| 90404-51036 |
MTEU..MX61 |
2 | ||
| 17129A - UNION, NO.1 | ||||
| 90404-51036 |
MTEU..MX61 |
2 | ||
| 17129B - PLUG | ||||
| 90072-34107 |
MTEU..MX61 |
1 | ||
| 17129D - UNION, NO.2 | ||||
| 90404-53045 |
MTEU..MX61 |
1 | ||
| 17129G - TUBE, EGR INLET | ||||
| 25619-45010 |
MTEU..MX61 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-41080 |
MTEU..MX61 |
1 | ||
| 17141-41090 |
MTEU..MX61 |
1 | ||
| 17141D - BOLT, STUD(FOR OXYGEN SENSOR) | ||||
| 90116-08168 |
MTEU..MX61 L=28,S=8&14 |
2 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-08020 |
MTEU..MX61 INTAKE MANIFOLD,L=44,S=12&18 |
4 | ||
| 90116-10025 |
MTEU..MX61 EXHAUST, UPR, L=57,S=15&31 |
7 | ||
| 90116-10024 |
MTEU..MX61 EXHAUST, LWR, L=53,S=15&29 |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-08020 |
MTEU..MX61 INTAKE MANIFOLD,L=44,S=12&18 |
4 | ||
| 90116-10025 |
MTEU..MX61 EXHAUST, UPR, L=57,S=15&31 |
7 | ||
| 90116-10024 |
MTEU..MX61 EXHAUST, LWR, L=53,S=15&29 |
3 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-41040 |
MTEU..MX61 |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-41010 |
MTEU..MX61 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-41040 |
MTEU..MX61 |
1 | ||
| 17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD | ||||
| 17176-41030 |
MTEU..MX61 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-41040 |
MTEU..MX61 |
1 | ||
| 17271 - INSULATOR, TURBO, NO.1 | ||||
| 17271-41010 |
MTEU..MX61 |
1 | ||
| 17272 - INSULATOR, TURBO, NO.2 | ||||
| 17202-41010 |
MTEU..MX61 |
1 | ||
| 17274 - ELBOW, COMPRESSOR INLET | ||||
| 17203-41020 |
MTEU..MX61 |
1 | ||
| 17203-41040 |
MTEU..MX61 |
1 | ||
| 17275 - ELBOW, COMPRESSOR OUTLET | ||||
| 17275-41010 |
MTEU..MX61 |
1 | ||
| 17276 - GASKET, COMPRESSOR INLET | ||||
| 17276-41010 |
MTEU..MX61 |
1 | ||
| 17276-41020 |
MTEU..MX61 |
1 | ||
| 17277 - GASKET, COMPRESSOR OUTLET | ||||
| 17277-41010 |
MTEU..MX61 |
1 | ||
| 17278 - GASKET, TURBO TO EXHAUST MANIFOLD | ||||
| 17278-41010 |
MTEU..MX61 |
1 | ||
| 17361A - TUBE, AIR(FOR EFI) | ||||
| 17361-41010 |
MTEU..MX61 |
1 | ||
| Common parts | ||||
| 90116-08068 | ||||
| 90116-08134 | ||||
| 90116-08136 | ||||
| 90116-08143 | ||||
| 90116-10054 | ||||
| 90119-10062 | ||||
| 90179-08012 | ||||
| 90179-08017 | ||||
| 90179-08059 | ||||
| 90179-10028 | ||||
| 90179-10037 | ||||
| 90201-08084 | ||||
| 90250-08054 | ||||
| 90253-11001 | ||||
| 90464-00282 | ||||
| 91611-40812 | ||||
| 91611-40820 | ||||
| 91611-41014 | ||||
| 91611-41032 | ||||
| 91651-40825 | ||||
| 91651-60830 | ||||
| 92122-40818 | ||||

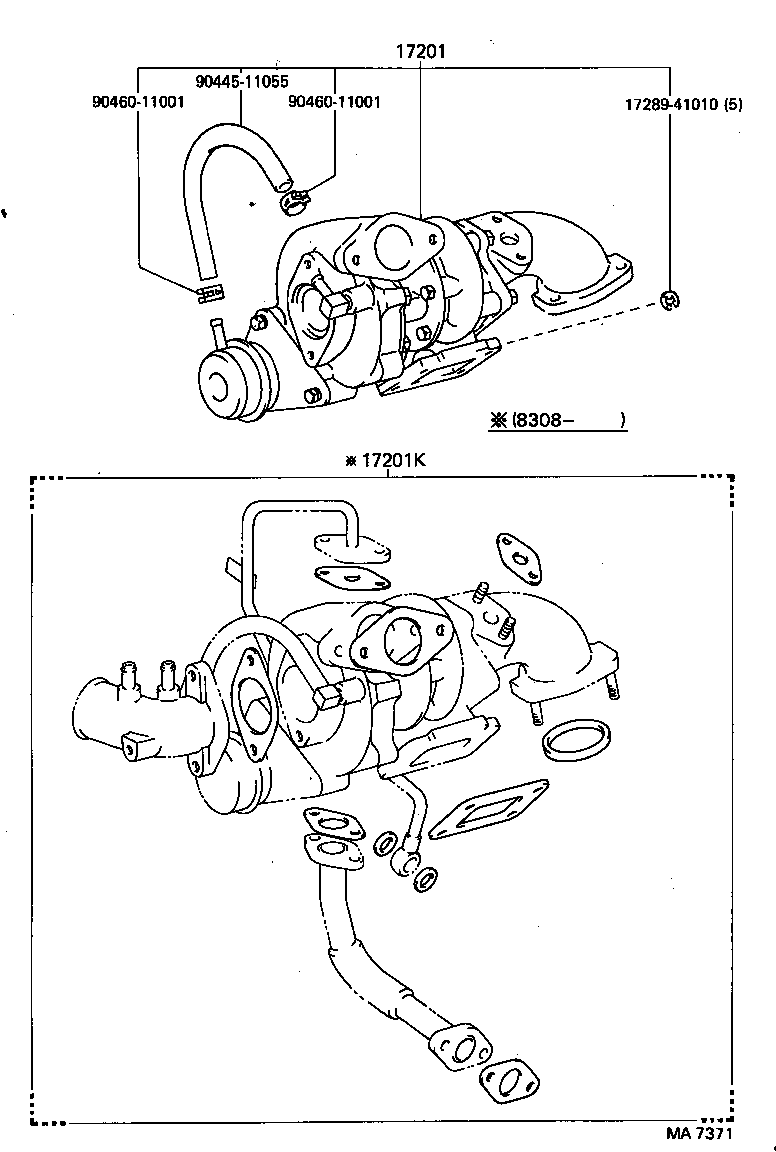

ILLUST NO. 2 OF 2(8110- )MTEU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17201-41011 |
MTEU..MX61 |
1 | ||
| 17201-41010 |
MTEU..MX61 |
1 | ||
| 17201-41050 |
MTEU..MX61 |
1 | ||
| 17201K - GASKET KIT, TURBOCHARGER | ||||
| 04175-41010 |
MTEU..MX61 |
1 | ||
| Common parts | ||||
| 17289-41010 | ||||
| 90445-11055 | ||||
| 90460-11001 | ||||
