MX61-DEPST (1981)

Toyota Chaser

Production Oct 1981 - Jul 1984
Engine MTEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8110- )MTEU

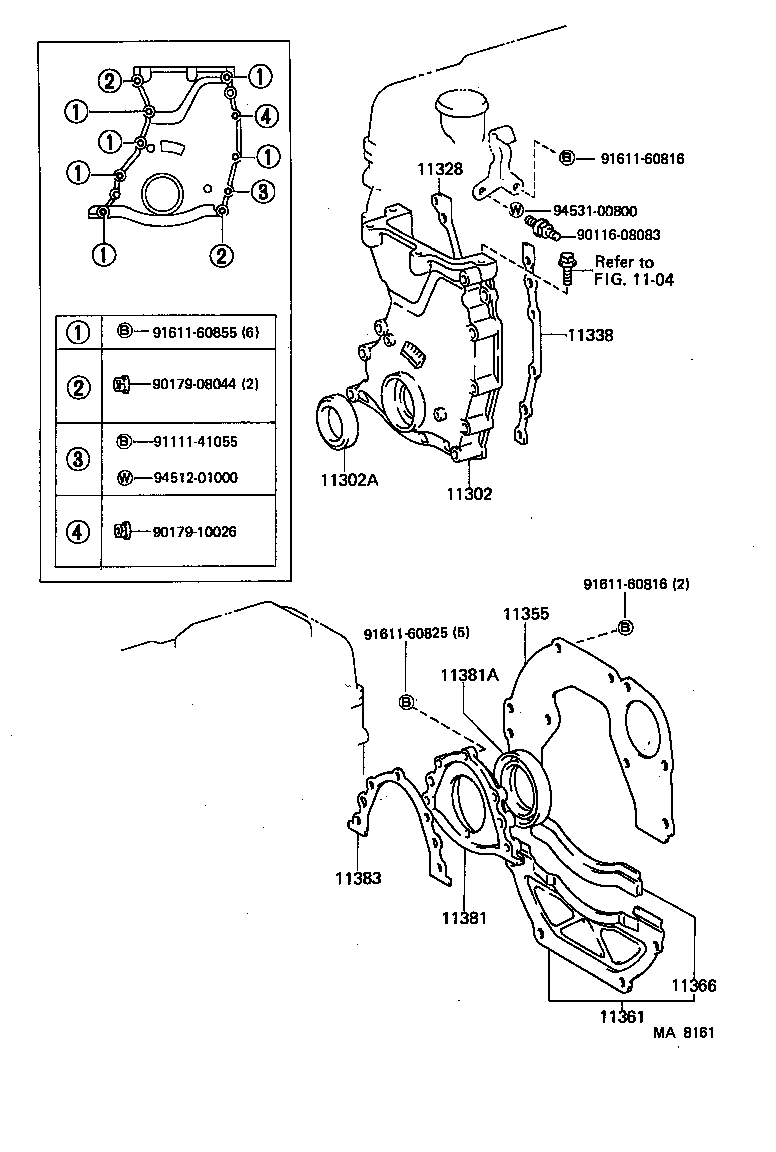

Click highlighted areas on diagram

diagram 1104 11302 11302A 11328 11338 11355 11361 11366 11381 11381A 11383 9011608083 9017908044 9017910026 9111141055 9161160816 9161160816 9161160825 9161160855 9451201000 9453100800
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-41020

MTEU..MX61

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-45069

MTEU..MX61

TC3 45 68 12

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-41010

MTEU..MX61

 1
11338 - GASKET, TIMING CHAIN COVER, NO.2
11338-41010

MTEU..MX61

 1
11355 - PLATE, REAR END
11355-41010

MTEU..MX61

 1
11361 - COVER, FLYWHEEL HOUSING UNDER
11361-45010

MTEU..MX61

 1
11366 - SEAL, FLYWHEEL HOUSING UNDER COVER DUST
31131-30010

MTEU..MX61

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-41011

MTEU..MX61

 1
11381A - SEAL, ENGINE REAR OIL
90311-80001

MTEU..MX61

TC 80 100 12

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-41010

MTEU..MX61

 1
Common parts
90116-08083
90179-08044
90179-10026
91111-41055
91611-60816
91611-60825
91611-60855
94512-01000
94531-00800
Linked diagrams
1104
