MX61-DEPGT (1981)
Toyota Chaser

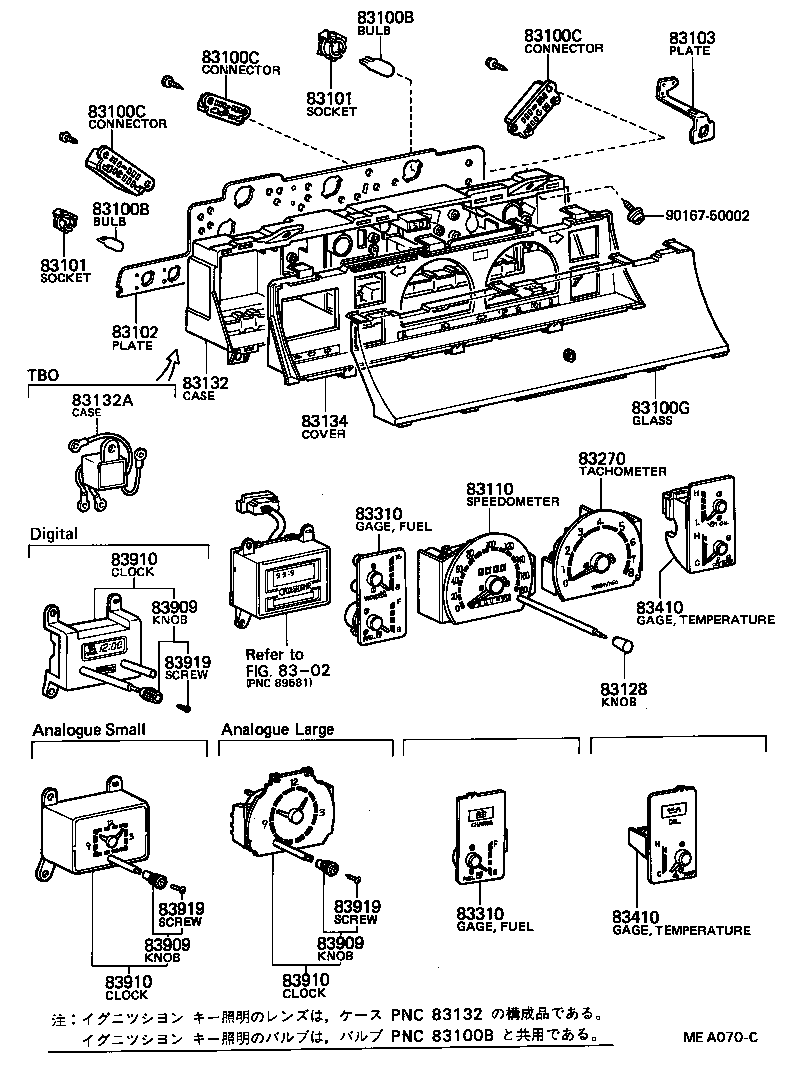

ILLUST NO. 1 OF 3(8009-8208)SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..CBR,DSL,EFI,LPG,TBO,TDE 12V 3.4W,12V 3.4W |
9 | ||
| 90981-11018 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
20 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..CBR,DSL,EFI,LPG,TBO,TDE 12V 3.4W,12V 3.4W |
9 | ||
| 90981-11018 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
20 | ||
| 83100C - CONNECTOR, COMBINATION METER | ||||
| 90980-08208 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 7-POLE |
1 | ||
| 90980-08209 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 13-POLE |
2 | ||
| 83100C - CONNECTOR, COMBINATION METER | ||||
| 90980-08208 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 7-POLE |
1 | ||
| 90980-08209 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 13-POLE |
2 | ||
| 83100C - CONNECTOR, COMBINATION METER | ||||
| 90980-08208 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 7-POLE |
1 | ||
| 90980-08209 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 13-POLE |
2 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-22170 |
GX61,MX61..SED..AVT W/*CC |
1 | ||
| 83138-22150 |
GX61,MX61,RX63..SED |
1 | ||
| 83138-22190 |
MX61..SED W/DIGITAL CLOCK,*AS |
1 | ||
| 83133-22330 |
MX61..SED..AVT W/*DS |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 12V 1.4W |
20 | ||
| 83101-14030 |
GX61,MX61,RX63..SED 12V 3.4W |
9 | ||
| 83101-14030 |
MX61;GX61,SX60..HT 12V 3.4W |
9 | ||
| 83101-14050 |
MX61;GX61,SX60..HT 12V 3.4W,W/GREEN CAP BULB,*AS |
3 | ||
| 83101-32010 |
MX61..AVT 12V 1.4W,LONG |
4 | ||
| 83101-14030 |
MX61..SED..AVT 12V 3.4W,W/GREEN CAP BULB,*DS |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 12V 1.4W |
20 | ||
| 83101-14030 |
GX61,MX61,RX63..SED 12V 3.4W |
9 | ||
| 83101-14030 |
MX61;GX61,SX60..HT 12V 3.4W |
9 | ||
| 83101-14050 |
MX61;GX61,SX60..HT 12V 3.4W,W/GREEN CAP BULB,*AS |
3 | ||
| 83101-32010 |
MX61..AVT 12V 1.4W,LONG |
4 | ||
| 83101-14030 |
MX61..SED..AVT 12V 3.4W,W/GREEN CAP BULB,*DS |
3 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-22370 |
MX61..SED |
1 | ||
| 83247-22410 |
MX61..SED W/*AS |
1 | ||
| 83247-22610 |
MX61..SED..AVT W/*DS |
1 | ||
| 83103 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2 | ||||
| 83247-22630 |
MX61..SED..AVT W/*DS |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-22450 |
MX61..SED |
1 | ||
| 83110-22710 |
MX61..SED W/*AS |
1 | ||
| 83110-2A090 |
MX61..AVT W/*DS |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-10260 |
GX61,MX61..EFI,TBO DENSO,W/*AS |
1 | ||
| 83128-10260 |
GX61,MX61,RX63..SED |
1 | ||
| 83128-32030 |
MX61..AVT W/*DS |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-22030 |
GX61,MX61,RX63..SED |
1 | ||
| 83132-22150 |
GX61,MX61..SED..(EFI,TBO) DENSO,W/*AS |
1 | ||
| 83132-22270 |
MX61..SED..AVT W/*DS |
1 | ||
| 83132A - CASE, METER | ||||
| 83132-22110 |
MX61..SED |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83133-22010 |
GX61,MX61,RX63..SED |
1 | ||
| 83133-22110 |
MX61..SED |
1 | ||
| 83133-22130 |
MX61..SED W/*AS |
1 | ||
| 83133-22370 |
MX61..SED..AVT W/*DS |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-22150 |
GX61,MX61..SED |
1 | ||
| 83242-22250 |
MX61..SED |
1 | ||
| 83270-22100 |
MX61..AVT W/*DS |
1 | ||
| 83242-22370 |
MX61..SED W/*AS |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-22250 |
MX61..SED |
1 | ||
| 83310-22050 |
MX61..AVT W/*DS |
1 | ||
| 83243-22290 |
GX61,MX61..SED..(EFI,TBO) DENSO,W/*AS |
1 | ||
| 83310-22051 |
MX61..AVT W/*DS |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-22250 |
MX61..SED |
1 | ||
| 83310-22050 |
MX61..AVT W/*DS |
1 | ||
| 83243-22290 |
GX61,MX61..SED..(EFI,TBO) DENSO,W/*AS |
1 | ||
| 83310-22051 |
MX61..AVT W/*DS |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-22230 |
MX61..SED W/*AS |
1 | ||
| 83244-22330 |
GX61,MX61..SED..(EFI,TBO) DENSO,W/*AS |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-22230 |
MX61..SED W/*AS |
1 | ||
| 83244-22330 |
GX61,MX61..SED..(EFI,TBO) DENSO,W/*AS |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-22180 |
GX6#,LX65,MX61,RX6#,SX60..AVT,GT,SGT,SXL,XG DIGITAL |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-22180 |
GX6#,LX65,MX61,RX6#,SX60..AVT,GT,SGT,SXL,XG DIGITAL |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-22180 |
GX6#,LX65,MX61,RX6#,SX60..AVT,GT,SGT,SXL,XG DIGITAL |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-22180 |
GX6#,MX61,RX6#..SED..(AVT,GT,SGT,SXL,XG) DIGITAL |
1 | ||
| 83910-22260 |
MX61..SED..AVT W/*DS,DIGITAL |
1 | ||
| 83910-22231 |
LX65,MX61,SX60..SED..(AVT,SGT,SXL,XG) DIGITAL |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-22180 |
GX6#,MX61,RX6#..SED..(AVT,GT,SGT,SXL,XG) DIGITAL |
1 | ||
| 83910-22260 |
MX61..SED..AVT W/*DS,DIGITAL |
1 | ||
| 83910-22231 |
LX65,MX61,SX60..SED..(AVT,SGT,SXL,XG) DIGITAL |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-22180 |
GX6#,MX61,RX6#..SED..(AVT,GT,SGT,SXL,XG) DIGITAL |
1 | ||
| 83910-22260 |
MX61..SED..AVT W/*DS,DIGITAL |
1 | ||
| 83910-22231 |
LX65,MX61,SX60..SED..(AVT,SGT,SXL,XG) DIGITAL |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-12230 |
GX6#,LX65,MX61,RX6#,SX60..AVT,GT,SGT,SXL,XG DIGITAL |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-12230 |
GX6#,LX65,MX61,RX6#,SX60..AVT,GT,SGT,SXL,XG DIGITAL |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-12230 |
GX6#,LX65,MX61,RX6#,SX60..AVT,GT,SGT,SXL,XG DIGITAL |
1 | ||
| Common parts | ||||
| 90167-50002 | ||||
| Linked diagrams | ||||
| 8302 | ||||

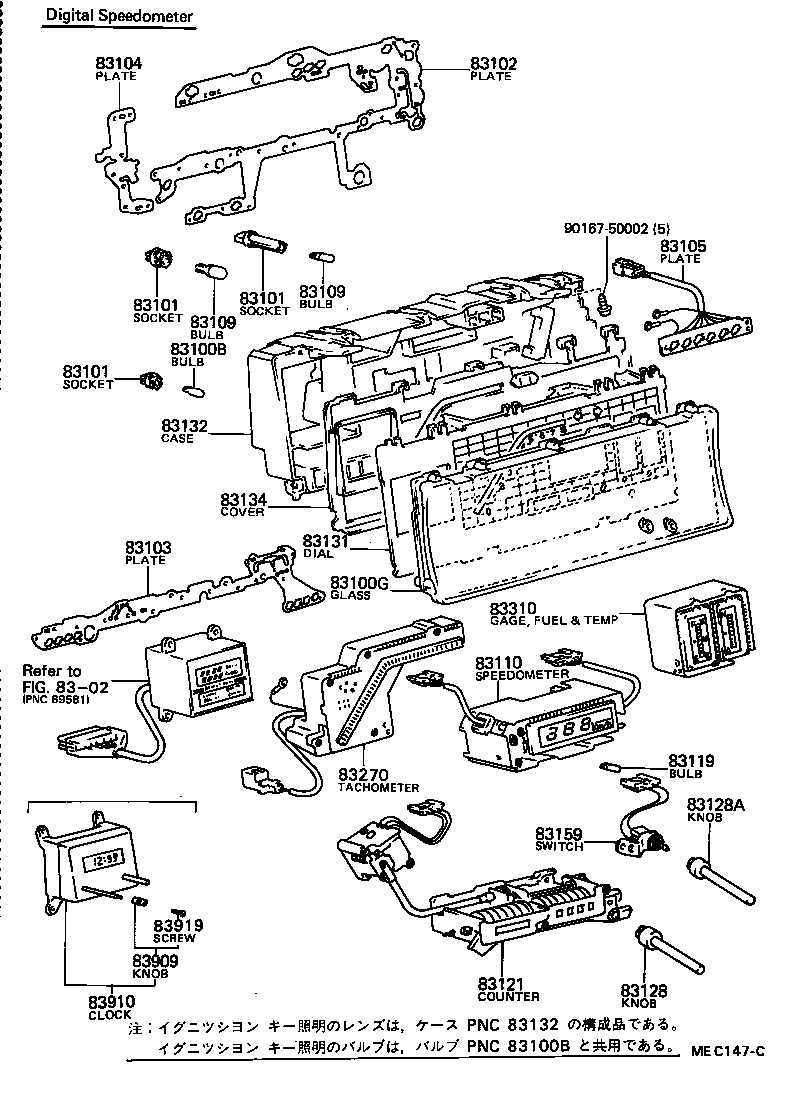

ILLUST NO. 1 OF 3(8208- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..CBR,DSL,EFI,LPG,TBO,TDE 12V 3.4W,12V 3.4W |
9 | ||
| 90981-11018 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
20 | ||
| 83100C - CONNECTOR, COMBINATION METER | ||||
| 90980-08208 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 7-POLE |
1 | ||
| 90980-08209 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 13-POLE |
2 | ||
| 83100C - CONNECTOR, COMBINATION METER | ||||
| 90980-08208 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 7-POLE |
1 | ||
| 90980-08209 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 13-POLE |
2 | ||
| 83100C - CONNECTOR, COMBINATION METER | ||||
| 90980-08208 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 7-POLE |
1 | ||
| 90980-08209 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 13-POLE |
2 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-22170 |
GX61,MX61..SED..AVT W/*CC |
1 | ||
| 83138-22150 |
GX61,MX61,RX63..SED |
1 | ||
| 83138-22190 |
MX61..SED W/DIGITAL CLOCK,*AS |
1 | ||
| 83133-22330 |
MX61..SED..AVT W/*DS |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 12V 1.4W |
20 | ||
| 83101-14030 |
GX61,MX61,RX63..SED 12V 3.4W |
9 | ||
| 83101-14030 |
MX61;GX61,SX60..HT 12V 3.4W |
9 | ||
| 83101-14050 |
MX61;GX61,SX60..HT 12V 3.4W,W/GREEN CAP BULB,*AS |
3 | ||
| 83101-32010 |
MX61..AVT 12V 1.4W,LONG |
4 | ||
| 83101-14030 |
MX61..SED..AVT 12V 3.4W,W/GREEN CAP BULB,*DS |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 12V 1.4W |
20 | ||
| 83101-14030 |
GX61,MX61,RX63..SED 12V 3.4W |
9 | ||
| 83101-14030 |
MX61;GX61,SX60..HT 12V 3.4W |
9 | ||
| 83101-14050 |
MX61;GX61,SX60..HT 12V 3.4W,W/GREEN CAP BULB,*AS |
3 | ||
| 83101-32010 |
MX61..AVT 12V 1.4W,LONG |
4 | ||
| 83101-14030 |
MX61..SED..AVT 12V 3.4W,W/GREEN CAP BULB,*DS |
3 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-22370 |
MX61..SED |
1 | ||
| 83247-22410 |
MX61..SED W/*AS |
1 | ||
| 83247-22610 |
MX61..SED..AVT W/*DS |
1 | ||
| 83103 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2 | ||||
| 83247-22630 |
MX61..SED..AVT W/*DS |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-14010 |
MX61;GX61,SX60..HT W/*AS,12V 3.4W |
3 | ||
| 83109-24040 |
MX61..AVT 12V 1.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,W/*DS,12V 1.4W |
4 | ||
| 83109-24030 |
MX61..AVT 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,W/*DS,12V 3.4W |
3 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-22450 |
MX61..SED |
1 | ||
| 83110-22710 |
MX61..SED W/*AS |
1 | ||
| 83110-2A090 |
MX61..AVT W/*DS |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-10260 |
GX61,MX61..EFI,TBO DENSO,W/*AS |
1 | ||
| 83128-10260 |
GX61,MX61,RX63..SED |
1 | ||
| 83128-32030 |
MX61..AVT W/*DS |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-22030 |
GX61,MX61,RX63..SED |
1 | ||
| 83132-22150 |
GX61,MX61..SED..(EFI,TBO) DENSO,W/*AS |
1 | ||
| 83132-22270 |
MX61..SED..AVT W/*DS |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83133-22010 |
GX61,MX61,RX63..SED |
1 | ||
| 83133-22110 |
MX61..SED |
1 | ||
| 83133-22130 |
MX61..SED W/*AS |
1 | ||
| 83133-22370 |
MX61..SED..AVT W/*DS |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-22150 |
GX61,MX61..SED |
1 | ||
| 83242-22250 |
MX61..SED |
1 | ||
| 83270-22100 |
MX61..AVT W/*DS |
1 | ||
| 83242-22370 |
MX61..SED W/*AS |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-22250 |
MX61..SED |
1 | ||
| 83310-22050 |
MX61..AVT W/*DS |
1 | ||
| 83243-22290 |
GX61,MX61..SED..(EFI,TBO) DENSO,W/*AS |
1 | ||
| 83310-22051 |
MX61..AVT W/*DS |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-22250 |
MX61..SED |
1 | ||
| 83310-22050 |
MX61..AVT W/*DS |
1 | ||
| 83243-22290 |
GX61,MX61..SED..(EFI,TBO) DENSO,W/*AS |
1 | ||
| 83310-22051 |
MX61..AVT W/*DS |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-22230 |
MX61..SED W/*AS |
1 | ||
| 83244-22330 |
GX61,MX61..SED..(EFI,TBO) DENSO,W/*AS |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-22230 |
MX61..SED W/*AS |
1 | ||
| 83244-22330 |
GX61,MX61..SED..(EFI,TBO) DENSO,W/*AS |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-22180 |
GX6#,LX65,MX61,RX6#,SX60..AVT,GT,SGT,SXL,XG DIGITAL |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-22180 |
GX6#,LX65,MX61,RX6#,SX60..AVT,GT,SGT,SXL,XG DIGITAL |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-22180 |
GX6#,LX65,MX61,RX6#,SX60..AVT,GT,SGT,SXL,XG DIGITAL |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-22180 |
GX6#,MX61,RX6#..SED..(AVT,GT,SGT,SXL,XG) DIGITAL |
1 | ||
| 83910-22260 |
MX61..SED..AVT W/*DS,DIGITAL |
1 | ||
| 83910-22231 |
LX65,MX61,SX60..SED..(AVT,SGT,SXL,XG) DIGITAL |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-22180 |
GX6#,MX61,RX6#..SED..(AVT,GT,SGT,SXL,XG) DIGITAL |
1 | ||
| 83910-22260 |
MX61..SED..AVT W/*DS,DIGITAL |
1 | ||
| 83910-22231 |
LX65,MX61,SX60..SED..(AVT,SGT,SXL,XG) DIGITAL |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-22180 |
GX6#,MX61,RX6#..SED..(AVT,GT,SGT,SXL,XG) DIGITAL |
1 | ||
| 83910-22260 |
MX61..SED..AVT W/*DS,DIGITAL |
1 | ||
| 83910-22231 |
LX65,MX61,SX60..SED..(AVT,SGT,SXL,XG) DIGITAL |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-12230 |
GX6#,LX65,MX61,RX6#,SX60..AVT,GT,SGT,SXL,XG DIGITAL |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-12230 |
GX6#,LX65,MX61,RX6#,SX60..AVT,GT,SGT,SXL,XG DIGITAL |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-12230 |
GX6#,LX65,MX61,RX6#,SX60..AVT,GT,SGT,SXL,XG DIGITAL |
1 | ||
| Common parts | ||||
| 90167-50002 | ||||
ILLUST NO. 1 OF 3(8208- )SED..AVT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..CBR,DSL,EFI,LPG,TBO,TDE 12V 3.4W,12V 3.4W |
9 | ||
| 90981-11018 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
20 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-22170 |
GX61,MX61..SED..AVT W/*CC |
1 | ||
| 83138-22150 |
GX61,MX61,RX63..SED |
1 | ||
| 83138-22190 |
MX61..SED W/DIGITAL CLOCK,*AS |
1 | ||
| 83133-22330 |
MX61..SED..AVT W/*DS |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 12V 1.4W |
20 | ||
| 83101-14030 |
GX61,MX61,RX63..SED 12V 3.4W |
9 | ||
| 83101-14030 |
MX61;GX61,SX60..HT 12V 3.4W |
9 | ||
| 83101-14050 |
MX61;GX61,SX60..HT 12V 3.4W,W/GREEN CAP BULB,*AS |
3 | ||
| 83101-32010 |
MX61..AVT 12V 1.4W,LONG |
4 | ||
| 83101-14030 |
MX61..SED..AVT 12V 3.4W,W/GREEN CAP BULB,*DS |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 12V 1.4W |
20 | ||
| 83101-14030 |
GX61,MX61,RX63..SED 12V 3.4W |
9 | ||
| 83101-14030 |
MX61;GX61,SX60..HT 12V 3.4W |
9 | ||
| 83101-14050 |
MX61;GX61,SX60..HT 12V 3.4W,W/GREEN CAP BULB,*AS |
3 | ||
| 83101-32010 |
MX61..AVT 12V 1.4W,LONG |
4 | ||
| 83101-14030 |
MX61..SED..AVT 12V 3.4W,W/GREEN CAP BULB,*DS |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 12V 1.4W |
20 | ||
| 83101-14030 |
GX61,MX61,RX63..SED 12V 3.4W |
9 | ||
| 83101-14030 |
MX61;GX61,SX60..HT 12V 3.4W |
9 | ||
| 83101-14050 |
MX61;GX61,SX60..HT 12V 3.4W,W/GREEN CAP BULB,*AS |
3 | ||
| 83101-32010 |
MX61..AVT 12V 1.4W,LONG |
4 | ||
| 83101-14030 |
MX61..SED..AVT 12V 3.4W,W/GREEN CAP BULB,*DS |
3 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-22370 |
MX61..SED |
1 | ||
| 83247-22410 |
MX61..SED W/*AS |
1 | ||
| 83247-22610 |
MX61..SED..AVT W/*DS |
1 | ||
| 83103 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2 | ||||
| 83247-22630 |
MX61..SED..AVT W/*DS |
1 | ||
| 83104 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.3 | ||||
| 83247-22650 |
MX61..SED..AVT W/*DS |
1 | ||
| 83105 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.4 | ||||
| 83247-22670 |
MX61..SED..AVT W/*DS |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-14010 |
MX61;GX61,SX60..HT W/*AS,12V 3.4W |
3 | ||
| 83109-24040 |
MX61..AVT 12V 1.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,W/*DS,12V 1.4W |
4 | ||
| 83109-24030 |
MX61..AVT 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,W/*DS,12V 3.4W |
3 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-14010 |
MX61;GX61,SX60..HT W/*AS,12V 3.4W |
3 | ||
| 83109-24040 |
MX61..AVT 12V 1.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,W/*DS,12V 1.4W |
4 | ||
| 83109-24030 |
MX61..AVT 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,W/*DS,12V 3.4W |
3 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-22450 |
MX61..SED |
1 | ||
| 83110-22710 |
MX61..SED W/*AS |
1 | ||
| 83110-2A090 |
MX61..AVT W/*DS |
1 | ||
| 83119 - BULB, COMBINATION METER, NO.3 | ||||
| 83119-24010 |
MX61..AVT 12V 1.4W ｿｹｯﾄ付き,W/*DS,12V 1.4W |
1 | ||
| 83121 - COUNTER, TOTAL | ||||
| 83121-22030 |
MX61..SED..AVT W/*DS |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-10260 |
GX61,MX61..EFI,TBO DENSO,W/*AS |
1 | ||
| 83128-10260 |
GX61,MX61,RX63..SED |
1 | ||
| 83128-32030 |
MX61..AVT W/*DS |
1 | ||
| 83128A - KNOB, METER | ||||
| 83128-32050 |
MX61..AVT W/*DS |
1 | ||
| 83131 - DIAL, METER, NO.1 | ||||
| 83131-22310 |
MX61..SED..AVT |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-22030 |
GX61,MX61,RX63..SED |
1 | ||
| 83132-22150 |
GX61,MX61..SED..(EFI,TBO) DENSO,W/*AS |
1 | ||
| 83132-22270 |
MX61..SED..AVT W/*DS |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83133-22010 |
GX61,MX61,RX63..SED |
1 | ||
| 83133-22110 |
MX61..SED |
1 | ||
| 83133-22130 |
MX61..SED W/*AS |
1 | ||
| 83133-22370 |
MX61..SED..AVT W/*DS |
1 | ||
| 83159 - SWITCH, METER, NO.1 | ||||
| 83159-22030 |
MX61..SED..AVT W/*DS |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-22150 |
GX61,MX61..SED |
1 | ||
| 83242-22250 |
MX61..SED |
1 | ||
| 83270-22100 |
MX61..AVT W/*DS |
1 | ||
| 83242-22370 |
MX61..SED W/*AS |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-22250 |
MX61..SED |
1 | ||
| 83310-22050 |
MX61..AVT W/*DS |
1 | ||
| 83243-22290 |
GX61,MX61..SED..(EFI,TBO) DENSO,W/*AS |
1 | ||
| 83310-22051 |
MX61..AVT W/*DS |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-22180 |
GX6#,LX65,MX61,RX6#,SX60..AVT,GT,SGT,SXL,XG DIGITAL |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-22180 |
GX6#,MX61,RX6#..SED..(AVT,GT,SGT,SXL,XG) DIGITAL |
1 | ||
| 83910-22260 |
MX61..SED..AVT W/*DS,DIGITAL |
1 | ||
| 83910-22231 |
LX65,MX61,SX60..SED..(AVT,SGT,SXL,XG) DIGITAL |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-12230 |
GX6#,LX65,MX61,RX6#,SX60..AVT,GT,SGT,SXL,XG DIGITAL |
1 | ||
| Common parts | ||||
| 90167-50002 | ||||
| Linked diagrams | ||||
| 8302 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
