LX90-BTPET (1992)
Toyota Chaser

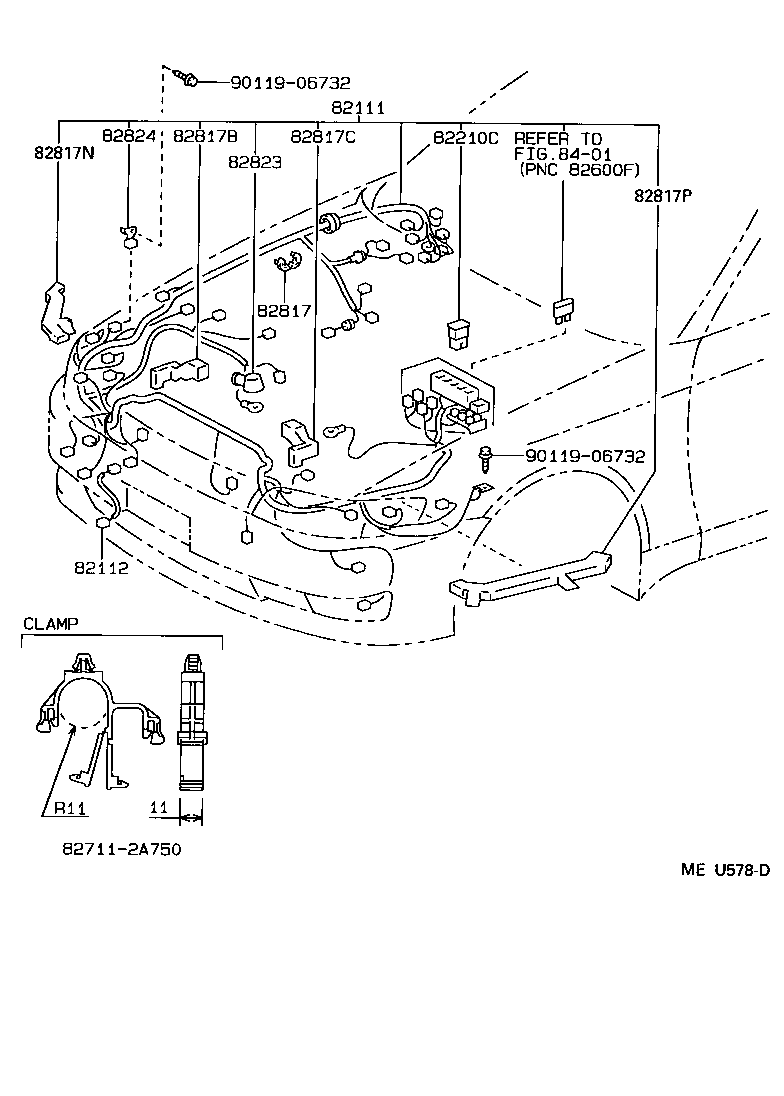

ILLUST NO. 1 OF 9(9210- )
ENGINE ROOM WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-2A860 |
LX90 |
1 | ||
| 82111-2C220 |
LX90 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08189 |
GX90,JZX9#,LX90,SX90 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08227 |
JZX9#,LX90,SX90 50A,ﾒｽ端子,赤 |
2 | ||
| 90982-08190 |
GX90,JZX9#,LX90,SX90 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08270 |
LX90,SX90 100A,ｵｽ端子,青 |
1 | ||
| 90982-08188 |
GX90,JZX9#,LX90,SX90 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08202 |
LX90 60A,ｵｽ端子,黄 |
2 | ||
| 90982-08188 |
JZX9#,LX90..AVT,AVTG,RAF,TOUS,XL 30A,ﾒｽ端子,ﾋﾟﾝｸ,TAIHEIYO |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-2A290 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-2A260 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-2A270 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 82817N - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-2A250 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 82817P - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-2A280 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-22080 |
GX90,LX90,SX90 |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-22050 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| Common parts | ||||
| 82711-2A750 | ||||
| 90119-06732 | ||||
| Linked diagrams | ||||
| 8401 | ||||

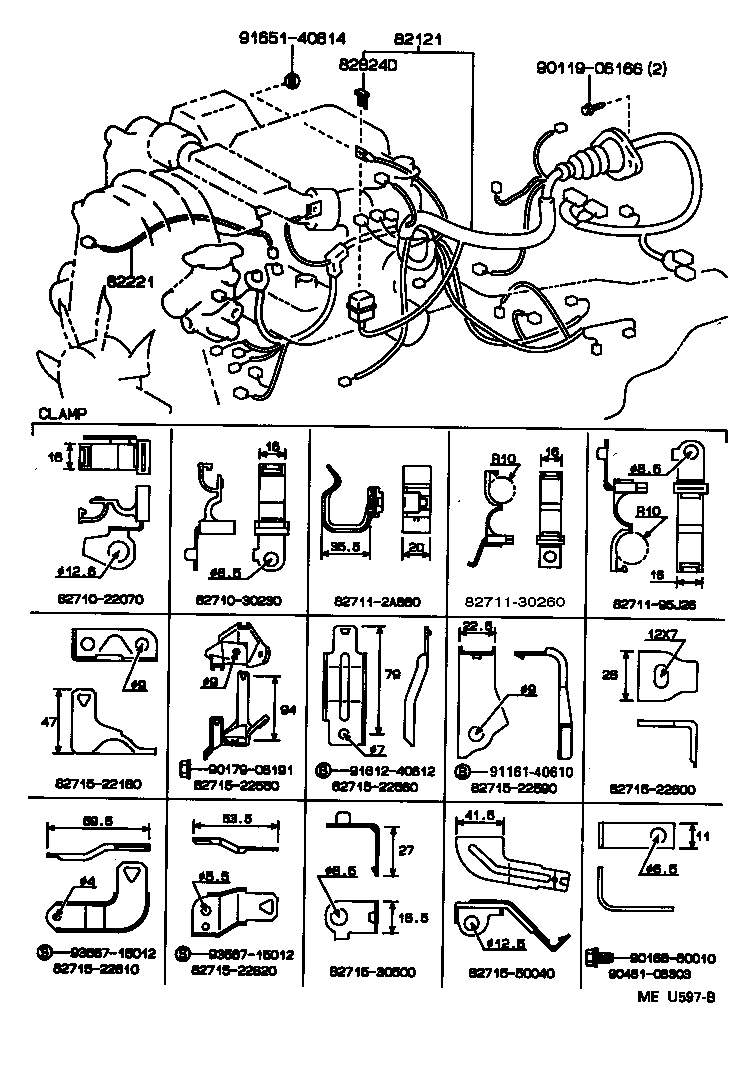

ILLUST NO. 2 OF 9(9210- )LX90
ENGINE WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-2A170 |
LX90..ATM |
1 | ||
| 82121-2A390 |
LX90..ATM |
1 | ||
| 82221 - WIRE, OIL PRESSURE SWITCH | ||||
| 82221-22050 |
LX90 |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-24010 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| Common parts | ||||
| 82710-22070 | ||||
| 82710-30230 | ||||
| 82711-2A880 | ||||
| 82711-30260 | ||||
| 82711-95J26 | ||||
| 82715-22180 | ||||
| 82715-22550 | ||||
| 82715-22560 | ||||
| 82715-22590 | ||||
| 82715-22600 | ||||
| 82715-22610 | ||||
| 82715-22620 | ||||
| 82715-30500 | ||||
| 82715-50040 | ||||
| 90119-06166 | ||||
| 90168-60010 | ||||
| 90179-08191 | ||||
| 90461-06303 | ||||
| 91161-40610 | ||||
| 91612-40612 | ||||
| 91651-40814 | ||||
| 93567-15012 | ||||

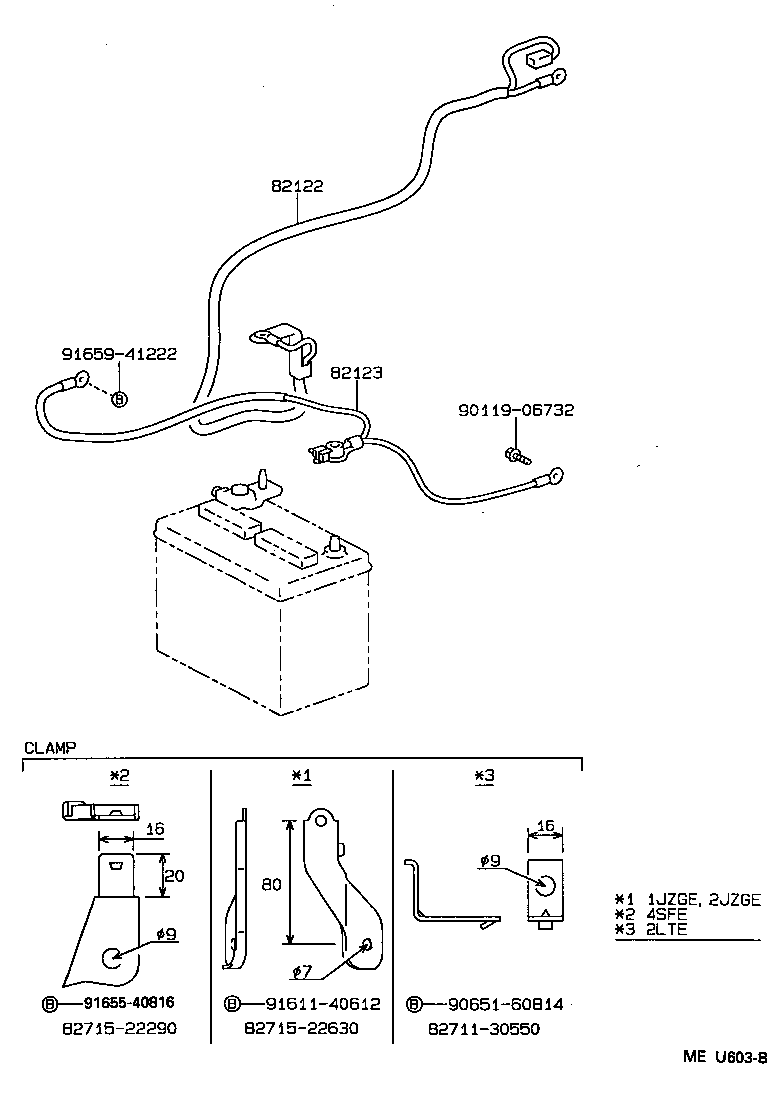

ILLUST NO. 3 OF 9(9210- )
BATTERY CABLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-22320 |
LX90..ATM |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-22140 |
LX90 |
1 | ||
| Common parts | ||||
| 82711-30550 | ||||
| 82715-22290 | ||||
| 82715-22630 | ||||
| 90119-06732 | ||||
| 90651-60814 | ||||
| 91611-40612 | ||||
| 91655-40816 | ||||
| 91659-41222 | ||||
ILLUST NO. 4 OF 9(9210- )

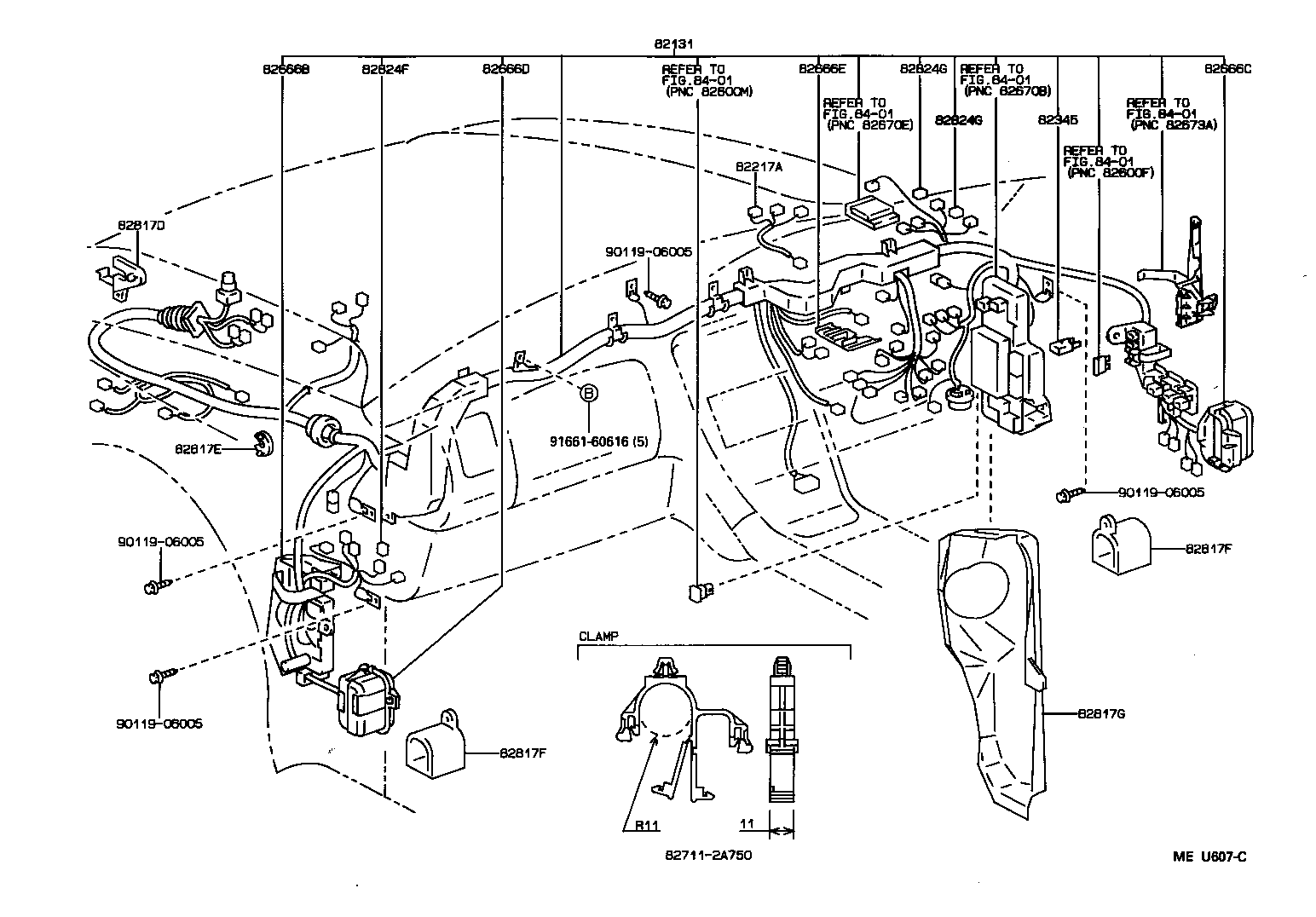

COWL WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-2V040 |
LX90 |
1 | ||
| 82131-2V061 |
LX90..RAF ｵ-ﾄﾃﾝ25ｼﾕｳﾈﾝｷﾈﾝ,ｱﾘ(*66 & *TRC) |
1 | ||
| 82131-2V050 |
LX90 ｱﾘ(ABS) |
1 | ||
| 82131-2V041 |
LX90..RAF ｵ-ﾄﾃﾝ25ｼﾕｳﾈﾝｷﾈﾝ |
1 | ||
| 82131-2V060 |
LX90..ATM ｱﾘ(ABS & *TRC) |
1 | ||
| 82131-2V051 |
LX90..RAF ｵ-ﾄﾃﾝ25ｼﾕｳﾈﾝｷﾈﾝ,ｱﾘ(*66) |
1 | ||
| 82131-2V051 |
LX90 ｱﾘ(ABS) |
1 | ||
| 82131-2V061 |
LX90..ATM ｱﾘ(ABS & *TRC) |
1 | ||
| 82135-22190 |
LX90..RAF ｱﾘ(ABS) |
1 | ||
| 82131-2V041 |
LX90 |
1 | ||
| 82135-22210 |
LX90 |
1 | ||
| 82135-22200 |
LX90..ATM..RAF ｱﾘ(ABS & *TRC) |
1 | ||
| 82135-22180 |
LX90..RAF ｱﾘ(*RW) OR ｱﾘ(ﾌｴﾝﾀﾞﾐﾗ-) OR ｱﾘ(ﾌﾛﾝﾄﾃﾞﾌｵﾂｶﾞ) |
1 | ||
| 82135-22181 |
LX90..RAF ｱﾘ(*RW) OR ｱﾘ(ﾌｴﾝﾀﾞﾐﾗ-) OR ｱﾘ(ﾌﾛﾝﾄﾃﾞﾌｵﾂｶﾞ) |
1 | ||
| 82135-22211 |
LX90 |
1 | ||
| 82135-22201 |
LX90..ATM..RAF ｱﾘ(ABS & *TRC) |
1 | ||
| 82135-22191 |
LX90..RAF ｱﾘ(ABS) |
1 | ||
| 82135-22260 |
LX90..ATM..RAF ｱﾘ(ABS & *TRC) |
1 | ||
| 82135-22280 |
LX90..RAF ｱﾘ(*RW) OR ｱﾘ(ﾌｴﾝﾀﾞﾐﾗ-) OR ｱﾘ(ﾌﾛﾝﾄﾃﾞﾌｵﾂｶﾞ) |
1 | ||
| 82135-22270 |
LX90..RAF ｱﾘ(ABS) |
1 | ||
| 82135-22290 |
LX90 |
1 | ||
| 82217A - WIRE, FRONT WINDOW DEFOGGER | ||||
| 82217-22020 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 82345 - DIODE | ||||
| 82345-20040 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-22010 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-22020 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-22030 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-22040 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-2A300 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-2A290 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-2A310 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-2A310 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-2A320 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-22060 |
GX90,JZX90,93,LX90,SX90..AVT,AVTG,RAF,TOUS,XL |
1 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-22070 |
JZX9#,LX90 |
2 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-22070 |
JZX9#,LX90 |
2 | ||
| Common parts | ||||
| 82711-2A750 | ||||
| 90119-06005 | ||||
| 91661-60616 | ||||
| Linked diagrams | ||||
| 8401 | ||||

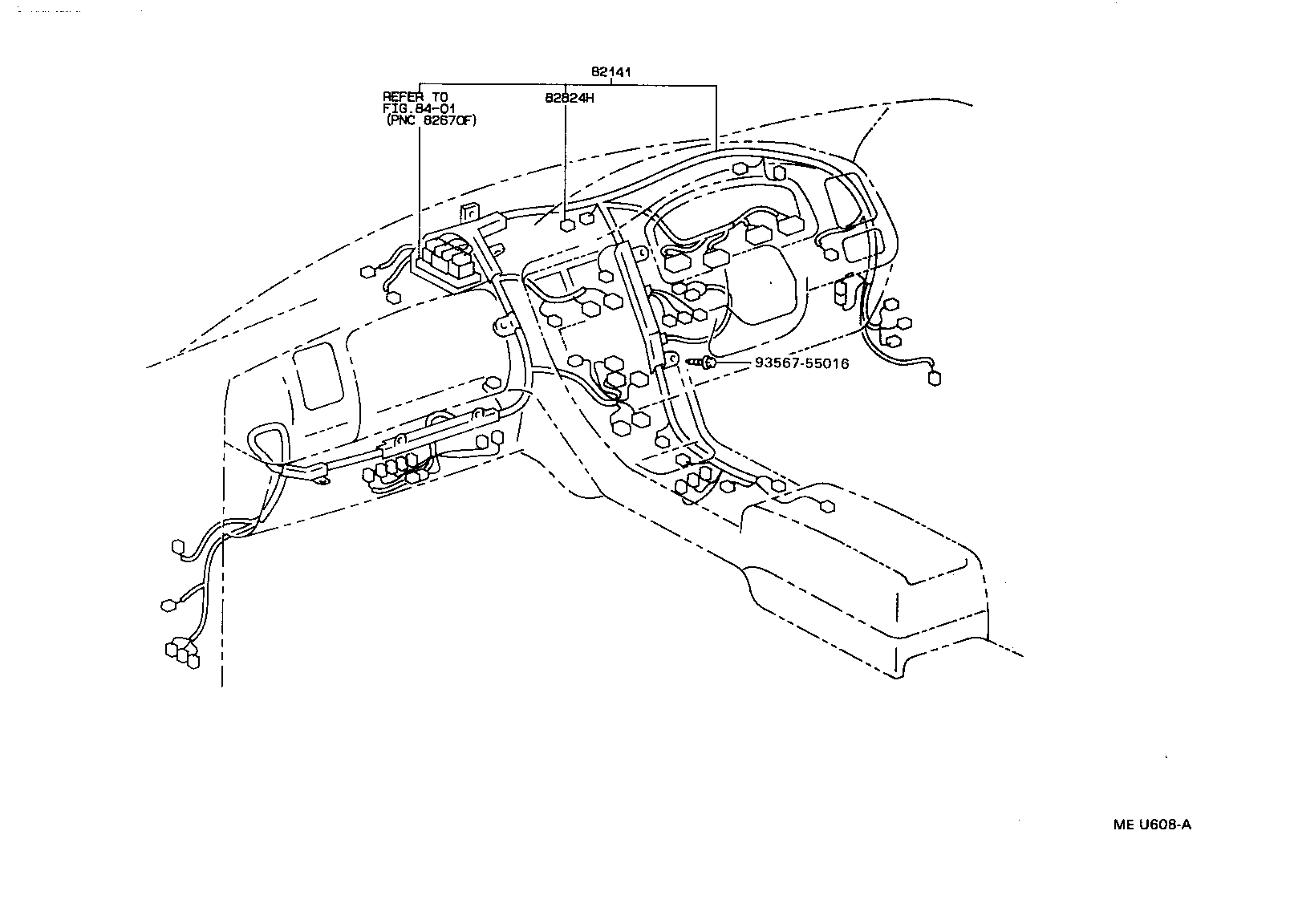

ILLUST NO. 5 OF 9(9210- )
INSTRUMENT PANEL WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-2A160 |
GX90..ATM;LX90..RAF ｵ-ﾄﾃﾝ25ｼﾕｳﾈﾝｷﾈﾝ |
1 | ||
| 82141-2A160 |
LX90..RAF ｽﾍﾟｼﾔﾙﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 82141-2A080 |
LX90,SX90 |
1 | ||
| 82141-2A270 |
LX90,SX90 |
1 | ||
| 82141-2A120 |
LX90..RAF ﾗﾌｲ-ﾈ ｻﾙ-ﾝ |
1 | ||
| 82824H - CONNECTOR, WIRING HARNESS | ||||
| 82824-22070 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| Common parts | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||

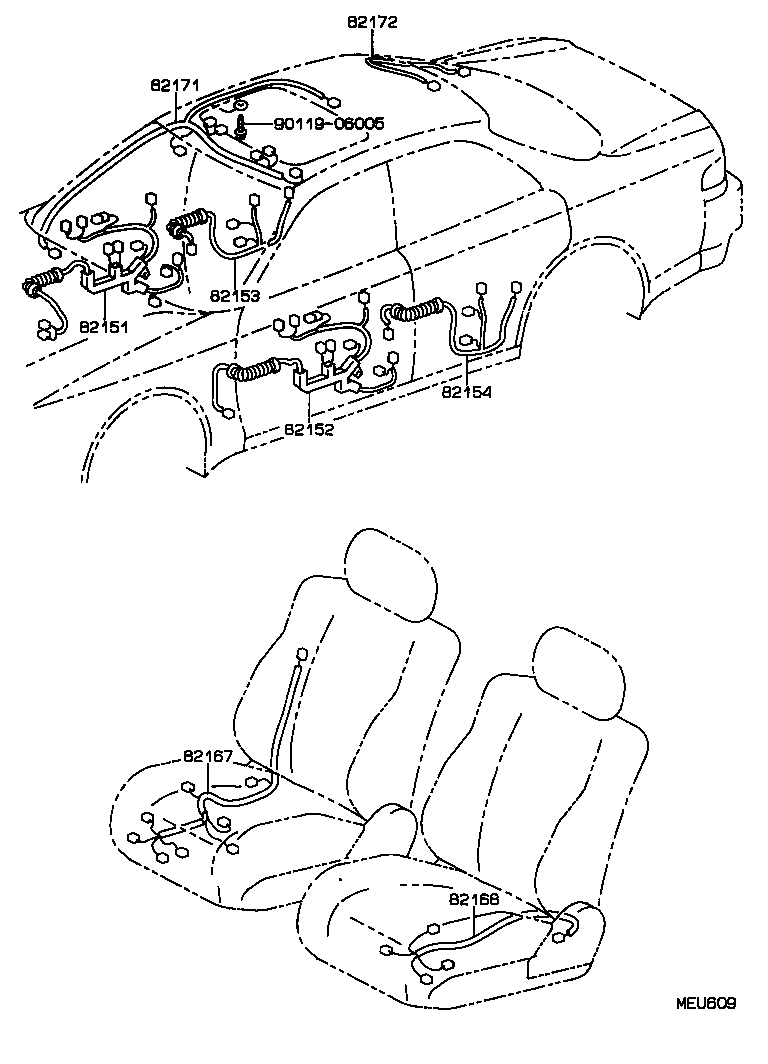

ILLUST NO. 6 OF 9(9210- )
DOOR,ROOF & SEAT WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-22640 |
LX90,SX90 |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-22640 |
LX90,SX90 |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82154-22110 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV |
1 | ||
| 82153-22120 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV PLANT NO.A21-A26 |
1 | ||
| 82153-22140 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV PLANT NO.Q11 |
1 | ||
| 82153-22120 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-22090 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV |
1 | ||
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-22140 |
JZX90..TOUS,TOUV;GX90,JZX93,LX90,SX90..AVT,RAF |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-22440 |
GX90,LX90,SX90 |
1 | ||
| 82171-22440 |
JZX93,LX90,SX90..AVT,RAF,XL |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||

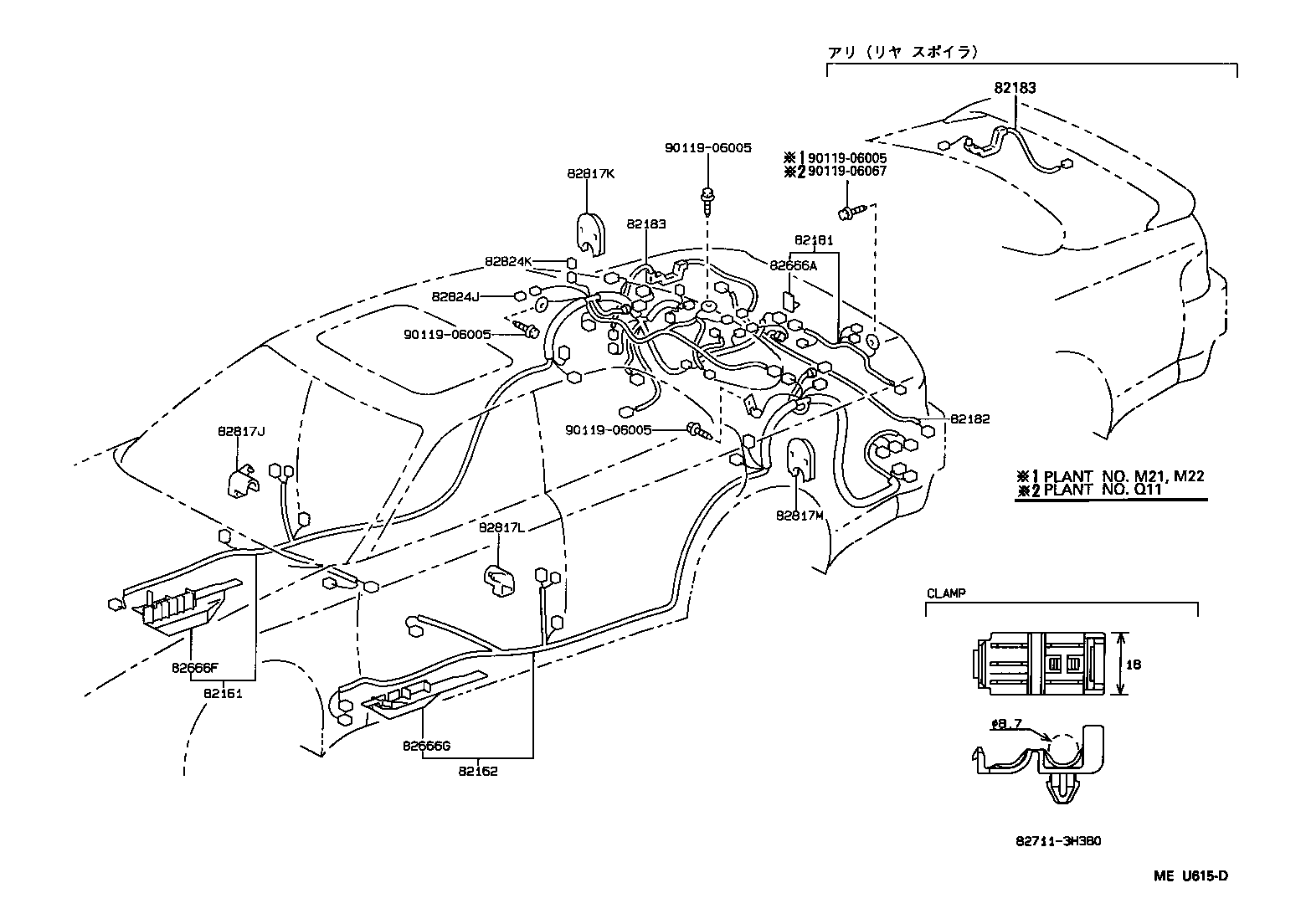

ILLUST NO. 7 OF 9(9210- )
FLOOR & LUGGAGE WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-2A400 |
LX90,SX90..RAF ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 82161-2A410 |
LX90,SX90..RAF |
1 | ||
| 82161-2A320 |
LX90,SX90..RAF PLANT NO.Q11 |
1 | ||
| 82161-2A410 |
LX90,SX90..RAF PLANT NO.M21,M22 |
1 | ||
| 82161-2A330 |
LX90,SX90..RAF ｱﾘ(ﾘﾔﾜｲﾊﾟ),PLANT NO.Q11 |
1 | ||
| 82161-2A400 |
LX90,SX90..RAF ｱﾘ(ﾘﾔﾜｲﾊﾟ),PLANT NO.A21-A26 |
1 | ||
| 82161-2A410 |
LX90,SX90 PLANT NO.A21-A26 |
1 | ||
| 82161-2A320 |
LX90,SX90 PLANT NO.Q11 |
1 | ||
| 82161-2A620 |
GX90,JZX90,93,LX90,SX90..AVT,AVTG,RAF,TOUS ｱﾘ(ﾘﾔﾜｲﾊﾟ),PLANT NO.M21,M22 |
1 | ||
| 82161-2A560 |
GX90,JZX90,93,LX90,SX90..AVT,AVTG,RAF,TOUS ｱﾘ(ﾘﾔﾜｲﾊﾟ),PLANT NO.Q11 |
1 | ||
| 82161-2A620 |
GX90..MTM;JZX90,93,LX90,SX90..AVT,AVTG,RAF,TOUS ｱﾘ(ﾘﾔﾜｲﾊﾟ),PLANT NO.M21,M22 |
1 | ||
| 82161-2A560 |
GX90..MTM;JZX90,93,LX90,SX90..AVT,AVTG,RAF,TOUS ｱﾘ(ﾘﾔﾜｲﾊﾟ),PLANT NO.Q11 |
1 | ||
| 82161-2A540 |
LX90..ATM..RAF ﾗﾌｲ-ﾈ ｻﾙ-ﾝ & ｱﾘ(ABS) OR ﾗﾌｲ-ﾈ ｻﾙ-ﾝ & ｱﾘ(*TRC),PLANT NO.Q11 |
1 | ||
| 82161-2A550 |
LX90,SX90 PLANT NO.Q11 |
1 | ||
| 82161-2A510 |
LX90..RAF ﾗﾌｲ-ﾈ ｻﾙ-ﾝ,PLANT NO.Q11 |
1 | ||
| 82161-2A630 |
LX90,SX90 PLANT NO.M21,M22 |
1 | ||
| 82161-2A640 |
LX90..ATM..RAF ﾗﾌｲ-ﾈ ｻﾙ-ﾝ & ｱﾘ(ABS) OR ﾗﾌｲ-ﾈ ｻﾙ-ﾝ & ｱﾘ(*TRC),PLANT NO.M21,M22 |
1 | ||
| 82161-2A570 |
LX90..RAF ﾗﾌｲ-ﾈ ｻﾙ-ﾝ,PLANT NO.M21,M22 |
1 | ||
| 82161-2A620 |
JZX93;JZX90,LX90,SX90..AVTG,RAF,TOUS ｱﾘ(ﾘﾔﾜｲﾊﾟ),PLANT NO.M21,M22 |
1 | ||
| 82161-2A560 |
JZX93;JZX90,LX90,SX90..AVTG,RAF,TOUS ｱﾘ(ﾘﾔﾜｲﾊﾟ),PLANT NO.Q11 |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-22780 |
LX90,SX90 |
1 | ||
| 82162-22780 |
LX90,SX90 PLANT NO.M21,22 |
1 | ||
| 82162-22840 |
LX90..ATM..RAF ﾗﾌｲ-ﾈ ｻﾙ-ﾝ & ｱﾘ(ABS) OR ﾗﾌｲ-ﾈ ｻﾙ-ﾝ & ｱﾘ(*TRC),PLANT NO.Q11 |
1 | ||
| 82162-22780 |
LX90,SX90 PLANT NO.M21,M22 |
1 | ||
| 82162-22720 |
LX90,SX90 PLANT NO.Q11 |
1 | ||
| 82162-22870 |
LX90..RAF ﾗﾌｲ-ﾈ ｻﾙ-ﾝ,PLANT NO.M21,M22 |
1 | ||
| 82162-22830 |
LX90..RAF ﾗﾌｲ-ﾈ ｻﾙ-ﾝ,PLANT NO.Q11 |
1 | ||
| 82162-22841 |
LX90..ATM..RAF ﾗﾌｲ-ﾈ ｻﾙ-ﾝ & ｱﾘ(ABS) OR ﾗﾌｲ-ﾈ ｻﾙ-ﾝ & ｱﾘ(*TRC),PLANT NO.Q11 |
1 | ||
| 82162-22890 |
LX90..ATM..RAF ﾗﾌｲ-ﾈ ｻﾙ-ﾝ & ｱﾘ(ABS) OR ﾗﾌｲ-ﾈ ｻﾙ-ﾝ & ｱﾘ(*TRC),PLANT NO.M21,M22 |
1 | ||
| 82162-22891 |
LX90..ATM..RAF ﾗﾌｲ-ﾈ ｻﾙ-ﾝ & ｱﾘ(ABS) OR ﾗﾌｲ-ﾈ ｻﾙ-ﾝ & ｱﾘ(*TRC),PLANT NO.M21,M22 |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-22270 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 82181-22271 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 82183 - WIRE, LUGGAGE ROOM, NO.3 | ||||
| 82183-22080 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF |
1 | ||
| 82183 - WIRE, LUGGAGE ROOM, NO.3 | ||||
| 82183-22080 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-22070 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-22050 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-22060 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-2A510 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 82817-2A510 |
GX90,JZX90,93,LX90,SX90..AVT,AVTG,RAF,TOUS,XL PLANT NO.M21,M22 |
1 | ||
| 82817-2A450 |
LX90,SX90..RAF ｱﾘ(ﾘﾔ ﾜｲﾊﾟ),PLANT NO A21-A26 |
1 | ||
| 82817-2A450 |
GX90,JZX9#,LX90,SX90 PLANT NO.Q11 |
1 | ||
| 82817-2A450 |
GX90,JZX90,93,LX90,SX90..AVT,AVTG,RAF,TOUS,XL PLANT NO.Q11 |
1 | ||
| 82817-2A450 |
GX90,JZX90,93,LX90,SX90..AVT,AVTG,RAF,TOUS ｱﾘ(ﾘﾔ ﾜｲﾊﾟ),P;ANT NO.Q11 |
1 | ||
| 82817-2A510 |
GX90,JZX9#,LX90,SX90 PLANT NO.M21,M22 |
1 | ||
| 82817-2A510 |
LX90,SX90..RAF ｱﾘ(ﾘﾔ ﾜｲﾊﾟ),PLANT NO M21,M22 |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-2A470 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-2A520 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 82817-2A520 |
GX90,JZX90,93,LX90,SX90 PLANT NO. M21,M22 |
1 | ||
| 82817-2A520 |
GX90,JZX9#,LX90,SX90 PLANT NO.M21,M22 |
1 | ||
| 82817-2A460 |
GX90,JZX90,LX90,SX90..AVT,RAF,TOUS,XL PLANT NO.A21-A26 |
1 | ||
| 82817-2A460 |
GX90,JZX90,93,LX90,SX90 PLANT NO.A21-A26 |
1 | ||
| 82817-2A460 |
GX90,JZX90,93,LX90,SX90 製造工場NO.A21−A26 |
1 | ||
| 82817-2A460 |
LX90..ATM..RAF ﾗﾌｲ-ﾈ ｻﾙ-ﾝ,PLANT NO.Q11 |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-2A490 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 82824J - CONNECTOR, WIRING HARNESS | ||||
| 82824-22060 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 82824K - CONNECTOR, WIRING HARNESS | ||||
| 82824-22090 |
LX90..ATM..RAF |
1 | ||
| Common parts | ||||
| 82711-3H380 | ||||
| 90119-06005 | ||||
| 90119-06067 | ||||
ILLUST NO. 8 OF 9(9210- )

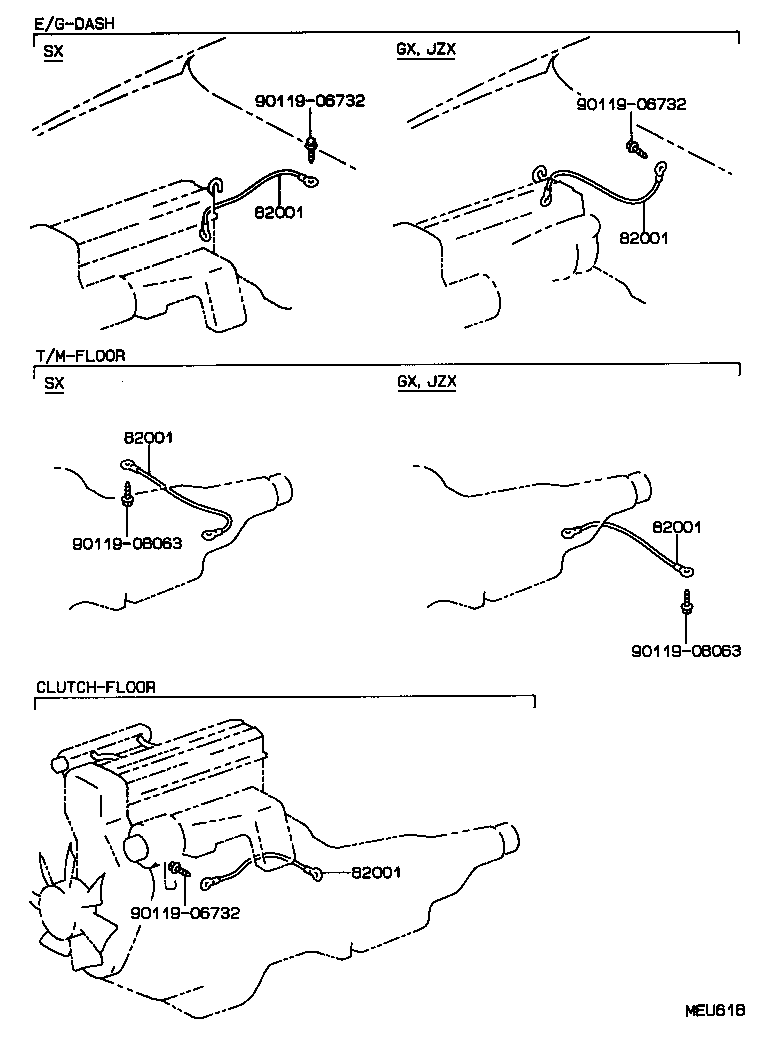

CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06732 | ||||
| 90119-08063 | ||||
ILLUST NO. 9 OF 9(9210- )

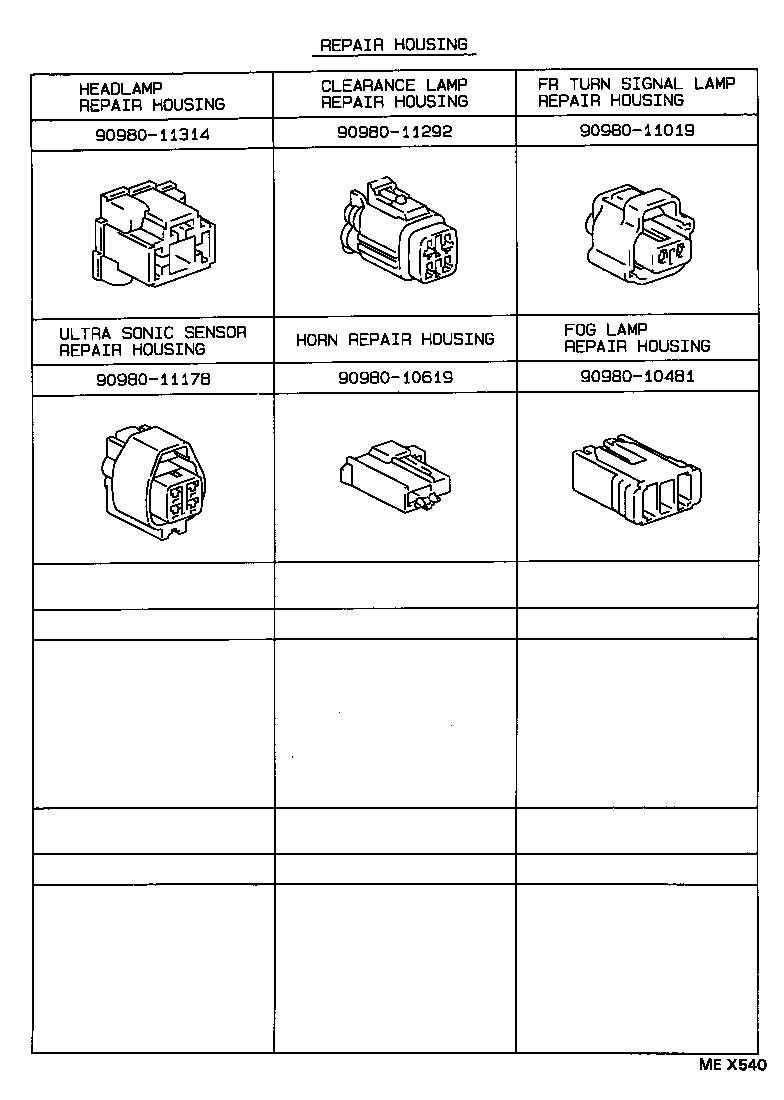

REPAIR HOUSING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10481 | ||||
| 90980-10619 | ||||
| 90980-11019 | ||||
| 90980-11178 | ||||
| 90980-11292 | ||||
| 90980-11314 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
