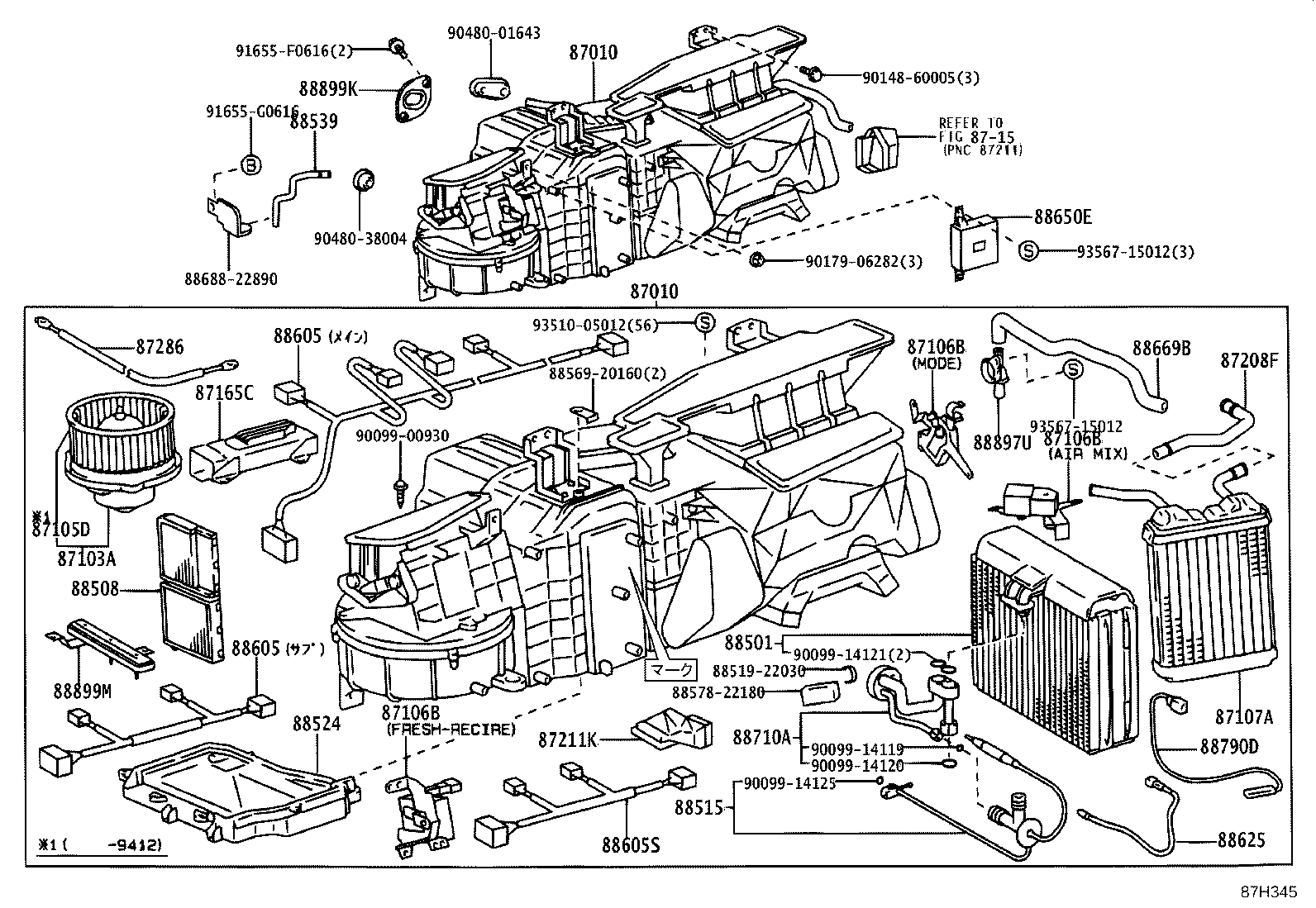

Toyota Chaser LX90 HEATING & AIR CONDITIONING - COOLER UNIT

Part #	Description	Period	Qty
87010 - UNIT ASSY, AIR CONDITIONER
87010-22030	GX90,JZX90,LX90,SX90..AVT,RAF,TOUS,TOUV,XL ﾏｰｸ=87010−22030	10/1992 - 04/1993	1
87010-22130	GX90,JZX90,93,LX90,SX90..AVT,RAF,TOUS,TOUV,XL ﾏｰｸ=87010−22130	04/1993 - 09/1994	1
87010-22050	LX90 ｶﾝﾚｲﾁｼﾖｳ	10/1992 - 09/1994	1
87010 - UNIT ASSY, AIR CONDITIONER
87010-22030	GX90,JZX90,LX90,SX90..AVT,RAF,TOUS,TOUV,XL ﾏｰｸ=87010−22030	10/1992 - 04/1993	1
87010-22130	GX90,JZX90,93,LX90,SX90..AVT,RAF,TOUS,TOUV,XL ﾏｰｸ=87010−22130	04/1993 - 09/1994	1
87010-22050	LX90 ｶﾝﾚｲﾁｼﾖｳ	10/1992 - 09/1994	1
87103A - MOTOR SUB-ASSY, COOLING UNIT, W/FAN
87103-22100	GX90,JZX90,LX90,SX90..AVT,RAF,TOUS,TOUV,XL	04/1993 - 05/1993	1
87103-22110	LX90 ｶﾝﾚｲﾁｼﾖｳ	10/1992 - 09/1994	1
87103-22100	GX90,JZX9#,LX90,SX90	05/1993 - 09/1994	1
87103-22070	GX90,JZX9#,LX90,SX90	10/1992 - 04/1993	1
87106B - SERVO SUB-ASSY, DAMPER(FOR COOLING UNIT)
87106-22160	GX90,JZX90,93,LX90,SX90..AVT,RAF,TOUS,TOUV,XL ﾓｰﾄﾞ	10/1992 - 09/1996	1
87106-22170	GX90,JZX9#,LX90,SX90 ｴｱﾐｯｸｽ	10/1992 - 09/1996	1
87106-22130	GX90,JZX9#,LX90,SX90 FRESH-RECIRC	10/1992 - 09/1996	1
87106B - SERVO SUB-ASSY, DAMPER(FOR COOLING UNIT)
87106-22160	GX90,JZX90,93,LX90,SX90..AVT,RAF,TOUS,TOUV,XL ﾓｰﾄﾞ	10/1992 - 09/1996	1
87106-22170	GX90,JZX9#,LX90,SX90 ｴｱﾐｯｸｽ	10/1992 - 09/1996	1
87106-22130	GX90,JZX9#,LX90,SX90 FRESH-RECIRC	10/1992 - 09/1996	1
87106B - SERVO SUB-ASSY, DAMPER(FOR COOLING UNIT)
87106-22160	GX90,JZX90,93,LX90,SX90..AVT,RAF,TOUS,TOUV,XL ﾓｰﾄﾞ	10/1992 - 09/1996	1
87106-22170	GX90,JZX9#,LX90,SX90 ｴｱﾐｯｸｽ	10/1992 - 09/1996	1
87106-22130	GX90,JZX9#,LX90,SX90 FRESH-RECIRC	10/1992 - 09/1996	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-22250	LX90 ｶﾝﾚｲﾁｼﾖｳ	10/1992 - 09/1996	1
87107-22240	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	1
87165C - CONTROL, BLOWER MOTOR
87165-22020	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	1
87208F - PIPE SUB-ASSY, WATER
87208-22280	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	1
87211K - DUCT, AIR
87211-22170	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	1
87286 - CABLE, CONTROL
87286-22010	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-22220	GX90,JZX9#,LX90,SX90	10/1992 - 10/1994	1
88508 - FILTER SUB-ASSY, CLEAN AIR
88508-22020	GX90,JZX9#,LX90,SX90 ｶﾝﾚｲﾁｼﾖｳ	10/1992 - 09/1996	2
88515 - VALVE, COOLER EXPANSION
88515-22100	GX90,JZX9#,LX90,SX90	10/1992 - 09/1994	1
88524 - PANEL, COOLING BOX, BOTTOM
88524-22010	LX90 ｶﾝﾚｲﾁｼﾖｳ	10/1992 - 04/1993	1
88524-22020	GX90,JZX90,LX90,SX90..AVT,RAF,TOUS,TOUV,XL	04/1993 - 05/1993	1
88524-22010	GX90,JZX90,LX90,SX90..AVT,RAF,TOUS,TOUV,XL ｶﾝﾚｲﾁｼﾖｳ	04/1993 - 05/1993	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-22180	GX90,JZX90,91,LX90,SX90	10/1992 - 09/1996	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-22760	GX90,JZX90,93,LX90,SX90..AVT,RAF,TOUS,TOUV,XL	10/1992 - 09/1996	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-22760	GX90,JZX90,93,LX90,SX90..AVT,RAF,TOUS,TOUV,XL	10/1992 - 09/1996	1
88605S - HARNESS SUB-ASSY, WIRING AIR CONDITIONER
88605-22780	LX90 ｶﾝﾚｲﾁｼﾖｳ	10/1992 - 09/1994	1
88605-22770	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	1
88625 - THERMISTOR, COOLER, NO.1
88625-22230	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-22600	GX90,LX90	10/1992 - 04/1993	1
88669B - HOSE, COOLER AIR
88669-22060	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-22600	GX90,JZX90,LX90,SX90..AVT,RAF,TOUS,TOUV,XL	04/1993 - 05/1993	1
88710-22600	GX90,JZX9#,LX90,SX90	05/1993 - 09/1994	1
88710-22600	LX90 ｶﾝﾚｲﾁｼﾖｳ	10/1992 - 04/1993	1
88790D - THERMISTOR ASSY
88790-22080	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	1
88897U - PIPE, ASPIRATOR
88897-22100	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	1
88899K - PLATE, COVER
88899-22270	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	1
88899M - PLATE, COVER(FOR AIR FILTER)
88899-22280	GX90,JZX9#,LX90,SX90 ｶﾝﾚｲﾁｼﾖｳ	10/1992 - 09/1996	1
Common parts
88519-22030
88569-20160
88578-22180
88688-22890
90099-00930
90099-14119
90099-14120
90099-14121
90099-14125
90148-60005
90179-06282
90480-01643
90480-38004
91655-F0616
91655-G0616
93510-05012
93567-15012
Linked diagrams
8715

LX90-BTMNT (1992)

(9210- )
