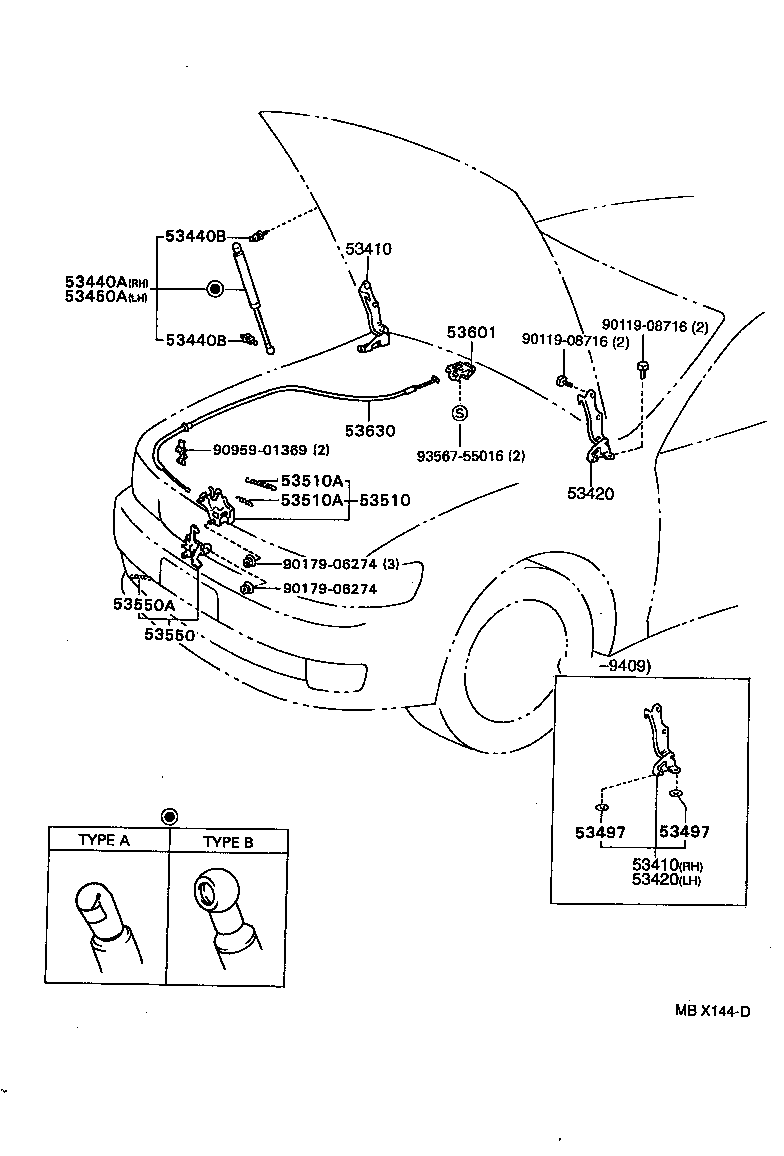

Toyota Chaser LX90 HOOD LOCK & HINGE

Part #	Description	Period	Qty
53410 - HINGE ASSY, HOOD, RH
53410-22100	GX90,JZX9#,LX90,SX90	10/1992 - 09/1994	1
53410 - HINGE ASSY, HOOD, RH
53410-22100	GX90,JZX9#,LX90,SX90	10/1992 - 09/1994	1
53420 - HINGE ASSY, HOOD, LH
53420-22100	GX90,JZX9#,LX90,SX90	10/1992 - 09/1994	1
53420 - HINGE ASSY, HOOD, LH
53420-22100	GX90,JZX9#,LX90,SX90	10/1992 - 09/1994	1
53440A - SUPPORT ASSY, HOOD, RH
53440-29075	GX90,JZX9#,LX90,SX90 ﾀｲﾌﾟ A	10/1992 - 09/1996	1
53440-29085	GX90,JZX9#,LX90,SX90 ﾀｲﾌﾟ B	10/1992 - 09/1996	1
53440B - BOLT, HOOD SUPPORT, NO.1
68961-50010	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	4
53440B - BOLT, HOOD SUPPORT, NO.1
68961-50010	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	4
53450A - SUPPORT ASSY, HOOD, LH
53450-29065	GX90,JZX9#,LX90,SX90 ﾀｲﾌﾟ A	10/1992 - 09/1996	1
53450-29075	GX90,JZX9#,LX90,SX90 ﾀｲﾌﾟ B	10/1992 - 09/1996	1
53497 - PAD, HOOD HINGE, NO.1
53497-12050	GX90,JZX9#,LX90,SX90 厚さ=1.0	10/1992 - 09/1996	4
53497 - PAD, HOOD HINGE, NO.1
53497-12050	GX90,JZX9#,LX90,SX90 厚さ=1.0	10/1992 - 09/1996	4
53510 - LOCK ASSY, HOOD
53510-22220	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-18068	GX90,JZX9#,LX90,SX90 線径=1.8,ｺｲﾙ巻数=18,OD=1.8,L=52	10/1992 - 09/1996	1
90506-09050	GX90,JZX9#,LX90,SX90 線径=0.9,ｺｲﾙ巻数=20.5,OD=0.9,L=36.3	10/1992 - 09/1996	1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-18068	GX90,JZX9#,LX90,SX90 線径=1.8,ｺｲﾙ巻数=18,OD=1.8,L=52	10/1992 - 09/1996	1
90506-09050	GX90,JZX9#,LX90,SX90 線径=0.9,ｺｲﾙ巻数=20.5,OD=0.9,L=36.3	10/1992 - 09/1996	1
53550 - HOOK ASSY, HOOD AUXILIARY CATCH
53550-22060	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	1
53550A - SPRING, TORSION(FOR HOOD LOCK HOOK)
90506-12067	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-16020J0	GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8#	10/1992 - 09/1994	1
53601-16020E2	GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL SABLE,TRIM4#	10/1992 - 09/1994	1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-22200	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	1
Common parts
90119-08716
90179-06274
90959-01369
93567-55016

LX90-BTMNT (1992)

(9210- )
