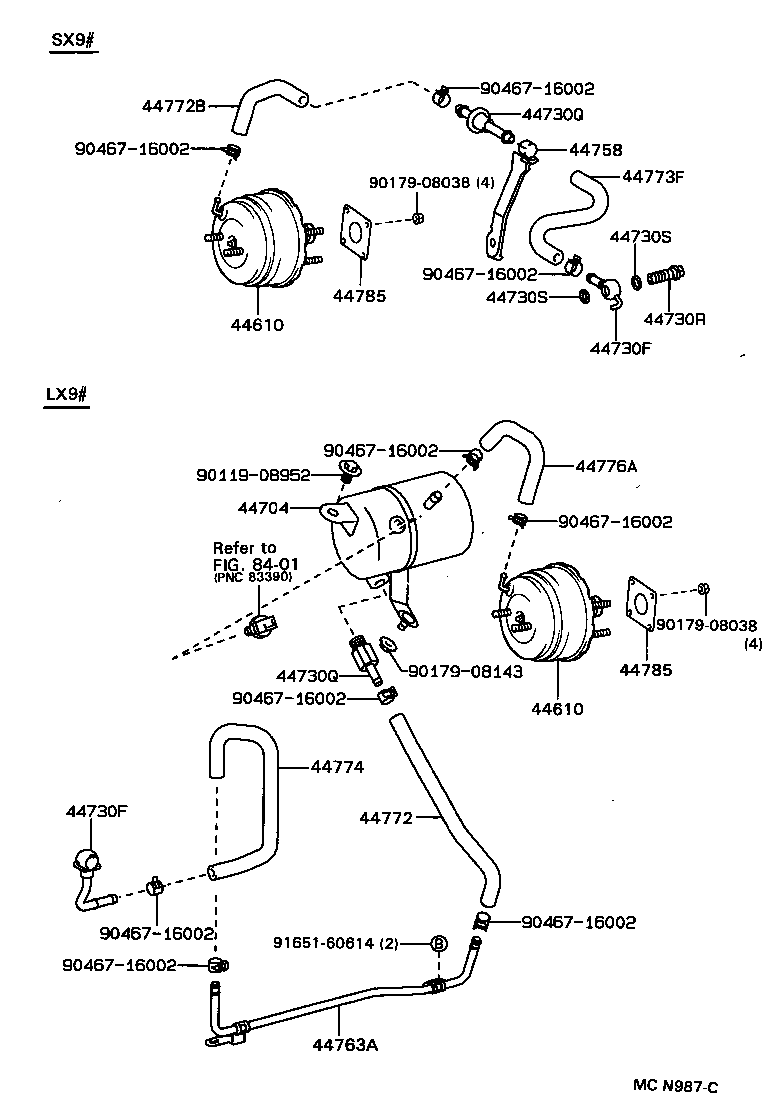

Toyota Chaser LX90 BRAKE BOOSTER & VACUUM TUBE

Part #	Description	Period	Qty
44610 - BOOSTER ASSY, BRAKE
44610-2A020	LX90	10/1992 - 09/1996	1
44610-2A050	LX90..MTM ｱﾘ(ABS)	10/1992 - 09/1994	1
44610 - BOOSTER ASSY, BRAKE
44610-2A020	LX90	10/1992 - 09/1996	1
44610-2A050	LX90..MTM ｱﾘ(ABS)	10/1992 - 09/1994	1
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-22070	LX90	10/1992 - 09/1996	1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90405-09136	LX90	10/1992 - 09/1996	1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90405-09136	LX90	10/1992 - 09/1996	1
44730Q - VALVE ASSY, VACUUM CHECK, NO.2
44730-60050	LX90	10/1992 - 09/1996	1
44730Q - VALVE ASSY, VACUUM CHECK, NO.2
44730-60050	LX90	10/1992 - 09/1996	1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-22300	LX90	10/1992 - 09/1996	1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-22290	LX90	10/1992 - 09/1996	1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-22300	LX90	10/1992 - 09/1996	1
44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER
44776-22060	LX90	10/1992 - 09/1996	1
44785 - GASKET, BRAKE BOOSTER
44785-32010	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	1
44785 - GASKET, BRAKE BOOSTER
44785-32010	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	1
Common parts
90119-08952
90179-08038
90179-08143
90467-16002
91651-60614
Linked diagrams
8401

LX90-BTMNT (1992)
