LX90-BTMNT (1992)

Toyota Chaser

Production Oct 1992 - Sep 1994
Engine 2LTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9210- )

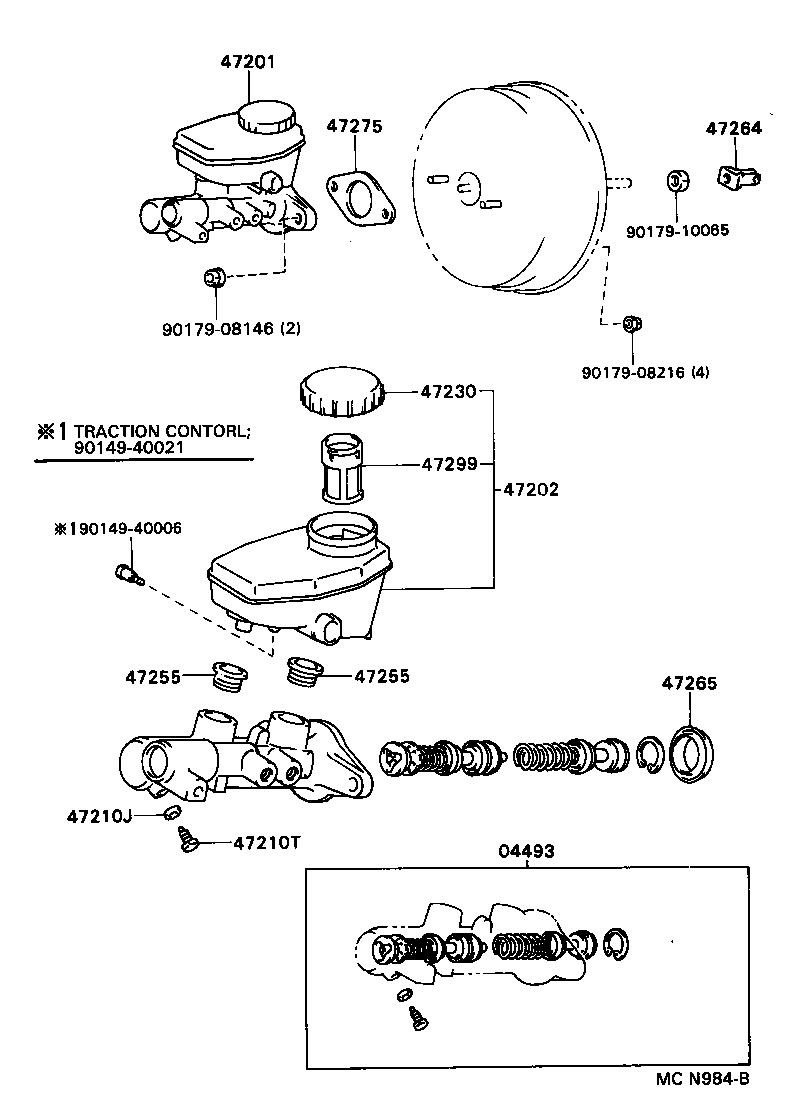

Click highlighted areas on diagram

diagram 04493 47201 47202 47210J 47210T 47230 47255 47255 47264 47265 47275 47299 9014940006 9014940021 9017908146 9017908216 9017910065
Part # Description Qty Price
04493 - CYLINDER KIT, BRAKE MASTER
04493-30220

GX90,JZX90,93,LX90,SX90..AVT,RAF,TOUS,XL

 1
04493-22200

LX90..MTM

ｱﾘ(ABS)

 1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-22770

GX90,JZX90,93,LX90,SX90..AVT,RAF,TOUS,XL

 1
47201-22810

LX90..MTM

ｱﾘ(ABS)

 1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47202-30130

GX90,JZX90,93,LX90,SX90..AVT,AVTG,RAF,TOUS,XL

 1
47210J - GASKET(FOR MASTER CYLINDER)
90430-06104

GX90,SX90;LX90..MTM

ｱﾘ(ABS)

 2
90430-06104

GX90,JZX90,93,LX90,SX90..AVT,RAF,TOUS,XL

 1
47210T - BOLT(FOR BRAKE MASTER CYLINDER)
90109-06077

GX90,SX90;LX90..MTM

ｱﾘ(ABS)

 2
90109-06077

GX90,JZX90,93,LX90,SX90..AVT,RAF,TOUS,XL

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-24010

GX90,JZX9#,LX90,SX90

 1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010

GX90,JZX9#,LX90,SX90

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010

GX90,JZX9#,LX90,SX90

 2
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-22030

GX90,JZX9#,LX90,SX90

 1
47265 - BOOT, MASTER CYLINDER
47265-20050

GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,XL

 1
47275 - GASKET, BRAKE MASTER CYLINDER
47275-12020

GX90,JZX9#,LX90,SX90

 1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-24010

GX90,JZX9#,LX90,SX90

 1
Common parts
90149-40006
90149-40021
90179-08146
90179-08216
90179-10065
