LX90-BTMNT (1992)
Toyota Chaser
Production
Oct 1992
-
Sep 1994
Engine
2LTE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9210- )2LTE

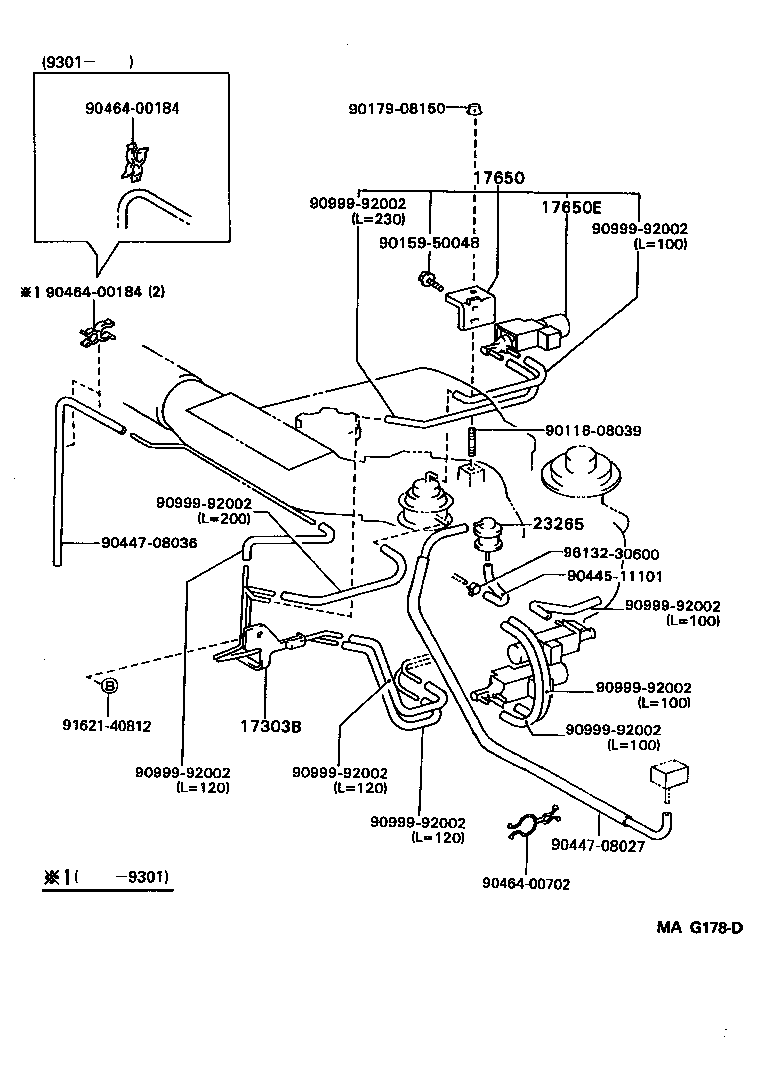

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 90999-92006 | ||||
| 90999-92007 | ||||
| 90999-92008 | ||||
(9210-9509)2LTE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-54021 |
2LTE..LX90 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89470-60021 |
2LTE..LX90 |
1 | ||
| 17650E - VALVE, VACUUM SWITCHING | ||||
| 90910-12134 |
2LTE..LX90 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11033 |
2LTE..LX90 |
1 | ||
| Common parts | ||||
| 90116-08039 | ||||
| 90159-50048 | ||||
| 90179-08150 | ||||
| 90445-11101 | ||||
| 90447-08027 | ||||
| 90447-08036 | ||||
| 90464-00184 | ||||
| 90464-00702 | ||||
| 90999-92002 | ||||
| 91621-40812 | ||||
| 96132-30600 | ||||
