Toyota Chaser LX90 MANIFOLD - JDM Part Detective

LX90-BTMNT (1992)

Toyota Chaser

Production Oct 1992 - Sep 1994

Engine 2LTE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

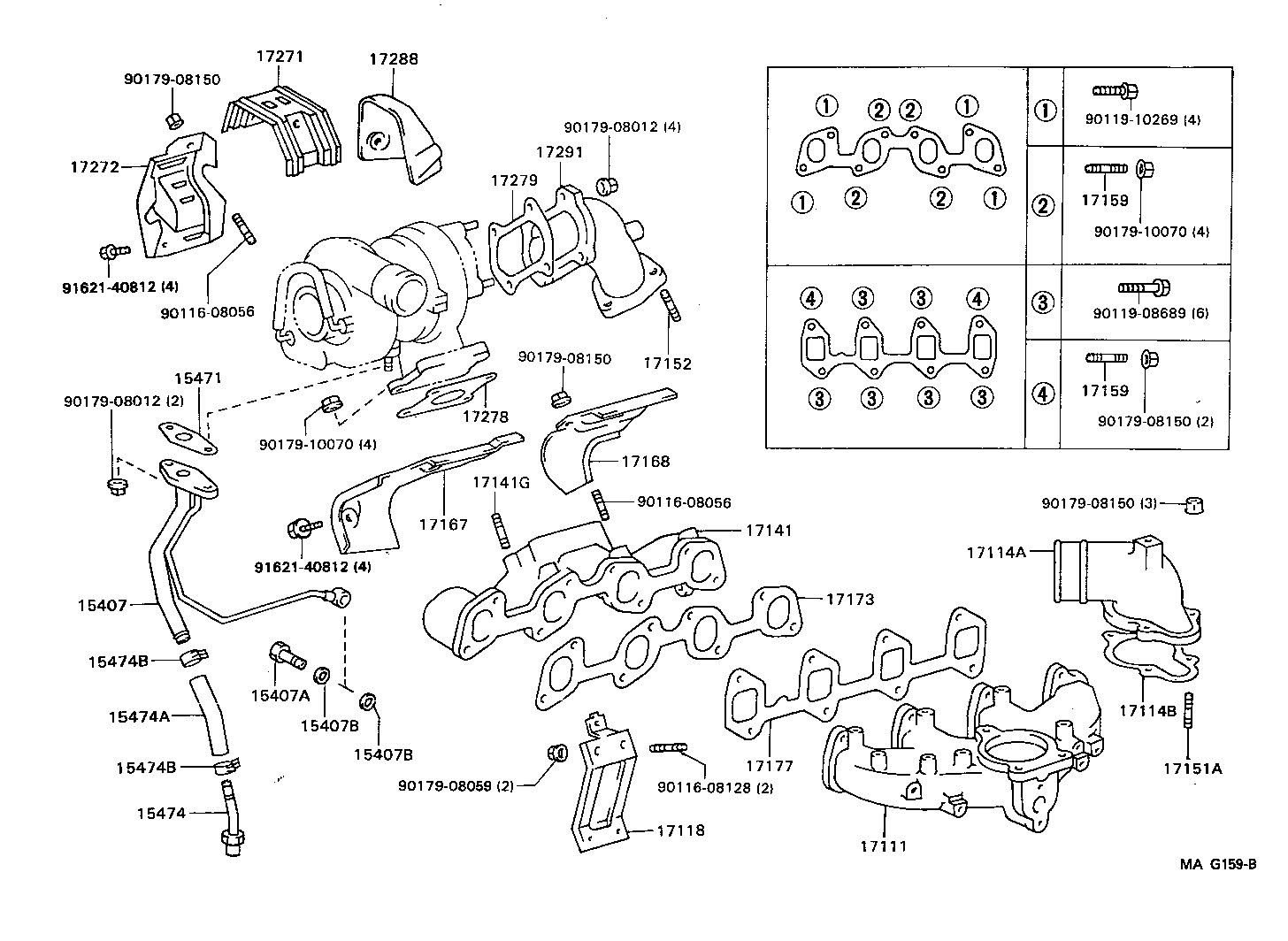

(9210-9509)2LTE

Click highlighted areas on diagram

Part #	Description	Period	Qty
15407 - PIPE SUB-ASSY, TURBO OIL INLET
15407-54040	2LTE..LX90	10/1992 - 09/1996	1
15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE)
90401-10006	2LTE..LX90	10/1992 - 10/1993	1
15407B - GASKET(FOR TURBO OIL INLET PIPE)
90430-10035	2LTE..LX90	10/1992 - 09/1996	2
15407B - GASKET(FOR TURBO OIL INLET PIPE)
90430-10035	2LTE..LX90	10/1992 - 09/1996	2
15471 - GASKET, TURBO OIL INLET
15471-58010	2LTE..LX90	10/1992 - 09/1996	1
15474 - PIPE, TURBO OIL OUTLET
15476-54020	2LTE..LX90	10/1992 - 09/1996	1
15474A - HOSE, TURBO OIL OUTLET
15491-54020	2LTE..LX90	10/1992 - 09/1996	1
15474B - CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE)
90467-26003	2LTE..LX90	10/1992 - 04/1993	2
15474B - CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE)
90467-26003	2LTE..LX90	10/1992 - 04/1993	2
17111 - MANIFOLD, INTAKE
17101-54092	2LTE..LX90	10/1992 - 09/1996	1
17114A - FLANGE, INTAKE
17114-54090	2LTE..LX90	10/1992 - 09/1995	1
17114B - GASKET, INTAKE FLANGE
17116-54011	2LTE..LX90	10/1992 - 09/1996	1
17118 - STAY, MANIFOLD
17118-54040	2LTE..LX90	10/1992 - 09/1996	1
17141 - MANIFOLD, EXHAUST
17141-54100	2LTE..LX90	10/1992 - 09/1996	1
17141G - BOLT, STUD(FOR TURBOCHARGER)
90116-10094	2LTE..LX90	10/1992 - 09/1996	4
17151A - BOLT, STUD(FOR MANIFOLD TO VENTURI)
90116-08292	2LTE..LX90	10/1992 - 09/1996	3
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10088	2LTE..LX90	10/1992 - 09/1996	3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92132-60820	2LTE..LX90 INTAKE MANIFOLD	10/1992 - 01/1993	2
90116-10140	2LTE..LX90 EXHAUST MANIFOLD	10/1992 - 09/1994	4
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92132-60820	2LTE..LX90 INTAKE MANIFOLD	10/1992 - 01/1993	2
90116-10140	2LTE..LX90 EXHAUST MANIFOLD	10/1992 - 09/1994	4
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-54100	2LTE..LX90	10/1992 - 09/1996	1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-54030	2LTE..LX90	10/1992 - 09/1996	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-54050	2LTE..LX90	10/1992 - 09/1996	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-54020	2LTE..LX90	10/1992 - 07/1995	1
17271 - INSULATOR, TURBO, NO.1
17271-54060	2LTE..LX90	10/1992 - 09/1995	1
17272 - INSULATOR, TURBO, NO.2
17272-54050	2LTE..LX90	10/1992 - 09/1995	1
17278 - GASKET, TURBO TO EXHAUST MANIFOLD
17278-54020	2LTE..LX90	10/1992 - 09/1995	1
17279 - GASKET, TURBINE OUTLET ELBOW
17279-64010	2LTE..LX90	10/1992 - 09/1995	1
17288 - INSULATOR, TURBO, NO.3
17288-54011	2LTE..LX90	10/1992 - 09/1995	1
17291 - ELBOW, TURBINE OUTLET
17291-54060	2LTE..LX90	10/1992 - 09/1995	1
Common parts
90116-08056
90116-08128
90119-08689
90119-10269
90179-08012
90179-08059
90179-08150
90179-10070
91621-40812

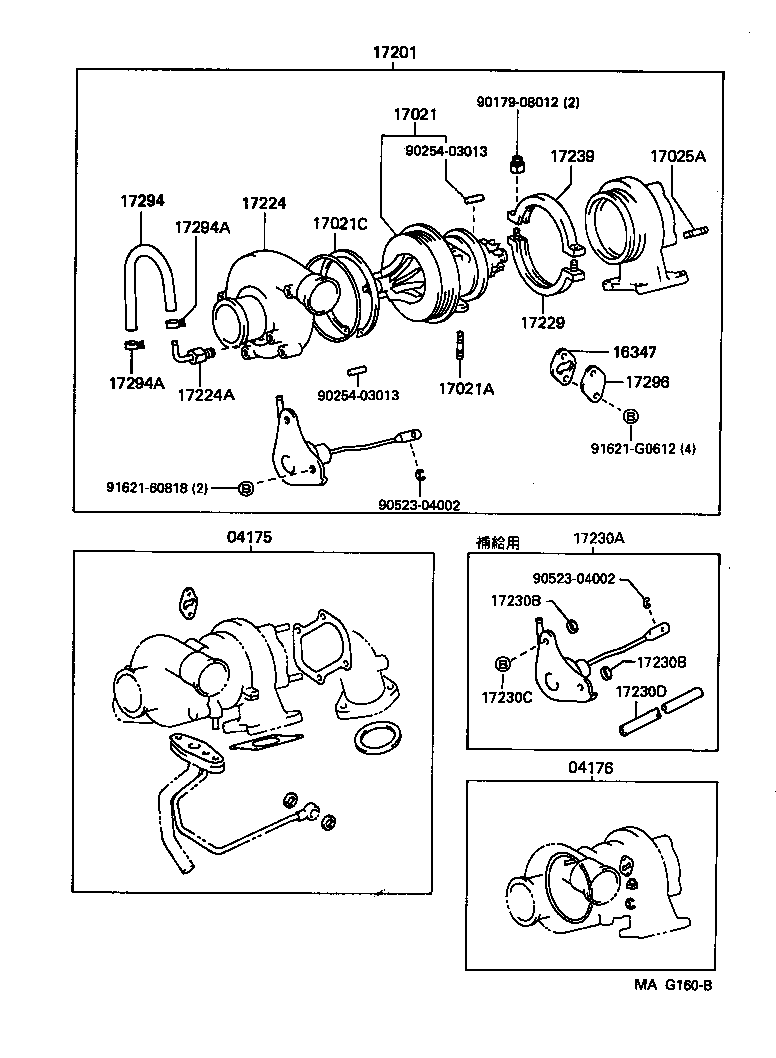

(9210-9509)2LTE

Click highlighted areas on diagram

Part #	Description	Period	Qty
04175 - GASKET KIT, TURBOCHARGER
04175-54021	2LTE..LX90	10/1992 - 09/1996	1
04176 - SEAL KIT, TURBOCHARGER
04176-54020	2LTE..LX90	10/1992 - 09/1995	1
16347 - GASKET, WATER BY-PASS
16347-42020	2LTE..LX90	10/1992 - 05/1994	2
17021 - HOUSING SUB-ASSY, BEARING
17021-54050	2LTE..LX90	10/1992 - 09/1995	1
17021A - BOLT, STUD(FOR BEARING HOUSING)
90116-08158	2LTE..LX90	10/1992 - 09/1996	2
17021C - RING, HOLE SNAP(FOR BEARING HOUSING)
90521-99007	2LTE..LX90	10/1992 - 09/1996	1
17025A - BOLT, STUD(FOR TURBINE HOUSING)
90116-08200	2LTE..LX90	10/1992 - 09/1995	4
17201 - TURBOCHARGER SUB-ASSY
17201-54050	2LTE..LX90	10/1992 - 09/1995	1
17224 - HOUSING, COMPRESSOR
17224-54021	2LTE..LX90	10/1992 - 09/1995	1
17224A - UNION(FOR COMPRESSOR HOUSING)
90404-51053	2LTE..LX90	10/1992 - 09/1995	1
17229 - BAND, V
17229-28010	2LTE..LX90	10/1992 - 09/1995	1
17230A - REPAIR ACTUAOR ASSY, W/BRACKET
17230-59055	2LTE..LX90	10/1992 - 01/1994	1
17230B - WASHER, PLATE(FOR REPAIR ACTUATOR SET)
90201-08082	2LTE..LX90 厚さ=1.0,T=1.0	10/1992 - 09/1994	2
90201-08086	2LTE..LX90 厚さ=2.0,T=2.0	10/1992 - 09/1994	2
90201-08087	2LTE..LX90 厚さ=3.0,T=3.0	10/1992 - 09/1994	2
90201-08081	2LTE..LX90 厚さ=0.5,T=0.5	10/1992 - 09/1994	2
17230B - WASHER, PLATE(FOR REPAIR ACTUATOR SET)
90201-08082	2LTE..LX90 厚さ=1.0,T=1.0	10/1992 - 09/1994	2
90201-08086	2LTE..LX90 厚さ=2.0,T=2.0	10/1992 - 09/1994	2
90201-08087	2LTE..LX90 厚さ=3.0,T=3.0	10/1992 - 09/1994	2
90201-08081	2LTE..LX90 厚さ=0.5,T=0.5	10/1992 - 09/1994	2
17230C - BOLT, W/WASHER(FOR REPAIR ACTUATOR SET)
91621-60822	2LTE..LX90	10/1992 - 09/1996	2
17230D - HOSE(FOR REPAIR ACTUATOR SET)
90445-12111	2LTE..LX90	08/1993 - 01/1994	1
17239 - CLAMP, V, NO.2
17239-28010	2LTE..LX90	10/1992 - 09/1995	1
17294 - HOSE, ACTUATOR
90445-12111	2LTE..LX90	10/1992 - 01/1994	1
17294A - CLIP(FOR ACTUATOR HOSE)
96132-41100	2LTE..LX90	10/1992 - 09/1996	2
17294A - CLIP(FOR ACTUATOR HOSE)
96132-41100	2LTE..LX90	10/1992 - 09/1996	2
17296 - PLATE, BEARING HOUSING, SIDE
17296-28010	2LTE..LX90	10/1992 - 05/1994	2
Common parts
90179-08012
90254-03013
90523-04002
91621-60818
91621-G0612

LX90-BTMNT (1992)

(9210-9509)2LTE

(9210-9509)2LTE
