LX90-BTMET (1992)
Toyota Chaser

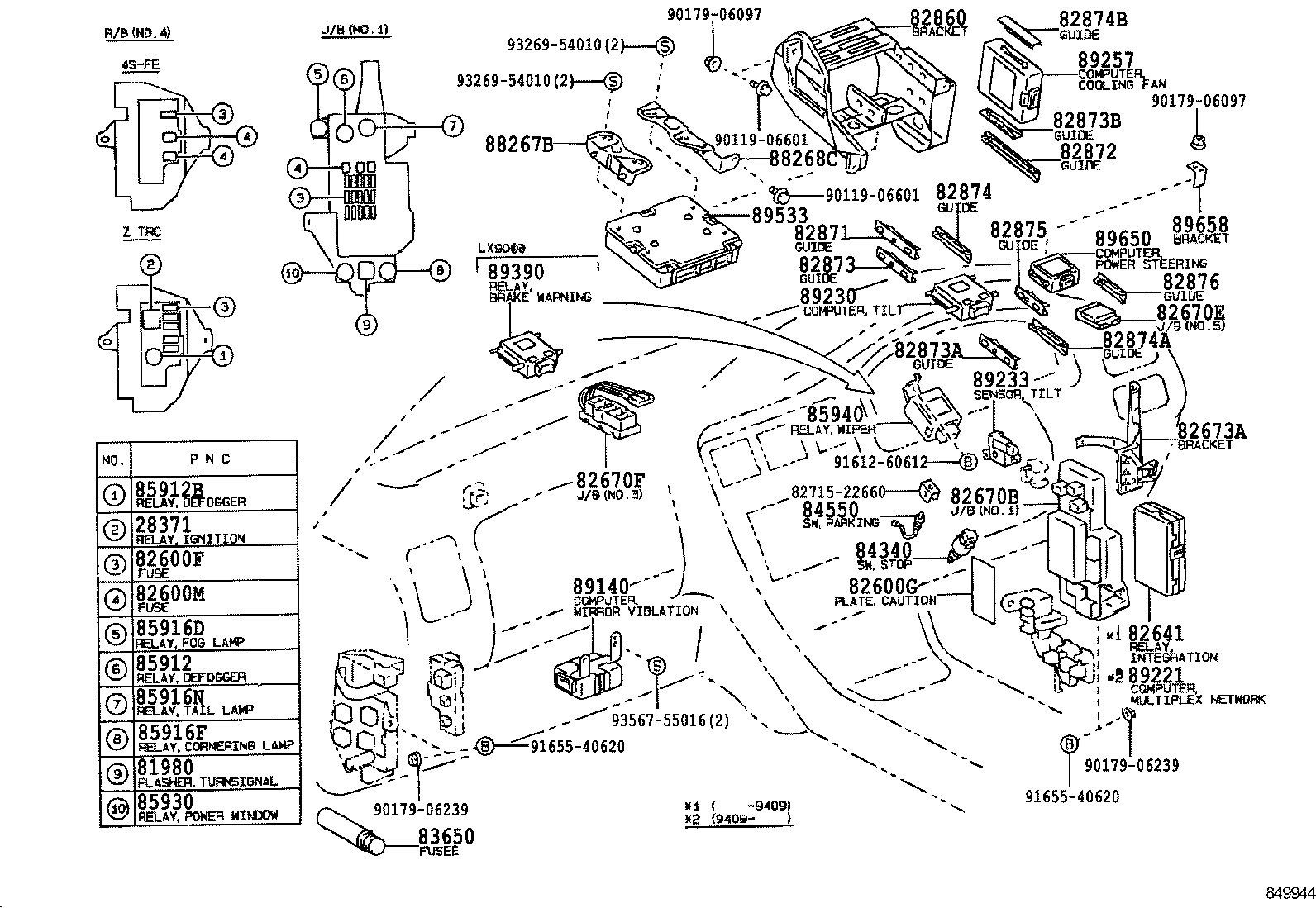

ILLUST NO. 4 OF 6(9210- )
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-04002 |
1JZGE,2JZGE,2LTE,4SFE..JZX9#,LX90,SX90 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-30100 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 81980-12070 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
GX90,JZX9#,LX90,SX90 10A |
1 | ||
| 90982-09004 |
GX90,JZX9#,LX90,SX90 20A,黄 |
1 | ||
| 90982-09004 |
GX90,JZX9#,LX90,SX90 20A,黄 |
1 | ||
| 90982-09003 |
GX90,JZX9#,LX90,SX90 15A |
1 | ||
| 90982-09006 |
GX90,JZX9#,LX90,SX90 25A |
1 | ||
| 90982-09005 |
GX90,JZX9#,LX90,SX90 7.5A |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-22110 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
GX90,JZX9#,LX90,SX90 30A,ﾋﾟﾝｸ |
3 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-22080 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 82670B - BLOCK ASSY, JUNCTION, NO.2 | ||||
| 82670-22100 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 82670E - BLOCK ASSY, JUNCTION, NO.4 | ||||
| 82670-22140 |
JZX9#,LX90,SX90 |
1 | ||
| 82670F - BLOCK ASSY, JUNCTION, NO.5 | ||||
| 82670-22130 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-22100 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 82860 - BRACKET ASSY, COMPUTER INTEGRATION | ||||
| 82860-22010 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 82871 - GUIDE, COMPUTER INTEGRATION BRACKET, NO.1 | ||||
| 82871-22010 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 82872 - GUIDE, COMPUTER INTEGRATION BRACKET, NO.2 | ||||
| 82872-22010 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 82873 - GUIDE, COMPUTER INTEGRATION BRACKET, NO.3 | ||||
| 82873-22010 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 82873A - GUIDE, COMPUTER INTEGRATION BRACKET, NO.3 | ||||
| 82873-22020 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 82873B - GUIDE, COMPUTER INTEGRATION BRACKET, NO.3 | ||||
| 82873-22030 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 82874 - GUIDE, COMPUTER INTEGRATION BRACKET, NO.4 | ||||
| 82874-22010 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 82874A - GUIDE, COMPUTER INTEGRATION BRACKET, NO.4 | ||||
| 82874-22020 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 82874B - GUIDE, COMPUTER INTEGRATION BRACKET, NO.4 | ||||
| 82874-22030 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 82875 - GUIDE, COMPUTER INTEGRATION BRACKET, NO.5 | ||||
| 82875-22010 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 82876 - GUIDE, COMPUTER INTEGRATION BRACKET, NO.6 | ||||
| 82876-22010 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32090 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
JZX90,LX90,SX90..TOUS,TOUV,XL;GX90,LX90,SX90..MTM..(AVT,RAF) MATUSHITA |
1 | ||
| 84550-33010 |
GX90,LX90,SX90..MTM;JZX90,LX90,SX90..TOUS,TOUV,XL |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02002 |
GX90,JZX9#,LX90,SX90 MARUKO |
1 | ||
| 90987-02004 |
GX90,JZX9#,LX90,SX90 NIPPONDENSO |
1 | ||
| 85912B - RELAY, DEFOGGER(FOR FRONT WINDOW) | ||||
| 90987-02002 |
GX90,JZX9#,LX90,SX90 MARUKO |
1 | ||
| 90987-02004 |
GX90,JZX9#,LX90,SX90 NIPPONDENSO |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02002 |
GX90,JZX9#,LX90,SX90 MARUKO |
1 | ||
| 90987-02004 |
GX90,JZX9#,LX90,SX90 NIPPONDENSO |
1 | ||
| 85916F - RELAY, CORNERING LAMP | ||||
| 90987-02002 |
GX90,JZX9#,LX90,SX90 MARUKO |
1 | ||
| 90987-02004 |
GX90,JZX9#,LX90,SX90 NIPPONDENSO |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02002 |
GX90,JZX9#,LX90,SX90 MARUKO |
1 | ||
| 90987-02004 |
GX90,JZX9#,LX90,SX90 NIPPONDENSO |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 90987-02002 |
GX90,JZX9#,LX90,SX90 MARUKO |
1 | ||
| 90987-02004 |
GX90,JZX9#,LX90,SX90 NIPPONDENSO |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-22200 |
GX90,JZX90,93,LX90,SX90 |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89221-22020 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 89390 - RELAY, BRAKE WARNING | ||||
| 89391-22010 |
LX90 |
1 | ||
| 89658 - BRACKET, POWER STEERING COMPUTER | ||||
| 89658-22010 |
JZX90,LX90..AVT,RAF,TOUS,XL |
1 | ||
| Common parts | ||||
| 82715-22660 | ||||
| 90119-06601 | ||||
| 90179-06097 | ||||
| 90179-06239 | ||||
| 91612-60612 | ||||
| 91655-40620 | ||||
| 93269-54010 | ||||
| 93567-55016 | ||||

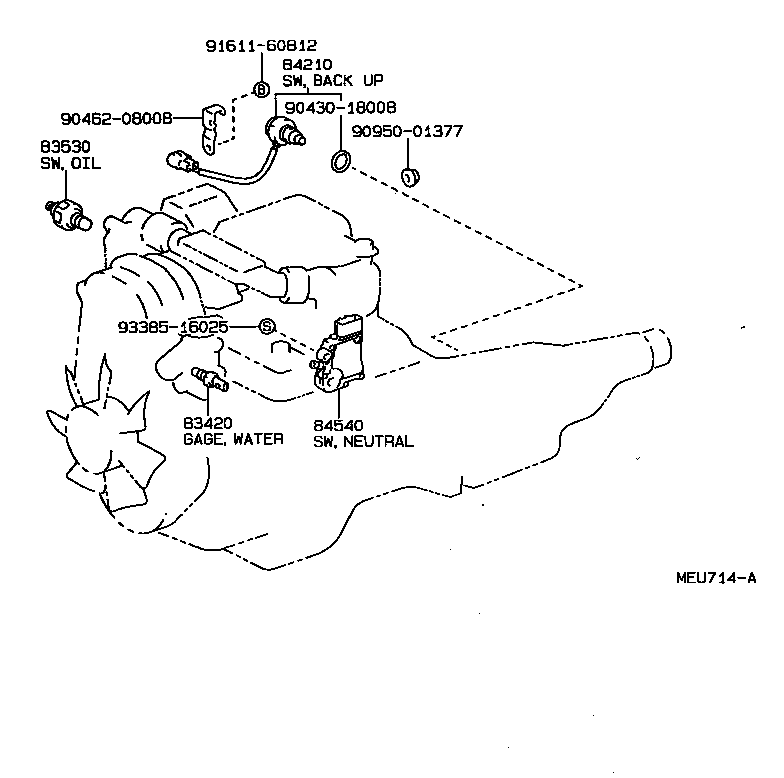

ILLUST NO. 1 OF 6(9210- )LX90
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20030 |
GX90,JZX9#,LX90 YAZAKI |
1 | ||
| 83420-16040 |
GX90,JZX9#,LX90 YAZAKI |
1 | ||
| 83420-16040 |
GX90,JZX9#,LX90 NIPPONDENSO |
1 | ||
| 83420-16040 |
GX90,JZX9#,LX90 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30060 |
LX90 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-30060 |
GX90,LX90,SX90..MTM |
1 | ||
| Common parts | ||||
| 90430-18008 | ||||
| 90462-08008 | ||||
| 90950-01377 | ||||
| 91611-60812 | ||||
| 93385-16025 | ||||

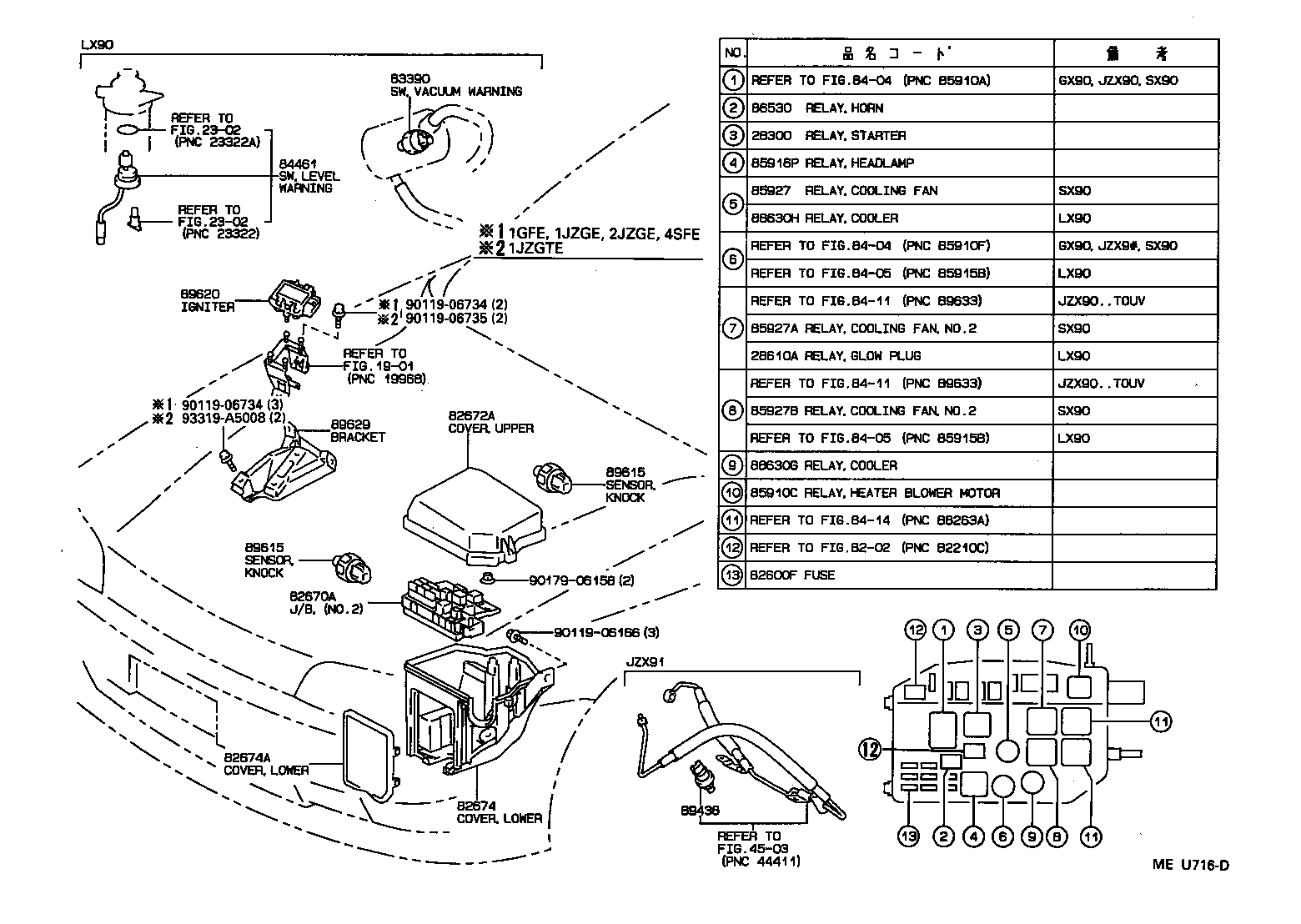

ILLUST NO. 2 OF 6(9210- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-46010 |
1GFE,1JZ#,2JZGE,2LTE,4SFE..GX90,JZX9#,LX90,SX90 |
1 | ||
| 28610A - RELAY ASSY, GLOW PLUG(SUB) | ||||
| 28610-54360 |
2LTE..LX90 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
GX90,JZX9#,LX90,SX90 10A |
1 | ||
| 90982-09004 |
GX90,JZX9#,LX90,SX90 20A,黄 |
1 | ||
| 90982-09004 |
GX90,JZX9#,LX90,SX90 20A,黄 |
1 | ||
| 90982-09003 |
GX90,JZX9#,LX90,SX90 15A |
1 | ||
| 90982-09006 |
GX90,JZX9#,LX90,SX90 25A |
1 | ||
| 90982-09005 |
GX90,JZX9#,LX90,SX90 7.5A |
1 | ||
| 82670A - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-22120 |
GX90,JZX90,93,LX90,SX90..AVT,AVTG,RAF,TOUS,XL |
1 | ||
| 82670-22170 |
GX90,JZX90,93,LX90,SX90..AVT,AVTG,RAF,TOUS,XL |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-22180 |
LX90 |
1 | ||
| 82672-22240 |
LX90 |
1 | ||
| 82674 - COVER, JUNCTION BLOCK LOWER | ||||
| 82674-22010 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 82674A - COVER, JUNCTION BLOCK, LOWER | ||||
| 82674-22020 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-30100 |
LX90 |
1 | ||
| 84461 - SWITCH, LEVEL WARNING | ||||
| 84461-35060 |
LX90 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 86530-20070 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-02004 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| Common parts | ||||
| 90119-06166 | ||||
| 90119-06734 | ||||
| 90119-06735 | ||||
| 90179-06158 | ||||
| 93319-A5008 | ||||
| Linked diagrams | ||||
| 1901 | ||||
| 2302 | ||||
| 4503 | ||||
| 8202 | ||||
| 8404 | ||||
| 8405 | ||||
| 8411 | ||||
| 8414 | ||||
ILLUST NO. 3 OF 6(9210- )
INSTRUMENT PANEL & DOOR SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84242 - SWITCH, GLOVE BOX LAMP | ||||
| 84242-20030 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-22120 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10320 |
GX90,JZX9#,LX90,SX90 14V 0.84W |
1 | ||
| 84453 - SWITCH, IDLE UP | ||||
| 84453-22010 |
LX90 ｶﾝﾚｲﾁｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10780 |
GX90,JZX9#,LX90,SX90 14V 0.7W |
1 | ||
| 84999-10410 |
GX90,JZX9#,LX90,SX90 14V 0.84W |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10780 |
GX90,JZX9#,LX90,SX90 14V 0.7W |
1 | ||
| 84999-10410 |
GX90,JZX9#,LX90,SX90 14V 0.84W |
1 | ||
| 84790D - SWITCH ASSY, WINDSHIELD DEFOGGER | ||||
| 84790-22180 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 84790E - CAP, BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84998-10450 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-22110 |
GX90,JZX9#,LX90,SX90 |
3 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-22340 |
GX90,JZX90,LX90,SX90..AVT,RAF,TOUS,TOUV,XL |
1 | ||
| 84820-22340 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 84820-22340 |
GX90,JZX93,LX90,SX90..AVT,RAF,XL |
1 | ||
| 84820-22340 |
GX90,JZX93,LX90,SX90..AVT,RAF,XL 東海理化 |
1 | ||
| 84820-22360 |
GX90,JZX93,LX90,SX90..AVT,RAF,XL TOYOTA |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-22170J0 |
GX90,JZX90,91,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV ｱﾘ(ﾌｴﾝﾀﾞﾐﾗ-),GRAYISH BLUE,TRIM8# |
1 | ||
| 84870-22180J0 |
GX90,JZX90,91,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV GRAYISH BLUE,TRIM8# |
1 | ||
| 84870-22170E0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF ｱﾘ(ﾌｴﾝﾀﾞﾐﾗ-),BEIGE,TRIM4# |
1 | ||
| 84870-22180E0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF BEIGE,TRIM4# |
1 | ||
| 84870-22170G0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV ｱﾘ(ﾌｴﾝﾀﾞﾐﾗ-),JADE,TRIM6# |
1 | ||
| 84870-22180G0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV JADE,TRIM6# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-22190 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11018 |
GX90,JZX9#,LX90,SX90 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 85500F - CAP, CIGARETTE LIGHTER BULB | ||||
| 84998-10510 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| Common parts | ||||
| 84828-22010 | ||||
| 84828-22030 | ||||
| 90164-40103 | ||||

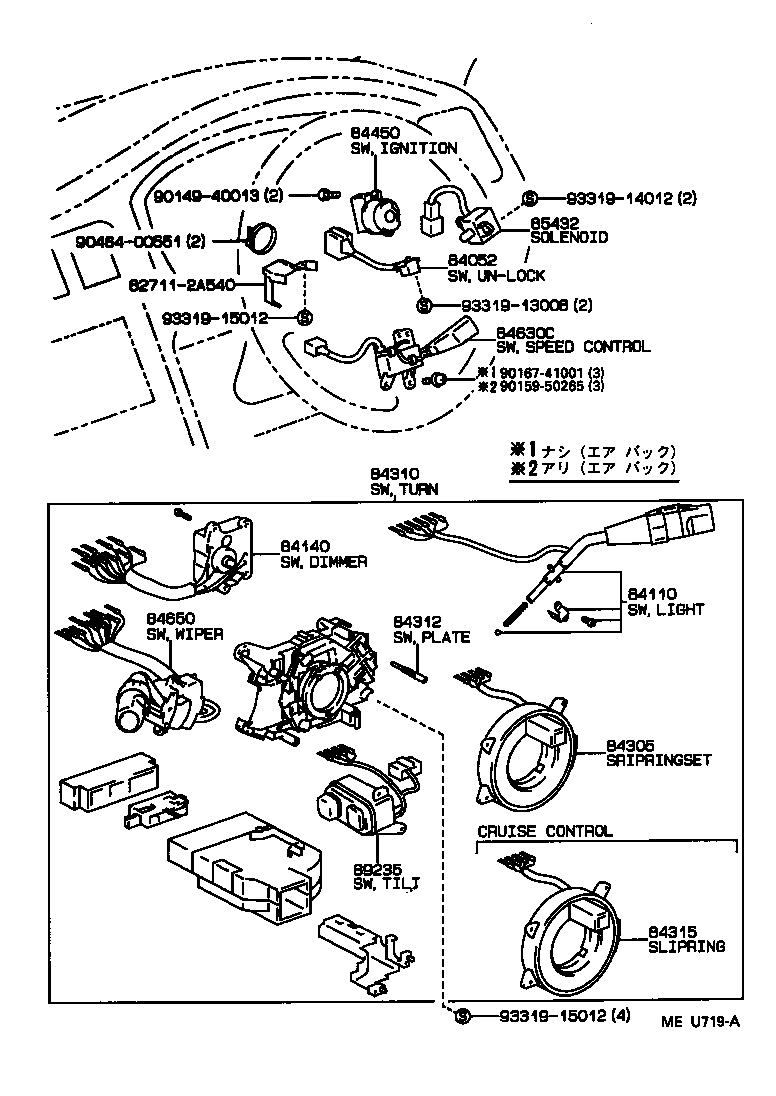

ILLUST NO. 5 OF 6(9210- )
COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-22040 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80151 |
LX90..RAF ｽﾍﾟｼﾔﾙﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 84112-80150 |
LX90..RAF ﾗﾌｲ-ﾈ ｻﾙ-ﾝ |
1 | ||
| 84112-80149 |
LX90,SX90 ｱﾘ(*80) |
1 | ||
| 84112-80150 |
LX90..RAF ﾗﾌｲ-ﾈ ｻﾙ-ﾝ |
1 | ||
| 84112-80147 |
LX90,SX90 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-22130 |
GX90,LX90,SX90 ｱﾘ(*80) |
1 | ||
| 84140-22150 |
GX90,JZX93,LX90,SX90..AVT,RAF,XL |
1 | ||
| 84140-22130 |
LX90..RAF ﾗﾌｲ-ﾈ ｻﾙ-ﾝ |
1 | ||
| 84140-22150 |
GX90,JZX90,93,LX90,SX90..AVT,RAF,XL |
1 | ||
| 84140-22130 |
JZX93,LX90,SX90..AVT,RAF,XL ｱﾘ(*80) |
1 | ||
| 84140-22130 |
GX90,JZX90,93,LX90,SX90..AVT,RAF,XL ｱﾘ(*80) |
1 | ||
| 84140-22130 |
LX90..RAF ﾗﾌｲ-ﾈ ｻﾙ-ﾝ OR ｱﾘ(*80) |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-2A320 |
LX90..RAF ｵ-ﾄﾃﾝ25ｼﾕｳﾈﾝｷﾈﾝ |
1 | ||
| 84310-2A370 |
LX90..RAF ｱﾘ(*RW),ｽﾍﾟｼﾔﾙﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 84310-2A330 |
LX90..RAF ｵ-ﾄﾃﾝ25ｼﾕｳﾈﾝｷﾈﾝ,ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 84310-2A340 |
LX90,SX90 ｱﾘ(*80) |
1 | ||
| 84310-2A350 |
LX90,SX90..RAF ｱﾘ(*80 & ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 84310-2A370 |
LX90..RAF ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) & ﾗﾌｲ-ﾈ ｻﾙ-ﾝ |
1 | ||
| 84310-2A310 |
LX90,SX90..RAF ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 84310-2A300 |
LX90,SX90 |
1 | ||
| 84310-2A360 |
LX90..RAF ﾗﾌｲ-ﾈ ｻﾙ-ﾝ |
1 | ||
| 84310-2A370 |
LX90..RAF ﾗﾌｲ-ﾈ ｻﾙ-ﾝ & ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12040 |
GX90,JZX90,LX90,SX90 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-41010 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 84450-20260 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-22680 |
GX90,LX90,SX90..AVT,RAF ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 84652-22700 |
GX90,LX90,SX90..AVT,RAF ｱﾘ(*80 & ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 84652-22670 |
GX90,LX90,SX90 |
1 | ||
| 84652-22690 |
GX90,LX90,SX90 ｱﾘ(*80) |
1 | ||
| 84652-22690 |
LX90,SX90 ｱﾘ(*80) |
1 | ||
| 84652-22700 |
LX90,SX90..RAF ｱﾘ(*80 & ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 84652-22700 |
GX90,JZX90,LX90,SX90..AVT,RAF ｱﾘ(*80 & ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 84652-22690 |
LX90..RAF ﾗﾌｲ-ﾈ ｻﾙ-ﾝ OR ｱﾘ(*80) |
1 | ||
| 84652-22690 |
GX90,JZX90,LX90,SX90..AVT,RAF,XL ｱﾘ(*80) |
1 | ||
| 84652-22700 |
LX90..RAF ﾗﾌｲ-ﾈ ｻﾙ-ﾝ OR ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 84652-22680 |
GX90,JZX90,LX90,SX90..AVT,RAF ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 84652-22690 |
LX90..RAF ﾗﾌｲ-ﾈ ｻﾙ-ﾝ |
1 | ||
| 84652-22700 |
LX90..RAF ﾗﾌｲ-ﾈ ｻﾙ-ﾝ & ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 84652-22670 |
GX90,JZX90,LX90,SX90..AVT,RAF,XL |
1 | ||
| Common parts | ||||
| 82711-2A540 | ||||
| 90149-40013 | ||||
| 90159-50265 | ||||
| 90167-41001 | ||||
| 90464-00551 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
ILLUST NO. 6 OF 6(9210- )
ROOF,DOOR,SEAT,FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80256 |
LX90 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-32040 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-32040 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-32040 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-32040 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84231-32060 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
JZX90,LX90,SX90..TOUS,TOUV,XL;GX90,LX90,SX90..MTM..(AVT,RAF) MATUSHITA |
1 | ||
| 84550-33010 |
GX90,LX90,SX90..MTM;JZX90,LX90,SX90..TOUS,TOUV,XL |
1 | ||
| 84922A - SWITCH, FRONT POWER SEAT(FOR LUMBAR) | ||||
| 84922-22090J0 |
JZX90..TOUS,TOUV;GX90,LX90,SX90..AVT,RAF GRAYISH BLUE,TRIM8# |
1 | ||
| 84922-22090E0 |
GX90,JZX93,LX90,SX90..AVT,RAF BEIGE,TRIM4# |
1 | ||
| 84922-22090G0 |
JZX90..TOUS,TOUV;GX90,JZX93,LX90,SX90..AVT,RAF JADE,TRIM6# |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-12100 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 84931-20161 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 84931-12101 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-22210 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-22290 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 89373-22280 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF |
1 | ||
| 89373-22280 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL |
1 | ||
| 89373-22290 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF ｱﾘ(ﾗﾂｹﾞ-ｼﾞﾄﾞｱﾂﾞｹ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ) OR ﾅｼ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ) |
1 | ||
| Common parts | ||||
| 90119-06601 | ||||
| 90167-40044 | ||||
| 90168-40081 | ||||
| 90189-04118 | ||||
| 91631-40616 | ||||
| 91666-40616 | ||||
| 93269-15008 | ||||
| 93315-14012 | ||||
| 93319-14012 | ||||
| 93381-15010 | ||||
| Linked diagrams | ||||
| 8603 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
