LX90-BTMET (1992)

Toyota Chaser

Production Oct 1992 - Sep 1996

Engine 2LTE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9210- )

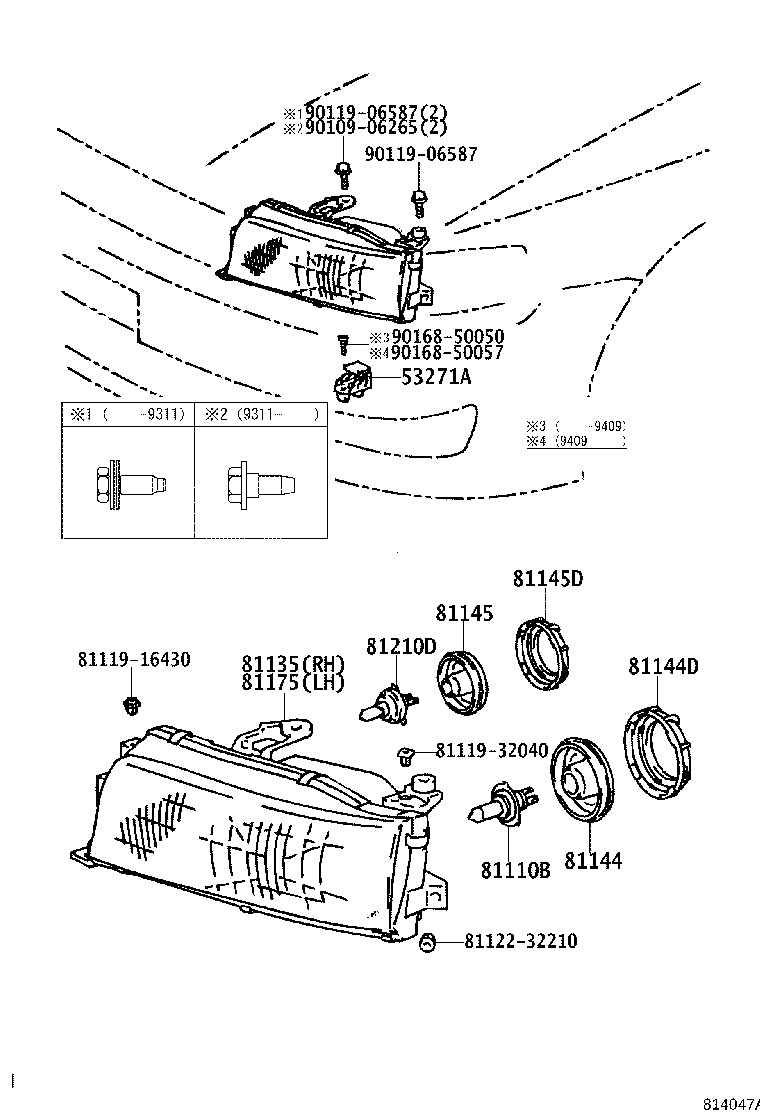

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
53271A - BRACKET, HEADLAMP MOUNTING
53271-12060	GX90,JZX9#,LX90,SX90	07/1994 - 09/1996	2
53271-12040	GX90,JZX9#,LX90,SX90	10/1992 - 07/1994	2
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015	GX90,JZX9#,LX90,SX90 12V 60/55W,HAL WH	10/1992 - 04/1994	2
90981-22002	GX90,JZX9#,LX90,SX90 12V 60/55W,HAL WH	04/1994 - 09/1996	2
81135 - UNIT ASSY, HEADLAMP, RH
81130-22660	GX90,JZX9#,LX90,SX90	10/1992 - 11/1993	1
81130-22661	GX90,JZX9#,LX90,SX90	11/1993 - 09/1994	1
81130-22662	GX90,JZX9#,LX90,SX90	09/1994 - 09/1996	1
81144 - COVER, HEADLAMP, NO.1
81179-32310	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	2
81144D - CAP, HEADLAMP LOCKING
81122-32310	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	2
81145 - COVER, HEADLAMP, NO.2
81139-32040	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	2
81145D - CAP, HEADLAMP LOCKING NO.2
81122-32040	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	2
81175 - UNIT ASSY, HEADLAMP, LH
81170-22661	GX90,JZX9#,LX90,SX90	11/1993 - 09/1994	1
81170-22662	GX90,JZX9#,LX90,SX90	09/1994 - 09/1996	1
81170-22660	GX90,JZX9#,LX90,SX90	10/1992 - 11/1993	1
81210D - BULB, FOG LAMP
90981-13039	GX90,JZX9#,LX90,SX90 12V 55W,ﾊﾛｹﾞﾝ	10/1992 - 09/1996	2
Common parts
81119-16430
81119-32040
81122-32210
90109-06265
90119-06587
90168-50050
90168-50057
