LX80Y-BTPRX (1988)

Toyota Chaser

Production Aug 1988 - Oct 1992
Engine 2LT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )CI,DSL,HTWC,LPG,TD

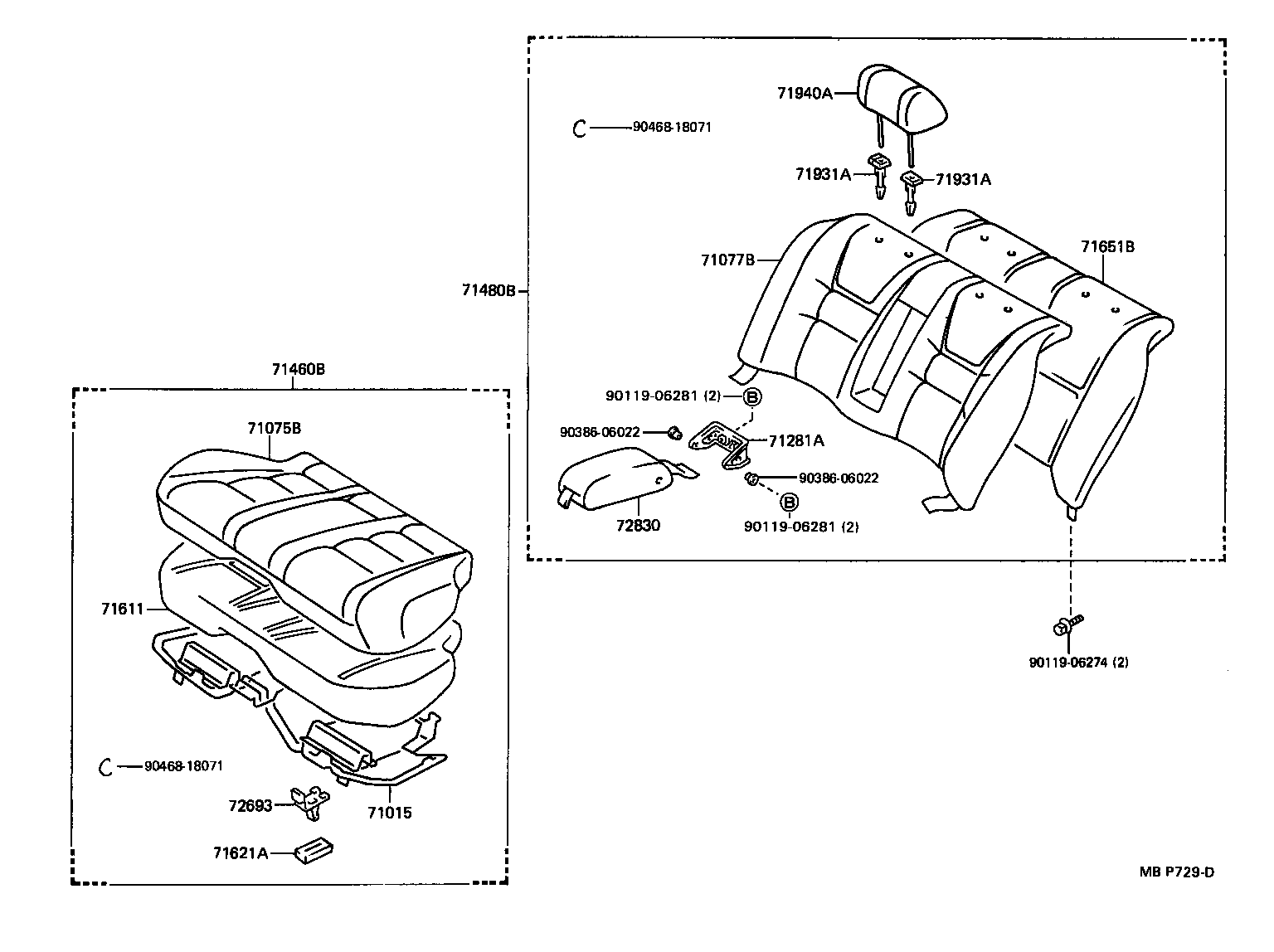

Click highlighted areas on diagram

diagram 71015 71075B 71077B 71281A 71460B 71480B 71611 71621A 71651B 71931A 71931A 71940A 72693 72830 9011906274 9011906281 9011906281 9038606022 9038606022 9046818071 9046818071
Part # Description Qty Price
71015 - FRAME SUB-ASSY, REAR SEAT CUSHION
71015-22140

GX81,LX80,SX80,YX80..KYO,SXL,XG,XL

 1
71015-22140

LX80,SX80,YX80..KYO

 1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-9166904

LX80,SX80,YX80..KYO

DARK BLUE,TRIM8#

 1
71075-9167504

LX80,SX80,YX80..KYO

ｱﾘ(ﾌｱﾌﾞﾘﾂｸ ｼ-ﾄ),DARK BLUE,TRIM8#

 1
71075-9167503

LX80,SX80,YX80..KYO

ｱﾘ(ﾌｱﾌﾞﾘﾂｸ ｼ-ﾄ),MEDIUM GRAY,TRIM1#

 1
71075-9166904

LX80,SX80,YX80..KYO

DARK BLUE,TRIM1#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-91A0804

LX80,SX80,YX80..KYO

DARK BLUE,TRIM8#

 1
71077-91A1604

LX80,SX80,YX80..KYO

ｱﾘ(ﾌｱﾌﾞﾘﾂｸ ｼ-ﾄ),DARK BLUE,TRIM8#

 1
71077-91A1603

LX80,SX80,YX80..KYO

ｱﾘ(ﾌｱﾌﾞﾘﾂｸ ｼ-ﾄ),MEDIUM GRAY,TRIM1#

 1
71077-91A0803

LX80,SX80,YX80..KYO

MEDIUM GRAY,TRIM1#

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71560-9161904

LX80,SX80,YX80..KYO

ｱﾘ(ﾌｱﾌﾞﾘﾂｸ ｼ-ﾄ),DARK BLUE,TRIM8#

 1
71560-9161204

LX80,SX80,YX80..KYO

***,DARK BLUE,TRIM8#

 1
71560-9161203

LX80,SX80,YX80..KYO

***,MEDIUM GRAY,TRIM1#

 1
71560-9161903

LX80,SX80,YX80..KYO

***,ｱﾘ(ﾌｱﾌﾞﾘﾂｸ ｼ-ﾄ),MEDIUM GRAY,TRIM1#

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-91A3704

LX80,SX80,YX80..KYO

***,DARK BLUE,TRIM8#

 1
71480-91A4704

LX80,SX80,YX80..KYO

ｱﾘ(ﾌｱﾌﾞﾘﾂｸ ｼ-ﾄ),DARK BLUE,TRIM8#

 1
71480-91A3703

LX80,SX80,YX80..KYO

***,MEDIUM GRAY,TRIM1#

 1
71480-91A4703

LX80,SX80,YX80..KYO

***,ｱﾘ(ﾌｱﾌﾞﾘﾂｸ ｼ-ﾄ),MEDIUM GRAY,TRIM1#

 1
71611 - PAD, REAR SEAT CUSHION
71611-22330

GX81,LX80,SX80,YX80..KYO,SXL,XG,XL

 1
71611-22330

LX80,SX80,YX80..KYO

 1
71621A - PAD, REAR SEAT CUSHION SILENCER, A
71621-22070

GX81,JZX81,LX80,MX83,SX80,YX80

 2
71621-22070

GX81..AVT..HTWC;LX80,MX83,SX80,YX80..AVTG,KYO,XL

 2
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71507-91616

LX80,SX80,YX80..KYO,XL

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-24010

GX81,JZX81,LX80,MX83,SX80,YX80

 2
Common parts
90119-06274
90119-06281
90386-06022
90468-18071
