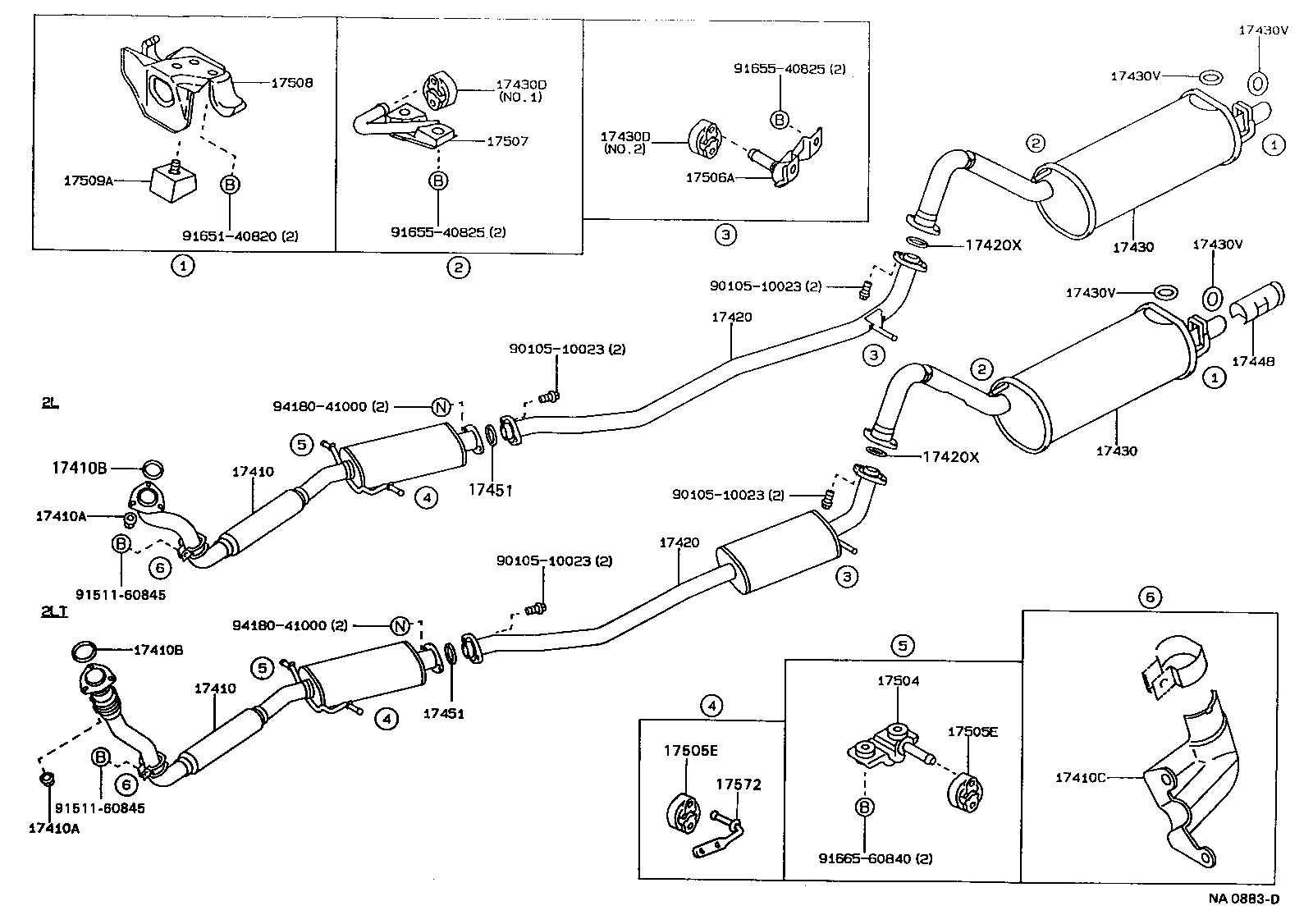

LX80Y-BTMRS (1988)
Toyota Chaser
(8808- )2L#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-54660 |
2L..LX80 |
1 | ||
| 17410-54661 |
2L..LX80 |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-54660 |
2L..LX80 |
1 | ||
| 17410-54661 |
2L..LX80 |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
1GFE,1GG#,1JZ#,2L#,7MGE,4SF#,3YP..GX81,JZX81,LX80,MX83,SX80,YX80 |
3 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
1GFE,1GG#,1JZ#,2L#,7MGE,4SF#,3YP..GX81,JZX81,LX80,MX83,SX80,YX80 |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06042 |
2L#..LX80 |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06042 |
2L#..LX80 |
1 | ||
| 17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 17571-54230 |
2L#..LX80 |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-54050 |
2L..LX80 |
1 | ||
| 17420-54051 |
2L..LX80 |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-54050 |
2L..LX80 |
1 | ||
| 17420-54051 |
2L..LX80 |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06039 |
2L,4SF#,3YP..LX80,SX80,YX80 |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06039 |
2L,4SF#,3YP..LX80,SX80,YX80 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-5B030 |
2L..LX80 |
1 | ||
| 17430-5B031 |
2L..LX80 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-5B030 |
2L..LX80 |
1 | ||
| 17430-5B031 |
2L..LX80 |
1 | ||
| 17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT) | ||||
| 17565-11100 |
1GFE,1GG#,1JZ#,2L#,7MGE,4SF#,3YP..GX81,JZX81,LX80,MX83,SX80,YX80 NO.1 |
1 | ||
| 17565-63020 |
4SF#..SX80..5F;1GFE,1GG#,1JZGE,2L#,7MGE,3YP..GX81,JZX81,LX80,MX83,YX80 NO.2 |
1 | ||
| 17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT) | ||||
| 17565-11100 |
1GFE,1GG#,1JZ#,2L#,7MGE,4SF#,3YP..GX81,JZX81,LX80,MX83,SX80,YX80 NO.1 |
1 | ||
| 17565-63020 |
4SF#..SX80..5F;1GFE,1GG#,1JZGE,2L#,7MGE,3YP..GX81,JZX81,LX80,MX83,YX80 NO.2 |
1 | ||
| 17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90301-36001 |
1GFE,1GG#,1JZ#,2L#,7MGE,4SF#..GX81,JZX81,LX80,MX83,SX80 |
2 | ||
| 17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90301-36001 |
1GFE,1GG#,1JZ#,2L#,7MGE,4SF#..GX81,JZX81,LX80,MX83,SX80 |
2 | ||
| 17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90301-36001 |
1GFE,1GG#,1JZ#,2L#,7MGE,4SF#..GX81,JZX81,LX80,MX83,SX80 |
2 | ||
| 17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90301-36001 |
1GFE,1GG#,1JZ#,2L#,7MGE,4SF#..GX81,JZX81,LX80,MX83,SX80 |
2 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06039 |
2L..LX80 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06039 |
2L..LX80 |
1 | ||
| 17504 - BRACKET SUB-ASSY, CATALYTIC CONVERTER | ||||
| 17504-54060 |
2L#..LX80 |
1 | ||
| 17504-54061 |
2L#..LX80 |
1 | ||
| 17505E - SUPPORT SUB-ASSY, CATALYTIC CONVERTER | ||||
| 17505-64011 |
2L#..LX80 |
2 | ||
| 17505E - SUPPORT SUB-ASSY, CATALYTIC CONVERTER | ||||
| 17505-64011 |
2L#..LX80 |
2 | ||
| 17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17506-74040 |
2L#,4SF#,3YP..LX80,SX80,YX80 |
1 | ||
| 17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT | ||||
| 17507-74020 |
2L#,4SF#,3YP..LX80,SX80,YX80 |
1 | ||
| 17508 - SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3 | ||||
| 17508-70060 |
1GFE,1GG#,1JZ#,2L#,7MGE,4SF#,3YP..GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 17509A - BRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT | ||||
| 17509-70010 |
4SF#..SX80..5F;1GFE,1GG#,1JZ#,2L#,7MGE,3YP..GX81,JZX81,LX80,MX83,YX80 |
1 | ||
| 17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17583-54060 |
2L#..LX80..5F |
1 | ||
| Common parts | ||||
| 90105-10023 | ||||
| 91511-60845 | ||||
| 91651-40820 | ||||
| 91655-40825 | ||||
| 91665-60840 | ||||
| 94180-41000 | ||||
