LX80-BTPNX (1988)
Toyota Chaser
(8808- )LX80..4FC

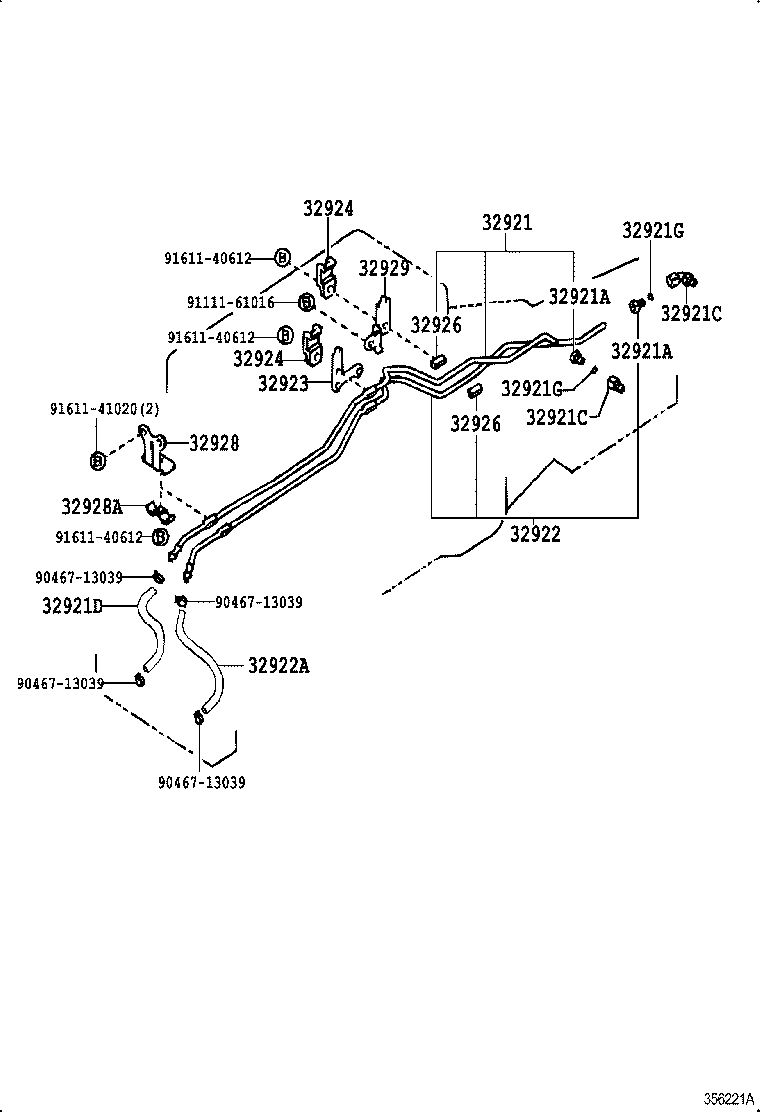

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-22520 |
LX80..4FC |
1 | ||
| 32921-22570 |
LX80..4FC |
1 | ||
| 32921A - NUT, UNION(FOR OIL COOLER TUBE) | ||||
| 90402-14004 |
LX80..4FC |
1 | ||
| 90402-14004 |
GX81,LX80..4FC..(HTWC,TD) |
4 | ||
| 32921A - NUT, UNION(FOR OIL COOLER TUBE) | ||||
| 90402-14004 |
LX80..4FC |
1 | ||
| 90402-14004 |
GX81,LX80..4FC..(HTWC,TD) |
4 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-14007 |
GX81,LX80,SX80..4FC..(CI,HTWC,TD) ﾌﾛﾝﾄ |
1 | ||
| 90407-14003 |
GX81,LX80,SX80..4FC..(CI,HTWC,TD) ﾘﾔ |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-14007 |
GX81,LX80,SX80..4FC..(CI,HTWC,TD) ﾌﾛﾝﾄ |
1 | ||
| 90407-14003 |
GX81,LX80,SX80..4FC..(CI,HTWC,TD) ﾘﾔ |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 90445-15015 |
LX80..4FC |
1 | ||
| 90445-15046 |
LX80..4FC |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
2 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-22550 |
LX80..4FC |
2 | ||
| 32922-22600 |
LX80..4FC |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 32941-32030 |
LX80..4FC |
1 | ||
| 90445-15059 |
LX80..4FC |
2 | ||
| 32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 32923-22041 |
LX80..4FC |
1 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32924-28010 |
LX80..4FC |
2 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32924-28010 |
LX80..4FC |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-22010 |
LX80..4FC 長さ=35,内径=8 |
14 | ||
| 32926-22040 |
LX80..4FC 長さ=40,内径=8 |
1 | ||
| 32926-22010 |
LX80..4FC 長さ=35,内径=8 |
10 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-22010 |
LX80..4FC 長さ=35,内径=8 |
14 | ||
| 32926-22040 |
LX80..4FC 長さ=40,内径=8 |
1 | ||
| 32926-22010 |
LX80..4FC 長さ=35,内径=8 |
10 | ||
| 32928 - CLAMP, FLEXIBLE HOSE, NO.1 | ||||
| 32928-22110 |
LX80..4FC |
1 | ||
| 32928-22051 |
LX80..4FC |
1 | ||
| 32928A - CLAMP(FOR FLEXIBLE HOSE CLAMP) | ||||
| 90462-12085 |
LX80..4FC |
1 | ||
| 32929 - CLAMP, FLEXIBLE HOSE, NO.2 | ||||
| 32929-22020 |
LX80..4FC |
1 | ||
| Common parts | ||||
| 90467-13039 | ||||
| 91111-61016 | ||||
| 91611-40612 | ||||
| 91611-41020 | ||||
