LX80-BTPEX (1988)

Toyota Chaser

Production Aug 1988 - Oct 1992
Engine 2LT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )LX80

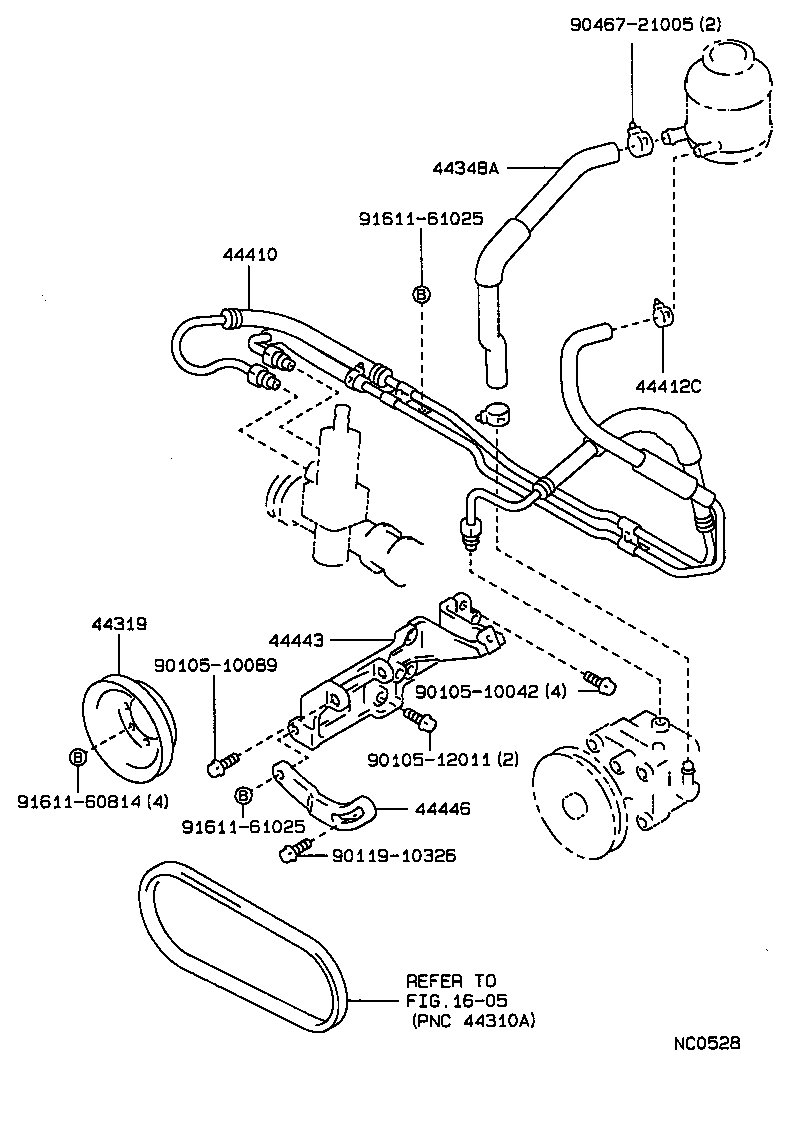

Click highlighted areas on diagram

diagram 1605 44319 44348A 44410 44412C 44443 44446 9010510042 9010510089 9010512011 9011910326 9046721005 9161160814 9161161025 9161161025
Part # Description Qty Price
44319 - PULLEY, VANE PUMP DRIVE
44319-22010

LX80

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-22170

LX80

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-22380

LX80..XG,XL

 1
44410-22381

LX80..XG,XL

 1
44412C - CLAMP(FOR RETURN HOSE)
90467-16008

GX81,LX80,SX80..(AVT,SXL,XG,XL)..(CI,DSL,HTWC,TD)

 1
90467-16008

SX80..XG,XL;GX81,LX80..DSL,HTWC,TD

 1
44443 - BRACKET, PUMP
44443-22110

LX80

 1
44446 - STRUT, ADJUSTING
44446-30070

LX80

 1
Common parts
90105-10042
90105-10089
90105-12011
90119-10326
90467-21005
91611-60814
91611-61025
Linked diagrams
1605
