LX80-BTPEX (1988)

Toyota Chaser

Production Aug 1988 - Oct 1992
Engine 2LT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )2L#

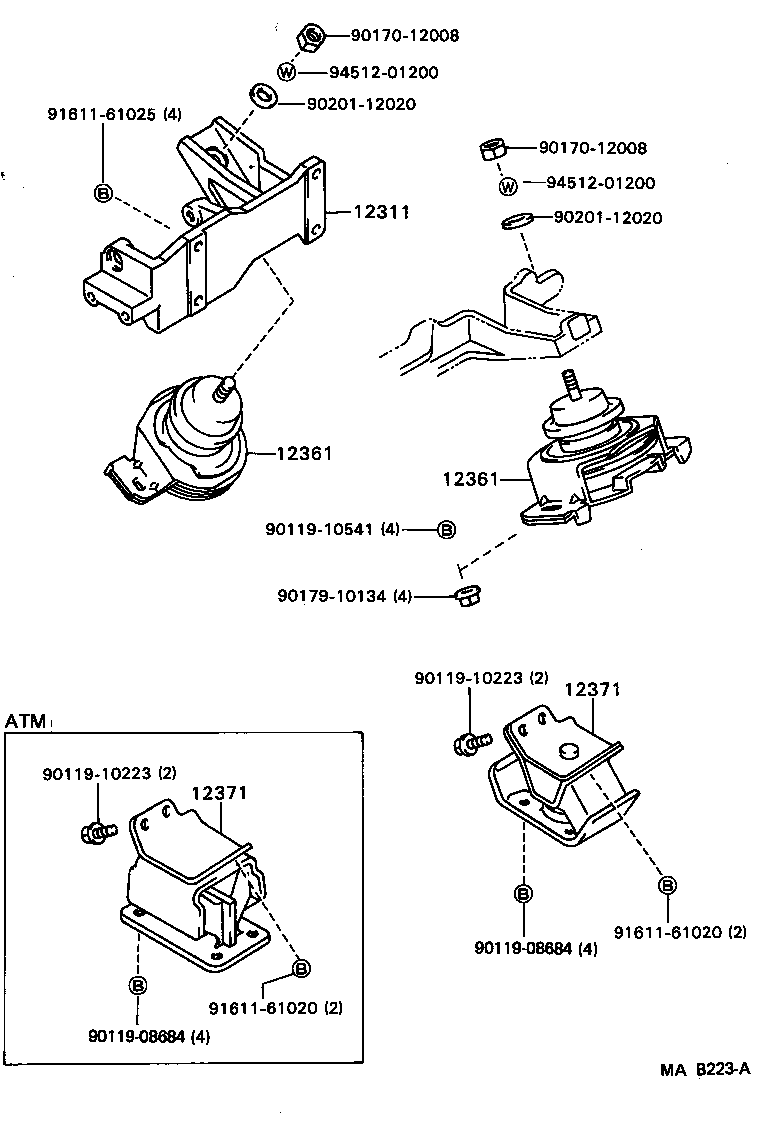

Click highlighted areas on diagram

diagram 12311 12361 12361 12371 12371 9011908684 9011908684 9011910223 9011910223 9011910541 9017012008 9017012008 9017910134 9020112020 9020112020 9161161020 9161161020 9161161025 9451201200 9451201200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-54130

2L#..LX80

 1
12311-54190

2L#..LX80

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-54152

2L#..LX80

 2
12361-54153

2L#..LX80

 2
12361-54180

2LT..LX80..4FC

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-54152

2L#..LX80

 2
12361-54153

2L#..LX80

 2
12361-54180

2LT..LX80..4FC

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-54040

2LT..LX80..4FC

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-54040

2LT..LX80..4FC

 1
Common parts
90119-08684
90119-10223
90119-10541
90170-12008
90179-10134
90201-12020
91611-61020
91611-61025
94512-01200
