LX80-BTMNX (1988)
Toyota Chaser

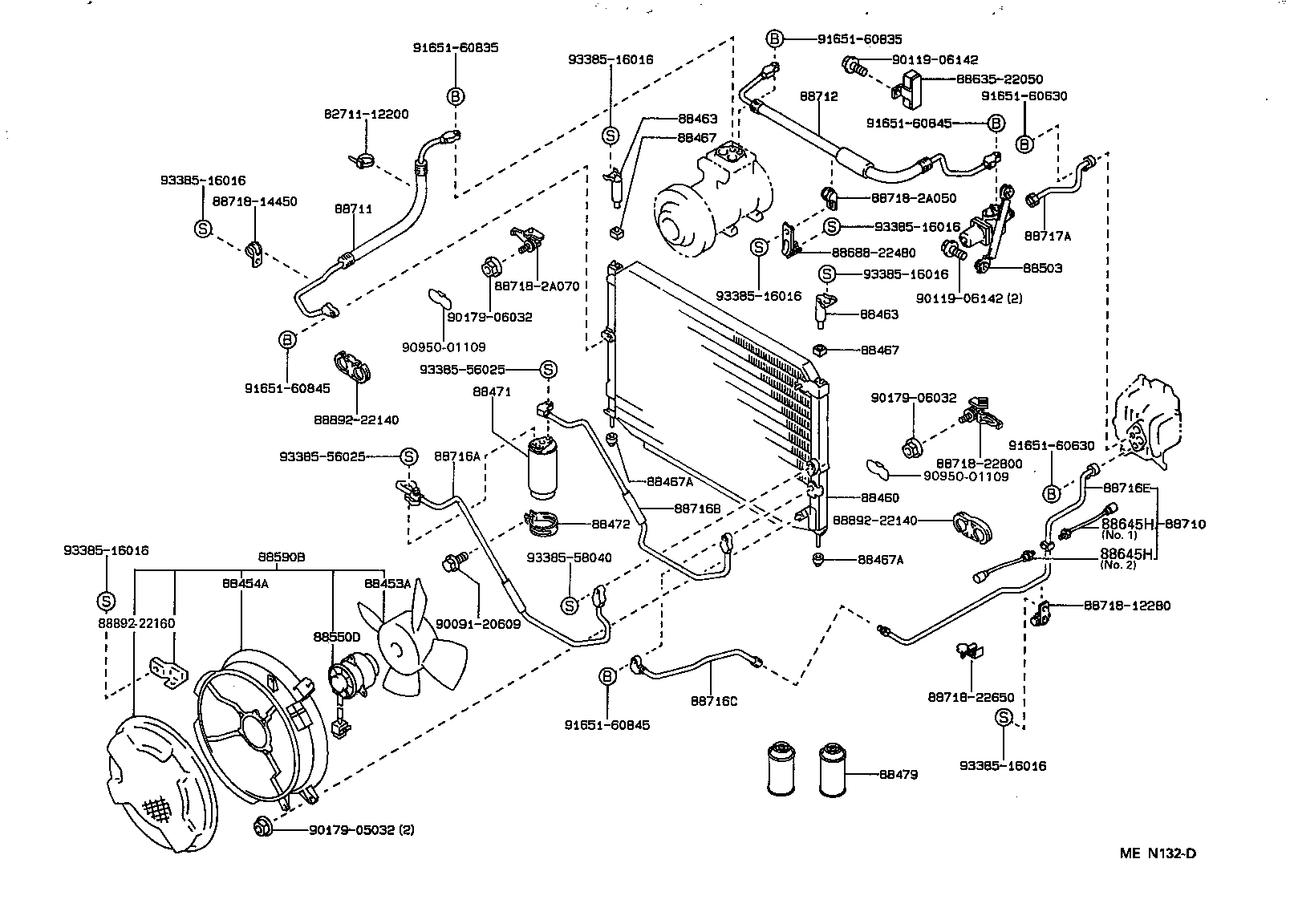

(8808-9008)LX80..XG,XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-22390 |
SX80;GX81,LX80..AVT,AVTG,GT,SXL,XG,XL |
1 | ||
| 88460-22390 |
SX80;GX81,JZX81,LX80,MX83..AVT,AVTG,SXL,XG,XL |
1 | ||
| 88460-22390 |
LX80,SX80..XL |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-22010 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
2 | ||
| 88463-22010 |
LX80,SX80..XL |
2 | ||
| 88463-22010 |
GX81,LX80,SX80,YX80 |
2 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-22010 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
2 | ||
| 88463-22010 |
LX80,SX80..XL |
2 | ||
| 88463-22010 |
GX81,LX80,SX80,YX80 |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-32030 |
GX81,LX80,SX80,YX80..KYO,SXL,XG,XL |
2 | ||
| 88467-32030 |
LX80,SX80..XL |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-32030 |
GX81,LX80,SX80,YX80..KYO,SXL,XG,XL |
2 | ||
| 88467-32030 |
LX80,SX80..XL |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-32020 |
LX80,SX80..XL |
2 | ||
| 88467-32020 |
GX81,LX80,SX80,YX80..KYO,SXL,XG,XL |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-32020 |
LX80,SX80..XL |
2 | ||
| 88467-32020 |
GX81,LX80,SX80,YX80..KYO,SXL,XG,XL |
2 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-16040 |
SX80;GX81,LX80..SXL,XG,XL |
1 | ||
| 88471-16040 |
LX80,SX80..XL |
1 | ||
| 88471-12020 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88473-22020 |
SX80;GX81,LX80..SXL,XG,XL |
1 | ||
| 88473-22020 |
LX80,SX80..XL |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
GX81,LX80,SX80,YX80..KYO,SXL,XG,XL 400G |
2 | ||
| 90986-02001 |
LX80,SX80..XL 400G |
2 | ||
| 90986-02004 |
LX80,SX80..XL 250G |
2 | ||
| 90986-02004 |
LX80,SX80..XL 250G |
2 | ||
| 88503 - REGULATOR ASSY, PRESSURE | ||||
| 88503-22190 |
GX81,LX80,SX80..SXL,XG,XL |
1 | ||
| 88503-22190 |
LX80,SX80..XL |
1 | ||
| 88503-22180 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL |
1 | ||
| 88503-22181 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-30280 |
GX81,LX80,SX80,YX80 NO.2 |
1 | ||
| 88645-30280 |
LX80,SX80..XL NO.2 |
1 | ||
| 88645-30281 |
LX80,SX80..XL NO.2 |
1 | ||
| 88645-30281 |
GX81,YX80..5F;LX80..5F..(XG,XL) |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-30280 |
GX81,LX80,SX80,YX80 NO.2 |
1 | ||
| 88645-30280 |
LX80,SX80..XL NO.2 |
1 | ||
| 88645-30281 |
LX80,SX80..XL NO.2 |
1 | ||
| 88645-30281 |
GX81,YX80..5F;LX80..5F..(XG,XL) |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-22300 |
GX81,LX80..5F..(SXL,XG,XL) |
1 | ||
| 88710-22300 |
LX80..5F..XL |
1 | ||
| 88710-22280 |
GX81,LX80..5F..(AVT,SXL,XG,XL) |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-22480 |
LX80 |
1 | ||
| 88711-22480 |
LX80..XL |
1 | ||
| 88711-22481 |
LX80..XG,XL |
1 | ||
| 88711-22480 |
LX80..XG,XL |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-22730 |
LX80..XL |
1 | ||
| 88712-22730 |
LX80..XG,XL |
1 | ||
| 88712-22731 |
LX80..XG,XL |
1 | ||
| 88712-22730 |
LX80..XG,XL |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-22820 |
GX81,LX80..AVTG,XG,XL |
1 | ||
| 88716-22820 |
LX80..XL |
1 | ||
| 88716-22820 |
LX80..XG,XL |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-22830 |
GX81,LX80..AVTG,XG,XL |
1 | ||
| 88716-22830 |
LX80..XG,XL |
1 | ||
| 88716-22830 |
LX80..XL |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-2A060 |
LX80,SX80..XL |
1 | ||
| 88716-2A060 |
GX81,LX80,SX80,YX80..KYO,SXL,XG,XL |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-2A050 |
LX80..5F..XL |
1 | ||
| 88716-2A050 |
GX81,LX80..5F..(SXL,XG,XL) |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-22340 |
GX81,LX80..AVT,AVTG,GT,SXL,XG,XL |
1 | ||
| 88717-22340 |
LX80..XL |
1 | ||
| 88717-22340 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 88635-22050 | ||||
| 88688-22480 | ||||
| 88718-12280 | ||||
| 88718-14450 | ||||
| 88718-22650 | ||||
| 88718-22800 | ||||
| 88718-2A050 | ||||
| 88718-2A070 | ||||
| 88892-22140 | ||||
| 88892-22160 | ||||
| 90091-20609 | ||||
| 90119-06142 | ||||
| 90179-05032 | ||||
| 90179-06032 | ||||
| 90950-01109 | ||||
| 91651-60630 | ||||
| 91651-60835 | ||||
| 91651-60845 | ||||
| 93385-16016 | ||||
| 93385-56025 | ||||
| 93385-58040 | ||||

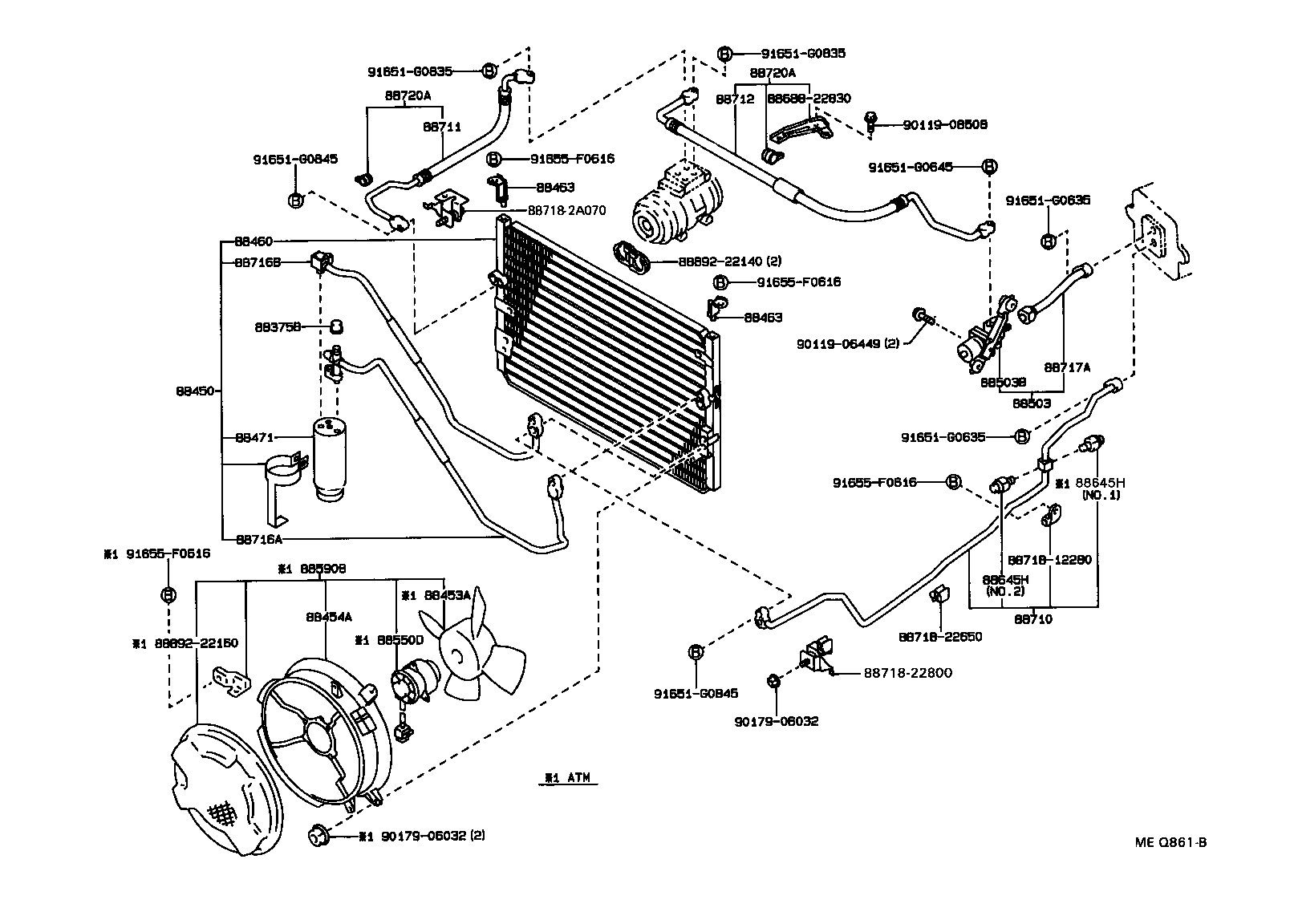

(9008- )LX80..XG,XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88460-22341 |
LX80..XG,XL |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-22390 |
SX80;GX81,LX80..AVT,AVTG,GT,SXL,XG,XL |
1 | ||
| 88460-22390 |
SX80;GX81,JZX81,LX80,MX83..AVT,AVTG,SXL,XG,XL |
1 | ||
| 88460-22390 |
LX80,SX80..XL |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-22010 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
2 | ||
| 88463-22010 |
LX80,SX80..XL |
2 | ||
| 88463-22010 |
GX81,LX80,SX80,YX80 |
2 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-22010 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
2 | ||
| 88463-22010 |
LX80,SX80..XL |
2 | ||
| 88463-22010 |
GX81,LX80,SX80,YX80 |
2 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-16040 |
SX80;GX81,LX80..SXL,XG,XL |
1 | ||
| 88471-16040 |
LX80,SX80..XL |
1 | ||
| 88471-12020 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL |
1 | ||
| 88503 - REGULATOR ASSY, PRESSURE | ||||
| 88503-22190 |
GX81,LX80,SX80..SXL,XG,XL |
1 | ||
| 88503-22190 |
LX80,SX80..XL |
1 | ||
| 88503-22180 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL |
1 | ||
| 88503-22181 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL |
1 | ||
| 88503B - REGULATOR SUB-ASSY, PRESSURE | ||||
| 88503-22190 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL |
1 | ||
| 88503-22191 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-30280 |
GX81,LX80,SX80,YX80 NO.2 |
1 | ||
| 88645-30280 |
LX80,SX80..XL NO.2 |
1 | ||
| 88645-30281 |
LX80,SX80..XL NO.2 |
1 | ||
| 88645-30281 |
GX81,YX80..5F;LX80..5F..(XG,XL) |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-30280 |
GX81,LX80,SX80,YX80 NO.2 |
1 | ||
| 88645-30280 |
LX80,SX80..XL NO.2 |
1 | ||
| 88645-30281 |
LX80,SX80..XL NO.2 |
1 | ||
| 88645-30281 |
GX81,YX80..5F;LX80..5F..(XG,XL) |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-22300 |
GX81,LX80..5F..(SXL,XG,XL) |
1 | ||
| 88710-22300 |
LX80..5F..XL |
1 | ||
| 88710-22280 |
GX81,LX80..5F..(AVT,SXL,XG,XL) |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-22480 |
LX80 |
1 | ||
| 88711-22480 |
LX80..XL |
1 | ||
| 88711-22481 |
LX80..XG,XL |
1 | ||
| 88711-22480 |
LX80..XG,XL |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-22730 |
LX80..XL |
1 | ||
| 88712-22730 |
LX80..XG,XL |
1 | ||
| 88712-22731 |
LX80..XG,XL |
1 | ||
| 88712-22730 |
LX80..XG,XL |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-22820 |
GX81,LX80..AVTG,XG,XL |
1 | ||
| 88716-22820 |
LX80..XL |
1 | ||
| 88716-22820 |
LX80..XG,XL |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-22830 |
GX81,LX80..AVTG,XG,XL |
1 | ||
| 88716-22830 |
LX80..XG,XL |
1 | ||
| 88716-22830 |
LX80..XL |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-22340 |
GX81,LX80..AVT,AVTG,GT,SXL,XG,XL |
1 | ||
| 88717-22340 |
LX80..XL |
1 | ||
| 88717-22340 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL |
1 | ||
| 88720A - HOSE & ACCESSORY, AIR CONDITIONER | ||||
| 88720-22180 |
LX80..XG,XL SUCTION |
1 | ||
| 88720-22181 |
LX80..XG,XL SUCTION |
1 | ||
| 88720-22171 |
LX80..XG,XL DISCHARGE |
1 | ||
| 88720-22170 |
LX80..XG,XL DISCHARGE |
1 | ||
| 88720A - HOSE & ACCESSORY, AIR CONDITIONER | ||||
| 88720-22180 |
LX80..XG,XL SUCTION |
1 | ||
| 88720-22181 |
LX80..XG,XL SUCTION |
1 | ||
| 88720-22171 |
LX80..XG,XL DISCHARGE |
1 | ||
| 88720-22170 |
LX80..XG,XL DISCHARGE |
1 | ||
| Common parts | ||||
| 88688-22830 | ||||
| 88718-12280 | ||||
| 88718-22650 | ||||
| 88718-22800 | ||||
| 88718-2A070 | ||||
| 88892-22140 | ||||
| 88892-22160 | ||||
| 90119-06449 | ||||
| 90119-08508 | ||||
| 90179-06032 | ||||
| 91651-G0635 | ||||
| 91651-G0645 | ||||
| 91651-G0835 | ||||
| 91651-G0845 | ||||
| 91655-F0616 | ||||
