LX80-BTMNS (1988)

Toyota Chaser

Production Aug 1988 - Oct 1992
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )AVT,AVTG,KYO,SXL,XG,XL

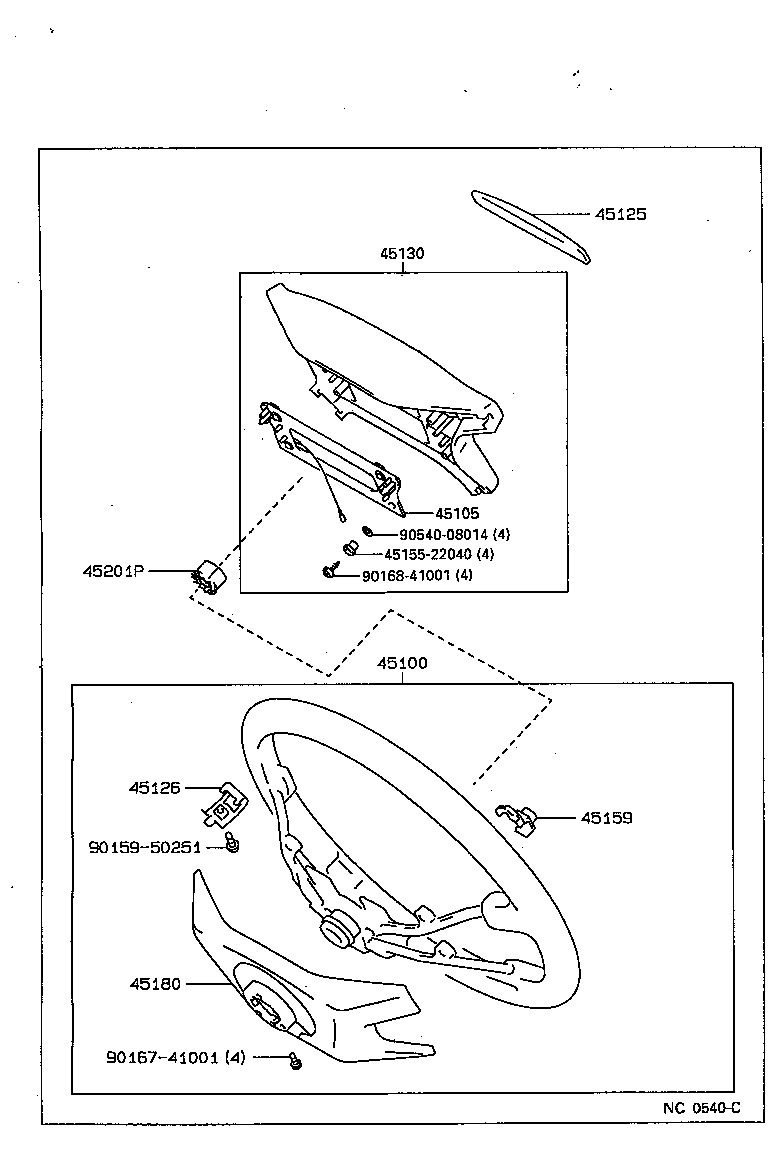

Click highlighted areas on diagram

diagram 45100 45105 45125 45126 45130 4515522040 45159 45180 45201P 9015950251 9016741001 9016841001 9054008014
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-2235006

GX81,LX80,SX80..(AVT,SXL,XG,XL)..(CI,DSL,HTWC,TD)

SABLE,TRIM4#

 1
45100-2235004

GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD

DARK BLUE,TRIM8#

 1
45100-2235104

GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD

DARK BLUE,TRIM8#

 1
45100-2235106

GX81,LX80,SX80..(AVT,SXL,XG,XL)..(CI,DSL,HTWC,TD)

SABLE,TRIM4#

 1
45100-2235103

GX81,LX80,SX80,YX80..DSL,HTWC,LPG,TD

MEDIUM GRAY,TRIM1#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-22110

GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD

 1
45125 - MARK, STEERING WHEEL PAD
45125-22550

GX81,JZX81,LX80,SX80,YX80..AVT,KYO,SXL,XG,XL

 1
45126 - PLATE, STEERING WHEEL PAD SET
45126-22040

GX81,JZX81,LX80,MX83,SX80,YX80..AVT,AVTG,KYO,SXL,XG,XL

 1
45130 - BUTTON ASSY, HORN
45130-2232003

GX81,LX80,SX80,YX80..DSL,HTWC,LPG,TD

MEDIUM GRAY,TRIM1#

 1
45130-2232004

GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD

DARK BLUE,TRIM8#

 1
45130-2232006

GX81,LX80,SX80..(AVT,SXL,XG,XL)..(CI,DSL,HTWC,TD)

SABLE,TRIM4#

 1
45159 - RETAINER, STEERING WHEEL PAD SET
45159-22010

GX81,JZX81,LX80,MX83,SX80,YX80..AVT,AVTG,KYO,SXL,XG,XL

 4
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-2203004

GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD

DARK BLUE,TRIM8#

 1
45180-2203006

GX81,LX80,SX80..(AVT,SXL,XG,XL)..(CI,DSL,HTWC,TD)

SABLE,TRIM4#

 1
45180-2203003

GX81,LX80,SX80,YX80..DSL,HTWC,LPG,TD

MEDIUM GRAY,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

GX81,JZX81,LX80,MX83,SX80,YX80

 1
90179-12086

GX81,LX80,MX83,SX80,YX80

 1
Common parts
45155-22040
90159-50251
90167-41001
90168-41001
90540-08014
