LX70Y-DTMRS (1984)
Toyota Chaser

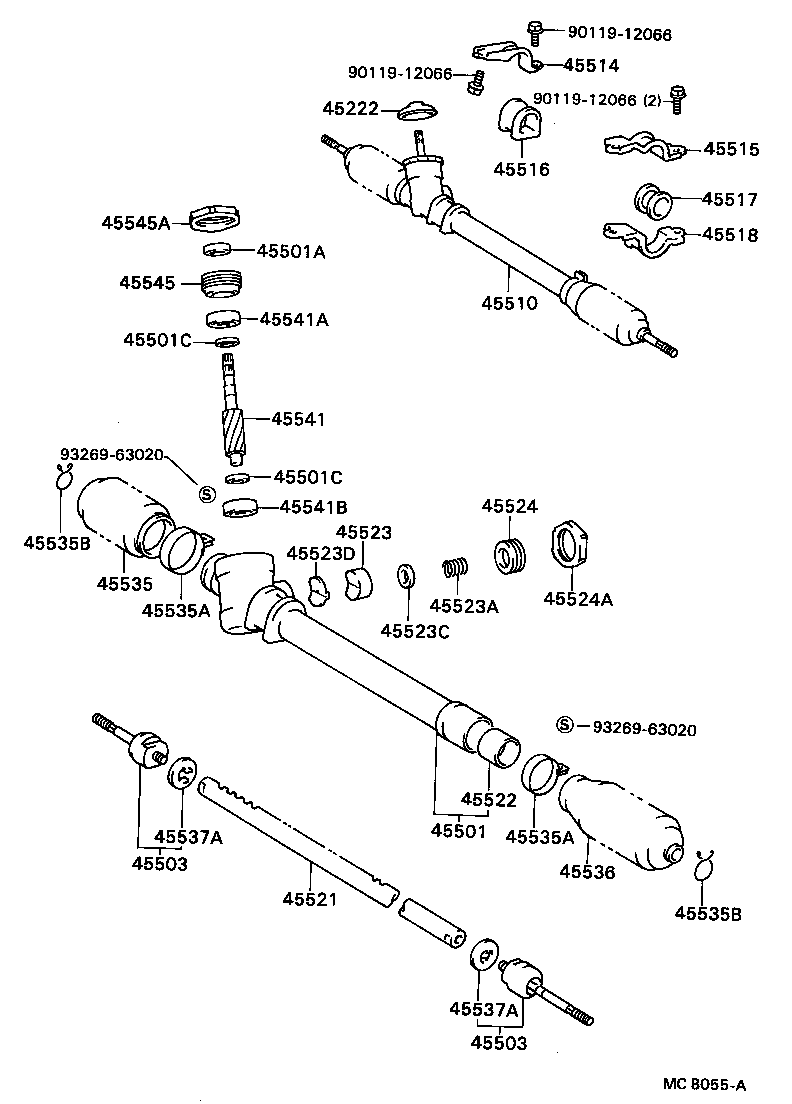

ILLUST NO. 1 OF 3(8408- )SX70..KYO,XL ; (8408- )LX70,YX7#..KYO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-20010 |
LX70,SX70,YX7#..KYO |
1 | ||
| 45501 - HOUSING SUB-ASSY, STEERING RACK | ||||
| 45501-22030 |
LX70,SX70,YX7#..KYO |
1 | ||
| 45501A - SEAL, TYPE T OIL(FOR STEERING RACK HOUSING) | ||||
| 90311-15001 |
LX70,SX70,YX7#..KYO |
1 | ||
| 45501C - SPACER(FOR STEERING RACK HOUSING) | ||||
| 90560-15005 |
LX70,SX70,YX7#..KYO |
2 | ||
| 45501C - SPACER(FOR STEERING RACK HOUSING) | ||||
| 90560-15005 |
LX70,SX70,YX7#..KYO |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29065 |
LX70,SX70,YX7#..KYO |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29065 |
LX70,SX70,YX7#..KYO |
2 | ||
| 45510 - GEAR ASSY, STEERING | ||||
| 45510-22030 |
LX70,SX70,YX7#..KYO |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-22030 |
LX70,MX71,SX70,YX7# |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-22030 |
GX71,LX70,MX71,SX70,YX7# W/POWER STEERING |
1 | ||
| 45515-22040 |
LX70,SX70,YX7#..KYO |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-22010 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-22010 |
LX70,SX70,YX7#..KYO |
1 | ||
| 45517-22020 |
GX71,LX70,MX71,SX70,YX7# W/POWER STEERING |
1 | ||
| 45518 - BRACKET, STEERING RACK HOUSING, NO.3 | ||||
| 45518-22010 |
LX70,SX70,YX7#..KYO |
1 | ||
| 45521 - RACK, STEERING | ||||
| 45521-22030 |
LX70,SX70,YX7#..KYO |
1 | ||
| 45521-22031 |
LX70,SX70,YX72..KYO |
1 | ||
| 45522 - BUSH, STEERING RACK | ||||
| 45522-22010 |
LX70,SX70,YX7#..KYO |
1 | ||
| 45522-22011 |
LX70,SX70,YX72..KYO |
1 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-22020 |
LX70,SX70,YX7#..KYO |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-32015 |
LX70,SX70,YX7#..KYO |
1 | ||
| 45523C - SPACER(FOR RACK GUIDE) | ||||
| 90560-23007 |
LX70,SX70,YX7#..KYO |
1 | ||
| 45523D - SEAT, RACK GUIDE | ||||
| 44277-20030 |
LX70,SX70,YX7#..KYO |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-22010 |
LX70,SX70,YX7#..KYO |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-36002 |
LX70,SX70,YX7#..KYO |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-22020 |
LX70,SX70,YX7#..KYO |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90461-10273 |
LX70,SX70,YX7#..KYO ID=41.5 |
1 | ||
| 90461-10524 |
LX70,SX70,YX7#..KYO ID=61.5 |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90461-10273 |
LX70,SX70,YX7#..KYO ID=41.5 |
1 | ||
| 90461-10524 |
LX70,SX70,YX7#..KYO ID=61.5 |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
LX70,SX70,YX7#..KYO |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
LX70,SX70,YX7#..KYO |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45536-22020 |
LX70,SX70,YX7#..KYO |
1 | ||
| 45537A - WASHER, CLAW(FOR STEERING RACK END LOCK) | ||||
| 90214-14005 |
LX70,SX70,YX7#..KYO |
2 | ||
| 45537A - WASHER, CLAW(FOR STEERING RACK END LOCK) | ||||
| 90214-14005 |
LX70,SX70,YX7#..KYO |
2 | ||
| 45541 - PINION, STEERING | ||||
| 45541-22030 |
LX70,SX70,YX7#..KYO |
1 | ||
| 45541A - BEARING, RADIAL BALL(FOR STEERING PINION UPPER) | ||||
| 90363-15006 |
LX70,SX70,YX7#..KYO |
1 | ||
| 45541B - BEARING, RADIAL BALL(FOR STEERING PINION LOWER) | ||||
| 90363-15005 |
LX70,SX70,YX7#..KYO |
1 | ||
| 45545 - SCREW, PINION BEARING ADJUSTING | ||||
| 45545-22020 |
LX70,SX70,YX7#..KYO |
1 | ||
| 45545A - NUT(FOR PINION BEARING ADJUSTING SCREW) | ||||
| 90179-42001 |
LX70,SX70,YX7#..KYO |
1 | ||
| Common parts | ||||
| 90119-12066 | ||||
| 93269-63020 | ||||
ILLUST NO. 1 OF 3(8408- )CBR,DSL,EFI,LPG,TBO,TD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-22061 |
LX70,SX70,YX72 |
1 | ||
| 04445-22060 |
LX70,MX71,SX70,YX7# |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-22040 |
LX70,MX71,SX70,YX7# |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-22020 |
LX70 |
1 | ||
| 44250-22150 |
LX70 |
1 | ||
| 44250-22151 |
LX70 |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-22030 |
LX70,MX71,SX70,YX7# |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-22030 |
GX71,LX70,MX71,SX70,YX7# W/POWER STEERING |
1 | ||
| 45515-22040 |
LX70,SX70,YX7#..KYO |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-22010 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-22010 |
LX70,SX70,YX7#..KYO |
1 | ||
| 45517-22020 |
GX71,LX70,MX71,SX70,YX7# W/POWER STEERING |
1 | ||
| Common parts | ||||
| 90119-12066 | ||||
ILLUST NO. 2 OF 3(8408- )CBR,DSL,EFI,LPG,TBO,TD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44015A - NUT SUB-ASSY, BEARING GUIDE | ||||
| 44015-20010 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 44015-20010 |
GX71,LX70,SX70,YX72..AVT,KYO,SXL,XG,XL |
1 | ||
| 44015B - RING, O(FOR BEARING GUIDE NUT) | ||||
| 90301-43002 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 90301-43002 |
GX71,LX70,SX70,YX72..AVT,KYO,SXL,XG,XL |
1 | ||
| 44015C - SEAL, OIL(FOR BEARING GUIDE NUT) | ||||
| 90310-25004 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 90310-25004 |
GX71,LX70,SX70,YX72..AVT,KYO,SXL,XG,XL |
1 | ||
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-22010 |
GX71,LX70,MX71,SX70,YX70..CBR,DSL,EFI,LPG,TBO,TD |
1 | ||
| 44201-22050 |
LX70,SX70 |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-32003 |
GX71,LX70,MX71,SX70,YX7# |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-32003 |
GX71,LX70,MX71,SX70,YX7# |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-32003 |
GX71,LX70,MX71,SX70,YX7# |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-32003 |
GX71,LX70,MX71,SX70,YX7# |
4 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-22010 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 44204-22011 |
GX71,LX70,SX70,YX72 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-34003 |
GX71,LX70,MX71,SX70,YX7# INNER |
1 | ||
| 90562-38002 |
GX71,LX70,MX71,SX70,YX7# OUTER |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-34003 |
GX71,LX70,MX71,SX70,YX7# INNER |
1 | ||
| 90562-38002 |
GX71,LX70,MX71,SX70,YX7# OUTER |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-22090 |
LX70,SX70 |
1 | ||
| 44210-22010 |
GX71,LX70,MX71,SX70,YX70..CBR,DSL,EFI,LPG,TBO,TD |
1 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-06005 |
GX71,LX70,MX71,SX70,YX7# |
2 | ||
| 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-51001 |
GX71,LX70,SX70,YX72..AVT,KYO,SXL,XG,XL |
1 | ||
| 90301-51001 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-19002 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 44210F - BEARING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90363-19003 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 44211 - HOUSING, CONTROL VALVE | ||||
| 44211-22010 |
GX71,LX70,MX71,SX70,YX70..CBR,DSL,EFI,LPG,TBO,TD |
1 | ||
| 44211-22010 |
LX70,SX70,YX72 |
1 | ||
| 44222A - COVER, DUST(FOR POWER STEERING GEAR) | ||||
| 45222-32010 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 44253 - HOUSING, POWER STEERING RACK | ||||
| 44203-22011 |
LX70,SX70,YX72 |
1 | ||
| 44203-22010 |
LX70,MX71,SX70,YX7# |
1 | ||
| 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) | ||||
| 90999-99129 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 90310-25001 |
GX71,LX70,SX70,YX7# |
1 | ||
| 90310-25015 |
GX71,LX70,SX70,YX72 |
1 | ||
| 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) | ||||
| 90999-99129 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 90310-25001 |
GX71,LX70,SX70,YX7# |
1 | ||
| 90310-25015 |
GX71,LX70,SX70,YX72 |
1 | ||
| 44253R - SPACER(FOR POWER STEERING RACK HOUSING) | ||||
| 90560-26007 |
GX71,LX70,SX70,YX7# |
1 | ||
| 90560-26010 |
GX71,LX70,SX70,YX72 |
1 | ||
| 44267 - GUIDE, RACK END | ||||
| 44267-22010 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-20031 |
LX70,MX71,SX70,YX7# |
1 | ||
| 44275B - SEAL, OIL(FOR CYLINDER END STOPPER) | ||||
| 90310-25010 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 44277 - SEAT, RACK GUIDE | ||||
| 44277-20010 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-22020 |
LX70 |
1 | ||
| 44418-22021 |
LX70 |
1 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-04001 |
GX71,LX70,MX71,SX70,YX70 VALVE SIDE |
2 | ||
| 90410-04001 |
GX71,LX70,SX70,YX72..AVT,KYO,SXL,XG,XL VALVE SIDE |
2 | ||
| 90410-04002 |
LX70,MX71,SX70,YX7# HOUSING SIDE |
2 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-04001 |
GX71,LX70,MX71,SX70,YX70 VALVE SIDE |
2 | ||
| 90410-04001 |
GX71,LX70,SX70,YX72..AVT,KYO,SXL,XG,XL VALVE SIDE |
2 | ||
| 90410-04002 |
LX70,MX71,SX70,YX7# HOUSING SIDE |
2 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-04001 |
GX71,LX70,MX71,SX70,YX70 VALVE SIDE |
2 | ||
| 90410-04001 |
GX71,LX70,SX70,YX72..AVT,KYO,SXL,XG,XL VALVE SIDE |
2 | ||
| 90410-04002 |
LX70,MX71,SX70,YX7# HOUSING SIDE |
2 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-22020 |
LX70 |
1 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-29035 |
LX70,MX71,SX70,YX7# |
2 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-29035 |
LX70,MX71,SX70,YX7# |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14002 |
GX71,LX70,MX71,SX70,YX7# |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14002 |
GX71,LX70,MX71,SX70,YX7# |
2 | ||
| 44523G - GUIDE, RACK(FOR POWER STEERING) | ||||
| 45523-12010 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 44523H - SPRING(FOR POWER STEERING RACK GUIDE) | ||||
| 90501-23024 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 44524A - CAP, RACK GUIDE SPRING(FOR POWER STEERING) | ||||
| 45524-16010 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 44524B - NUT(FOR POWER STEERING RACK GUIDE CAP) | ||||
| 90179-36002 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 44535B - BOOT, STEERING RACK NO.1(FOR POWER STEERING) | ||||
| 45535-22030 |
LX70,MX71,SX70,YX7# |
1 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-18003 |
GX71,LX70,MX71,SX70,YX7# |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-18003 |
GX71,LX70,MX71,SX70,YX7# |
2 | ||
| 44535E - CLAMP(FOR POWER STEERING RACK BOOT NO.1) | ||||
| 90460-53002 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 44536B - BOOT, STEERING RACK NO.2(FOR POWER STEERING) | ||||
| 45535-22030 |
LX70,MX71,SX70,YX7# |
1 | ||
| 44536C - CLAMP(FOR POWER STEERING RACK BOOT NO.2) | ||||
| 90460-53002 |
LX70,MX71,SX70,YX7# |
1 | ||
| Common parts | ||||
| 90149-30004 | ||||
| 91511-60825 | ||||
ILLUST NO. 3 OF 3(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-29145 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
GX71,LX70,MX71,SX70,YX7# |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-29145 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-22090 |
GX71,LX70,MX71,SX70,YX7# W/POWER STEERING |
1 | ||
| 45611-22100 |
LX70,SX70,YX7#..KYO |
1 | ||
| 45611A - BOLT, KNUCKLE STOPPER | ||||
| 90106-10032 |
GX71,LX70,MX71,SX70,YX7# |
2 | ||
| 45611B - BOLT, HEXAGON(FOR STEERING KNUCKLE TO SHOCK ABSORBER) | ||||
| 90101-12111 |
GX71,LX70,MX71,SX70,YX7# |
4 | ||
| 45611C - PIN, STRAIGHT(FOR STEERING KNUCKLE TO SHOCK ABSORBER) | ||||
| 90253-15016 |
GX71,LX70,MX71,SX70,YX7# |
4 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-22090 |
GX71,LX70,MX71,SX70,YX7# W/POWER STEERING |
1 | ||
| 45612-22100 |
LX70,SX70,YX7#..KYO |
1 | ||
| 45619 - COVER, KNUCKLE STOPPER | ||||
| 45619-14020 |
GX71,LX70,MX71,SX70,YX7# |
2 | ||
| Common parts | ||||
| 90170-10082 | ||||
| 90170-14012 | ||||
| 94512-01200 | ||||
| 94531-01000 | ||||
| 95381-03020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
