LX70-DTPNX (1984)

Toyota Chaser

Production Aug 1984 - Aug 1988
Engine 2LT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8408- )

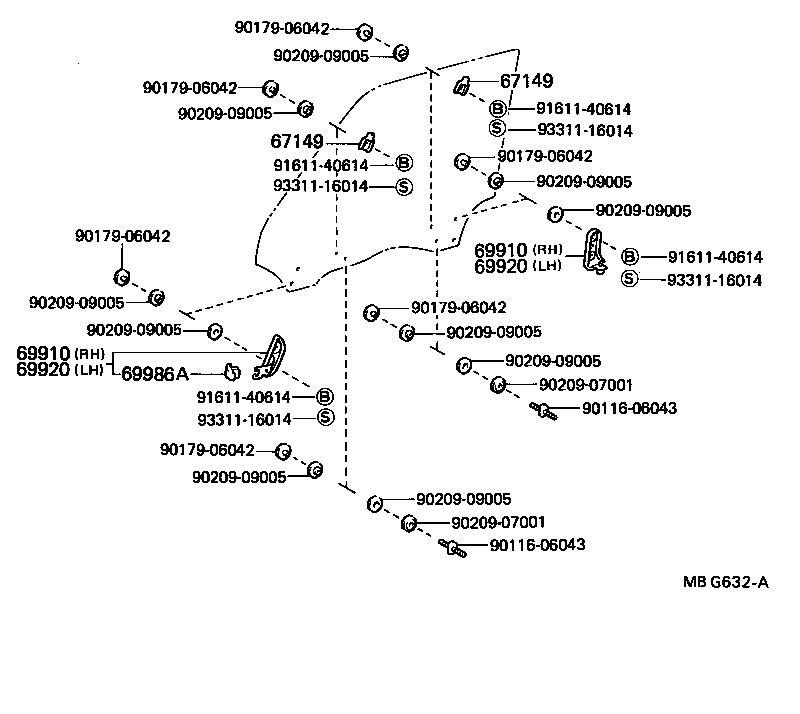

Click highlighted areas on diagram

diagram 67149 67149 69910 69910 69920 69920 69986A 9011606043 9011606043 9017906042 9017906042 9017906042 9017906042 9017906042 9017906042 9020907001 9020907001 9020909005 9020909005 9020909005 9020909005 9020909005 9020909005 9020909005 9020909005 9020909005 9020909005 9161140614 9161140614 9161140614 9161140614 9331116014 9331116014 9331116014 9331116014
Part # Description Qty Price
67149 - STABILIZER, FRONT DOOR GLASS
68149-14010

GX71,LX70,MX71,SX70,YX7#

 4
67149 - STABILIZER, FRONT DOOR GLASS
68149-14010

GX71,LX70,MX71,SX70,YX7#

 4
69910 - BRACKET ASSY, FRONT DOOR GLASS, RH
69903-22030

GX71,LX70,MX71,SX70,YX7#

RR

 1
69901-22070

GX71,LX70,MX71,SX70,YX7#

FR

 1
69910 - BRACKET ASSY, FRONT DOOR GLASS, RH
69903-22030

GX71,LX70,MX71,SX70,YX7#

RR

 1
69901-22070

GX71,LX70,MX71,SX70,YX7#

FR

 1
69920 - BRACKET ASSY, FRONT DOOR GLASS, LH
69904-22010

GX71,LX70,MX71,SX70,YX7#

RR

 1
69902-22030

GX71,LX70,MX71,SX70,YX7#

FR

 1
69920 - BRACKET ASSY, FRONT DOOR GLASS, LH
69904-22010

GX71,LX70,MX71,SX70,YX7#

RR

 1
69902-22030

GX71,LX70,MX71,SX70,YX7#

FR

 1
69986A - PIECE, FRONT DOOR GLASS GUIDE
69986-24010

GX71,LX70,MX71,SX70,YX7#

 2
Common parts
90116-06043
90179-06042
90209-07001
90209-09005
91611-40614
93311-16014

ILLUST NO. 2 OF 2(8408- )

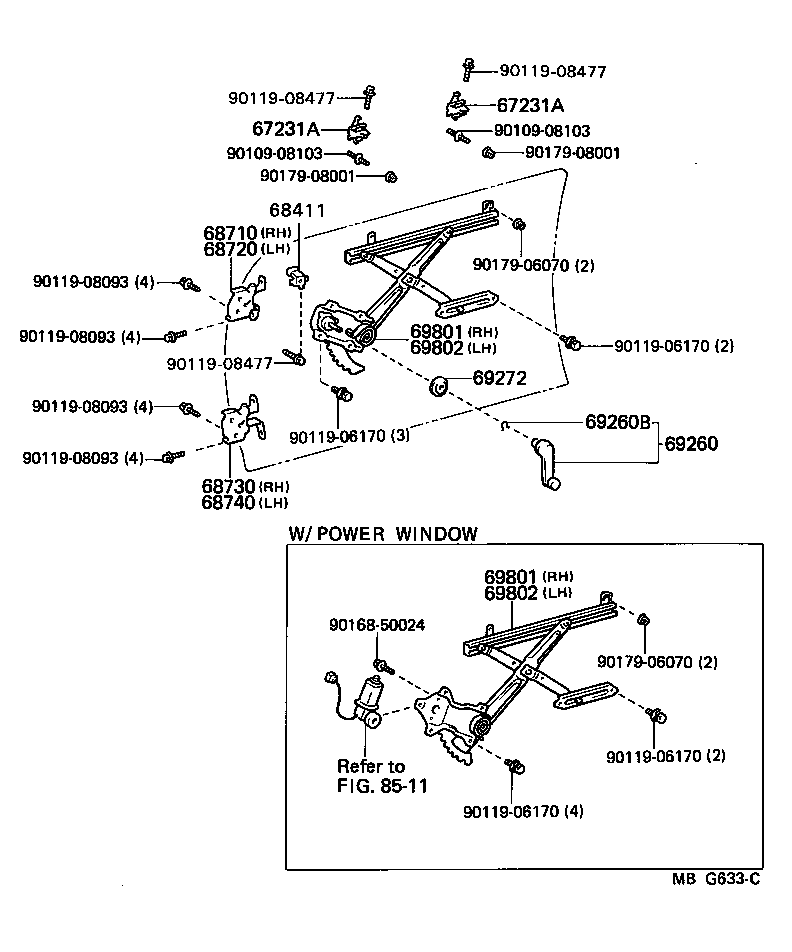

Click highlighted areas on diagram

diagram 67231A 67231A 68411 68710 68720 68730 68740 69260 69260B 69272 69801 69801 69802 69802 8511 9010908103 9010908103 9011906170 9011906170 9011906170 9011906170 9011908093 9011908093 9011908093 9011908093 9011908477 9011908477 9011908477 9016850024 9017906070 9017906070 9017908001 9017908001
Part # Description Qty Price
67231A - SUPPORT, FRONT DOOR TRIM
67232-20020

GX71,LX70,SX70,YX72

LH

 2
67232-30050

GX71,LX70,MX71,SX70,YX7#

LH

 2
67231-30070

GX71,LX70,MX71,SX70,YX7#

RH

 2
67231-20020

GX71,LX70,SX70,YX72

RH

 2
67231A - SUPPORT, FRONT DOOR TRIM
67232-20020

GX71,LX70,SX70,YX72

LH

 2
67232-30050

GX71,LX70,MX71,SX70,YX7#

LH

 2
67231-30070

GX71,LX70,MX71,SX70,YX7#

RH

 2
67231-20020

GX71,LX70,SX70,YX72

RH

 2
68411 - STOPPER, DOOR WINDOW GLASS, UPPER FRONT
67211-30040

GX71,LX70,MX71,SX70,YX7#

 2
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-20060

GX71,LX70,MX71,SX70,YX7#

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-20050

GX71,LX70,MX71,SX70,YX7#

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-24010

GX71,LX70,MX71,SX70,YX7#

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-24010

GX71,LX70,MX71,SX70,YX7#

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-2203003

GX71,LX70,SX70,YX70..KYO,SXL,XG,XL

GRAY,COOL GRAY,TRIM1#

 2
69260-2203005

GX71,LX70,SX70..SXL,XG,XL

BEIGE,BEIGE,TRIM4#

 2
69260-2203015

LX70..XL

BEIGE,DARK BEIGE,TRIM4#

 2
69260-2203014

LX70..KYO,XL

BLUE,DARK BLUE,TRIM8#

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01002

LX70..KYO,XL

 2
90520-01002

GX71,LX70,SX70,YX70..KYO,SXL,XG,XL

 2
69272 - PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69285-2201008

LX70..KYO,XL

NATURAL,NATURAL WHITE

 2
69285-2201008

GX71,LX70,SX70,YX70..KYO,SXL,XG,XL

NATURAL,NATURAL WHITE

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-22170

LX70,SX70,YX7#..KYO,XL

 1
69810-22170

GX71,LX70,SX70,YX70..KYO,SXL,XG,XL

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-22170

LX70,SX70,YX7#..KYO,XL

 1
69810-22170

GX71,LX70,SX70,YX70..KYO,SXL,XG,XL

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-22160

LX70,SX70,YX7#..KYO,XL

 1
69820-22160

GX71,LX70,SX70,YX70..KYO,SXL,XG,XL

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-22160

LX70,SX70,YX7#..KYO,XL

 1
69820-22160

GX71,LX70,SX70,YX70..KYO,SXL,XG,XL

 1
Common parts
90109-08103
90119-06170
90119-08093
90119-08477
90168-50024
90179-06070
90179-08001
