LX70-DTPNX (1984)

Toyota Chaser

Production Aug 1984 - Aug 1988
Engine 2LT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )

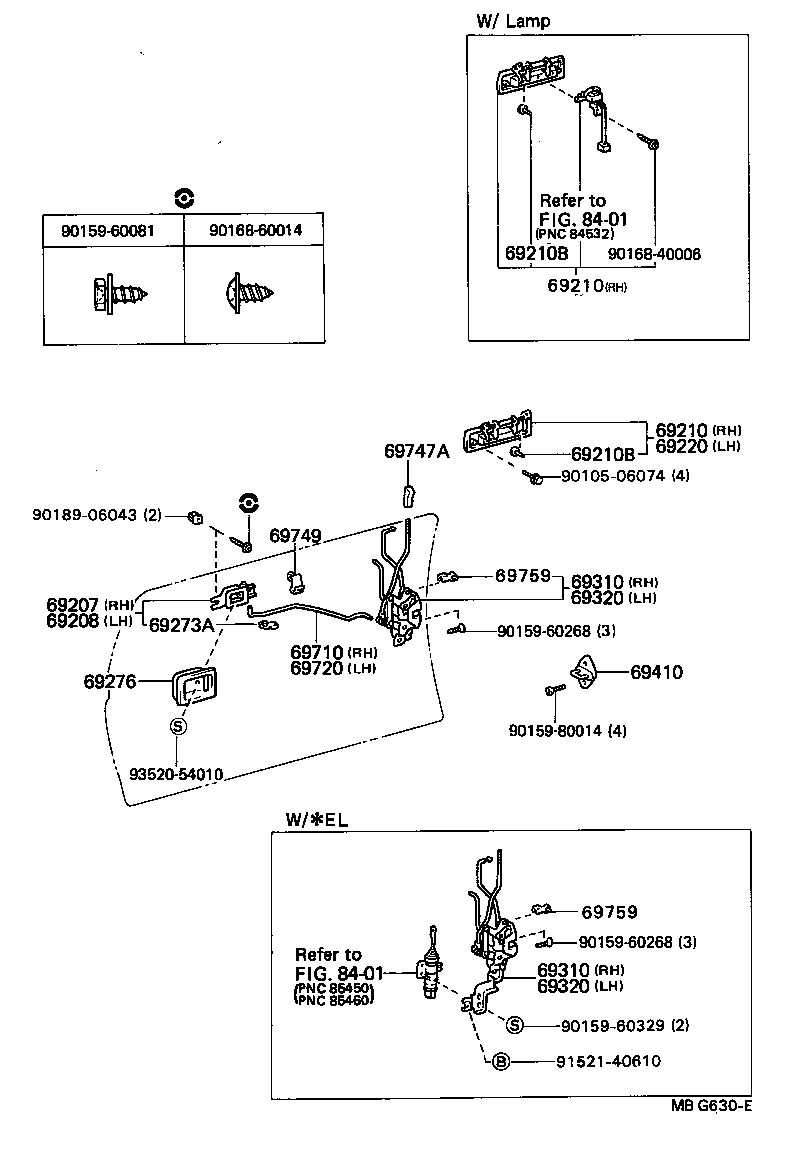

Click highlighted areas on diagram

diagram 69207 69208 69210 69210 69210B 69210B 69220 69273A 69276 69310 69310 69320 69320 69410 69710 69720 69747A 69749 69759 69759 8401 8401 9010506074 9015960081 9015960268 9015960268 9015960329 9015980014 9016840006 9016860014 9018906043 9152140610 9352054010
Part # Description Qty Price
69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-2202005

LX70,SX70..XL

BEIGE,BEIGE,TRIM4#

 1
69205-2202004

LX70,SX70,YX72..KYO,XL

BLUE,DARK BLUE,TRIM8#

 1
69205-2202003

LX70,SX70,YX70..KYO,XL

GRAY,COOL GRAY,TRIM1#

 1
69205-2202015

LX70,SX70..XL

BEIGE,DARK BEIGE,TRIM4#

 1
69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-2202003

LX70,SX70,YX70..KYO,XL

GRAY,COOL GRAY,TRIM1#

 1
69206-2202005

LX70,SX70..XL

BEIGE,BEIGE,TRIM4#

 1
69206-2202015

LX70,SX70..XL

BEIGE,DARK BEIGE,TRIM4#

 1
69206-2202004

LX70,SX70,YX72..KYO,XL

BLUE,DARK BLUE,TRIM8#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-22080

GX71,LX70,SX70,YX7#..KYO,SXL,XG,XL

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-22080

GX71,LX70,SX70,YX7#..KYO,SXL,XG,XL

 1
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-03021

GX71,LX70,MX71,SX70,YX7#

 4
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-03021

GX71,LX70,MX71,SX70,YX7#

 4
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-22070

GX71,LX70,MX71,SX70,YX7#

 1
69273A - SNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR)
69759-20070

LX70,SX70,YX70..KYO,XL

RH

 1
69759-22050

LX70,SX70,YX7#..KYO,XL

LH

 1
69759-20060

LX70,SX70,YX70..KYO,XL

LH

 1
69759-22040

LX70,SX70,YX7#..KYO,XL

RH

 1
69276 - BEZEL, FRONT DOOR INSIDE HANDLE
69277-2205003

GX71,LX70,MX71,SX70,YX70

GRAY,COOL GRAY,TRIM1#

 2
69277-2205005

GX71,LX70,MX71,SX70..AVT,SXL,XG,XL

BEIGE,BEIGE,TRIM4#

 2
69277-2205004

GX71,LX70,SX70,YX72

BLUE,DARK BLUE,TRIM8#

 2
69277-2205015

GX71,LX70,SX70..AVT,GT,SXL,XG,XL

BEIGE,DARK BEIGE,TRIM4#

 2
69310 - LOCK ASSY, FRONT DOOR, RH
69310-22260

GX71,LX70,SX70,YX70..KYO,SXL,XG,XL

 1
69310-22261

LX70,SX70,YX7#..KYO,XL

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-22260

GX71,LX70,SX70,YX70..KYO,SXL,XG,XL

 1
69310-22261

LX70,SX70,YX7#..KYO,XL

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-22250

GX71,LX70,SX70,YX70..KYO,SXL,XG,XL

 1
69320-22251

LX70,SX70,YX7#..KYO,XL

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-22250

GX71,LX70,SX70,YX70..KYO,SXL,XG,XL

 1
69320-22251

LX70,SX70,YX7#..KYO,XL

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-87001

GX71,LX70,MX71,SX70,YX7#

 2
69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69711-22050

GX71,LX70,MX71,SX70,YX7#

 1
69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69712-22050

GX71,LX70,MX71,SX70,YX7#

 1
69747A - BUTTON, DOOR LOCKING(FOR FRONT DOOR)
69741-22010

GX71,LX70,MX71,SX70,YX7#

 2
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-20010

GX71,LX70,MX71,SX70,YX7#

 2
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-20040

GX71,LX70,MX71,SX70,YX7#

LH

 1
69759-20050

GX71,LX70,MX71,SX70,YX7#

RH

 1
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-20040

GX71,LX70,MX71,SX70,YX7#

LH

 1
69759-20050

GX71,LX70,MX71,SX70,YX7#

RH

 1
Common parts
90105-06074
90159-60081
90159-60268
90159-60329
90159-80014
90168-40006
90168-60014
90189-06043
91521-40610
93520-54010
Linked diagrams
8401
