LX70-DTPNX (1984)
Toyota Chaser

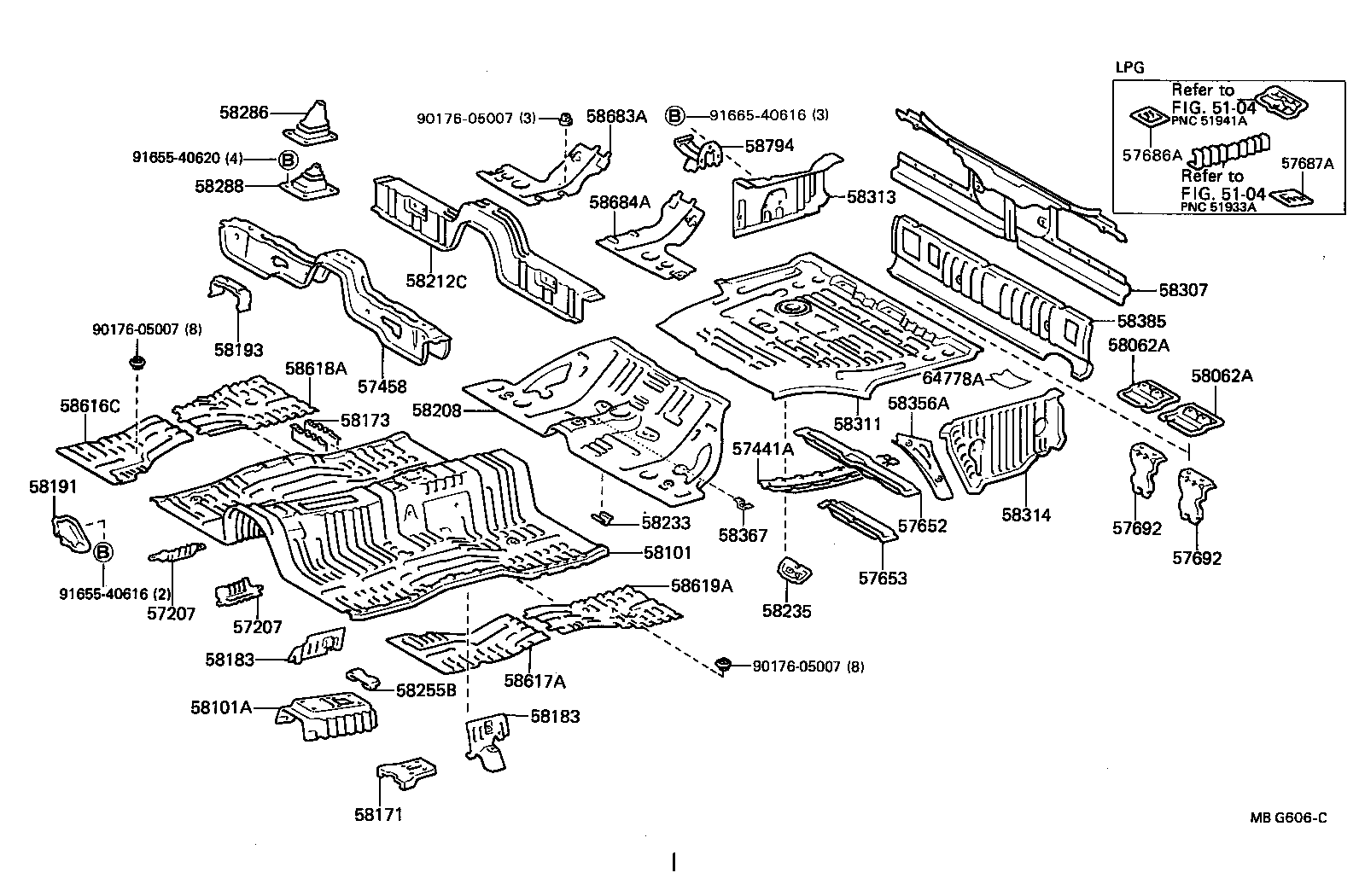

ILLUST NO. 1 OF 2(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57207 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER | ||||
| 57208-22030 |
GX71,LX70,MX71,SX70,YX7# LH |
1 | ||
| 57207-22040 |
GX71,LX70,MX71,SX70,YX7# RH |
1 | ||
| 57207 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER | ||||
| 57208-22030 |
GX71,LX70,MX71,SX70,YX7# LH |
1 | ||
| 57207-22040 |
GX71,LX70,MX71,SX70,YX7# RH |
1 | ||
| 57441A - MEMBER, REAR FLOOR CENTER, NO.1 | ||||
| 57441-22010 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 57458 - MEMBER, FRONT FLOOR CROSS, NO.1 | ||||
| 57408-22030 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 57408-22031 |
GX71,LX70,SX70,YX72 |
1 | ||
| 57652 - CROSSMEMBER, REAR FLOOR, NO.2 | ||||
| 57653-22070 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 57653 - MEMBER, REAR FLOOR CROSS, NO.3 | ||||
| 57654-22030 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 57692 - BRACKET, FUEL TANK MOUNTING, REAR CENTER | ||||
| 57692-22010 |
GX71,LX70,MX71,SX70 |
2 | ||
| 57692 - BRACKET, FUEL TANK MOUNTING, REAR CENTER | ||||
| 57692-22010 |
GX71,LX70,MX71,SX70 |
2 | ||
| 58062A - BRACKET SUB-ASSY, FUEL TANK MOUNTING, REAR | ||||
| 58062-22010 |
GX71,LX70,MX71,SX70 |
2 | ||
| 58062A - BRACKET SUB-ASSY, FUEL TANK MOUNTING, REAR | ||||
| 58062-22010 |
GX71,LX70,MX71,SX70 |
2 | ||
| 58101 - PAN SUB-ASSY, FRONT FLOOR | ||||
| 58111-22140 |
GX71,LX70,MX71,SX70..4FC |
1 | ||
| 58111-22141 |
GX71,LX70,SX70..4FC |
1 | ||
| 58101A - COVER, TRANSMISSION AUXILIARY | ||||
| 58260-22010 |
LX70,SX70..4FC |
1 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58029-22030 |
GX71,LX70,MX71,SX70..4FC |
1 | ||
| 58173 - DEFLECTOR, FRONT FLOOR STONE | ||||
| 58173-22041 |
GX71,LX70,SX70,YX72 RH |
1 | ||
| 58173-22040 |
GX71,LX70,MX71,SX70,YX7# RH |
1 | ||
| 58174-22021 |
GX71,LX70,SX70,YX72 LH |
1 | ||
| 58174-22020 |
GX71,LX70,MX71,SX70,YX7# LH |
1 | ||
| 58183 - BRACKET, FRONT SEAT MOUNTING, INNER | ||||
| 58184-22010 |
GX71,LX70,MX71,SX70,YX7# LH |
1 | ||
| 58183-22010 |
GX71,LX70,MX71,SX70,YX7# RH |
1 | ||
| 58183 - BRACKET, FRONT SEAT MOUNTING, INNER | ||||
| 58184-22010 |
GX71,LX70,MX71,SX70,YX7# LH |
1 | ||
| 58183-22010 |
GX71,LX70,MX71,SX70,YX7# RH |
1 | ||
| 58191 - FOOTREST, FRONT FLOOR | ||||
| 58191-22021 |
GX71,LX70,SX70..AVT,GT,SXL,XG,XL |
1 | ||
| 58191-22020 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL |
1 | ||
| 58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING | ||||
| 58193-22030 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-22030 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 58212C - PAN, CENTER FLOOR, FRONT | ||||
| 58212-22050 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 58233 - BRACKET, EXHAUST PIPE MOUNTING | ||||
| 58233-22020 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 58235 - BRACKET, DIFFERENTIAL CARRIER BUMPER MOUNTING | ||||
| 58235-22020 |
LX70,SX70,YX7# |
1 | ||
| 58255B - BRACKET, PARKING BRAKE CABLE GUIDE, NO.1 | ||||
| 58264-22040 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-91614 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 58307-91615 |
GX71,LX70,SX70,YX72 |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-22100 |
GX71,LX70,MX71,SX70 |
1 | ||
| 58313 - PANEL, REAR FLOOR SIDE, RH | ||||
| 58305-22020 |
GX71,LX70,SX70,YX7# |
1 | ||
| 58305-22010 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 58314 - PANEL, REAR FLOOR SIDE, LH | ||||
| 58314-22090 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 58314-22080 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 58356A - REINFORCEMENT, FLOOR SIDE PLATE, LH | ||||
| 58356-22020 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 58367 - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-22040 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 58385 - PANEL, REAR VALANCE | ||||
| 58381-22040 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 58616C - PANEL, FRONT FLOOR SILENCER, NO.1 | ||||
| 58616-22060 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 58617A - PANEL, FRONT FLOOR SILENCER, NO.2 | ||||
| 58617-22070 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 58683A - PANEL, CENTER FLOOR SILENCER, RH | ||||
| 58683-22010 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 58684A - PANEL, CENTER FLOOR SILENCER, LH | ||||
| 58684-22010 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 58794 - CARRIER, JACK | ||||
| 58791-12050 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 64778A - PROTECTOR, SPARE WHEEL | ||||
| 64778-22010 |
GX71,LX70,MX71,SX70 |
1 | ||
| Common parts | ||||
| 90176-05007 | ||||
| 91655-40616 | ||||
| 91655-40620 | ||||
| 91665-40616 | ||||
| Linked diagrams | ||||
| 5104 | ||||

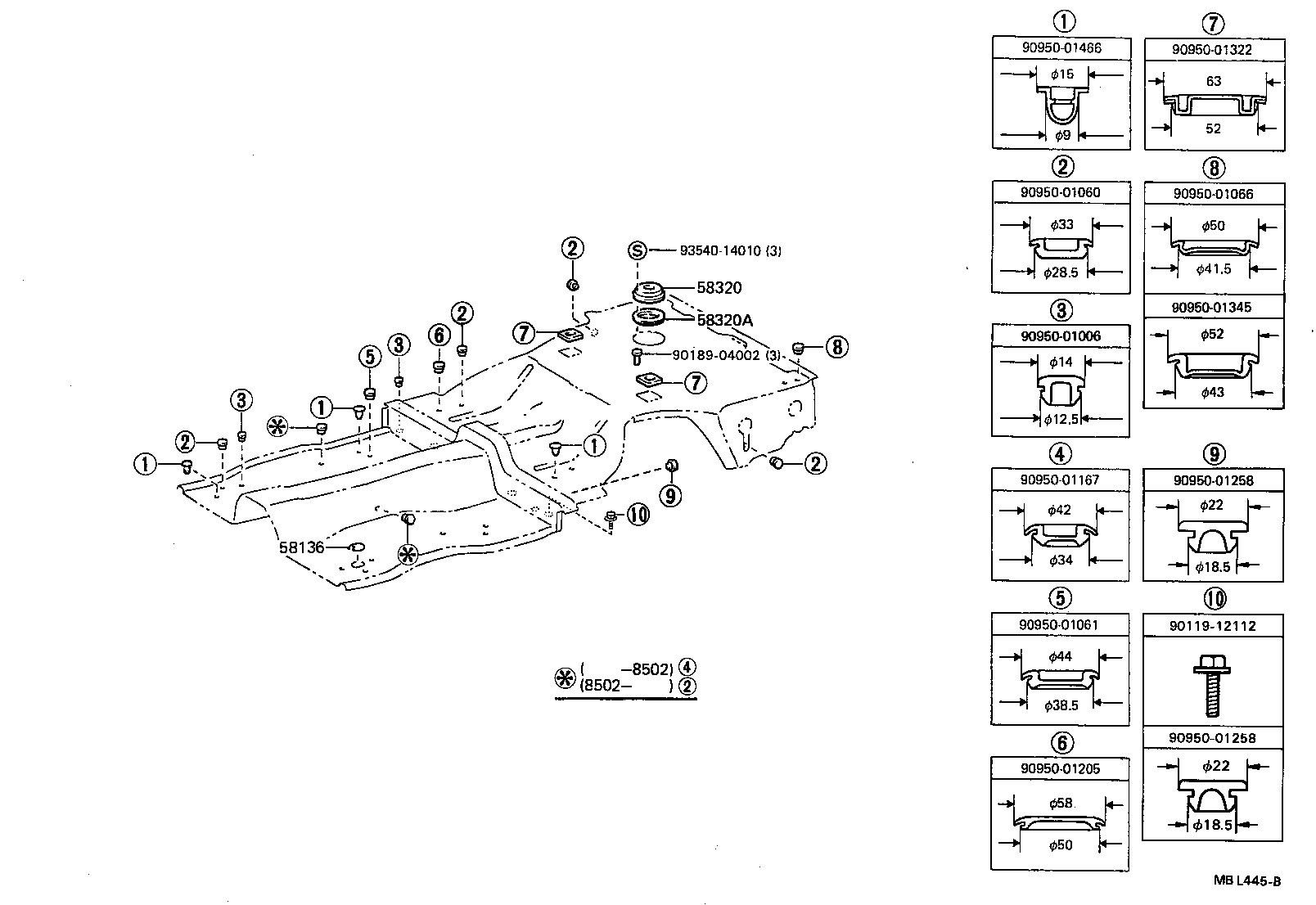

ILLUST NO. 2 OF 2(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58136 - COVER, FRONT FLOOR HOLE | ||||
| 58136-24010 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 58320 - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-22030 |
GX71,LX70,MX71,SX70 |
1 | ||
| 58320A - PACKING, REAR FLOOR SERVICE HOLE | ||||
| 58339-22020 |
GX71,LX70,MX71,SX70 |
1 | ||
| Common parts | ||||
| 90119-12112 | ||||
| 90189-04002 | ||||
| 90950-01006 | ||||
| 90950-01060 | ||||
| 90950-01061 | ||||
| 90950-01066 | ||||
| 90950-01167 | ||||
| 90950-01205 | ||||
| 90950-01258 | ||||
| 90950-01322 | ||||
| 90950-01345 | ||||
| 90950-01466 | ||||
| 93540-14010 | ||||
