LX70-DTPNX (1984)

Toyota Chaser

Production Aug 1984 - Aug 1988
Engine 2LT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )

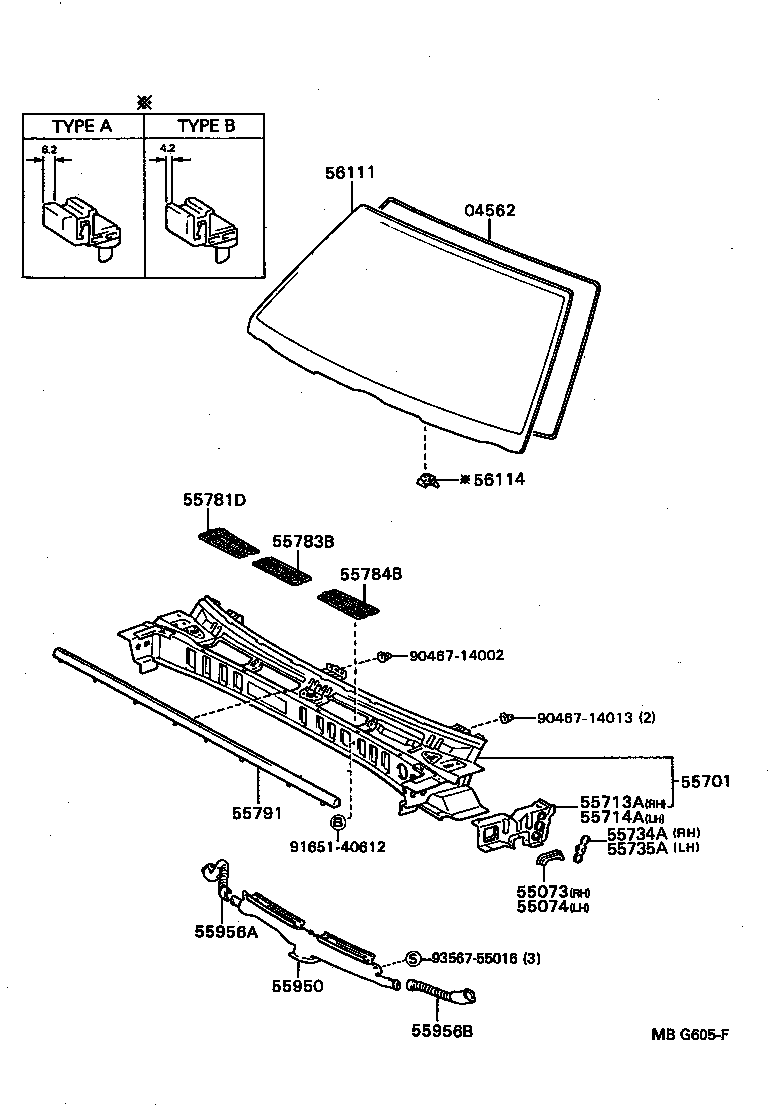

Click highlighted areas on diagram

diagram 04562 55073 55074 55701 55713A 55714A 55734A 55735A 55781D 55783B 55784B 55791 55950 55956A 55956B 56111 56114 9046714002 9046714013 9165140612 9356755016
Part # Description Qty Price
04562 - DAM KIT, WINDSHIELD GLASS
04562-30040

GX71,LX70,MX71,SX70,YX7#

 1
55073 - NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT
55073-22020

GX71,LX70,MX71,SX70,YX70

 1
55073-22020

GX71,LX70,SX70,YX72

 1
55074 - COVER SUB-ASSY, COWL INNER HEATER AIR
55074-22030

GX71,LX70,MX71,SX70,YX70

 1
55074-22030

GX71,LX70,SX70,YX72

 1
55701 - PANEL SUB-ASSY, COWL
55700-22631

LX70

 1
55700-22630

LX70

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-22050

GX71,LX70,MX71,SX70,YX7#

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-22050

GX71,LX70,MX71,SX70,YX7#

 1
55734A - PLATE, WATER GUARD, RH
55734-22060

GX71,LX70,MX71,SX70,YX70

 1
55734-22060

GX71,LX70,SX70,YX72

 1
55735A - PLATE, WATER GUARD, LH
55734-22060

GX71,LX70,MX71,SX70,YX70

 1
55734-22060

GX71,LX70,SX70,YX72

 1
55781D - LOUVER, COWL TOP VENTILATOR, RH
55781-22150

GX71,LX70,SX70

 1
55781-22140

GX71,LX70,MX71,SX70,YX7#

 1
55781-22150

GX71,LX70,SX70,YX7#

COLD SPEC

 1
55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1
55783-22070

GX71,LX70,SX70,YX7#

COLD SPEC

 1
55783-22070

GX71,LX70,SX70

 1
55783-22050

GX71,LX70,MX71,SX70,YX7#

 1
55784B - LOUVER, COWL TOP VENTILATOR, CENTER NO.2
55784-22070

GX71,LX70,SX70

 1
55784-22070

GX71,LX70,SX70,YX7#

COLD SPEC

 1
55784-22050

GX71,LX70,MX71,SX70,YX7#

 1
55791 - WEATHERSTRIP, HOOD TO COWL TOP
53383-22040

GX71,LX70,MX71,SX70,YX7#

 1
55950 - NOZZLE ASSY, DEFROSTER
55950-22070

GX71,LX70,SX70,YX72

 1
55950-22050

GX71,LX70,MX71,SX70,YX70

 1
55956A - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-22040

GX71,LX70,MX71,SX70,YX7#

 1
55956B - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55972-22030

GX71,LX70,MX71,SX70,YX7#

 1
56111 - GLASS, WINDSHIELD
56111-22440

GX71,LX70,SX70,YX70..KYO,SXL,XG,XL

*TL,T=5.3,*TL,T=5.3

 1
56111-22480

GX71,LX70,SX70,YX70..KYO,SXL,XG,XL

*TT,T=5.0

 1
56111-22440

LX70,SX70,YX72..KYO,XL

*TL,T=5.3,*TL,T=5.3

 1
56114 - RETAINER, WINDSHIELD GLASS
56114-30020

GX71,LX70,MX71,SX70,YX70

TYPE B

 2
56114-30010

GX71,LX70,MX71,SX70,YX70

TYPE A

 2
56114-30050

GX71,LX70,SX70,YX72

TYPE A

 2
56114-30060

GX71,LX70,SX70,YX72

TYPE B

 2
Common parts
90467-14002
90467-14013
91651-40612
93567-55016
