LX70-DTPEX (1984)

Toyota Chaser

Production Aug 1984 - Aug 1988
Engine 2LT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )

Click highlighted areas on diagram

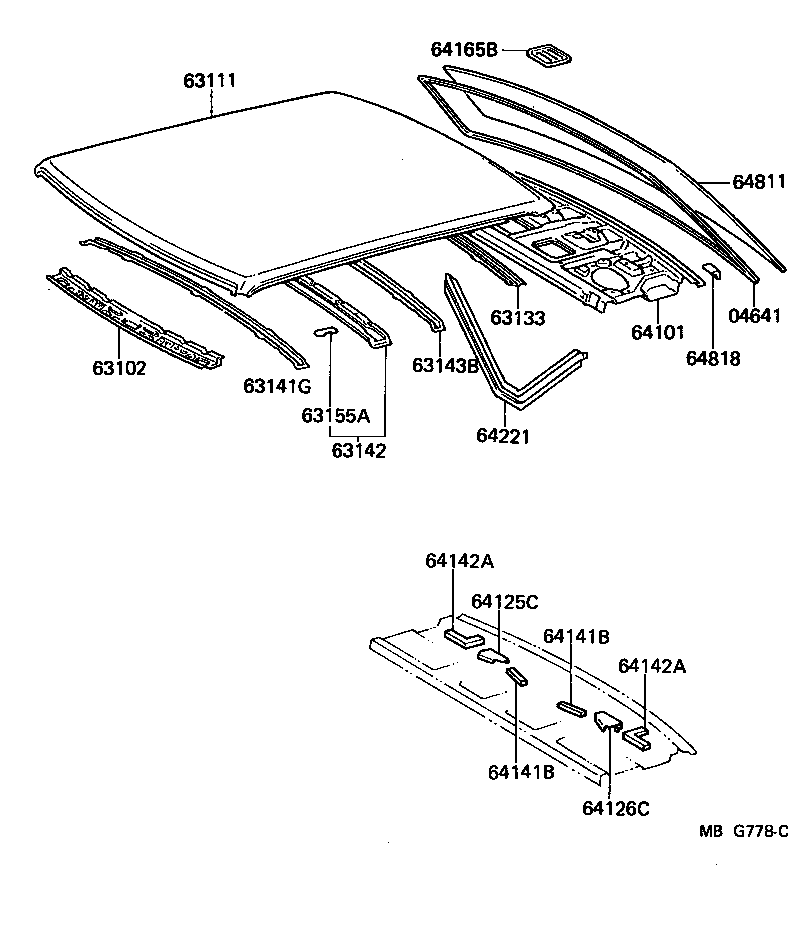

diagram 04641 63102 63111 63133 63141G 63142 63143B 63155A 64101 64125C 64126C 64141B 64141B 64142A 64142A 64165B 64221 64811 64818
Part # Description Qty Price
04641 - DAM KIT, BACK WINDOW GLASS
04562-30040

GX71,LX70,MX71,SX70,YX7#

 1
63102 - REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT
63102-22140

GX71,LX70,MX71,SX70,YX7#..AVT,GT,KYO,SXL,XG

 1
63111 - PANEL, ROOF
63111-91611

GX71,LX70,MX71,SX70,YX7#

 1
63133 - FRAME, BACK WINDOW OPENING, UPPER
63133-91601

GX71,LX70,MX71,SX70,YX7#

 1
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63143-22090

GX71,LX70,MX71,SX70,YX7#

 1
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63103-22090

GX71,LX70,MX71,SX70,YX7#

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-22090

GX71,LX70,MX71,SX70,YX7#

 1
63155A - PLATE, ROOF PANEL REINFORCEMENT
63155-22020

GX71,LX70,MX71,SX70,YX70

 2
64101 - PANEL SUB-ASSY, UPPER BACK
64101-91601

GX71,LX70,MX71,SX70,YX7#

 1
64125C - BRACKET, UPPER BACK PANEL, RH
64125-91601

GX71,LX70,MX71,SX70,YX7#

 1
64126C - BRACKET, UPPER BACK PANEL, LH
64126-91601

GX71,LX70,MX71,SX70,YX7#

 1
64141B - SILENCER, BACK PANEL, NO.1
64141-91601

GX71,LX70,MX71,SX70,YX7#

 2
64141B - SILENCER, BACK PANEL, NO.1
64141-91601

GX71,LX70,MX71,SX70,YX7#

 2
64142A - SILENCER, BACK PANEL, NO.2
64142-91601

GX71,LX70,MX71,SX70,YX7#

 2
64142A - SILENCER, BACK PANEL, NO.2
64142-91601

GX71,LX70,MX71,SX70,YX7#

 2
64165B - COVER, UPPER BACK PANEL HOLE, NO.1
64165-22010

GX71,LX70,MX71,SX70,YX7#

 2
64221 - BRACE, REAR SEAT CUSHION SUPPORT
64221-22020

GX71,LX70,MX71,SX70,YX7#

 1
64811 - GLASS, BACK WINDOW
64801-91601

GX71,LX70,MX71,SX70,YX70

*EHTT,T=4.0

 1
64801-91607

GX71,LX70,SX70..AVT,GT,SXL,XG

*EHTT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ,*EHTT,T=4.0,BRONZE

 1
64801-91605

GX71,LX70,SX70,YX72

*EHTT,厚さ=4.0,*EHTT,T=4.0

 1
64818 - SPACER, BACK WINDOW GLASS
64818-22030

GX71,LX70,MX71,SX70,YX7#

10X6X20

 2
64819-22020

GX71,LX70,MX71,SX70,YX7#

12X3X20

 2
64819-22010

GX71,LX70,MX71,SX70,YX7#

12X5X20

 2
64819-22030

GX71,LX70,MX71,SX70,YX7#

12X7X20

 2
