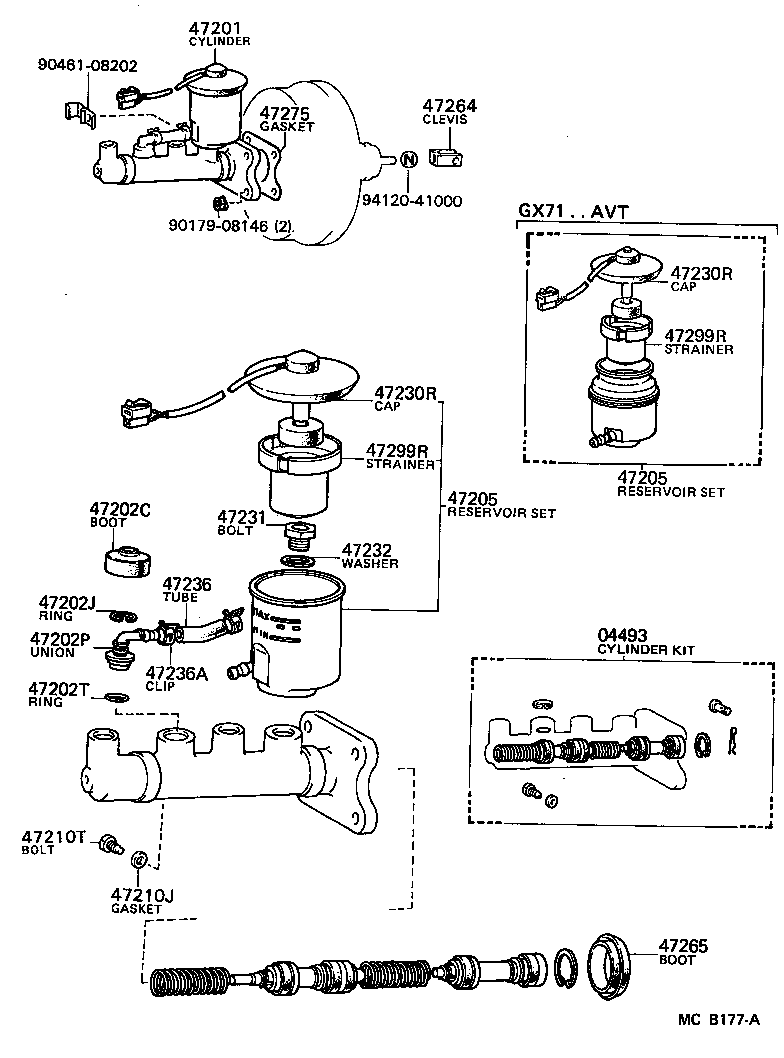

LX70-DTPEX (1984)
Toyota Chaser
(8408- )GX71,LX70,SX70..AVT,SXL,XG,XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-22130 |
LX70,SX70..XG,XL |
1 | ||
| 04493-22120 |
LX70..TD |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-22450 |
GX71,LX70..(SXL,XG,XL)..(EFI,TD) |
1 | ||
| 47201-22570 |
LX70..TD |
1 | ||
| 47202C - BOOT, RESERVOIR, NO.1(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 47265-20060 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 47202J - RING, SNAP(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 96151-02000 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 47202P - UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90407-10003 |
GX71,LX70,SX70,YX7#..AVT,KYO,SXL,XG,XL |
1 | ||
| 47202T - RING(FOR BRAKE MASTER CYLINDER RESERVOIR, NO.1) | ||||
| 90301-14001 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 47205 - RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE) | ||||
| 47202-22220 |
GX71,LX70,SX70..SXL,XG,XL |
1 | ||
| 47205 - RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE) | ||||
| 47202-22220 |
GX71,LX70,SX70..SXL,XG,XL |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
GX71,LX70,MX71,SX70,YX7# |
2 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06008 |
GX71,LX70,MX71,SX70,YX7# |
2 | ||
| 47230R - CAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE) | ||||
| 84460-20051 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 84460-20051 |
LX70,SX70,YX7# |
1 | ||
| 47230R - CAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE) | ||||
| 84460-20051 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 84460-20051 |
LX70,SX70,YX7# |
1 | ||
| 47231 - BOLT, BRAKE MASTER CYLINDER RESERVOIR SET | ||||
| 47231-22010 |
LX70,SX70..XG,XL |
1 | ||
| 47231-30010 |
GX71,LX70,SX70..AVT,SXL,XG,XL |
1 | ||
| 47232 - WASHER, BRAKE RESERVOIR SET BOLT | ||||
| 47232-30010 |
GX71,LX70,SX70..AVT,GT,SXL,XG,XL |
1 | ||
| 47236 - TUBE, RESERVOIR BRAKE | ||||
| 47234-20010 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90467-16001 |
GX71,LX70,MX71,SX70,YX7# |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-22010 |
GX71,LX70,MX71,SX70,YX7# |
2 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 47265-20050 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-24010 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 47299R - STRAINER, MASTER CYLINDER RESERVOIR, REAR | ||||
| 47299-22030 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 47299-22030 |
LX70,SX70,YX7# |
1 | ||
| 47299R - STRAINER, MASTER CYLINDER RESERVOIR, REAR | ||||
| 47299-22030 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 47299-22030 |
LX70,SX70,YX7# |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 90461-08202 | ||||
| 94120-41000 | ||||
