LX70-DTMNX (1984)

Toyota Chaser

Production Aug 1984 - Aug 1988
Engine 2LT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )

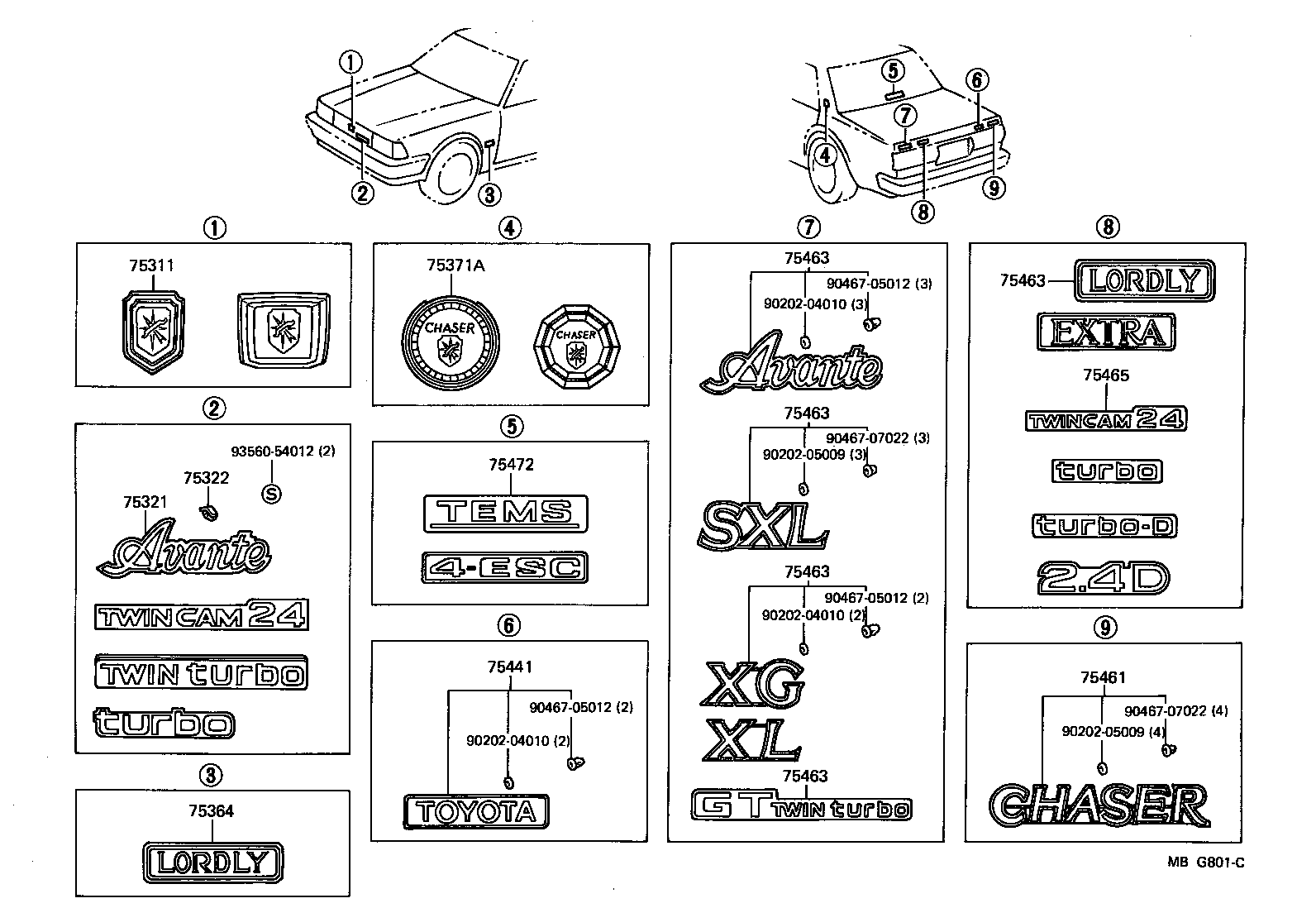

Click highlighted areas on diagram

diagram 75311 75321 75322 75364 75371A 75441 75461 75463 75463 75463 75463 75463 75465 75472 9020204010 9020204010 9020204010 9020205009 9020205009 9046705012 9046705012 9046705012 9046707022 9046707022 9356054012
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75301-91602

GX71,LX70,SX70,YX72

 1
75301-91601

GX71,LX70,MX71,SX70,YX70

 1
75441 - PLATE, REAR NAME, NO.1
75442-22040

GX71,LX70,MX71,SX70,YX7#

TOYOTA,TOYOTA

 1
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75441-91603

GX71,LX70,MX71,SX70,YX7#

CHASER,CHASER

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75443-91605

LX70,SX70..XL

XL,XL

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75443-91605

LX70,SX70..XL

XL,XL

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75443-91605

LX70,SX70..XL

XL,XL

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75443-91605

LX70,SX70..XL

XL,XL

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75443-91605

LX70,SX70..XL

XL,XL

 1
75465 - PLATE, REAR NAME, NO.5 (MECHANISM)
75444-22150

LX70..TD

TURBO−D,TURBO-D

 1
Common parts
90202-04010
90202-05009
90467-05012
90467-07022
93560-54012
