LX70-DTMNS (1984)
Toyota Chaser

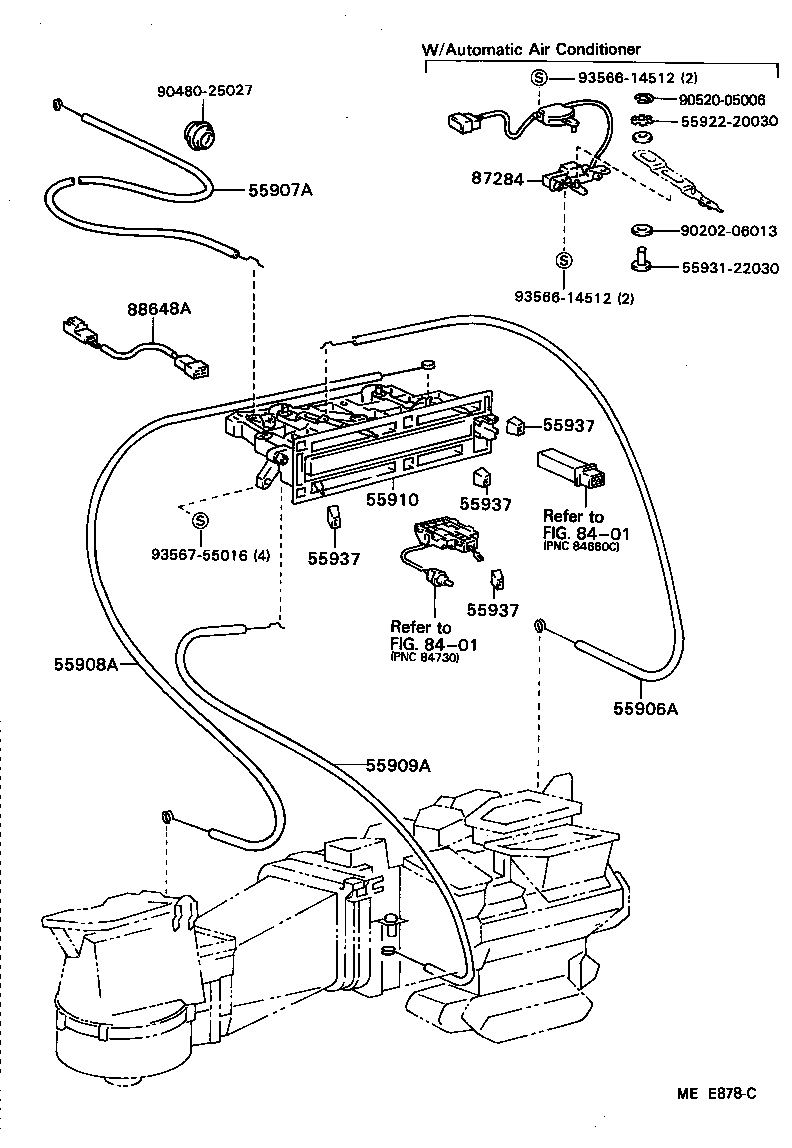

ILLUST NO. 1 OF 3(8408-8608)SXL,XG ; (8408- )KYO,XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-22120 |
LX70,SX70,YX72..KYO,XL |
1 | ||
| 55906-22120 |
GX71,LX70,SX70,YX70..KYO,SXL,XG,XL |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-22180 |
GX71,LX70,SX70,YX70..KYO,SXL,XG,XL |
1 | ||
| 55907-22180 |
LX70,SX70,YX72..KYO,XL |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-22070 |
GX71,LX70,SX70,YX70..KYO,SXL,XG,XL |
1 | ||
| 55908-22070 |
LX70,SX70,YX72..KYO,XL |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-22060 |
GX71,LX70,SX70,YX70..KYO,SXL,XG,XL |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-22290 |
LX70,SX70,YX72..KYO,XL |
1 | ||
| 55910-22290 |
GX71,LX70,SX70,YX70..KYO,SXL,XG,XL |
1 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-30081 |
GX71,LX70,SX70,YX7#..KYO,SXL,XG,XL |
4 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-30081 |
GX71,LX70,SX70,YX7#..KYO,SXL,XG,XL |
4 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-30081 |
GX71,LX70,SX70,YX7#..KYO,SXL,XG,XL |
4 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-30081 |
GX71,LX70,SX70,YX7#..KYO,SXL,XG,XL |
4 | ||
| 88648A - WIRING, COOLER | ||||
| 88648-22140 |
LX70,SX70,YX72..KYO,XL |
1 | ||
| Common parts | ||||
| 55922-20030 | ||||
| 55931-22030 | ||||
| 90202-06013 | ||||
| 90480-25027 | ||||
| 90520-05006 | ||||
| 93566-14512 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||

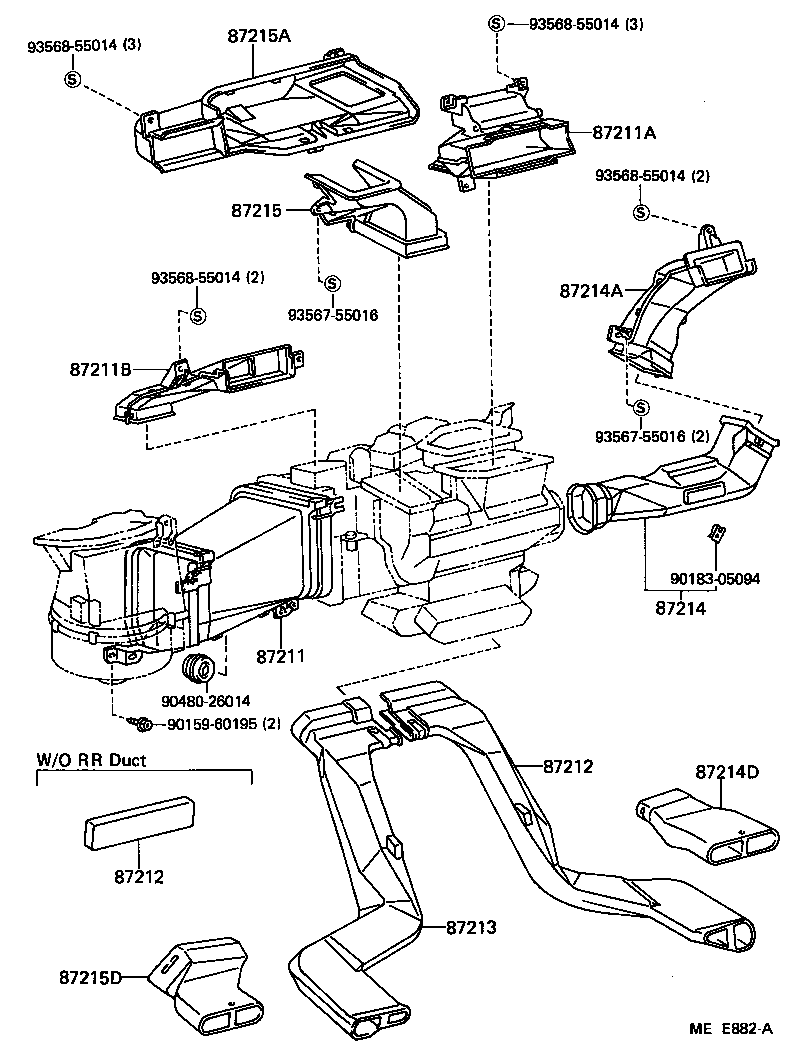

ILLUST NO. 2 OF 3(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-22120 |
GX71,LX70,SX70,YX7#..KYO,SXL,XG,XL COLD SPEC |
1 | ||
| 87211-22100 |
GX71,LX70,SX70,YX7#..KYO,SXL,XG,XL |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 55088-22070 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 87211B - DUCT, AIR, NO.3 | ||||
| 55089-22020 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87202-22021 |
GX71,LX70,SX70..AVT,GT,SXL,XG,XL |
1 | ||
| 87202-22020 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87202-22021 |
GX71,LX70,SX70..AVT,GT,SXL,XG,XL |
1 | ||
| 87202-22020 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87203-22031 |
GX71,LX70,SX70..AVT,GT,SXL,XG,XL |
1 | ||
| 87203-22030 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL |
1 | ||
| 87214 - DUCT, AIR, SIDE NO.1 RH | ||||
| 55085-22080 |
GX71,LX70,SX70,YX7#..KYO,SXL,XG,XL |
1 | ||
| 55085-22090 |
GX71,LX70,MX71,SX70,YX7# W/COOLER |
1 | ||
| 87214A - DUCT, AIR, SIDE NO.2 RH | ||||
| 55084-22060 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 87214D - DUCT, AIR, REAR NO.3 | ||||
| 87215-22010 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL COLD SPEC |
1 | ||
| 87215-22011 |
GX71,LX70,SX70..AVT,GT,SXL,XG,XL COLD SPEC & W/POWER SEAT |
1 | ||
| 87215 - DUCT, AIR, SIDE NO.1 LH | ||||
| 55086-22010 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 87215A - DUCT, AIR, SIDE NO.2 LH | ||||
| 55087-22080 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 87215D - DUCT, AIR, REAR NO.4 | ||||
| 87216-22021 |
GX71,LX70,SX70..AVT,GT,SXL,XG,XL COLD SPEC & W/POWER SEAT |
1 | ||
| 87216-22020 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL COLD SPEC |
1 | ||
| Common parts | ||||
| 90159-60195 | ||||
| 90183-05094 | ||||
| 90480-26014 | ||||
| 93567-55016 | ||||
| 93568-55014 | ||||
