LX70-DTMNS (1984)

Toyota Chaser

Production Aug 1984 - Aug 1988
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )

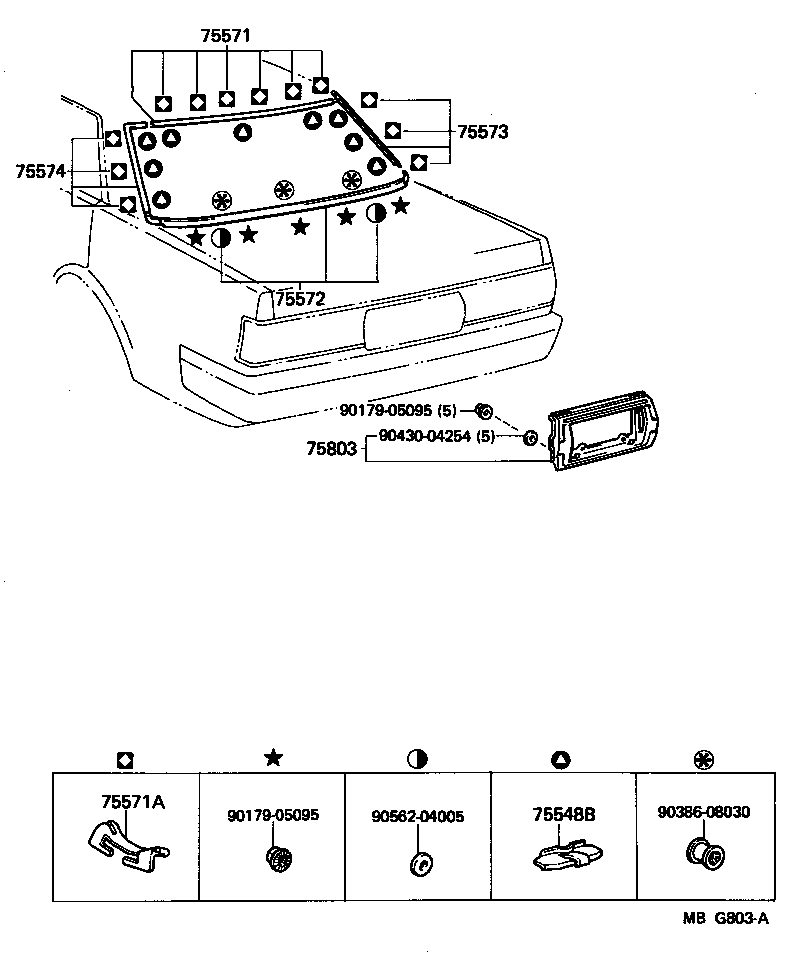

Click highlighted areas on diagram

diagram 75548B 75571 75571A 75572 75573 75574 75803 9017905095 9017905095 9038608030 9043004254 9056204005
Part # Description Qty Price
75548B - FASTENER, BACK WINDOW OUTSIDE MOULDING
75548-91602

GX71,LX70,MX71,SX70,YX7#

 9
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75571-91603

GX71,LX70,MX71,SX70,YX7#

 1
75571A - CLIP(FOR BACK WINDOW MOULDING SET)
75545-91601

GX71,LX70,MX71,SX70,YX7#

 12
75572 - MOULDING, BACK WINDOW, LOWER
75507-91606

GX71,LX70,MX71,SX70,YX7#

 1
75573 - MOULDING, BACK WINDOW SIDE, RH
75573-91606

GX71,LX70,MX71,SX70,YX7#

 1
75574 - MOULDING, BACK WINDOW SIDE, LH
75574-91605

GX71,LX70,MX71,SX70,YX7#

 1
75803 - PANEL SUB-ASSY, BODY LOWER BACK FINISH CENTER
75803-91604

GX71,LX70,SX70,YX72

 1
75803-91603

GX71,LX70,MX71,SX70,YX70

 1
Common parts
90179-05095
90386-08030
90430-04254
90562-04005
