LX60-DEPNSY (1980)
Toyota Chaser
(8009- )SED

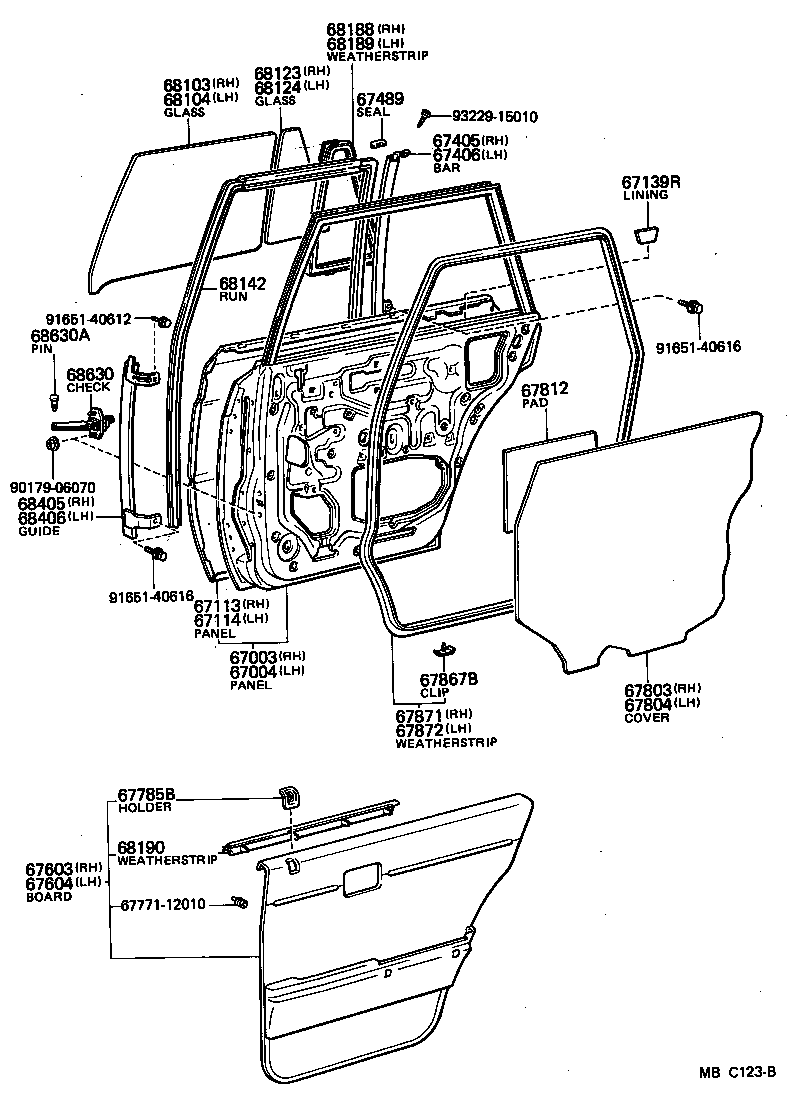

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-22150 |
GX6#,LX60,MX61,RX6#,TX60..SED |
1 | ||
| 67003-22110 |
LX60..XL *EXT |
1 | ||
| 67003-22150 |
GX6#,LX60,RX6#,TX60..SED..(DLX,GT,SGT,SXL,XG,XL) |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-22120 |
LX60..XL *EXT |
1 | ||
| 67004-22160 |
GX6#,LX60,MX61,RX6#,TX60..SED |
1 | ||
| 67004-22160 |
GX6#,LX60,RX6#,TX60..SED..(DLX,GT,SGT,SXL,XG,XL) |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-22080 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-22080 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED |
1 | ||
| 67139R - LINING, DOOR OUTSIDE PANEL REINFORCEMENT | ||||
| 67139-12010 |
GX6#,LX60,MX61,RX6#,TX60..SED |
2 | ||
| 67405 - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-22040 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED |
1 | ||
| 67406 - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-22040 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED |
1 | ||
| 67489 - SEAL, REAR DOOR DIVISION BAR | ||||
| 67487-22020 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED RH |
1 | ||
| 67488-22020 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED LH |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-2248001 |
LX60..XL *EXT,BLACK & GRAY,BLACK,TRIM2# |
1 | ||
| 67630-2248004 |
LX60..XL *EXT,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-2256006 |
LX60,RX60,TX60..SED..XL DARK BROWN & GREIGE,BROWN,TRIM4# |
1 | ||
| 67630-2256004 |
LX60,RX60,TX60..SED..XL BLUE,BLUE,TRIM8# |
1 | ||
| 67630-2248006 |
LX60..XL *EXT,DARK BROWN & GREIGE,BROWN,TRIM4# |
1 | ||
| 67630-2256001 |
LX60,RX60,TX60..SED..XL BLACK & GRAY,BLACK,TRIM2# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-2248004 |
LX60..XL *EXT,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-2248001 |
LX60..XL *EXT,BLACK & GRAY,BLACK,TRIM2# |
1 | ||
| 67640-2256006 |
LX60,RX60,TX60..SED..XL DARK BROWN & GREIGE,BROWN,TRIM4# |
1 | ||
| 67640-2248006 |
LX60..XL *EXT,DARK BROWN & GREIGE,BROWN,TRIM4# |
1 | ||
| 67640-2256001 |
LX60,RX60,TX60..SED..XL BLACK & GRAY,BLACK,TRIM2# |
1 | ||
| 67640-2256004 |
LX60,RX60,TX60..SED..XL BLUE,BLUE,TRIM8# |
1 | ||
| 67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR) | ||||
| 67785-2202004 |
GX6#,LX60,MX61,RX6#,TX60 BLUE,BLUE,TRIM8# |
2 | ||
| 67785-2202001 |
GX6#,LX60,MX61,RX6#,TX60 BLACK,BLACK,TRIM2# |
2 | ||
| 67785-2202006 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..AVT,DLX,GT,SGT,SXL,XG,XL DARK BROWN,BROWN,TRIM4# |
2 | ||
| 67803 - COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-22100 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED |
1 | ||
| 67804 - COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH | ||||
| 67841-22100 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED |
1 | ||
| 67812 - PAD, REAR DOOR SILENCER | ||||
| 67812-22040 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
2 | ||
| 67867B - CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR) | ||||
| 67868-30040 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
1 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-22070 |
GX6#,LX60,RX6#,TX60..SED |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-22070 |
GX6#,LX60,RX6#,TX60..SED |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-22080 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED *TT,T=3.5 |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-22080 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED *TT,T=3.5 |
1 | ||
| 68123 - GLASS, REAR DOOR WINDOW, RH | ||||
| 68123-22080 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED *TT,T=3.5 |
1 | ||
| 68124 - GLASS, REAR DOOR WINDOW, LH | ||||
| 68124-22080 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED *TT,T=3.5 |
1 | ||
| 68142 - RUN, REAR DOOR GLASS | ||||
| 68142-22040 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED |
2 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-22040 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-22030 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED |
1 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-22060 |
GX6#,LX60,RX6#,TX60..SED |
2 | ||
| 68405 - GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH | ||||
| 67405-22050 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED |
1 | ||
| 68406 - GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH | ||||
| 67406-22050 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED |
1 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-22030 |
GX6#,LX60,RX6#,TX60..SED |
2 | ||
| 68630A - PIN(FOR REAR DOOR CHECK) | ||||
| 68617-22010 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
2 | ||
| Common parts | ||||
| 67771-12010 | ||||
| 90179-06070 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 93229-15010 | ||||
