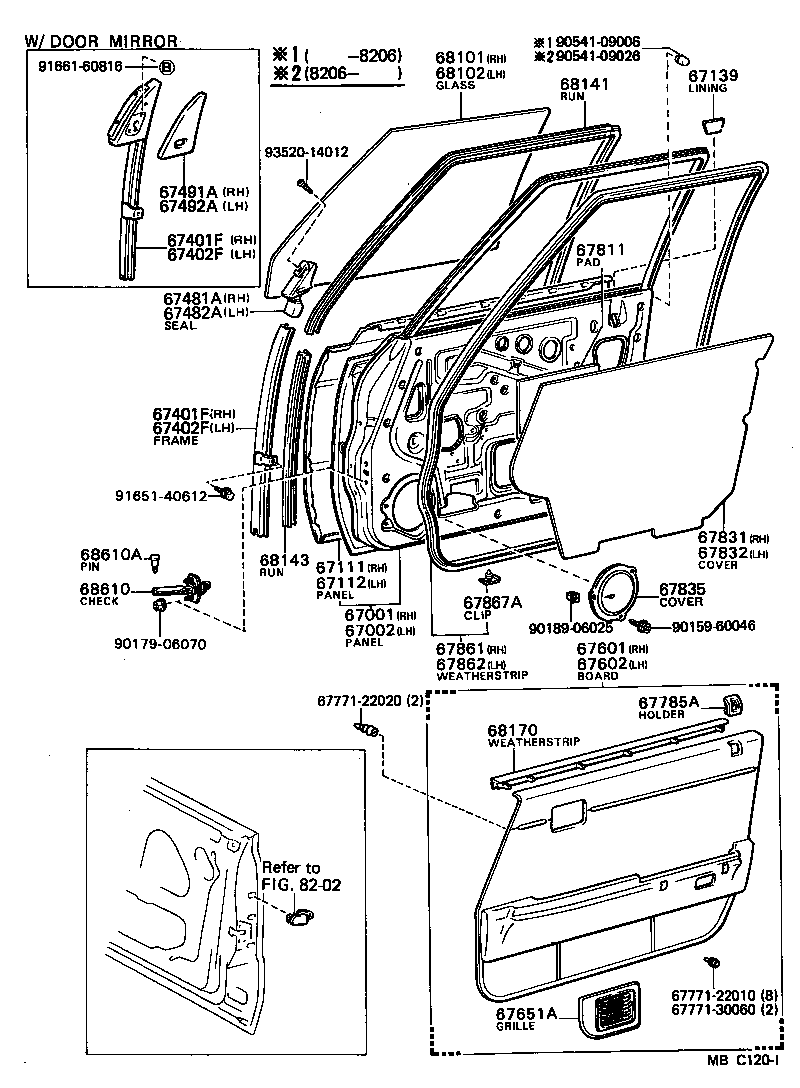

LX60-DEPNSY (1980)
Toyota Chaser
(8009- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-22150 |
GX6#,LX60,MX61,RX6#,TX60..SED |
1 | ||
| 67001-22151 |
GX6#,LX60,MX61,RX6#,TX60..SED |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-22170 |
GX6#,LX60,MX61,RX6#,TX60..SED |
1 | ||
| 67002-22171 |
GX6#,LX60,MX61,RX6#,TX60..SED |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-22100 |
GX6#,LX60,MX61,RX6#,TX60..SED |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-22110 |
GX6#,LX60,MX61,RX6#,TX60..SED |
1 | ||
| 67139 - LINING, DOOR OUTSIDE PANEL REINFORCEMENT | ||||
| 67139-12010 |
GX6#,LX60,MX61,RX6#,TX60..SED |
2 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-22060 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-22060 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-22060 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-22060 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED |
1 | ||
| 67481A - SEAL, FRONT DOOR FRONT LOWER FRAME, RH | ||||
| 67481-22020 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED |
1 | ||
| 67482A - SEAL, FRONT DOOR FRONT LOWER FRAME, LH | ||||
| 67482-22020 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-2275004 |
LX60..XL *EXT,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-2275001 |
LX60..XL *EXT,BLACK,BLACK,TRIM2# |
1 | ||
| 67610-2A02001 |
LX60,RX60,TX60..SED..XL BLACK & GRAY,BLACK,TRIM2# |
1 | ||
| 67610-2A02004 |
LX60,RX60,TX60..SED..XL BLUE,BLUE,TRIM8# |
1 | ||
| 67610-2A02006 |
LX60,RX60,TX60..SED..XL DARK BROWN & GREIGE,BROWN,TRIM4# |
1 | ||
| 67610-2275006 |
LX60..XL *EXT,DARK BROWN & GREIGE,BROWN,TRIM4# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-2260006 |
LX60..XL *EXT,DARK BROWN & GREIGE,BROWN,TRIM4# |
1 | ||
| 67620-2260004 |
LX60..XL *EXT,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-2260001 |
LX60..XL *EXT,BLACK & GRAY,BLACK,TRIM2# |
1 | ||
| 67620-2274001 |
LX60,RX60,TX60..SED..XL BLACK & GRAY,BLACK,TRIM2# |
1 | ||
| 67620-2274006 |
LX60,RX60,TX60..SED..XL DARK BROWN & GREIGE,BROWN,TRIM4# |
1 | ||
| 67620-2274004 |
LX60,RX60,TX60..SED..XL BLUE,BLUE,TRIM8# |
1 | ||
| 67651A - GRILLE, SPEAKER DOOR | ||||
| 67652-2201004 |
GX6#,LX60,MX61,RX6#,TX60..AVT,GT,SGT,SXL,XG,XL LH,BLUE,BLUE,TRIM8# |
1 | ||
| 67652-2201001 |
GX6#,LX60,MX61,RX6#,TX60..AVT,GT,SGT,SXL,XG,XL LH,BLACK,BLACK,TRIM2# |
1 | ||
| 67651-2201001 |
GX6#,LX60,MX61,RX6#,TX60..AVT,GT,SGT,SXL,XG,XL RH,BLACK,BLACK,TRIM2# |
1 | ||
| 67652-2201006 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..AVT,GT,SGT,SXL,XG,XL LH,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67651-2201006 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..AVT,GT,SGT,SXL,XG,XL RH,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67651-2201004 |
GX6#,LX60,MX61,RX6#,TX60..AVT,GT,SGT,SXL,XG,XL RH,BLUE,BLUE,TRIM8# |
1 | ||
| 67785A - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) | ||||
| 67785-2202004 |
GX6#,LX60,MX61,RX6#,TX60 BLUE,BLUE,TRIM8# |
2 | ||
| 67785-2202001 |
GX6#,LX60,MX61,RX6#,TX60 BLACK,BLACK,TRIM2# |
2 | ||
| 67785-2202006 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..AVT,DLX,GT,SGT,SXL,XG,XL DARK BROWN,BROWN,TRIM4# |
2 | ||
| 67811 - PAD, FRONT DOOR SILENCER | ||||
| 67812-22040 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-22090 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67831-22090 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-22070 |
GX6#,LX60,RX6#,TX60..SED |
1 | ||
| 67861-22090 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED COLD SPEC |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-22090 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED COLD SPEC |
1 | ||
| 67862-22070 |
GX6#,LX60,RX6#,TX60..SED |
1 | ||
| 67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 67868-30040 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-22080 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED *TT,T=4.0 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-22080 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED *TT,T=4.0 |
1 | ||
| 68141 - RUN, FRONT DOOR GLASS | ||||
| 68141-22040 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED |
2 | ||
| 68143 - RUN, FRONT DOOR GLASS, LOWER | ||||
| 68143-22020 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED |
2 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-22060 |
GX6#,LX60,RX6#,TX60..SED |
2 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-22020 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
2 | ||
| 68610A - PIN(FOR FRONT DOOR CHECK) | ||||
| 68617-22010 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
2 | ||
| Common parts | ||||
| 67771-22010 | ||||
| 67771-22020 | ||||
| 67771-30060 | ||||
| 90159-60046 | ||||
| 90179-06070 | ||||
| 90189-06025 | ||||
| 90541-09006 | ||||
| 90541-09026 | ||||
| 91651-40612 | ||||
| 91661-60816 | ||||
| 93520-14010 | ||||
| Linked diagrams | ||||
| 8202 | ||||
