LX60-DEPNSY (1980)

Toyota Chaser

Production Sep 1980 - Aug 1982
Engine L
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )SED

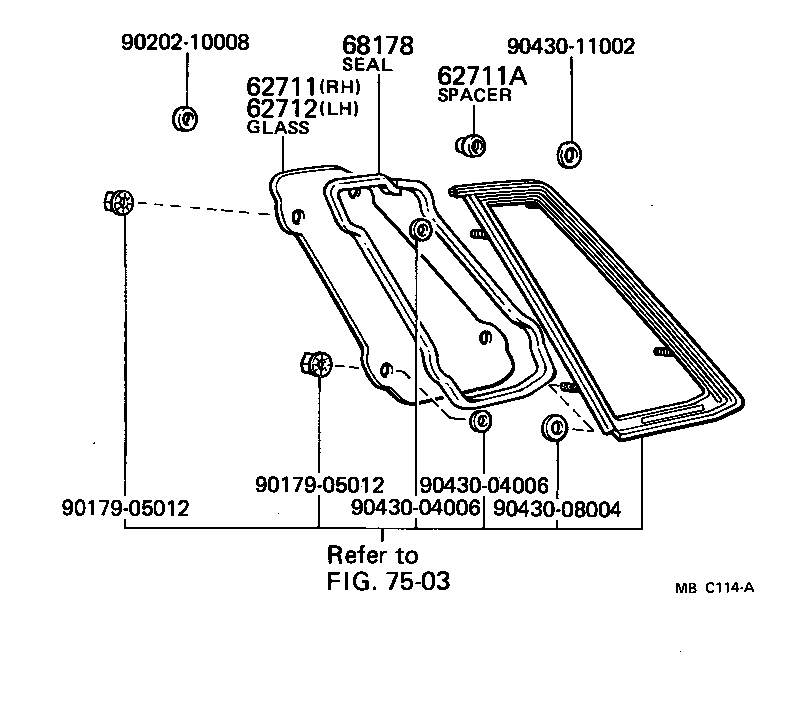

Click highlighted areas on diagram

diagram 62711 62711A 62712 68178 7503 9017905012 9017905012 9020210008 9043004006 9043004006 9043008004 9043011002
Part # Description Qty Price
62711 - GLASS, QUARTER WINDOW, RH
62711-22020

GX6#,LX6#,MX61,RX6#,SX60,TX60..SED..(DLX,GT,SGT,SXL,XG,XL)

 1
62711A - SPACER, QUARTER WINDOW GLASS, NO.1
68137-22010

GX6#,LX6#,MX61,RX6#,SX60,TX60..SED

 8
62712 - GLASS, QUARTER WINDOW, LH
62712-22020

GX6#,LX6#,MX61,RX6#,SX60,TX60..SED..(DLX,GT,SGT,SXL,XG,XL)

 1
68178 - SEAL, QUARTER WINDOW NO.2 GLASS
68177-22010

GX6#,LX6#,MX61,RX6#,SX60,TX60..SED

 2
Common parts
90179-05012
90202-10008
90430-04006
90430-08004
90430-11002
Linked diagrams
7503
