LX60-DEPNSY (1980)
Toyota Chaser
(8009- )SED

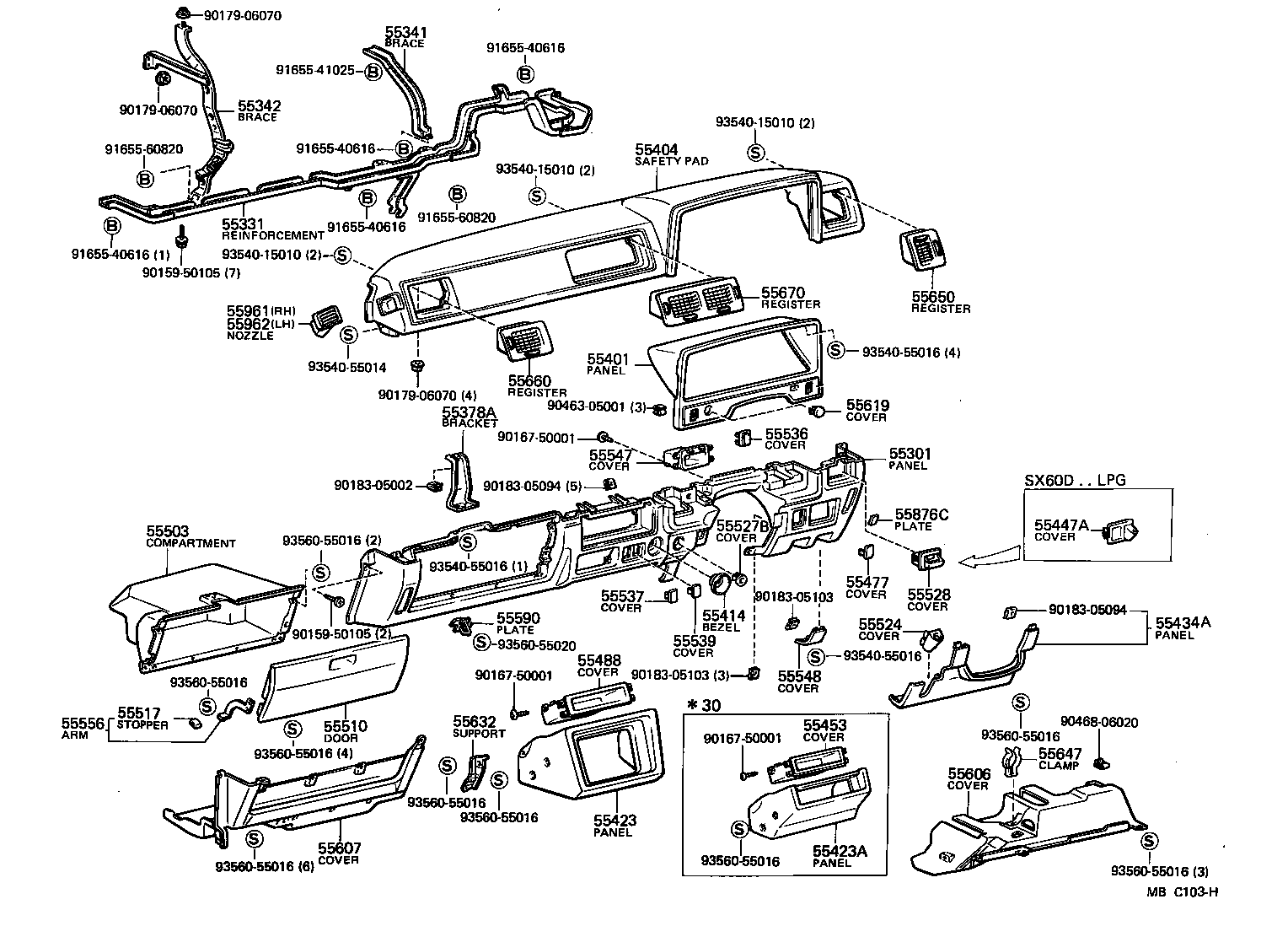

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55311-2208001 |
GX6#,LX60,MX61,RX6#,TX60..SED BLACK,BLACK,TRIM3# |
1 | ||
| 55311-2208004 |
GX6#,LX60,MX61,RX6#,TX60..SED BLUE,BLUE,TRIM8# |
1 | ||
| 55311-2208006 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED..(AVT,DLX,GT,SGT,SXL,XG,XL) DARK BROWN,BROWN,TRIM4# |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55305-22090 |
GX6#,LX60,MX61,RX6#,TX60..SED |
1 | ||
| 55341 - BRACE, INSTRUMENT PANEL, NO.1 | ||||
| 55341-22040 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED |
1 | ||
| 55342 - BRACE, INSTRUMENT PANEL, NO.2 | ||||
| 55306-22070 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED |
1 | ||
| 55378A - BRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING | ||||
| 55378-22020 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED |
1 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55411-22150 |
GX60,LX60,RX6#,TX60..SED |
1 | ||
| 55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER | ||||
| 55401-2219004 |
GX6#,LX60,MX61,RX6#,TX60 BLUE,BLUE,TRIM8# |
1 | ||
| 55401-2219006 |
GX6#,LX6#,MX61,RX60,SX60,TX60..SED..(AVT,DLX,SGT,SXL,XG,XL) DARK BROWN,BROWN,TRIM4# |
1 | ||
| 55401-2219001 |
GX6#,LX60,MX61,RX6#,TX60..SED BLACK,BLACK,TRIM2# |
1 | ||
| 55414 - BEZEL, CIGAR LIGHTER HOLE | ||||
| 55477-22010 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED |
1 | ||
| 55423 - PANEL, STEREO PLAYER FINISH | ||||
| 55423-2202004 |
GX6#,LX60,MX61,RX6#,TX60..SED BLUE,BLUE,TRIM8# |
1 | ||
| 55423-2203004 |
GX6#,LX60,MX61,RX6#,TX60..SED BLUE,BLUE,TRIM8# |
1 | ||
| 55423-2202006 |
GX6#,LX60,MX61,RX6#,TX60..SED DARK BROWN,BROWN,TRIM4# |
1 | ||
| 55423-2202001 |
GX6#,LX60,MX61,RX6#,TX60..SED BLACK,BLACK,TRIM2# |
1 | ||
| 55423-2203001 |
GX6#,LX60,MX61,RX6#,TX60..SED BLACK,BLACK,TRIM2# |
1 | ||
| 55434A - PANEL, INSTRUMENT FINISH, LOWER SUB | ||||
| 55432-2208001 |
GX6#,LX60,MX61,RX6#,TX60..SED BLACK,BLACK,TRIM2# |
1 | ||
| 55432-2208006 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED..(AVT,DLX,GT,SGT,SXL,XG,XL) DARK BROWN,BROWN,TRIM4# |
1 | ||
| 55432-2208004 |
GX6#,LX60,MX61,RX6#,TX60..SED BLUE,BLUE,TRIM8# |
1 | ||
| 55477 - COVER, OVERDRIVE KNOB HOLE | ||||
| 55534-3005004 |
GX6#,LX60,RX6#,TX60..SED..(3FC,4F,5F) BLUE,BLUE,TRIM8# |
1 | ||
| 55534-3005001 |
GX6#,LX60,RX6#,TX60..SED..(3FC,4F,5F) BLACK,BLACK,TRIM2# |
1 | ||
| 55534-3005006 |
GX6#,LX60,RX60,SX60,TX60..SED..(3FC,4F,5F)..(AVT,DLX,SXL,XG,XL) DARK BROWN,BROWN,TRIM4# |
1 | ||
| 55488 - COVER, STEREO OPENING | ||||
| 55521-22020 |
GX6#,LX60,MX61,RX6#,TX60 |
1 | ||
| 55503 - COMPARTMENT SUB-ASSY, GLOVE | ||||
| 55506-22030 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-2204001 |
GX6#,LX60,MX61,RX6#,TX60..SED BLACK,BLACK,TRIM2# |
1 | ||
| 55550-2204004 |
GX6#,LX60,MX61,RX6#,TX60..SED BLUE,BLUE,TRIM8# |
1 | ||
| 55550-2204006 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED..(AVT,DLX,GT,SGT,SXL,XG,XL) DARK BROWN,BROWN,TRIM4# |
1 | ||
| 55517 - STOPPER, GLOVE COMPARTMENT DOOR ARM | ||||
| 55517-14010 |
GX6#,LX60,RX6#,TX60 |
1 | ||
| 55528 - COVER, AUTO DRIVE OPENING | ||||
| 55528-3001001 |
GX6#,LX60,MX61,RX6#,TX60..SED BLACK,BLACK,TRIM2# |
1 | ||
| 55528-3001006 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED..(AVT,DLX,GT,SGT,SXL,XG,XL) DARK BROWN,BROWN,TRIM4# |
1 | ||
| 55528-3001004 |
GX6#,LX60,MX61,RX6#,TX60..SED BLUE,BLUE,TRIM8# |
1 | ||
| 55536 - COVER, REAR WINDOW WIPER SWITCH HOLE | ||||
| 55384-20011 |
GX6#,LX60,RX6#,TX60..SED |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55534-3005001 |
GX6#,LX60,MX61,RX6#,TX60..SED BLACK,BLACK,TRIM2# |
1 | ||
| 55534-3005004 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED BLUE,BLUE,TRIM8# |
1 | ||
| 55534-3005006 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED..(AVT,DLX,GT,SGT,SXL,XG,XL) DARK BROWN,BROWN,TRIM4# |
1 | ||
| 55547 - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-2201004 |
LX60,RX60,TX60..DLX,XL BLUE,BLUE,TRIM8# |
1 | ||
| 55547-2201001 |
LX60,RX60,TX60..DLX,XL BLACK,BLACK,TRIM2# |
1 | ||
| 55547-2201006 |
LX60,RX60,TX60..SED..(DLX,XL) DARK BROWN,BROWN,TRIM4# |
1 | ||
| 55556 - ARM, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55556-22040 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED |
1 | ||
| 55590 - PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER | ||||
| 55590-12010 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-22020 |
GX6#,LX60,MX61,RX6#,TX60 |
1 | ||
| 55606-22070 |
GX6#,LX60,MX61,RX6#,TX60 |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-2201001 |
GX6#,LX60,MX61,RX6#,TX60 BLACK,BLACK,TRIM2# |
1 | ||
| 55607-2201006 |
GX6#,LX60,MX61,RX6#,TX60..SED DARK BROWN,BROWN,TRIM4# |
1 | ||
| 55607-2201004 |
GX6#,LX60,MX61,RX6#,TX60 BLUE,BLUE,TRIM8# |
1 | ||
| 55619 - COVER, SWITCH HOLE | ||||
| 55617-10010 |
GX61,LX6#,MX61,SX60..SED..(DLX,SGT,STD,SXL,XG,XL) |
1 | ||
| 55617-10010 |
LX60,RX60,TX60..SED..(DLX,XL) |
1 | ||
| 55632 - SUPPORT, INSTRUMENT PANEL UNDER TRAY, NO.1 | ||||
| 55631-22060 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-2204004 |
GX6#,LX60,MX61,RX6#,TX60..SED BLUE,BLUE,TRIM8# |
1 | ||
| 55650-2204001 |
GX6#,LX60,MX61,RX6#,TX60..SED BLACK,BLACK,TRIM2# |
1 | ||
| 55650-2204006 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED..(AVT,DLX,GT,SGT,SXL,XG,XL) DARK BROWN,BROWN,TRIM4# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-2204001 |
GX6#,LX60,MX61,RX6#,TX60..SED BLACK,BLACK,TRIM2# |
1 | ||
| 55660-2204006 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED..(AVT,DLX,GT,SGT,SXL,XG,XL) DARK BROWN,BROWN,TRIM4# |
1 | ||
| 55660-2204004 |
GX6#,LX60,MX61,RX6#,TX60..SED BLUE,BLUE,TRIM8# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-2206001 |
GX6#,LX60,MX61,RX6#,TX60..SED BLACK,BLACK,TRIM2# |
1 | ||
| 55670-2206004 |
GX6#,LX60,MX61,RX6#,TX60..SED BLUE,BLUE,TRIM8# |
1 | ||
| 55670-2206006 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED..(AVT,DLX,GT,SGT,SXL,XG,XL) DARK BROWN,BROWN,TRIM4# |
1 | ||
| 55876C - PLATE,SIDE VENTILATOR CONTROL NAME, NO.2 | ||||
| 55876-20010 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
2 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-2203006 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED..(AVT,DLX,GT,SGT,SXL,XG,XL) DARK BROWN,BROWN,TRIM4# |
1 | ||
| 55961-2203001 |
GX6#,LX60,MX61,RX6#,TX60..SED BLACK,BLACK,TRIM2# |
1 | ||
| 55961-2203004 |
GX6#,LX60,MX61,RX6#,TX60..SED BLUE,BLUE,TRIM8# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-2203001 |
GX6#,LX60,MX61,RX6#,TX60..SED BLACK,BLACK,TRIM2# |
1 | ||
| 55962-2203004 |
GX6#,LX60,MX61,RX6#,TX60..SED BLUE,BLUE,TRIM8# |
1 | ||
| 55962-2203006 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED..(AVT,DLX,GT,SGT,SXL,XG,XL) DARK BROWN,BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 90159-50105 | ||||
| 90167-50001 | ||||
| 90179-06070 | ||||
| 90183-05002 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90463-05001 | ||||
| 90468-06020 | ||||
| 91655-40616 | ||||
| 91655-41025 | ||||
| 91655-60820 | ||||
| 93540-15010 | ||||
| 93540-55014 | ||||
| 93540-55016 | ||||
| 93548-55016 | ||||
| 93560-55016 | ||||
| 93560-55020 | ||||
