LX60-DEPNSY (1980)
Toyota Chaser

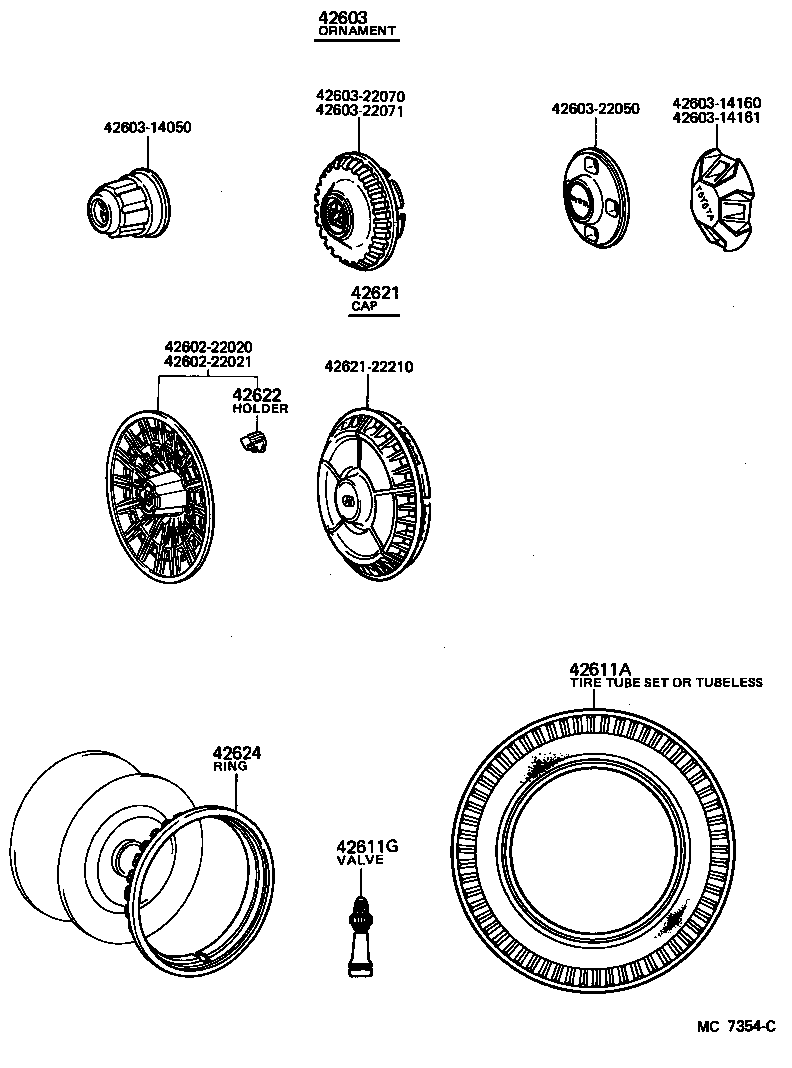

ILLUST NO. 1 OF 2(8009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42603-22070 |
LX60..XL EXTRA |
4 | ||
| 42603-14050 |
LX60,RX60,TX60..DLX,XL |
4 | ||
| 42603-22071 |
LX60,MX61..SGT,XL EXTRA |
4 | ||
| 42611A - TIRE TUBE SET OR TUBELESS TIRE | ||||
| 42652-22240 |
GX60,LX60,RX60,TX60 175SR14,TUBELESS |
5 | ||
| 42605-22140 |
LX60,RX60,TX60 6.45-14-4,W/TUBE |
5 | ||
| 42652-22290 |
GX60,LX60,RX60,TX60 175SR14,TUBELESS |
5 | ||
| 42652-22180 |
LX60,RX60,TX60 6.45-14-4,TUBELESS |
5 | ||
| 42611G - VALVE (FOR TUBELESS TIRE) | ||||
| 90942-05009 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
5 | ||
| 42624 - RING, WHEEL CAP | ||||
| 42624-14030 |
GX6#,LX60,RX6#,TX60..AVT,GT,SGT,SXL,XG,XL |
4 | ||
| 42624-14030 |
GX6#,LX60,MX61,RX6#,TX60..GT,SGT,SXL,XG,XL |
4 | ||
| 42624-14031 |
GX6#,LX60,MX61,RX6#,TX60..GT,SGT,SXL,XG,XL |
4 | ||
| Common parts | ||||
| 42602-22020 | ||||
| 42602-22021 | ||||
| 42603-14050 | ||||
| 42603-14160 | ||||
| 42603-14161 | ||||
| 42603-22050 | ||||
| 42603-22070 | ||||
| 42603-22071 | ||||
| 42621-22210 | ||||

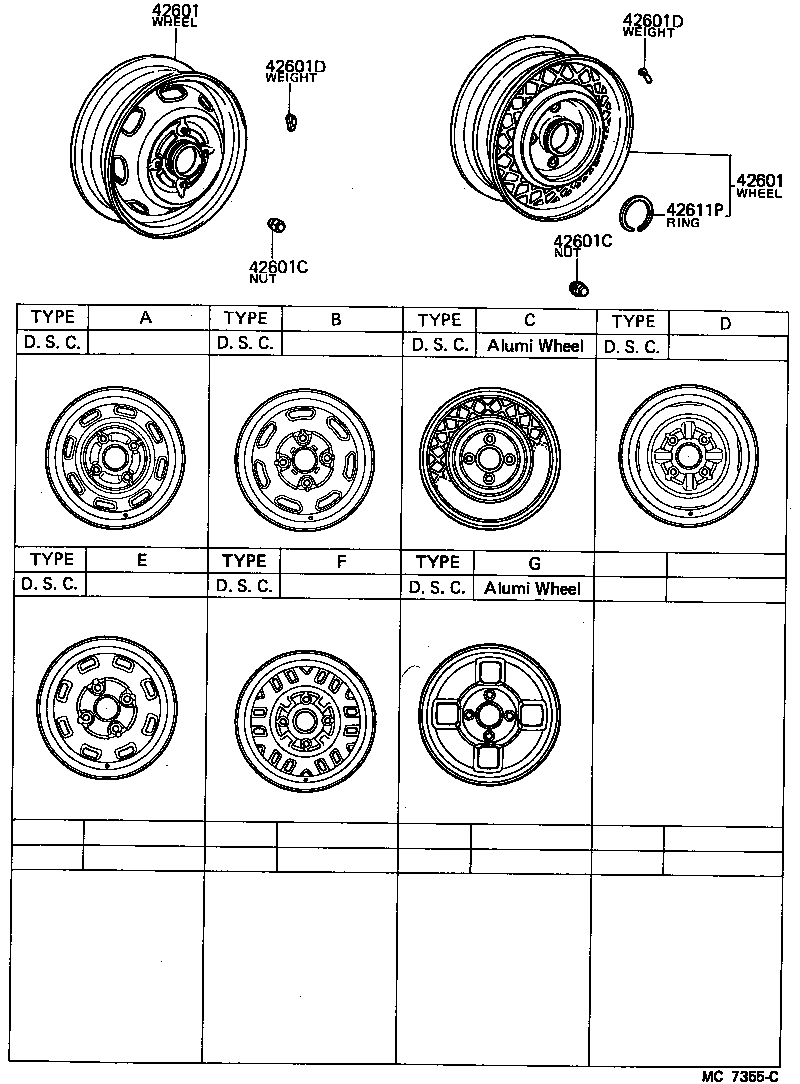

ILLUST NO. 2 OF 2(8009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601 - WHEEL, DISC | ||||
| 42611-20210 |
LX60,RX60,TX60..DLX,XL 5J-14,TYPE A |
5 | ||
| 42611-22200 |
LX60..XL 5J-14,EXTRA,TYPE E |
5 | ||
| 42601 - WHEEL, DISC | ||||
| 42611-20210 |
LX60,RX60,TX60..DLX,XL 5J-14,TYPE A |
5 | ||
| 42611-22200 |
LX60..XL 5J-14,EXTRA,TYPE E |
5 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01021 |
LX60,MX61,RX60,TX60..AVT,DLX,XL |
16 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01021 |
LX60,MX61,RX60,TX60..AVT,DLX,XL |
16 | ||
| 42601D - WEIGHT, BALANCE (FOR DISC WHEEL) | ||||
| 90942-03020 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 30G,厚さ=10,30G |
1 | ||
| 90942-03031 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 80G,厚さ=9.5,80G |
1 | ||
| 90942-03027 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 60G,厚さ=9.5,60G |
1 | ||
| 90942-03017 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 20G,厚さ=8,20G |
1 | ||
| 90942-03029 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 70G,厚さ=9.5,70G |
1 | ||
| 90942-03041 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 10G,厚さ=7.5,10G |
1 | ||
| 90942-03025 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 50G,厚さ=9.5,50G |
1 | ||
| 90942-03022 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 40G,厚さ=9.5,40G |
1 | ||
| 42601D - WEIGHT, BALANCE (FOR DISC WHEEL) | ||||
| 90942-03020 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 30G,厚さ=10,30G |
1 | ||
| 90942-03031 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 80G,厚さ=9.5,80G |
1 | ||
| 90942-03027 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 60G,厚さ=9.5,60G |
1 | ||
| 90942-03017 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 20G,厚さ=8,20G |
1 | ||
| 90942-03029 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 70G,厚さ=9.5,70G |
1 | ||
| 90942-03041 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 10G,厚さ=7.5,10G |
1 | ||
| 90942-03025 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 50G,厚さ=9.5,50G |
1 | ||
| 90942-03022 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 40G,厚さ=9.5,40G |
1 | ||
