LX60-DEPNSY (1980)

Toyota Chaser

Production Sep 1980 - Aug 1982
Engine L
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )GX61,LX6#,MX61,TX60..ATM

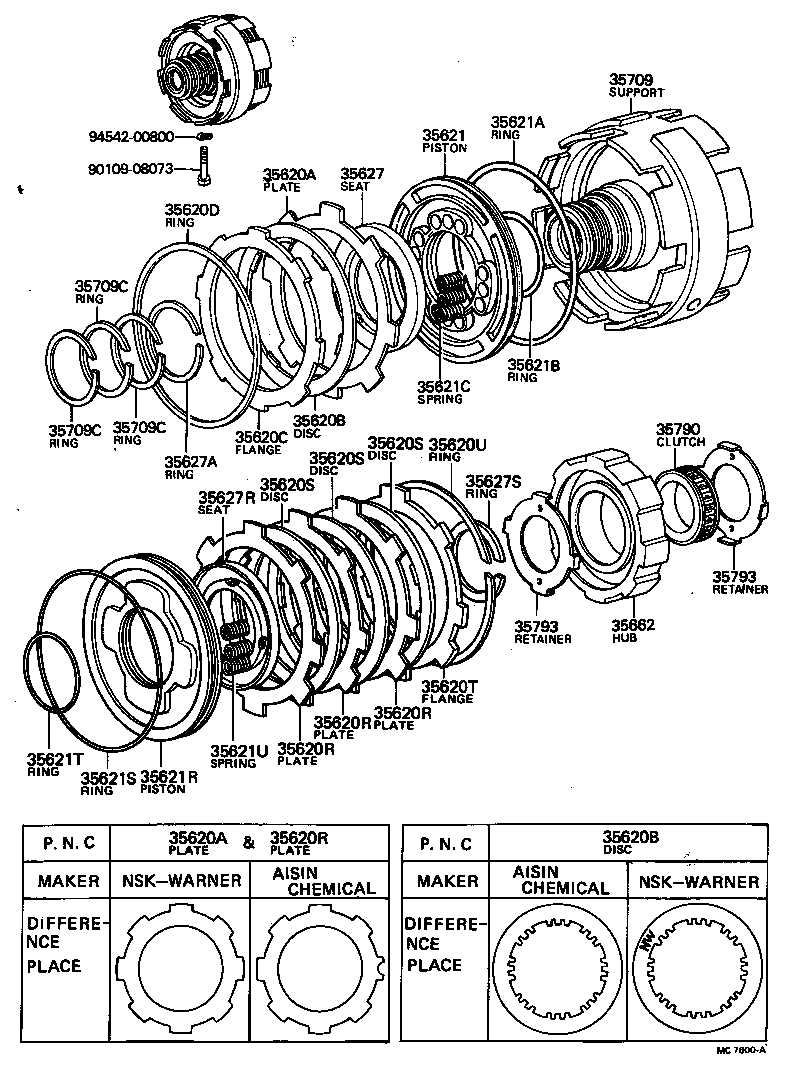

Click highlighted areas on diagram

diagram 35620A 35620A 35620B 35620B 35620C 35620D 35620R 35620R 35620R 35620R 35620S 35620S 35620S 35620T 35620U 35621 35621A 35621B 35621C 35621R 35621S 35621T 35621U 35627 35627A 35627R 35627S 35662 35709 35709C 35709C 35709C 35790 35793 35793 9010908073 9454200800
Part # Description Qty Price
35620A - PLATE, CLUTCH (FOR BRAKE)
35634-22060

LX60,TX60..ATM

NSK-WARNER

 1
35634-22090

LX60,TX60..ATM

AISIN CHEMICAL

 1
35620A - PLATE, CLUTCH (FOR BRAKE)
35634-22060

LX60,TX60..ATM

NSK-WARNER

 1
35634-22090

LX60,TX60..ATM

AISIN CHEMICAL

 1
35620B - DISC, CLUTCH (FOR BRAKE)
35677-22030

LX60,TX60..ATM

AISIN CHEMICAL

 1
35677-22020

LX60,TX60..ATM

NSK-WARNER

 1
35620B - DISC, CLUTCH (FOR BRAKE)
35677-22030

LX60,TX60..ATM

AISIN CHEMICAL

 1
35677-22020

LX60,TX60..ATM

NSK-WARNER

 1
35620C - FLANGE, CLUTCH (FOR BRAKE)
35675-22010

GX6#,LX6#,MX61,RX60,SX60,TX60..ATM

T=4.0

 1
35620D - RING (FOR BRAKE)
90521-99139

GX6#,LX6#,MX61,RX60,SX60,TX60..ATM

 1
35620R - PLATE, CLUTCH (FOR REAR BRAKE)
35634-22090

LX60,TX60..ATM

AISIN CHEMICAL

 3
35634-22060

LX60,TX60..ATM

NSK-WARNER

 3
35620R - PLATE, CLUTCH (FOR REAR BRAKE)
35634-22090

LX60,TX60..ATM

AISIN CHEMICAL

 3
35634-22060

LX60,TX60..ATM

NSK-WARNER

 3
35620R - PLATE, CLUTCH (FOR REAR BRAKE)
35634-22090

LX60,TX60..ATM

AISIN CHEMICAL

 3
35634-22060

LX60,TX60..ATM

NSK-WARNER

 3
35620R - PLATE, CLUTCH (FOR REAR BRAKE)
35634-22090

LX60,TX60..ATM

AISIN CHEMICAL

 3
35634-22060

LX60,TX60..ATM

NSK-WARNER

 3
35620S - DISC, CLUTCH (FOR REAR BRAKE)
35677-22040

LX60,TX60..ATM

 2
35620S - DISC, CLUTCH (FOR REAR BRAKE)
35677-22040

LX60,TX60..ATM

 2
35620S - DISC, CLUTCH (FOR REAR BRAKE)
35677-22040

LX60,TX60..ATM

 2
35620T - FLANGE, CLUTCH (FOR REAR BRAKE)
35675-22010

LX60,TX60..ATM

 1
35620U - RING (FOR REAR BRAKE)
90521-99139

LX60,TX60..ATM

 1
35621 - PISTON, BRAKE, NO.1
35621-22010

LX60,TX60..ATM

 1
35621A - RING, O (FOR BRAKE PISTON OUTER)
90301-99192

LX60,TX60..ATM

 1
90301-99192

GX61,LX60,MX61,TX60..ATM

A40,A42D,A42DL,A43D

 1
35621B - RING, O (FOR BRAKE PISTON INNER)
90301-57188

GX6#,LX6#,MX61,RX60,SX60,TX60..ATM

 1
35621C - SPRING (FOR BRAKE PISTON RETURN)
90501-10671

LX60,MX61,TX60..ATM

 12
35621R - PISTON, BRAKE (FOR REAR BRAKE)
35621-22010

LX60,TX60..ATM

 1
35621S - RING (FOR REAR BRAKE PISTON OUTER)
90301-99192

LX60,TX60..ATM

 1
35621T - RING (FOR REAR BRAKE PISTON INNER)
90301-57188

GX61,LX60,MX61,TX60..ATM

 1
90301-57188

LX60,TX60..ATM

 1
35621U - SPRING (FOR REAR BRAKE PISTON RETURN)
90501-10671

GX61,LX60,MX61,TX60..ATM

 12
90501-10671

LX60,TX60..ATM

 12
35627 - SEAT, BRAKE RETURN SPRING
35627-22010

GX6#,LX6#,MX61,RX60,SX60,TX60..ATM

 1
35627A - RING, SHAFT SNAP (FOR BRAKE RETURN SPRING SEAT)
90520-52262

GX6#,LX6#,MX61,RX60,SX60,TX60..ATM

 1
35627R - SEAT, BRAKE RETURN SPPING (FOR REAR BRAKE)
35627-22010

LX60,TX60..ATM

 1
35627S - RING, SHAFT SNAP (FOR REAR BRAKE RETURN SPRING SEAT)
90520-52262

LX60,TX60..ATM

 1
35662 - HUB, BRAKE
35662-22011

GX61,LX60,TX60..ATM

 1
35709 - SUPPORT SUB-ASSY, CENTER
35709-22012

LX60,TX60..ATM

 1
35709-22011

LX60,TX60..ATM

 1
35709C - RING, OIL SEAL (FOR CENTER SUPPORT)
35617-22020

GX6#,LX60,RX60,TX60..ATM

 3
35709C - RING, OIL SEAL (FOR CENTER SUPPORT)
35617-22020

GX6#,LX60,RX60,TX60..ATM

 3
35709C - RING, OIL SEAL (FOR CENTER SUPPORT)
35617-22020

GX6#,LX60,RX60,TX60..ATM

 3
35790 - CLUTCH ASSY, 1 WAY
35791-22020

LX60..4FC

 1
35791-30020

LX60..4FC

 1
35793 - RETAINER, 1 WAY CLUTCH
35793-22011

LX60,TX60..ATM

 2
35793 - RETAINER, 1 WAY CLUTCH
35793-22011

LX60,TX60..ATM

 2
Common parts
90109-08073
94542-00800
