LX60-DEPNSY (1980)
Toyota Chaser
Production
Sep 1980
-
Aug 1982
Engine
L
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8009- )L,2LTE

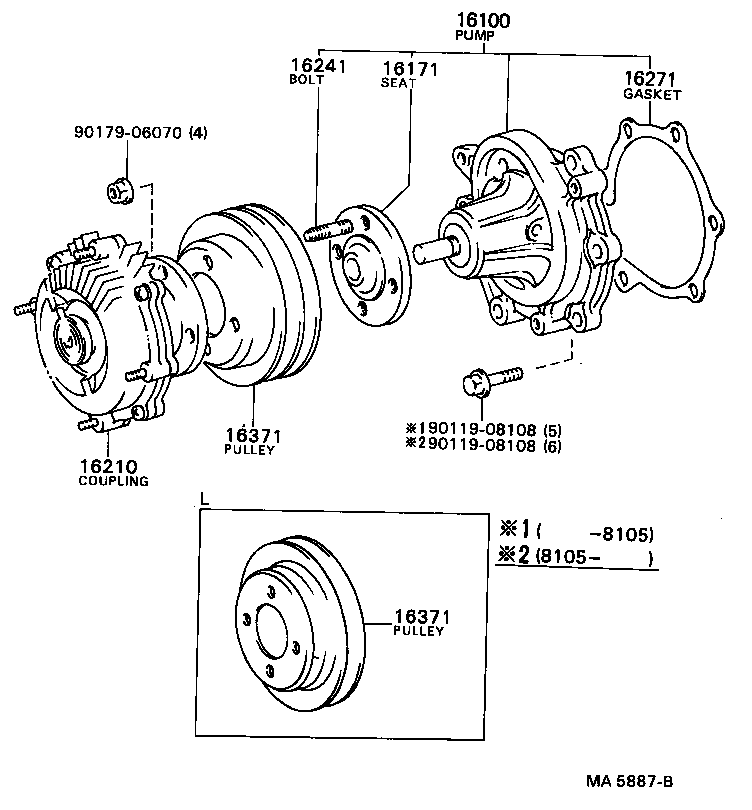

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-59049 |
L..LX60 |
1 | ||
| 16100-59125 |
L..LX60 |
1 | ||
| 16171 - SEAT, WATER PUMP PULLEY | ||||
| 16171-54010 |
L..LX60 |
1 | ||
| 16210 - COUPLING ASSY, FLUID | ||||
| 16210-54030 |
L..LX60 |
1 | ||
| 16241 - BOLT, STUD(FOR WATER PUMP COUPLING) | ||||
| 16193-54010 |
L..LX60 |
4 | ||
| 16271 - GASKET, WATER PUMP | ||||
| 16271-54011 |
L..LX60 |
1 | ||
| 16371 - PULLEY, FAN | ||||
| 16371-54010 |
L..LX60 |
1 | ||
| 16371 - PULLEY, FAN | ||||
| 16371-54010 |
L..LX60 |
1 | ||
| Common parts | ||||
| 90119-08108 | ||||
| 90179-06070 | ||||
