LX60-DEPNS (1982)

Toyota Chaser

Production Aug 1982 - Jul 1984
Engine L
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

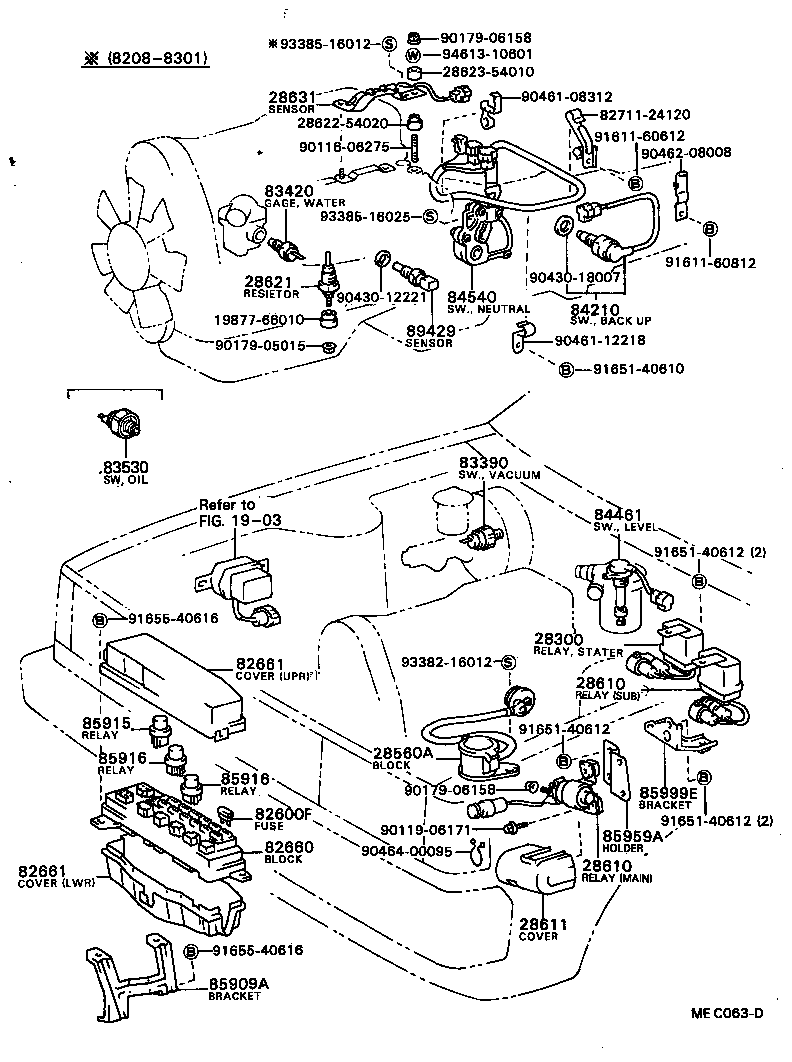

ILLUST NO. 1 OF 7(8208- )LX6#

Click highlighted areas on diagram

diagram 1903 1987766010 28300 28560A 28610 28610 28611 28621 2862254020 2862354010 28631 82600F 82660 82661 82661 8271124120 83390 83420 83530 84210 84461 84540 85909A 85915 85916 85916 85959A 85999E 89429 9011606275 9011906171 9017905015 9017906158 9017906158 9043012221 9043018007 9046108312 9046112218 9046208008 9046400095 9161160612 9161160812 9165140610 9165140612 9165140612 9165140612 9165540616 9165540616 9338216012 9338516012 9338516025 9461310601
Part # Description Qty Price
28300 - RELAY ASSY, STARTER
28300-54030

L,2LTE..LX6#

 1
28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG
28610-54130

L,2LTE..LX6#

SUB

 1
28610-54030

L..LX60

MAIN

 1
28610-54060

L..LX60

SUB

 1
28610-64020

L,2LTE..LX6#

MAIN

 1
28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG
28610-54130

L,2LTE..LX6#

SUB

 1
28610-54030

L..LX60

MAIN

 1
28610-54060

L..LX60

SUB

 1
28610-64020

L,2LTE..LX6#

MAIN

 1
28611 - COVER, GLOW PLUG RELAY
28611-64010

L,2LTE..LX6#

 1
28621 - RESISTOR, GLOW PLUG
28621-54031

L..LX60

 1
28621-54020

L..LX60

 1
28631 - SENSOR, GLOW PLUG CURRENT
28631-54010

L,2LTE..LX6#

 1
28631-54040

L,2LTE..LX6#

 1
82600F - FUSE, FUSE BLOCK
90982-09004

GX6#,LX6#,MX61,RX6#,SX60,TX60

20A,黄,20A

 2
90982-09005

GX6#,LX6#,MX61,RX6#,SX60,TX60

7.5A,7.5A

 6
90982-09003

GX6#,LX6#,MX61,RX6#,SX60,TX60

15A,15A

 11
90982-09001

GX6#,LX6#,MX61,RX6#,SX60,TX60

5A,5A

 1
90982-09002

GX61,LX6#,MX61,SX60

10A,10A

 1
82660 - BLOCK ASSY, RELAY, ENGINE ROOM
82660-22080

LX60,RX60,SX60,TX60

YAZAKI

 1
82660-22071

LX60,RX60,SX60,TX60

SUMITOMO

 1
82660-22160

LX60,SX60

YAZAKI

 1
82660-22150

LX60,SX60

SUMITOMO

 1
82661 - COVER, RELAY BLOCK, NO.1
82661-22080

GX61,LX6#,MX61,SX60

UPR,YAZAKI

 1
82661-22011

GX6#,LX60,MX61,RX6#,TX60

UPR,SUMITOMO

 1
82661-22060

GX6#,LX60,MX61,RX6#,TX60

LWR,YAZAKI

 1
82661-22070

GX61,LX6#,MX61,SX60

UPR,SUMITOMO

 1
82661-22040

GX6#,LX60,MX61,RX6#,TX60

UPR,YAZAKI

 1
82661-20020

GX61,LX6#,MX61,SX60

UPR

 1
82661-22030

GX6#,LX60,MX61,RX6#,TX60

LWR,SUMITOMO

 1
82661 - COVER, RELAY BLOCK, NO.1
82661-22080

GX61,LX6#,MX61,SX60

UPR,YAZAKI

 1
82661-22011

GX6#,LX60,MX61,RX6#,TX60

UPR,SUMITOMO

 1
82661-22060

GX6#,LX60,MX61,RX6#,TX60

LWR,YAZAKI

 1
82661-22070

GX61,LX6#,MX61,SX60

UPR,SUMITOMO

 1
82661-22040

GX6#,LX60,MX61,RX6#,TX60

UPR,YAZAKI

 1
82661-20020

GX61,LX6#,MX61,SX60

UPR

 1
82661-22030

GX6#,LX60,MX61,RX6#,TX60

LWR,SUMITOMO

 1
83390 - SWITCH ASSY, VACUUM WARNING
83390-30020

LX6#

 1
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-20020

GX6#,LX6#,MX61,RX6#,SX60,TX60

YAZAKI

 1
83420-16010

GX6#,LX6#,MX61,RX6#,SX60,TX60

DENSO

 1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-36011

LX6#

 1
84461 - SWITCH, LEVEL WARNING
84461-30040

LX6#

 1
84540 - SWITCH ASSY, NEUTRAL START
84540-30191

GX6#,LX60..4FC

 1
84540-14080

LX6#,MX61,SX60..4FC

 1
84540-14080

LX6#,SX60..4FC

 1
85909A - BRACKET SUB-ASSY, RELAY BLOCK
85909-22010

GX6#,LX6#,MX61,RX6#,SX60,TX60

 1
85915 - RELAY, MAIN
90987-02004

GX6#,LX60,RX6#,TX60

 1
85916 - RELAY, LIGHT CONTROL
90987-01003

GX61,LX6#,MX61,SX60

TAIL

 1
90987-01003

GX6#,LX6#,MX61,RX6#,SX60,TX60

 2
90987-02006

GX61,LX6#,MX61,SX60

HEAD

 1
85916 - RELAY, LIGHT CONTROL
90987-01003

GX61,LX6#,MX61,SX60

TAIL

 1
90987-01003

GX6#,LX6#,MX61,RX6#,SX60,TX60

 2
90987-02006

GX61,LX6#,MX61,SX60

HEAD

 1
85959A - HOLDER, RELAY
85959-22050

LX6#

 1
85999E - BRACKET, RELAY, NO.5
85999-22080

LX60

STARTER & GLOW RELAY

 1
85959-22040

LX6#

STARTER RELAY

 1
89429 - SENSOR, OIL TEMPERATURE
89422-30020

LX6#

 1
Common parts
19877-66010
28622-54020
28623-54010
82711-24120
90116-06275
90119-06171
90179-05015
90179-06158
90430-12221
90430-18007
90461-08312
90461-12218
90462-08008
90464-00095
91611-60612
91611-60812
91651-40610
91651-40612
91655-40616
93382-16012
93385-16012
93385-16025
94613-10601
